Model Image
Manufacturer

Electrolux

Model Number

FGGF304DPFD

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318322801 318322801 ANGLE
318584501 318584501 ANTI TIP KIT
318260526 318260526 BAFFLE
316443932 316443932 BOARD
808743401 808743401 BOARD,EMI FILTER,GAS
318571400 318571400 BRACE
318387304 318387304 BRACKET
318573700 318573700 BRACKET
318935300 318935300 BRACKET
318291900 318291900 BRACKET
318405703 318405703 BRACKET
318338520 318338520 BRACKET
318535405 318535405 BRACKET SIDE (4)
318946400 318946400 BULB
318946500 318946500 BULB
357710306 357710306 BURNER

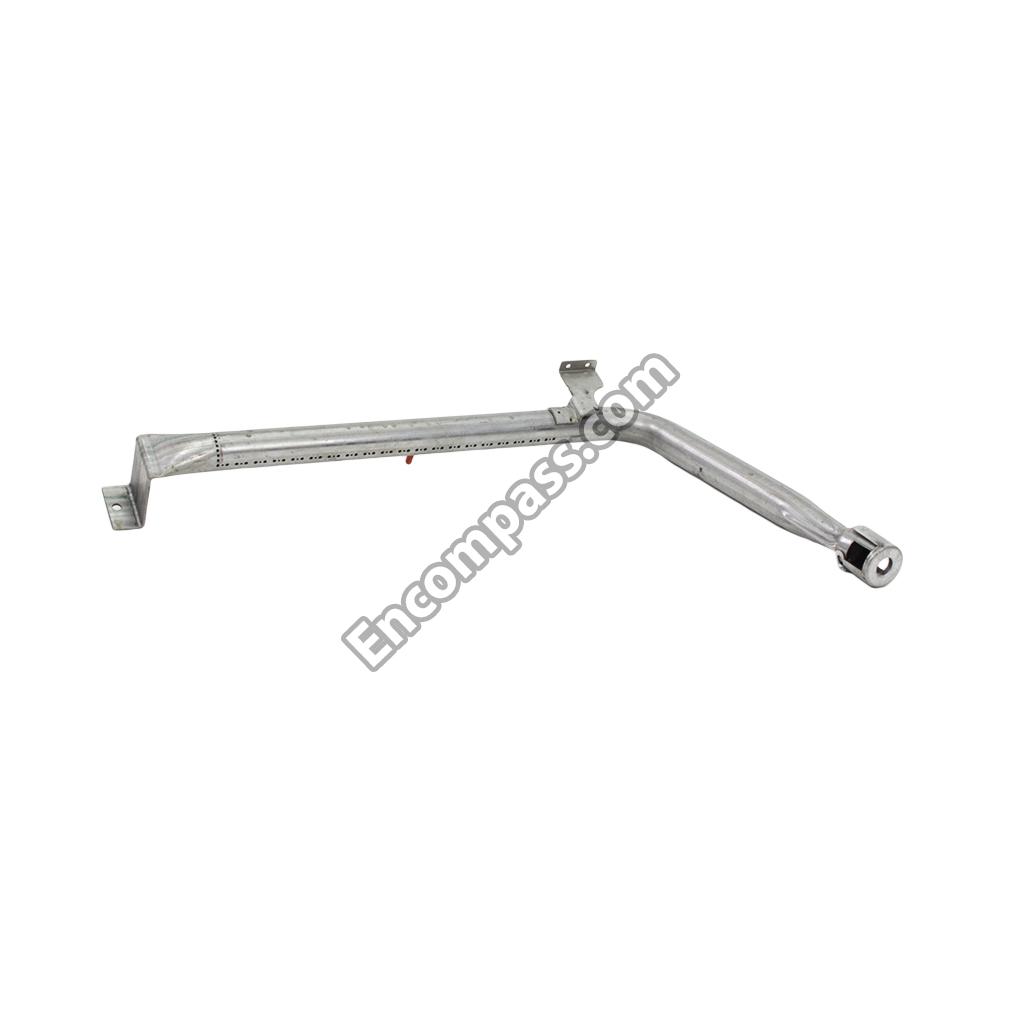

316261500 316261500 BURNER
316438200 316438200 BURNER
316438400 316438400 BURNER
316438600 316438600 BURNER
316558300 316558300 BURNER
316546601 316546601 CAP
807437103 807437103 CAP
807437104 807437104 CAP
318167300 318167300 CLIP
318565451 318565451 CONVERSION KIT
807108201 807108201 CORD
5304494168 5304494168 COVER,CONVECTION FAN
318587800 318587800 DEFLECTOR
316211603 316211603 ELEMENT
318398302 318398302 FAN BLADE
316281700 316281700 FITTING
318942901 318942901 FLUE ASSEMBLY
318212212 318212212 GLASS
318212216 318212216 GLASS
316554008 316554008 HANDLE
318572705 318572705 HARNESS
316489406 316489406 IGNITOR
316489405 316489405 IGNITOR
316489400 316489400 IGNITOR
316536616 316536616 IGNITOR/ORIFICE ASS
316536622 316536622 IGNITOR/ORIFICE ASS
316536623 316536623 IGNITOR/ORIFICE ASS
316536602 316536602 IGNITOR/ORIFICE ASS
316536610 316536610 IGNITOR/ORIFICE ASS
318126401 318126401 INSERT
318346068 318346068 INSULATION
318372017 318372017 INSULATION
318372016 318372016 INSULATION,DOOR
316483100 316483100 LABEL
139009000 139009000 LAMP ASSEMBLY
139001800 139001800 LAMP ASSEMBLY,HALOGEN,26 HARN
316610014 316610014 MAIN TOP
316281300 316281300 MIXER ELBOW
316262404 316262404 MODULE,SPARK
318095967 318095967 MOTOR
316256900 316256900 MOTORFAN
5303013272 5303013272 NUT
316136600 316136600 NUT
316527504 316527504 ORIFICE
316527509 316527509 ORIFICE
316527511 316527511 ORIFICE
318138801 318138801 PAN
318573507 318573507 PANEL
318407100 318407100 PANEL
318405404 318405404 PANEL
316281600 316281600 PIPE
318938701 318938701 PLATE
5303320846 5303320846 PLATE
139011600 139011600 RACK
139012400 139012400 RACK
318922316 318922316 RACK
318561101 318561101 RECEPTACLE
316470716 316470716 REGULATOR
318250207 318250207 ROD
316021105 316021105 SCREW
316021110 316021110 SCREW
316540900 316540900 SCREW
316021109 316021109 SCREW
316240600 316240600 SCREW
316215600 316215600 SCREW
316418900 316418900 SCREW
316001003 316001003 SCREW
3131732 3131732 SCREW
5303289910 5303289910 SCREW
5303324184 5303324184 SCREW
807597603 807597603 SCREW
139098502 139098502 SEAL,OVEN DOOR,GRAY
318562500 318562500 SENSOR
316557600 316557600 SHIELD
318534922 318534922 SHIELD
318571500 318571500 SHIELD
316517600 316517600 SPACER
316247900 316247900 SPACER
316114100 316114100 SPACER
5303311164 5303311164 SPRING
316536100 316536100 TRANSFORMER
318405203 318405203 TRIM,BOTTOM,BLACK
316259900 316259900 TUBE
316281200 316281200 TUBE
316256700 316256700 VALVE
318087450 318087450 VALVE
316259600 316259600 VALVE
5303935305 5303935305 VALVE
5303935306 5303935306 VALVE
5303935308 5303935308 VALVE

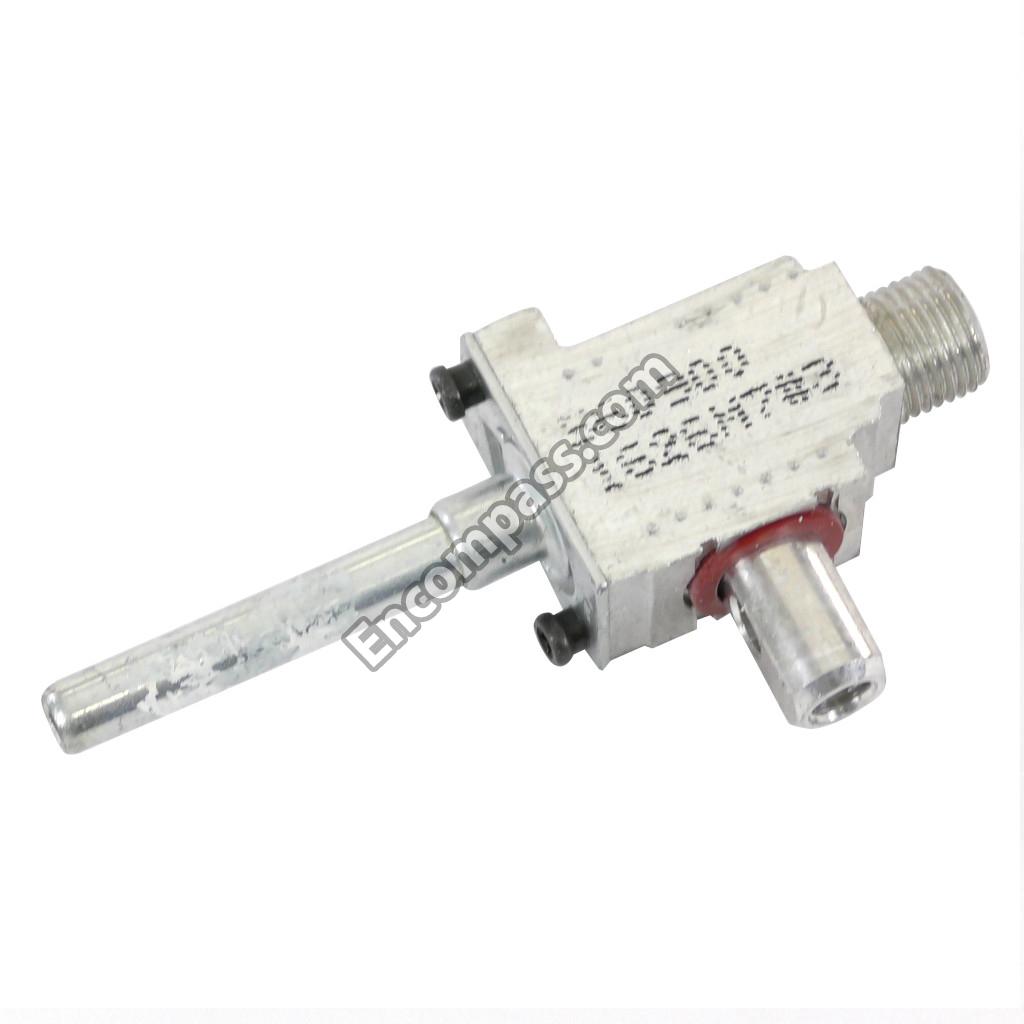

5304487866 5304487866 VALVE
5303935309 5303935309 VALVETOP BURNER
5304436864 5304436864 WASHER
318199790 318199790 WIRING HARNESS
