Model Image
Manufacturer

Electrolux

Model Number

FGGS3045KFC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318335500 318335500 ANTI-TIP & ACCESSOR
318259220 318259220 BACK
318260531 318260531 BAFFLE
318290400 318290400 BAFFLE
316401301 316401301 BAFFLE
318568201 318568201 BOX
318568200 318568200 BOX
318291800 318291800 BOX
318288801 318288801 BOX
318382301 318382301 BRACKET
318370600 318370600 BRACKET
318242702 318242702 BRACKET
318298410 318298410 BRACKET
318288701 318288701 BRACKET
318291900 318291900 BRACKET
318579301 318579301 BRACKET
318579001 318579001 BRACKET
318367401 318367401 BRACKET
318906703 318906703 BRACKET
318262810 318262810 BRACKET
318921300 318921300 BRACKET
318928500 318928500 BRACKET
316558300 316558300 BURNER
318292300 318292300 BURNER
318292200 318292200 BURNER
316438200 316438200 BURNER
316438400 316438400 BURNER
316438000 316438000 BURNERSEALED 12K B

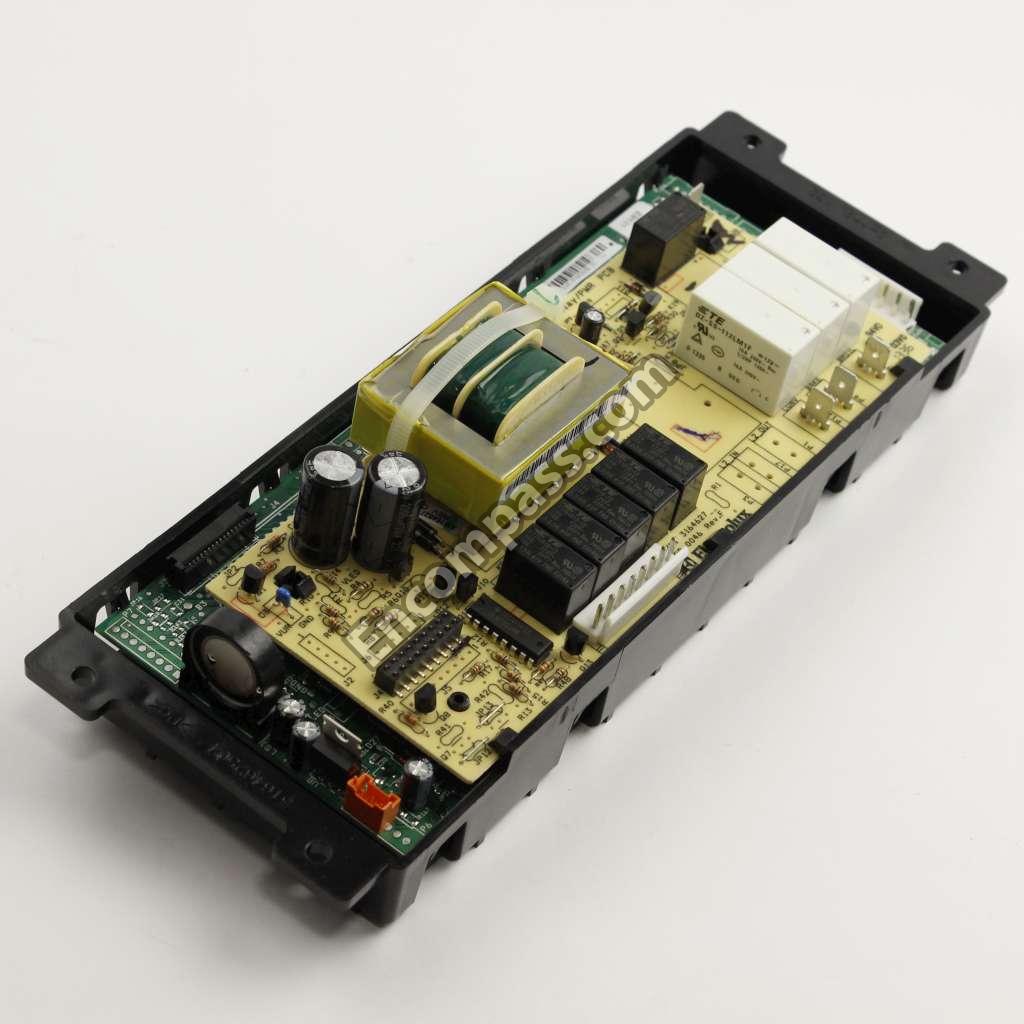

316560141 316560141 CONTROLLER
318565400 318565400 CONVERSION KIT
318569265 318569265 COOK TOP ASSEMBLY BLACK
318262111 318262111 COVER
318291102 318291102 COVER
318308303 318308303 COVER
318219405 318219405 COVER
318913300 318913300 DEFLECTOR
318927805 318927805 DOOR ASSEMBLY
318107313 318107313 DRAWER
318570603 318570603 DUCT
316409703 316409703 ELBOW
318255504 318255504 ELEMENT
318398302 318398302 FAN BLADE
318298230 318298230 FRAME
318298226 318298226 FRAME
318056292 318056292 FRONT
318053132 318053132 GASKET
318212210 318212210 GLASS
316117500 316117500 GLASS
318259505 318259505 GLIDE
318259504 318259504 GLIDE
318330600 318330600 GLIDE
318560470 318560470 GRATE
318268600 318268600 HARNESS
318567100 318567100 HINGE
318222400 318222400 HOUSING
318177710 318177710 IGNITOR
316540800 316540800 IGNITOR/ORIFICE ASS
316540702 316540702 IGNITOR/ORIFICE ASS
316540700 316540700 IGNITOR/ORIFICE ASS
316543203 316543203 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
318285099 318285099 INSULATION
318594400 318594400 INSULATION
318594510 318594510 INSULATION
318386116 318386116 INSULATION
316564410 316564410 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
318411646 318411646 LINER
318913400 318913400 MANIFOLD
318907200 318907200 MANIFOLD
316135702 316135702 MODULE
318575603 318575603 MOTOR
316136600 316136600 NUT
316527509 316527509 ORIFICE
316527504 316527504 ORIFICE
316527502 316527502 ORIFICE
316081900 316081900 PAN
318295611 318295611 PANEL
318225210 318225210 PANEL
318225110 318225110 PANEL
318287800 318287800 PANEL
318290501 318290501 PANEL
318225211 318225211 PANEL
318296905 318296905 PANEL
318296904 318296904 PANEL
318327500 318327500 PANEL
318289401 318289401 PANEL
318260007 318260007 PANEL
318912905 318912905 PANEL
318922131 318922131 PANEL ASSEMBLY
5303320846 5303320846 PLATE
318919801 318919801 RACK
318922301 318922301 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5303311174 5303311174 SCREW
5304440988 5304440988 SCREW
5303300265 5303300265 SCREW
5303307980 5303307980 SCREW
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
5303323129 5303323129 SCREW
5303323139 5303323139 SCREW
5303324184 5303324184 SCREW
316215600 316215600 SCREW
5303211311 5303211311 SCREW
5303323277 5303323277 SCREW
5303300195 5303300195 SCREW
5304463705 5304463705 SCREW
5304436875 5304436875 SCREW
5304454881 5304454881 SCREW
5304453707 5304453707 SCREW
316240600 316240600 SCREW,HEX WASH,6-32 X .485
318291300 318291300 SEAL
318562500 318562500 SENSOR
318259105 318259105 SHIELD
318165800 318165800 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318192400 318192400 SPRING
316445501 316445501 SWITCH
318578506 318578506 THERMOSTAT
316536100 316536100 TRANSFORMER
318260401 318260401 TRIM
318913118 318913118 TRIM
318249409 318249409 TUBE
318913500 318913500 TUBE
318305203 318305203 TUBE
318916500 318916500 TUBE
318913600 318913600 TUBE
318916800 318916800 TUBE
318916700 318916700 TUBE
318916600 318916600 TUBE
318289500 318289500 TUBE
316404901 316404901 VALVE
318915704 318915704 VALVE
318915702 318915702 VALVE
318915701 318915701 VALVE
318915700 318915700 VALVE
3201909 3201909 WASHER
318199776 318199776 WIRING HARNESS
318232659 318232659 WIRING HARNESS
