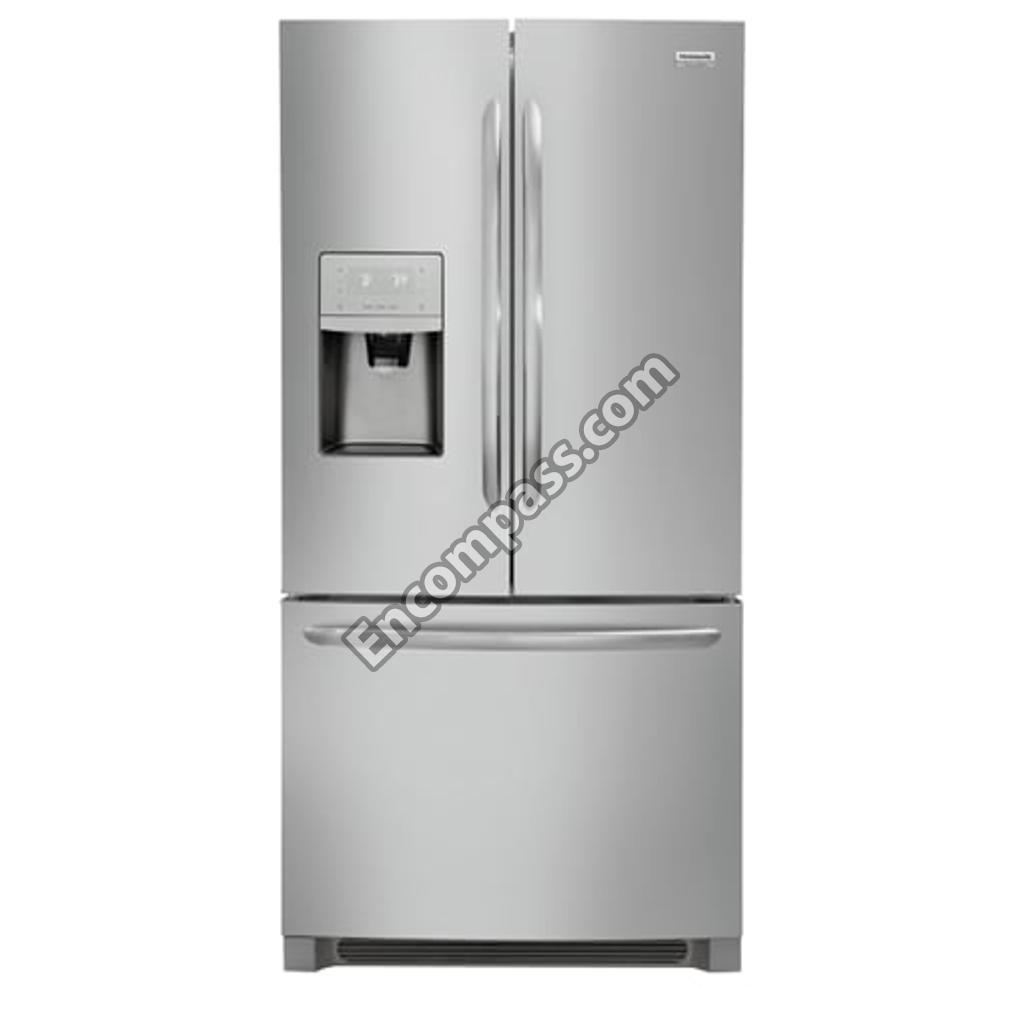

Model Image
Manufacturer

Electrolux

Model Number

FGHB2868TF7

Description

Bottom-mount Refrigerator

Interactive Exploded View

Parts List

Part Number Description
5304508008 5304508008 AIR DUCT GASKET, LOWER
5304512656 5304512656 AIR FILTER COVER
5304508270 5304508270 ALLEN WRENCH
216396900 216396900 APPLIANCE LEVELING LEG
241602112 241602112 BASE-COMPRES
5304508007 5304508007 BRACKET,FAN MOTOR MTG.
5304510345 5304510345 BUFFER,SHELF ,AIR
5304508035 5304508035 CHANNEL-SHELF MTG,SIDE ,LH
240396801 240396801 CLAMP TUBE (BLACK)
241812301 241812301 COMPRESSOR WASHER

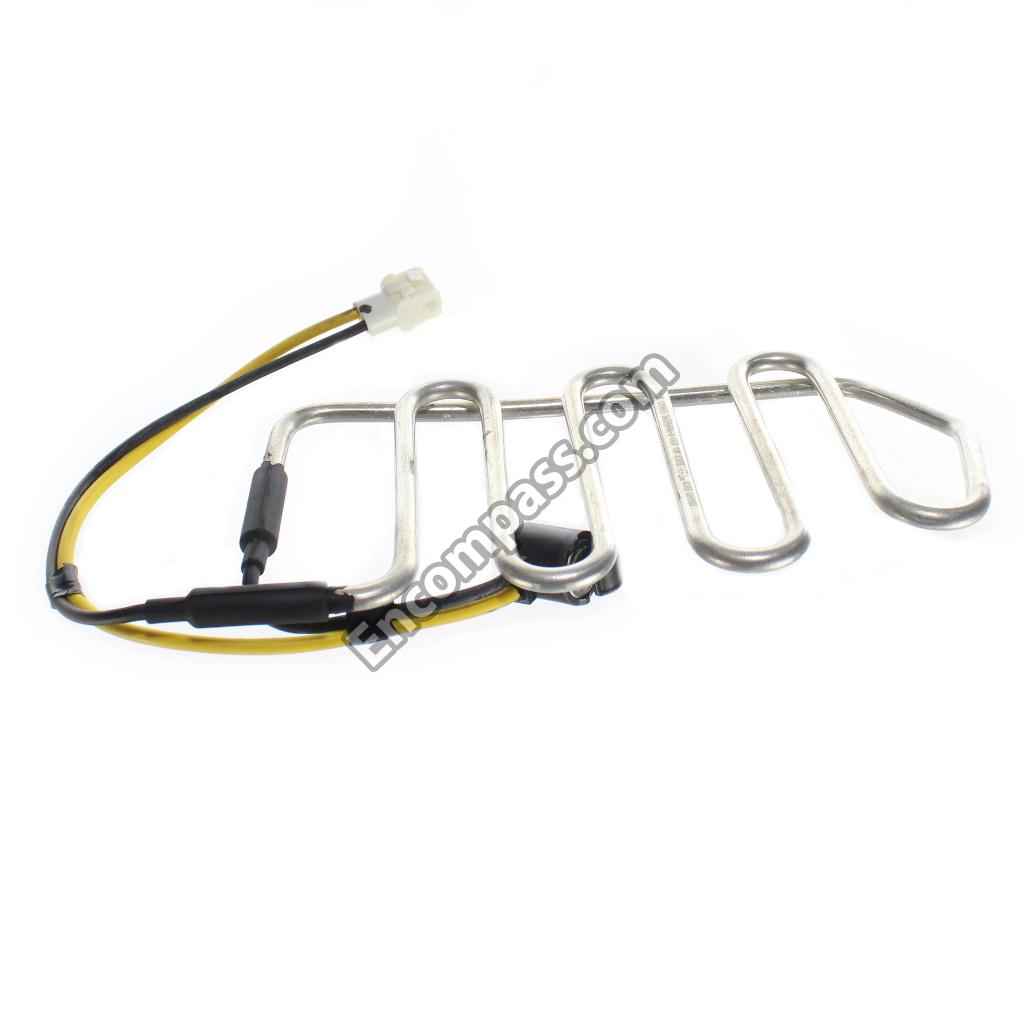

240356229 240356229 DEFROST HEATER
5304508018 5304508018 DELI COVER SUPPORT, LEFT
5304508077 5304508077 DOOR BUMPER, LOWER
242012002 242012002 DOOR LINER
5304508038 5304508038 DOOR STOP ASSEMBLY WITH BUSHING, LEFT
242006903 242006903 DUCT-FRZ AIR

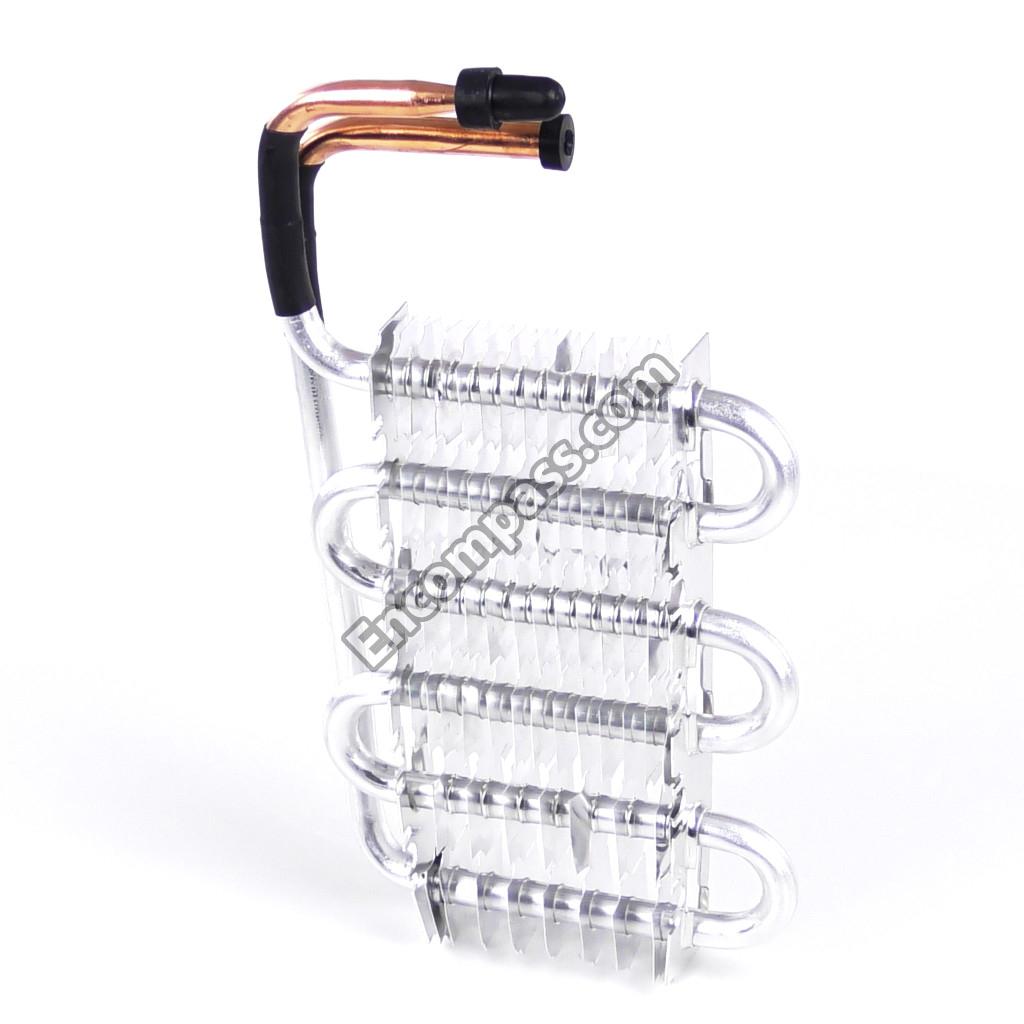

242094701 242094701 EVAPORATOR,ASSEMBLY ,ICE MAKER
5304508072 5304508072 FAN SUPPORT
5303305677 5303305677 FILTER
218755402 218755402 FREEZER DOOR HANDLE SET SCREW

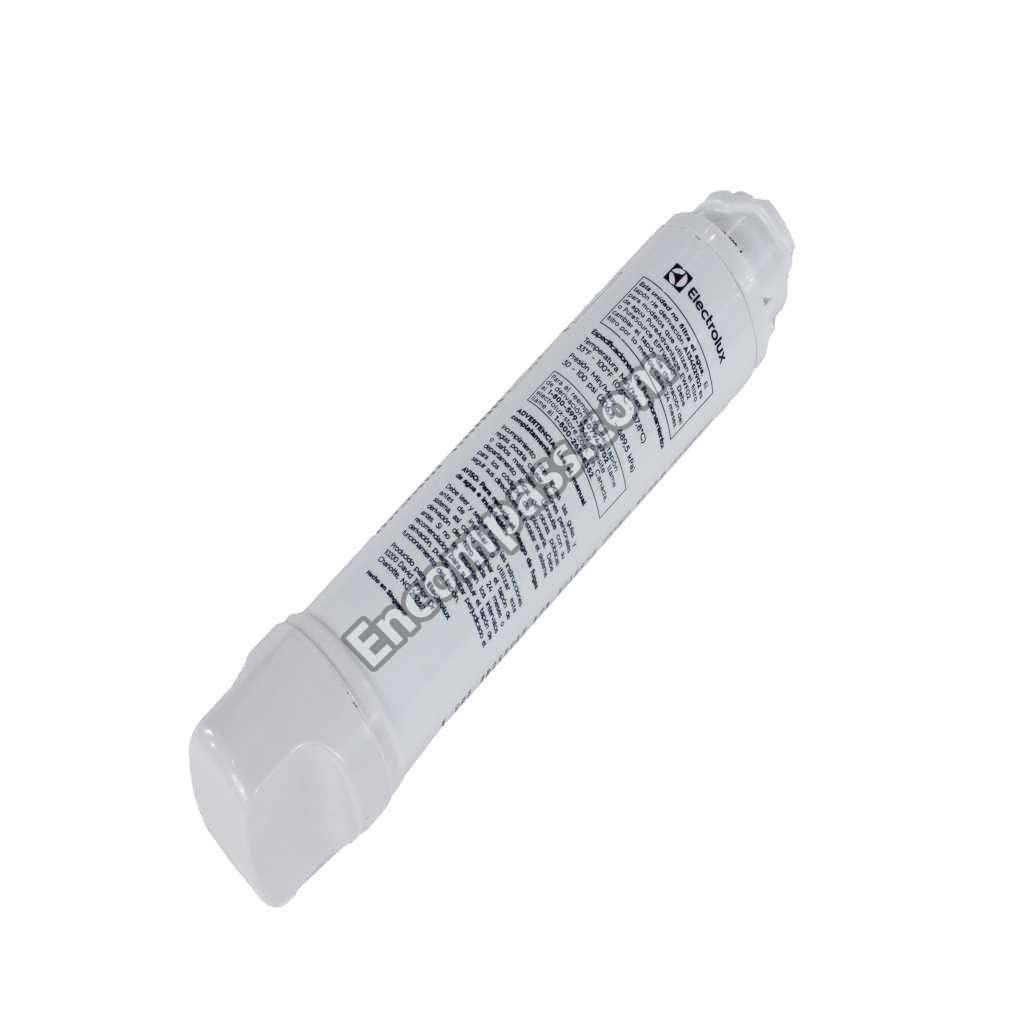

EPTWFU01 EPTWFU01 FRIGIDAIRE REFRIGERATOR WATER FILTER
241860110 241860110 GASKET COIL
241860105 241860105 GASKET COIL
5304508066 5304508066 GASKET,AIR HANDLER
5304508063 5304508063 GROMMET FAN

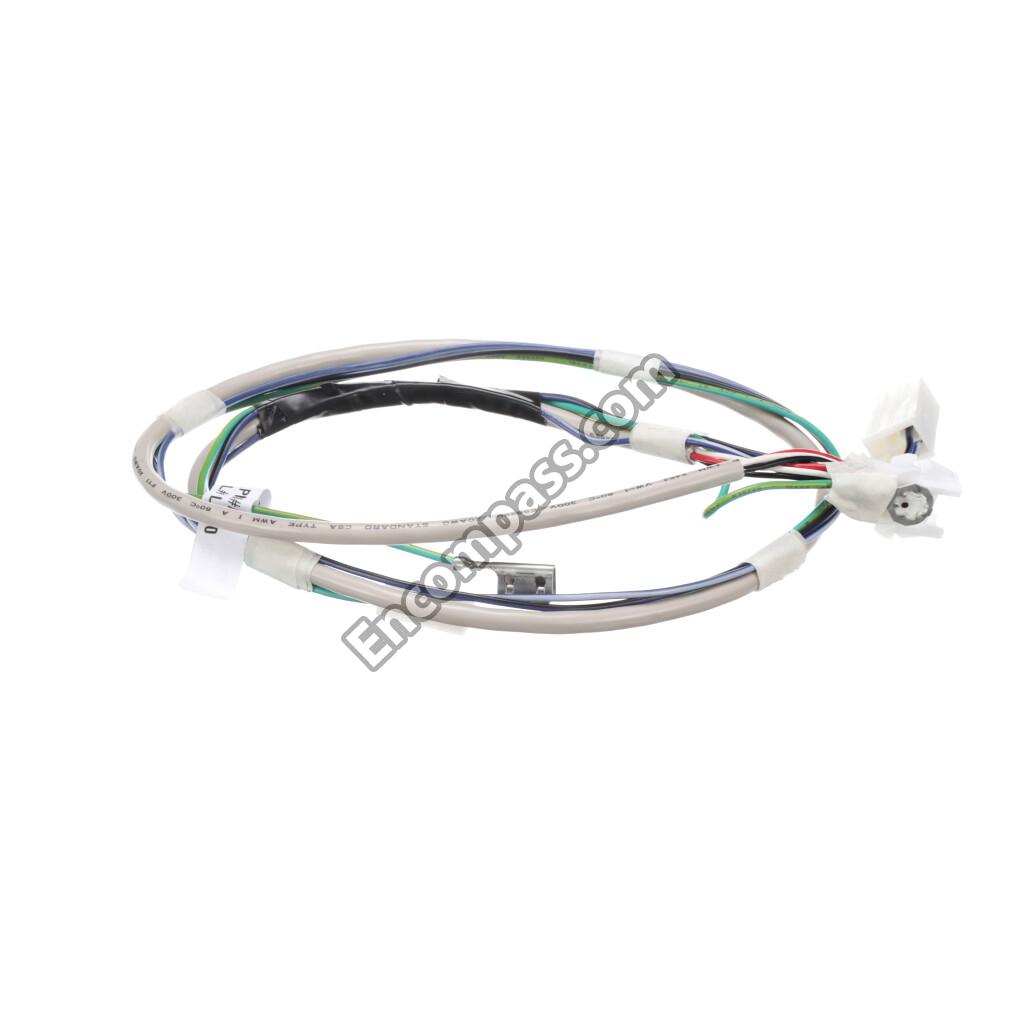

5304521784 5304521784 HARNESS
5304521762 5304521762 HARNESS-ELEC
5304521779 5304521779 HARNESS-ELEC
5304520996 5304520996 HARNESS-HINGE JUMPER

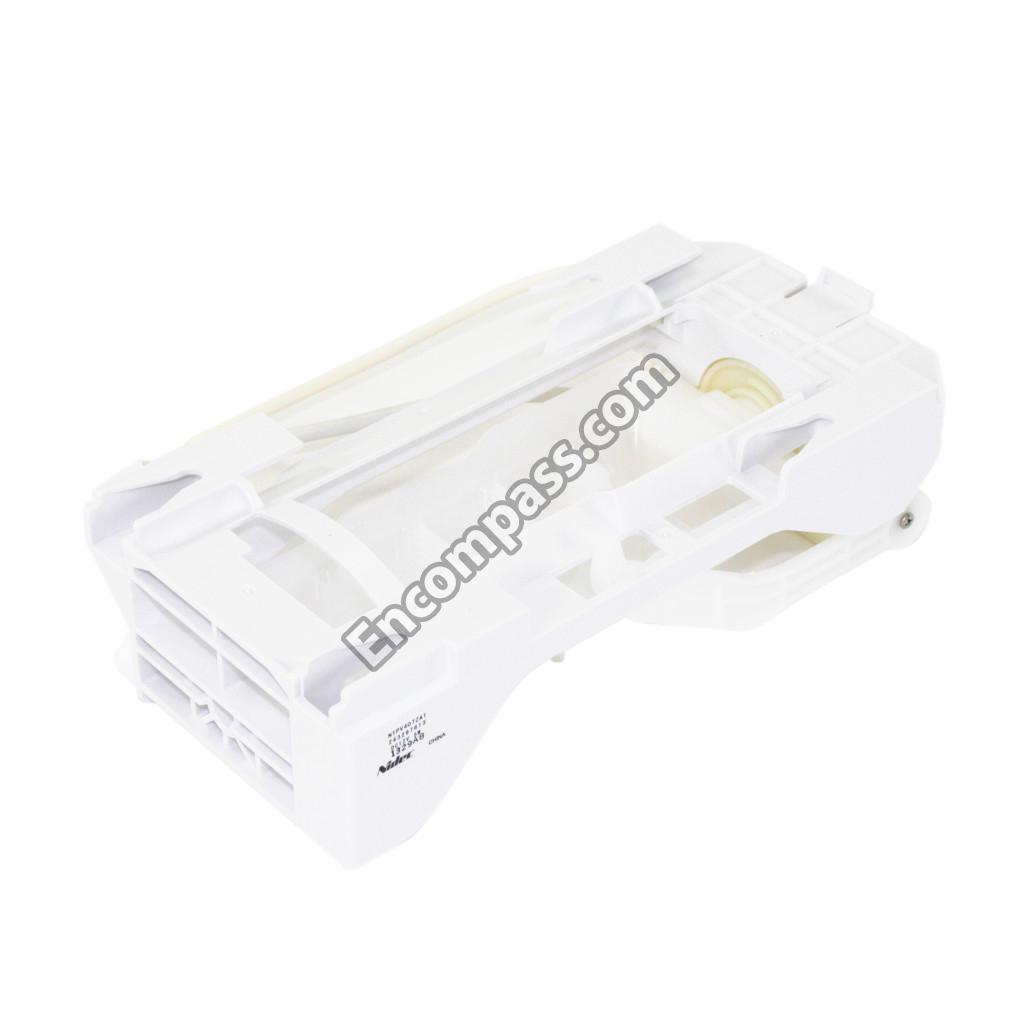

243297613 243297613 ICE MAKER
5304508046 5304508046 INSULATION,I/M FILL TUBE

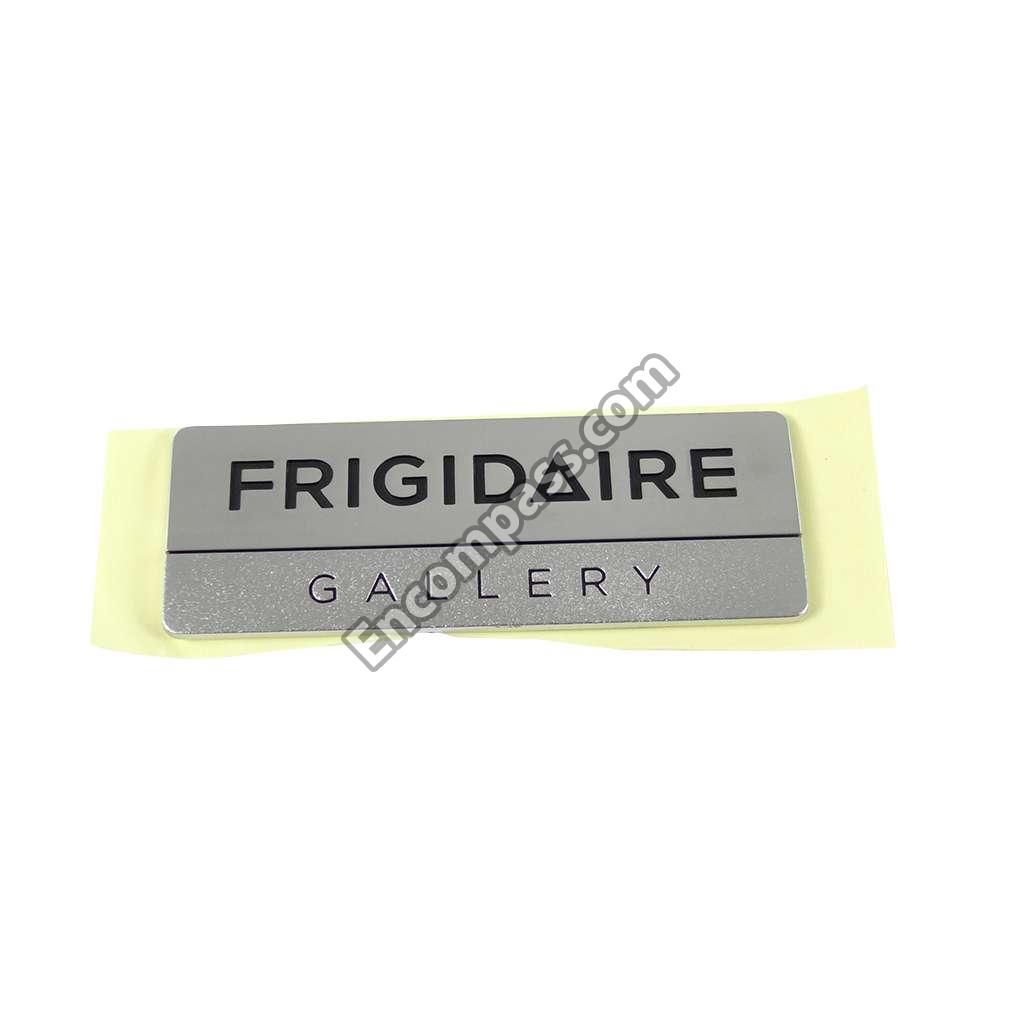

5304512150 5304512150 LABEL-NAMEPLATE (CHROME)
134549700 134549700 LAUNDRY APPLIANCE PEDESTAL SCREW, #10-16 X 1/2-IN
242202701 242202701 LENS
5304525264 5304525264 LIGHT BOARD
5304517889 5304517889 LINER,DOOR BIN ,GALLON
5304508776 5304508776 LOCK WASHER,EXTERNAL TOOTH ,#8
5304508015 5304508015 MECHANICAL DOOR CLOSER ASSEMBLY, LEFT
242071303 242071303 REFRIGERATOR 2-LITER DOOR BIN

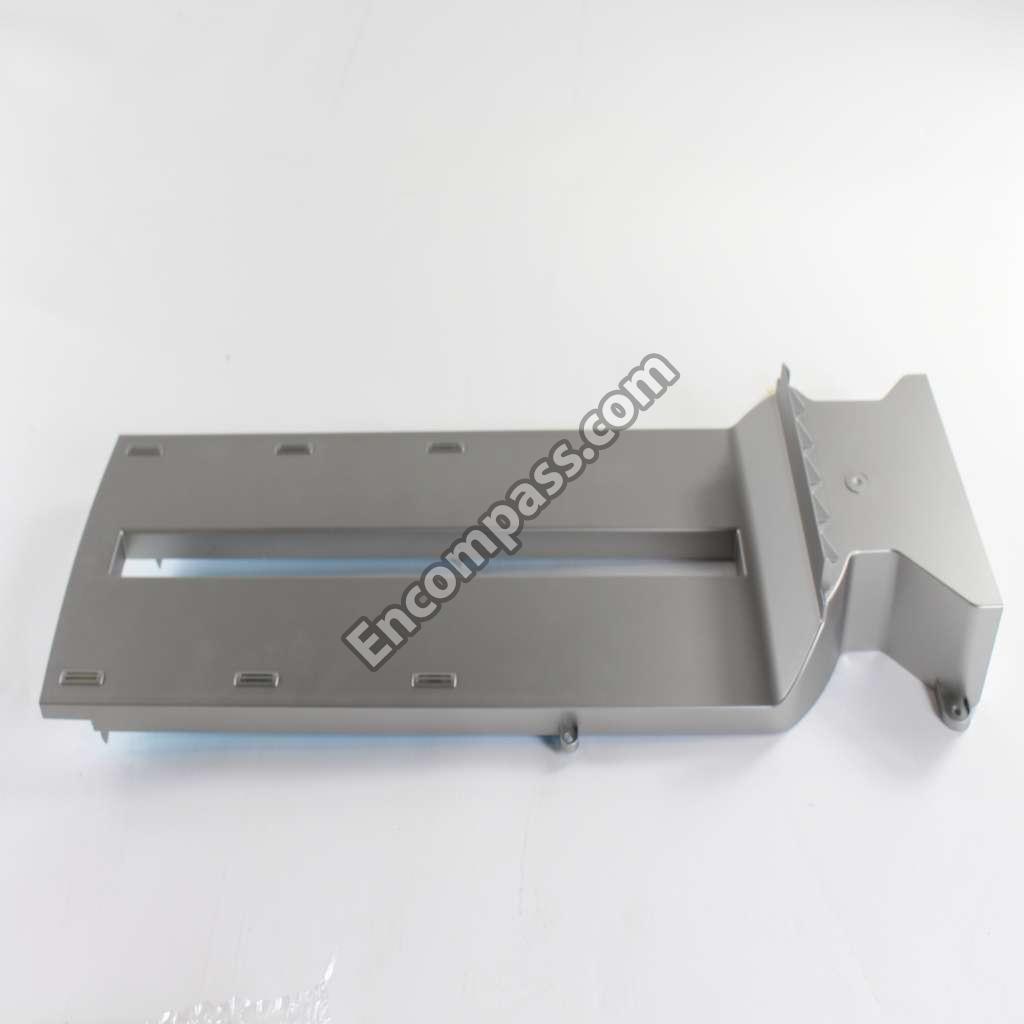

5304510255 5304510255 REFRIGERATOR AIR DUCT AND COVER ASSEMBLY
5304512640 5304512640 REFRIGERATOR AIR FILTER COVER
241778702 241778702 REFRIGERATOR ANTI-TIP BRACKET
241816602 241816602 REFRIGERATOR AUGER MOTOR
241780909 241780909 REFRIGERATOR BASKET DIVIDER, UPPER
242068601 242068601 REFRIGERATOR BUMPER
242036801 242036801 REFRIGERATOR CLIP
242200102 242200102 REFRIGERATOR CLIP
5304501271 5304501271 REFRIGERATOR CLIP

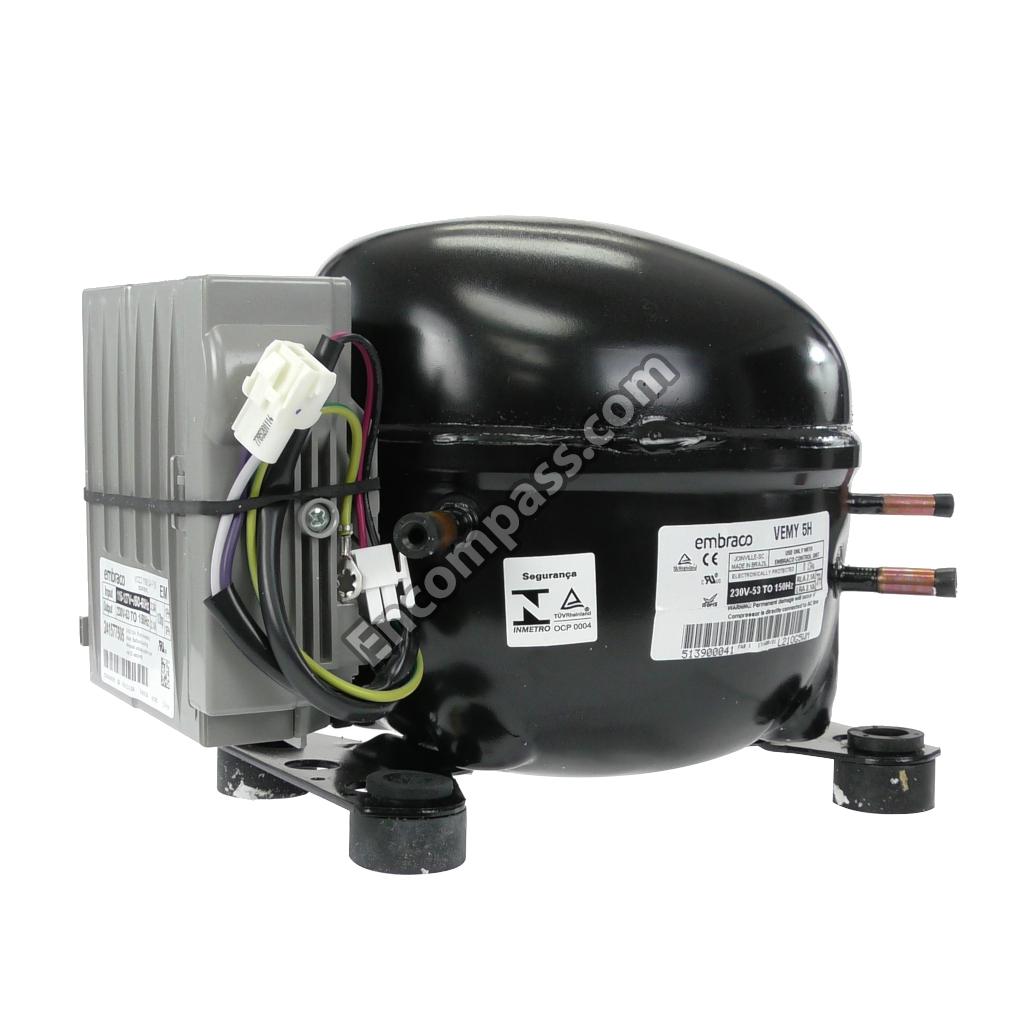

5303918411 5303918411 REFRIGERATOR COMPRESSOR
241706201 241706201 REFRIGERATOR COMPRESSOR
241733902 241733902 REFRIGERATOR COMPRESSOR ACCESS COVER
242146401 242146401 REFRIGERATOR COMPRESSOR ACCESS COVER MOUNTING S...
218513300 218513300 REFRIGERATOR COMPRESSOR GROMMET
241987301 241987301 REFRIGERATOR CONDENSER AIR DEFLECTOR
241862903 241862903 REFRIGERATOR CONDENSER COIL
241639502 241639502 REFRIGERATOR CONDENSER FAN BLADE
242018304 242018304 REFRIGERATOR CONDENSER FAN MOTOR
241946106 241946106 REFRIGERATOR CONDENSER FAN SHROUD
240409302 240409302 REFRIGERATOR CONDENSER MOTOR SPACER
5304502967 5304502967 REFRIGERATOR CONNECTOR SUCTION TUBE
241838402 241838402 REFRIGERATOR CONTROL BLOCK EVAPORATOR
241838401 241838401 REFRIGERATOR CONTROL BLOCK EVAPORATOR
241860402 241860402 REFRIGERATOR CONTROL COVER EVAPORATOR
242142203 242142203 REFRIGERATOR COVER
242157501 242157501 REFRIGERATOR COVER
242157801 242157801 REFRIGERATOR COVER
242157601 242157601 REFRIGERATOR COVER

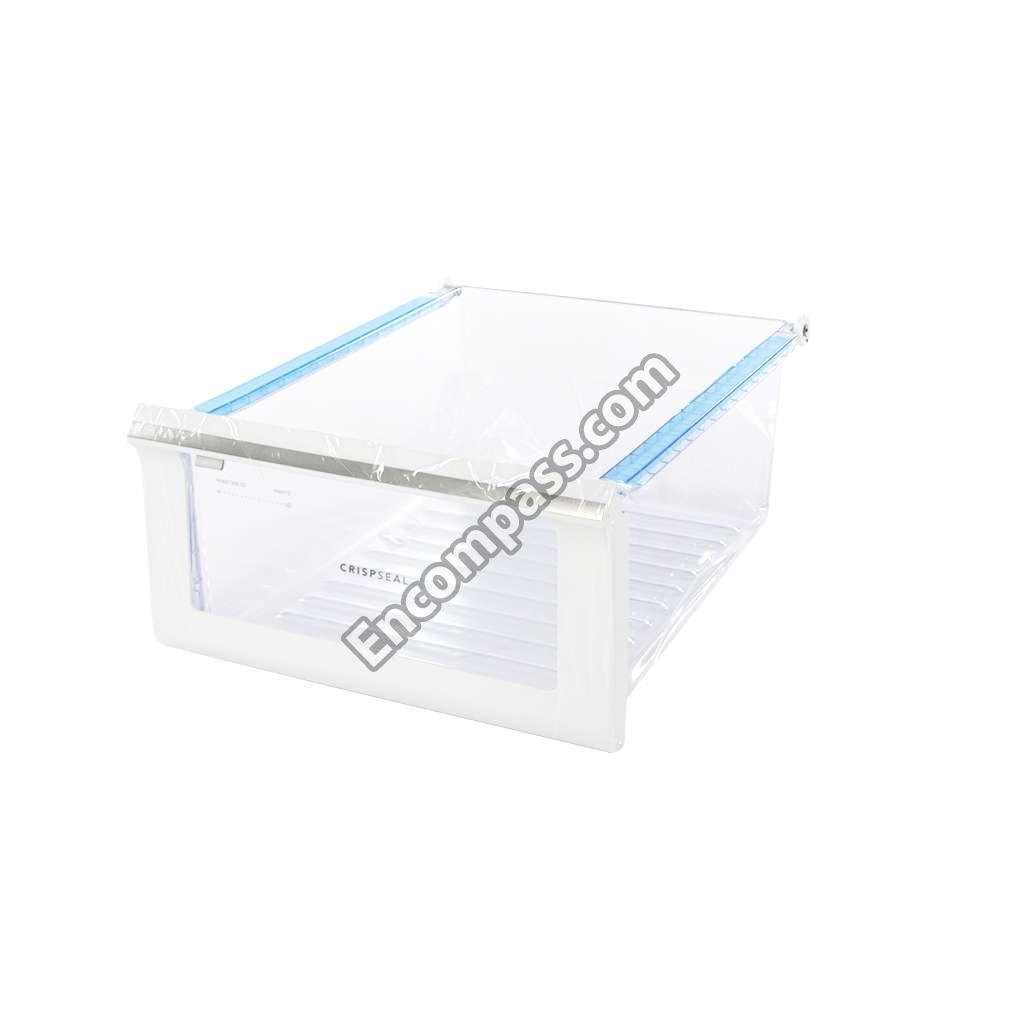

5304512616 5304512616 REFRIGERATOR CRISPER DRAWER ASSEMBLY
5304508067 5304508067 REFRIGERATOR CRISPER DRAWER COVER ASSEMBLY
5304508033 5304508033 REFRIGERATOR CRISPER DRAWER COVER SUPPORT, RIGHT
5304508016 5304508016 REFRIGERATOR CRISPER DRAWER ROLLER
5304508034 5304508034 REFRIGERATOR CRISPER DRAWER TRACK, LEFT
5304521781 5304521781 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
241920606 241920606 REFRIGERATOR DEFROST DRAIN PAN
242096814 242096814 REFRIGERATOR DELI DRAWER
5304508025 5304508025 REFRIGERATOR DELI DRAWER COVER ASSEMBLY
242010901 242010901 REFRIGERATOR DELI DRAWER ROLLER
242197901 242197901 REFRIGERATOR DELI DRAWER SLIDE RAIL
242176503 242176503 REFRIGERATOR DISPENSER DRIP TRAY
5303918596 5303918596 REFRIGERATOR DISPENSER HEATER

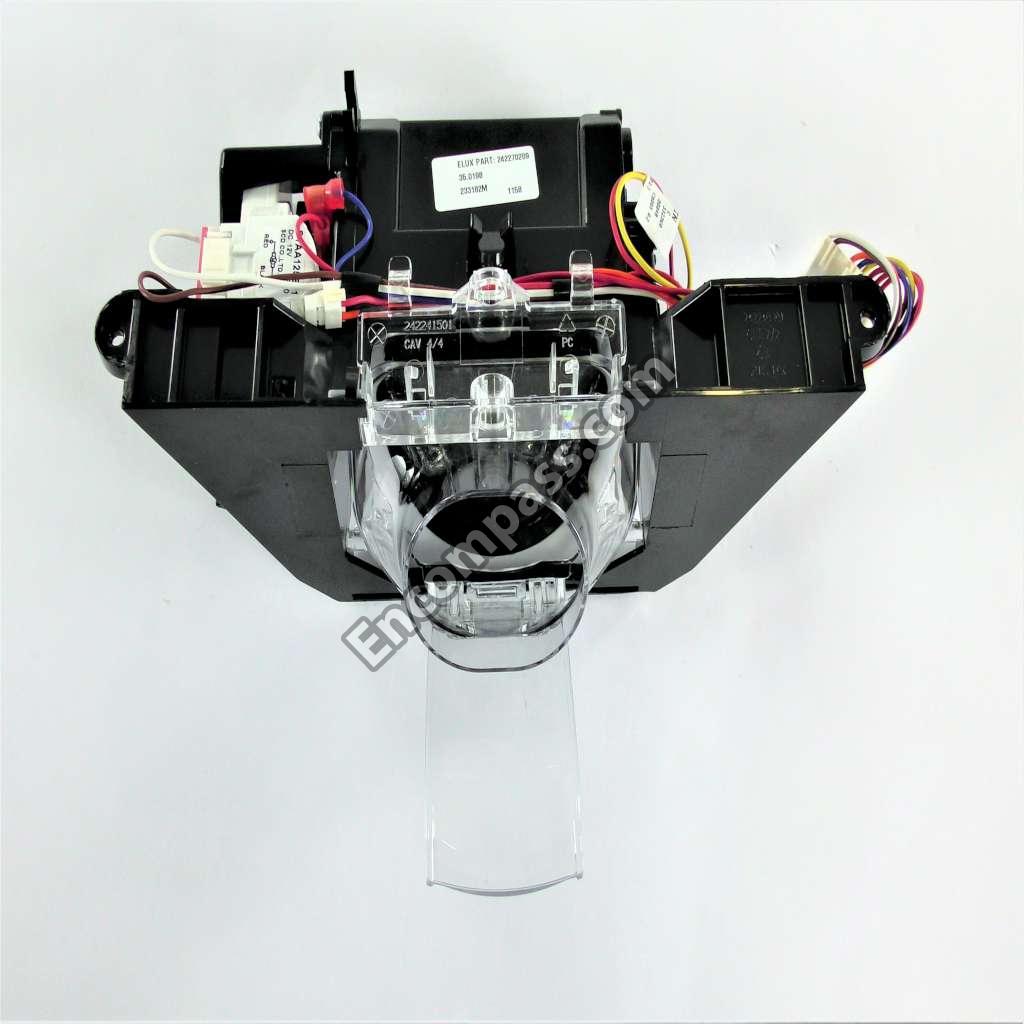

242270106 242270106 REFRIGERATOR DISPENSER MODULE

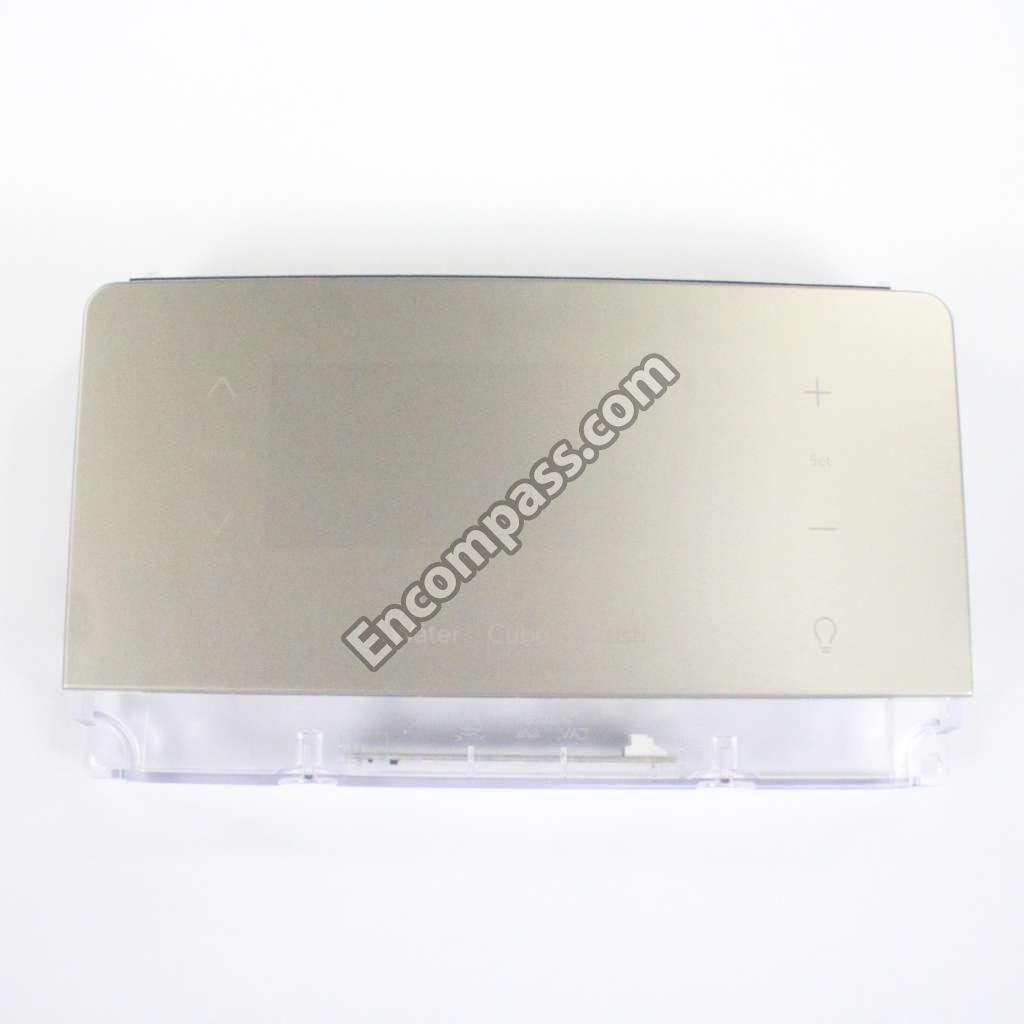

242194301 242194301 REFRIGERATOR DISPENSER TRIM
241965906 241965906 REFRIGERATOR DISPENSER WATER SUPPLY TUBE (NATURAL)
242185671 242185671 REFRIGERATOR DOOR ASSEMBLY, LEFT (STAINLESS)
242185670 242185670 REFRIGERATOR DOOR ASSEMBLY, RIGHT (STAINLESS)

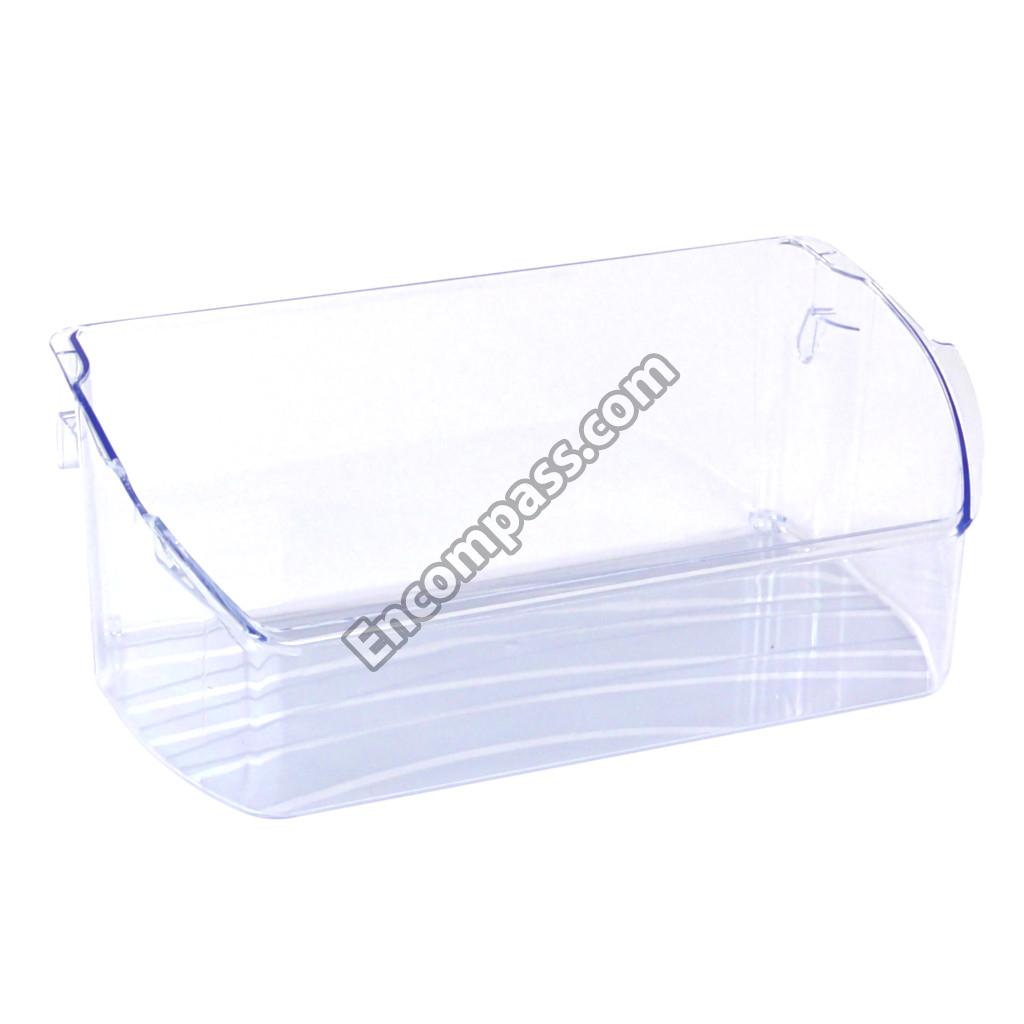

242011701 242011701 REFRIGERATOR DOOR BIN
242011503 242011503 REFRIGERATOR DOOR BIN
5304512643 5304512643 REFRIGERATOR DOOR BIN, LOWER
241761302 241761302 REFRIGERATOR DOOR CLOSER, UPPER LEFT
241778307 241778307 REFRIGERATOR DOOR GASKET (GRAY)
242079903 242079903 REFRIGERATOR DOOR HALF-GALLON BIN

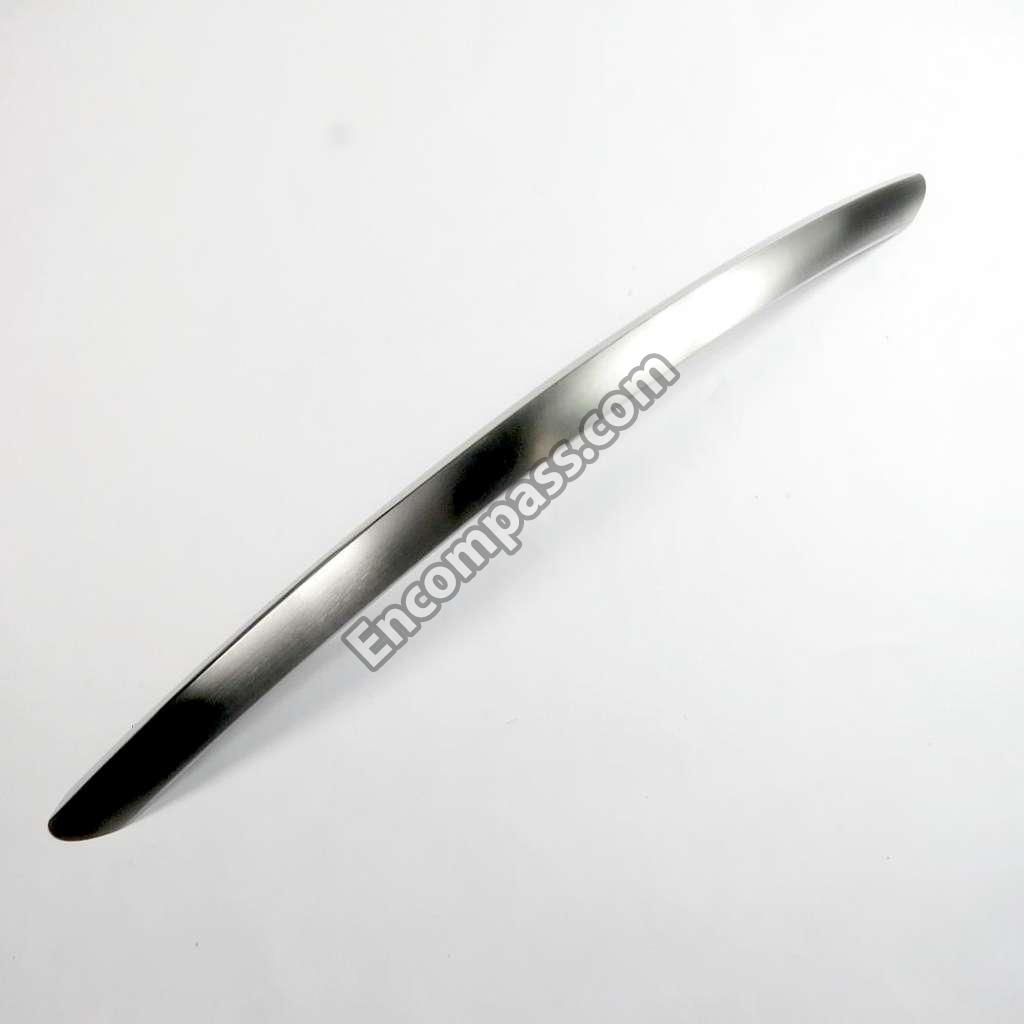

241930101 241930101 REFRIGERATOR DOOR HANDLE (STAINLESS)

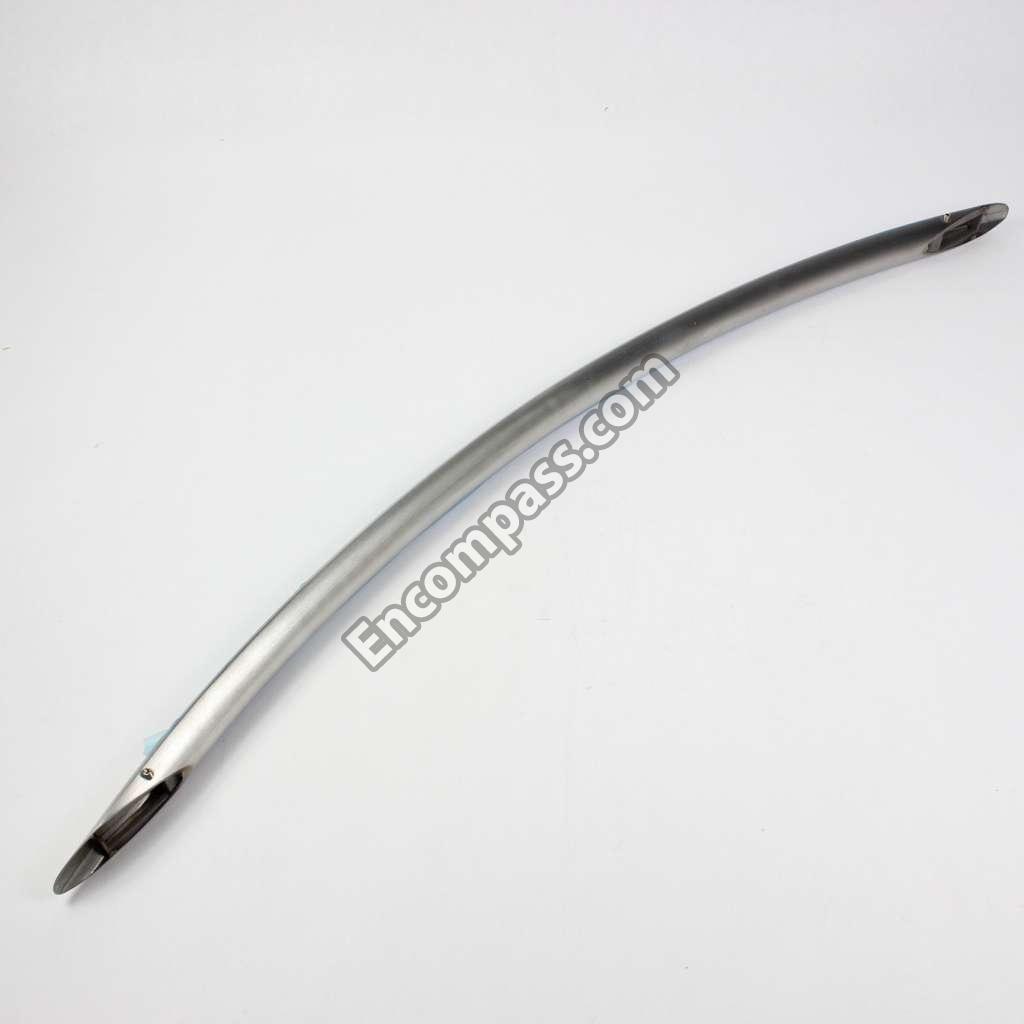

242029401 242029401 REFRIGERATOR DOOR HANDLE (STAINLESS)
241695904 241695904 REFRIGERATOR DOOR HANDLE SCREW
218755504 218755504 REFRIGERATOR DOOR HANDLE SCREW
241779802 241779802 REFRIGERATOR DOOR HINGE
241779401 241779401 REFRIGERATOR DOOR HINGE
241760401 241760401 REFRIGERATOR DOOR HINGE BEARING, UPPER
241862405 241862405 REFRIGERATOR DOOR HINGE COVER ASSEMBLY
241853202 241853202 REFRIGERATOR DOOR HINGE COVER SCREW
241732101 241732101 REFRIGERATOR DOOR HINGE COVER SCREW

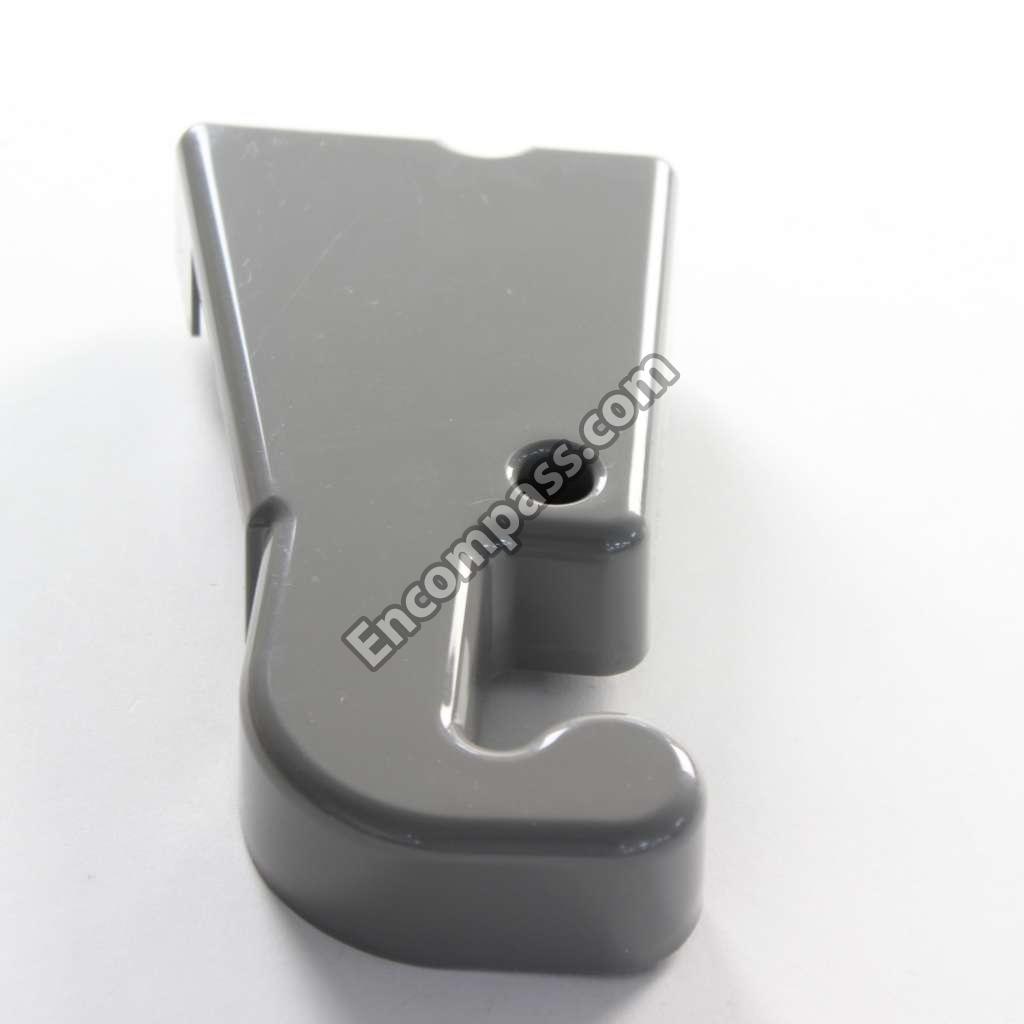

5304504482 5304504482 REFRIGERATOR DOOR HINGE COVER, LEFT (GRAY)
5304504483 5304504483 REFRIGERATOR DOOR HINGE COVER, RIGHT (GRAY)
241761301 241761301 REFRIGERATOR DOOR HINGE, UPPER
240494001 240494001 REFRIGERATOR DOOR HOLE PLUG
5304508039 5304508039 REFRIGERATOR DOOR STOP

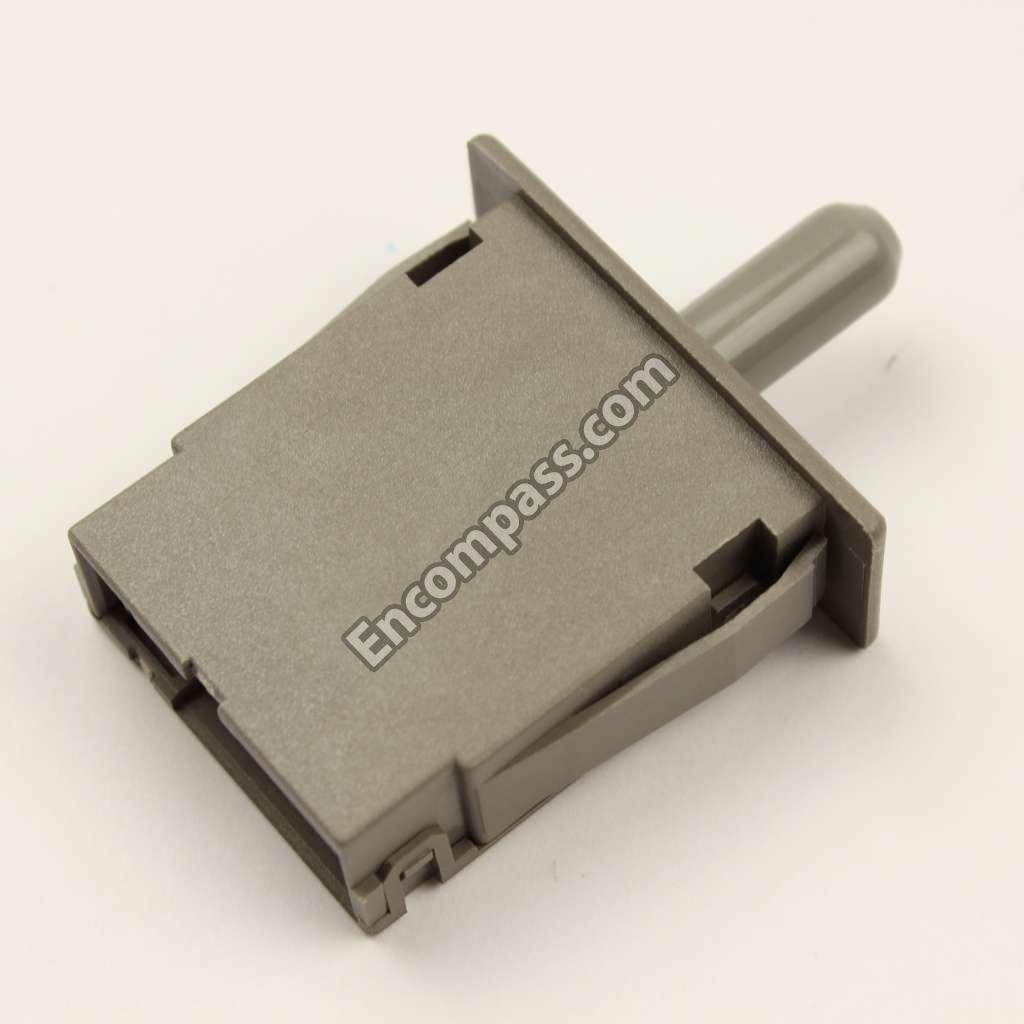

241835505 241835505 REFRIGERATOR DOOR SWITCH
242060202 242060202 REFRIGERATOR DOOR SWITCH
241830904 241830904 REFRIGERATOR DRAIN TUBE

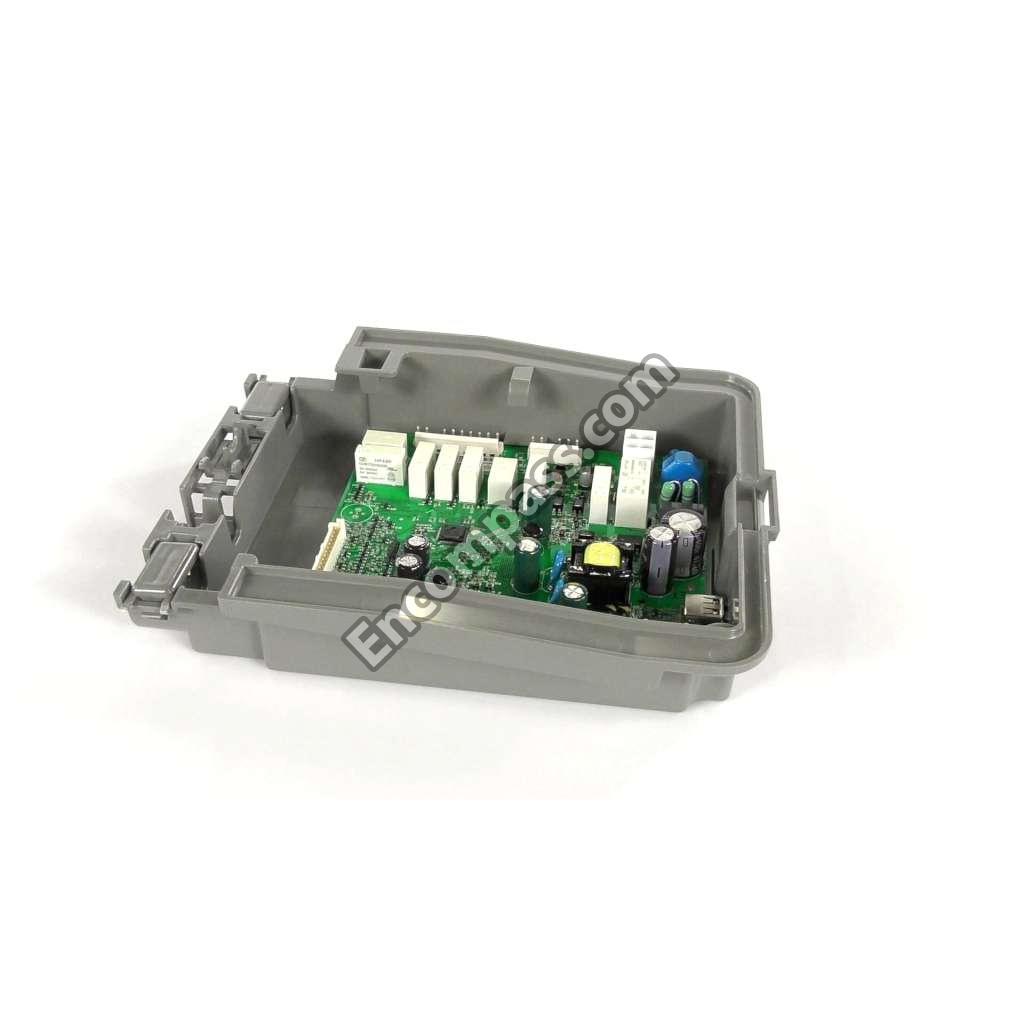

5304510307 5304510307 REFRIGERATOR ELECTRONIC CONTROL BOARD
807854301 807854301 REFRIGERATOR ELECTRONIC CONTROL BOARD COVER
5303918569 5303918569 REFRIGERATOR EVAPORATOR
241860104 241860104 REFRIGERATOR EVAPORATOR COVER GASKET
241500303 241500303 REFRIGERATOR EVAPORATOR COVER SCREW
5308000010 5308000010 REFRIGERATOR EVAPORATOR FAN BLADE
809069201 809069201 REFRIGERATOR EVAPORATOR FAN MOTOR
5304503130 5304503130 REFRIGERATOR EVAPORATOR FAN MOTOR COVER
242015001 242015001 REFRIGERATOR EVAPORATOR FAN MOTOR COVER SCREW
215474201 215474201 REFRIGERATOR EVAPORATOR FAN SHAFT WASHER
241860601 241860601 REFRIGERATOR EVAPORATOR FAN SHROUD
808274201 808274201 REFRIGERATOR FLAPPER GUIDE
5304512641 5304512641 REFRIGERATOR FLIP-UP SHELF ASSEMBLY
242036306 242036306 REFRIGERATOR FLIPPER ASSEMBLY (BLACK)
240346701 240346701 REFRIGERATOR FOAM TAPE
241780825 241780825 REFRIGERATOR FREEZER BASKET
242130901 242130901 REFRIGERATOR FREEZER BASKET DIVIDER
5304503705 5304503705 REFRIGERATOR FREEZER BASKET DIVIDER
242139201 242139201 REFRIGERATOR FREEZER BASKET DIVIDER COMPRESSION...

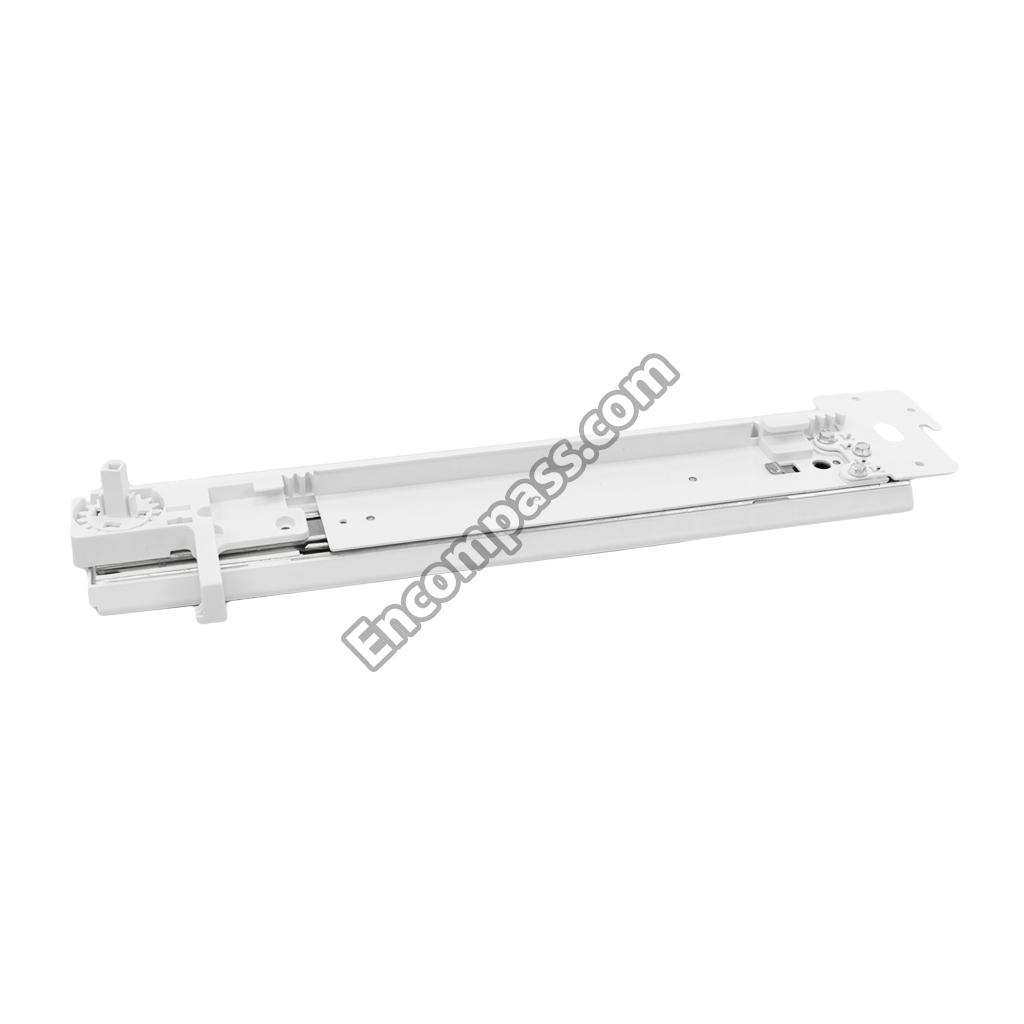

5304507979 5304507979 REFRIGERATOR FREEZER BASKET SLIDE RAIL ASSEMBLY...
5304507978 5304507978 REFRIGERATOR FREEZER BASKET SLIDE RAIL ASSEMBLY...
5304508097 5304508097 REFRIGERATOR FREEZER BASKET SLIDE RAIL, LEFT
242139301 242139301 REFRIGERATOR FREEZER BASKET SUPPORT
5304507340 5304507340 REFRIGERATOR FREEZER BASKET TRIM, FRONT
5304508733 5304508733 REFRIGERATOR FREEZER BASKET, LOWER
241987962 241987962 REFRIGERATOR FREEZER DOOR ASSEMBLY (STAINLESS)
5303918801 5303918801 REFRIGERATOR FREEZER DOOR BASKET RETAINER
5304501270 5304501270 REFRIGERATOR FREEZER DOOR GASKET
218755405 218755405 REFRIGERATOR FREEZER DOOR HANDLE SET SCREW
5304504279 5304504279 REFRIGERATOR FREEZER DOOR HANDLE SUPPORT
242077302 242077302 REFRIGERATOR FREEZER DRAWER HANDLE SCREW
5304509676 5304509676 REFRIGERATOR FREEZER DRAWER RAIL SUPPORT
242039701 242039701 REFRIGERATOR FREEZER DRAWER SLIDE RAIL SCREW
5304508096 5304508096 REFRIGERATOR FREEZER DRAWER SLIDE RAIL, RIGHT
241770702 241770702 REFRIGERATOR FREEZER DRAWER SLIDE SHAFT
5303918776 5303918776 REFRIGERATOR FREEZER TEMPERATURE SENSOR KIT
242095423 242095423 REFRIGERATOR GASKET
242095415 242095415 REFRIGERATOR GASKET
241860101 241860101 REFRIGERATOR GASKET
241860102 241860102 REFRIGERATOR GASKET
241860103 241860103 REFRIGERATOR GASKET
241860112 241860112 REFRIGERATOR GASKET EVAPORATOR
241860111 241860111 REFRIGERATOR GASKET EVAPORATOR
241929902 241929902 REFRIGERATOR GROMMET
241929901 241929901 REFRIGERATOR GROMMET
242080102 242080102 REFRIGERATOR HALF-GALLON DOOR BIN
241510904 241510904 REFRIGERATOR HARNESS DISPENSER
5303918445 5303918445 REFRIGERATOR HEAT EXCHANGE
5304508045 5304508045 REFRIGERATOR HINGE ASSEMBLY
5304508044 5304508044 REFRIGERATOR HINGE ASSEMBLY
5303918779 5303918779 REFRIGERATOR HOUSING KIT

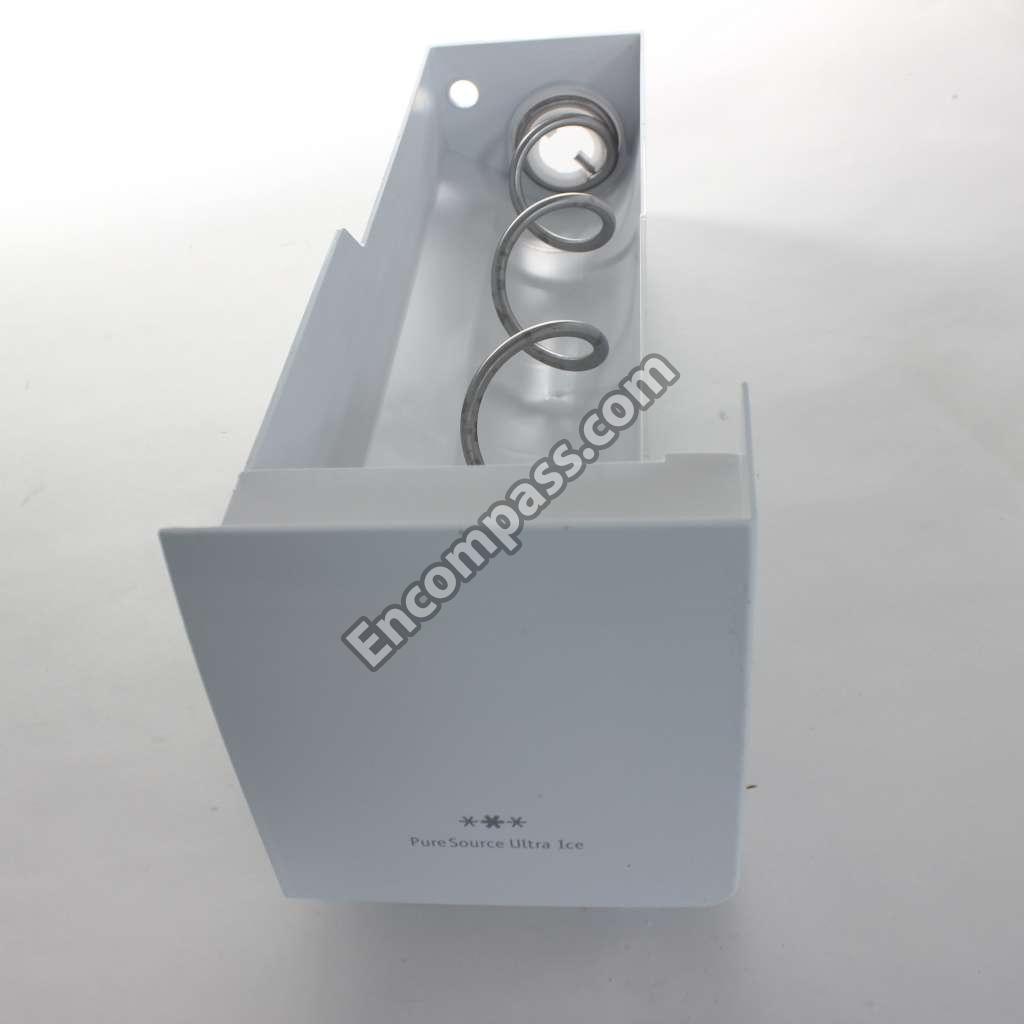

242093006 242093006 REFRIGERATOR ICE CONTAINER ASSEMBLY
241829001 241829001 REFRIGERATOR ICE CRUSHER COUPLER
241675704 241675704 REFRIGERATOR ICE DISPENSER SOLENOID
242095501 242095501 REFRIGERATOR ICE MAKER ANTI-TWIST PIN BRACKET
242095002 242095002 REFRIGERATOR ICE MAKER COVER
242094804 242094804 REFRIGERATOR ICE MAKER DEFROST HEATER AND THERM...
5304493604 5304493604 REFRIGERATOR ICE MAKER EVAPORATOR FAN
5303918784 5303918784 REFRIGERATOR ICE MAKER GASKET KIT
808456301 808456301 REFRIGERATOR ICE MAKER WIRING COVER
5304508036 5304508036 REFRIGERATOR ICE ROOM AIR HANDLER HOUSING
242096001 242096001 REFRIGERATOR INSULATION
241577505 241577505 REFRIGERATOR INVERTER CONTROL BOARD
242011101 242011101 REFRIGERATOR LOCK PIN
5304508006 5304508006 REFRIGERATOR MOTOR MOUNTING BUSHING
5304507999 5304507999 REFRIGERATOR PINION
807932201 807932201 REFRIGERATOR PLUG
241516901 241516901 REFRIGERATOR POWER CORD
PAULTRA2 PAULTRA2 REFRIGERATOR PUREAIR ULTRA II AIR FILTER
240335202 240335202 REFRIGERATOR ROLLER
240335006 240335006 REFRIGERATOR ROLLER
5304455655 5304455655 REFRIGERATOR ROLLER WHEEL AXLE PIN
241695906 241695906 REFRIGERATOR SCREW
5303307980 5303307980 REFRIGERATOR SCREW
241641502 241641502 REFRIGERATOR SCREW
240451503 240451503 REFRIGERATOR SCREW
241953907 241953907 REFRIGERATOR SCREW
240569202 240569202 REFRIGERATOR SCREW
241953901 241953901 REFRIGERATOR SCREW
218362501 218362501 REFRIGERATOR SCREW
241710601 241710601 REFRIGERATOR SCREW
242025601 242025601 REFRIGERATOR SCREW
240442706 240442706 REFRIGERATOR SCREW
240578902 240578902 REFRIGERATOR SCREW
240383407 240383407 REFRIGERATOR SCREW
218252201 218252201 REFRIGERATOR SCREW
242039702 242039702 REFRIGERATOR SCREW
240383412 240383412 REFRIGERATOR SCREW
241690602 241690602 REFRIGERATOR SCREW, #10-16
218709101 218709101 REFRIGERATOR SCREW, #10-32 X 0.5-IN
5304455650 5304455650 REFRIGERATOR SCREW, #8-15 X 0.625-IN
241953902 241953902 REFRIGERATOR SCREW, #8-18 X 0.38-IN
240555002 240555002 REFRIGERATOR SCREW, #8-32-IN

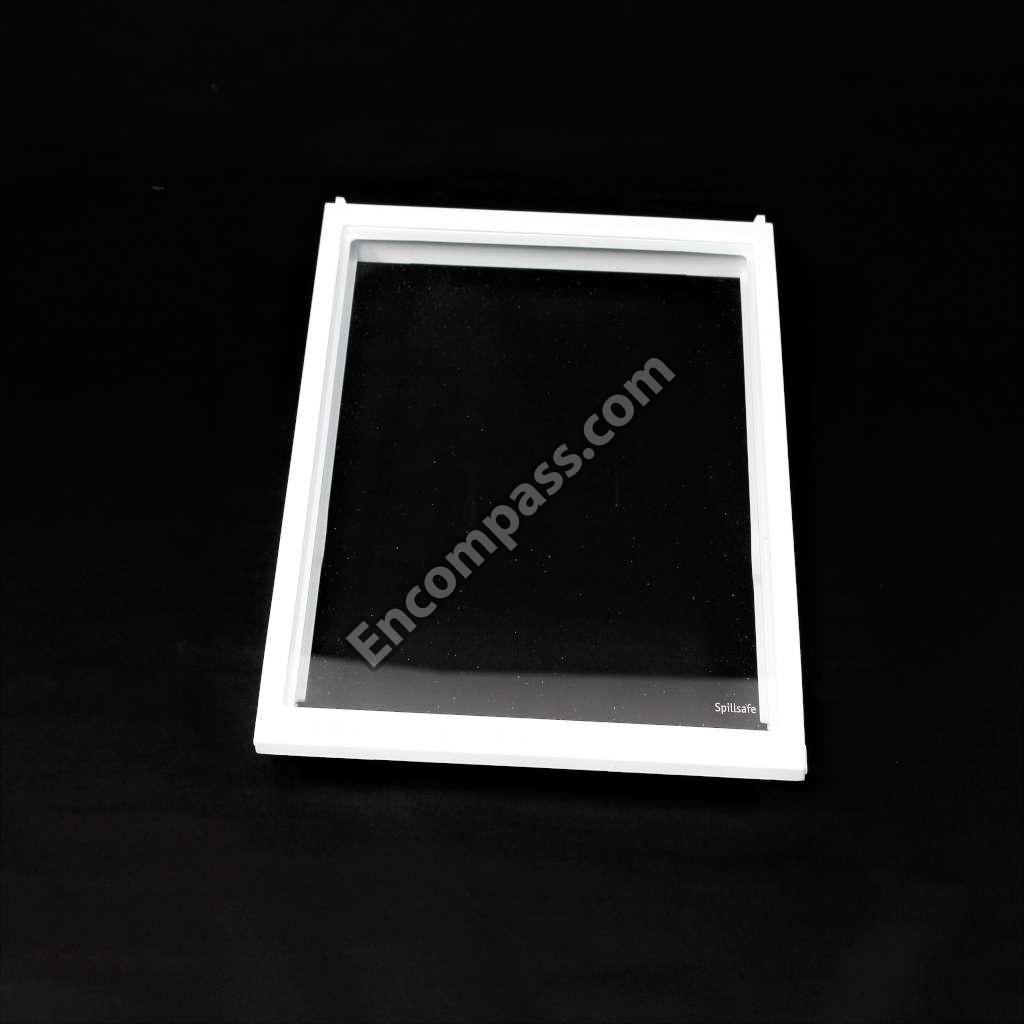

5304512638 5304512638 REFRIGERATOR SHELF ASSEMBLY

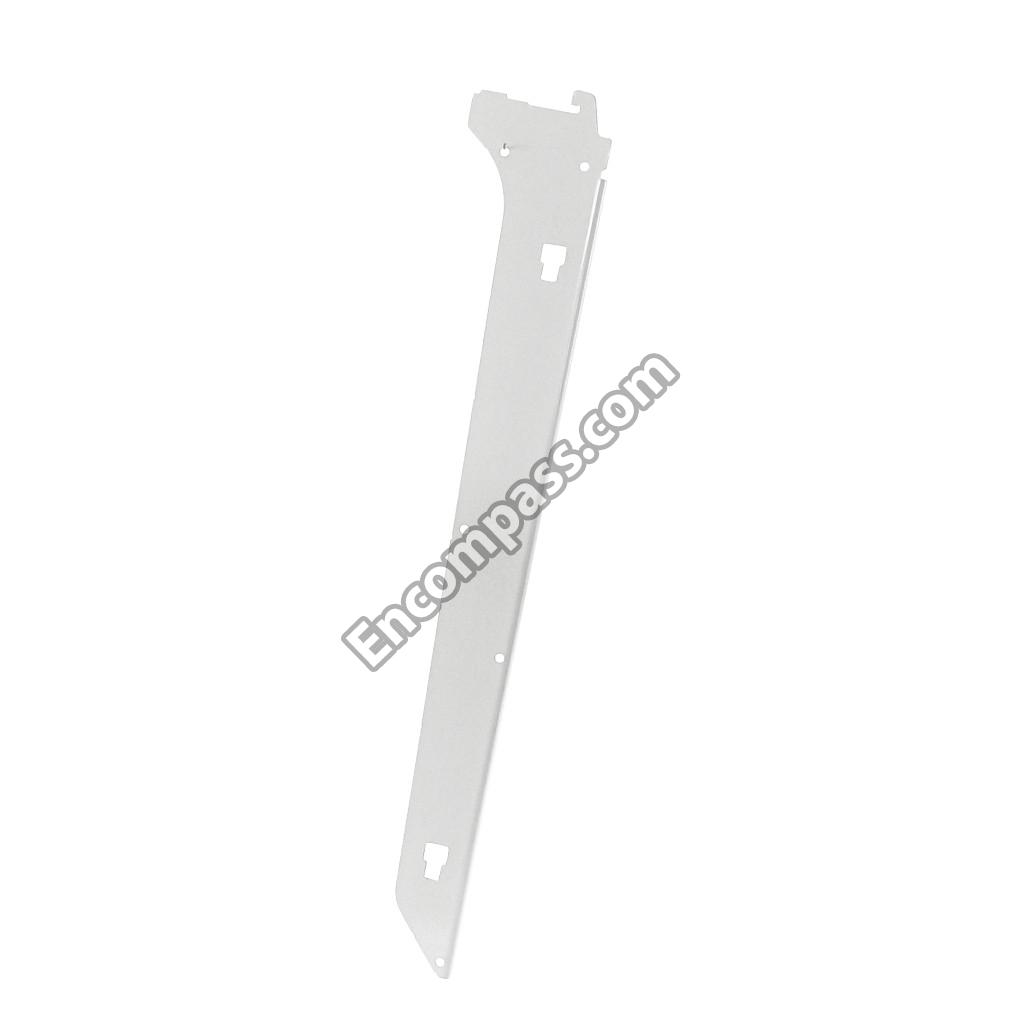

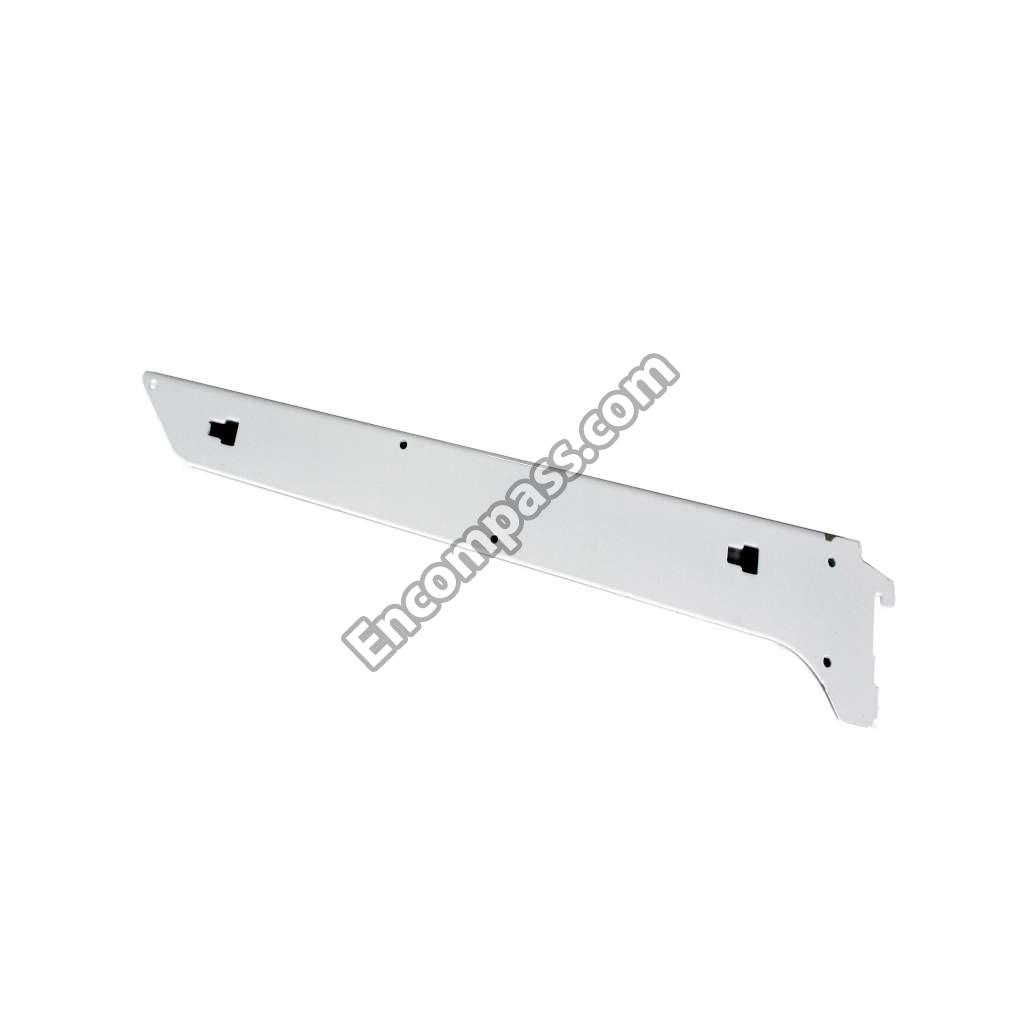

242122301 242122301 REFRIGERATOR SHELF BRACKET
242122001 242122001 REFRIGERATOR SHELF BRACKET
242122101 242122101 REFRIGERATOR SHELF CHANNEL
241947701 241947701 REFRIGERATOR SPACER
242037702 242037702 REFRIGERATOR SPRING CLIP
5308000110 5308000110 REFRIGERATOR STRAP
242071201 242071201 REFRIGERATOR SUMP COVER
241752703 241752703 REFRIGERATOR TALL BOTTLE RETAINER
5303918775 5303918775 REFRIGERATOR TEMPERATURE SENSOR
240597203 240597203 REFRIGERATOR TEMPERATURE SENSOR
241842301 241842301 REFRIGERATOR TEMPERATURE SENSOR COVER
5304508041 5304508041 REFRIGERATOR THERMISTOR COVER
241969001 241969001 REFRIGERATOR THERMISTOR SCREW CAP
242054804 242054804 REFRIGERATOR TOE GRILLE
218515401 218515401 REFRIGERATOR TOE GRILLE CLIP
241791201 241791201 REFRIGERATOR TROUGH
5303918571 5303918571 REFRIGERATOR TUBE
215346900 215346900 REFRIGERATOR TUBE
A13402902 A13402902 REFRIGERATOR WATER FILTER BYPASS
5304522623 5304522623 REFRIGERATOR WATER FILTER HEAD
5303918723 5303918723 REFRIGERATOR WATER FILTER HOUSING
242253002 242253002 REFRIGERATOR WATER INLET VALVE ASSEMBLY
241503901 241503901 REFRIGERATOR WATER TUBE FITTING
241806601 241806601 REFRIGERATOR WATER TUBE FITTING
5303918602 5303918602 REFRIGERATOR WATER TUBING
218976436 218976436 REFRIGERATOR WATER TUBING
242220204 242220204 REFRIGERATOR WATER TUBING
242220119 242220119 REFRIGERATOR WATER TUBING
5304455846 5304455846 REFRIGERATOR WATER TUBING CLAMP
241920106 241920106 REFRIGERATOR WATER TUBING KIT, 5/16 X 54-IN (GR...
241964707 241964707 REFRIGERATOR WATER TUBING, 1/4 X 36-IN (GREEN)
5304520993 5304520993 REFRIGERATOR WIRE HARNESS
5303001199 5303001199 REFRIGERATOR WIRE HARNESS CLAMP
5304508037 5304508037 REFRIGERATOR WIRE HARNESS CONNECTOR
5304526201 5304526201 RH DOOR CLOS
242036309 242036309 S/A-MULLION FLIPPER, GREY
5304513303 5304513303 S/A-USER INTERFACE COSMOS SS
240359403 240359403 SCREW-FAN SH
240363602 240363602 SCREW-SHOULD
241512813 241512813 SEAL,DOUGHNUT
218249809 218249809 SEAL,FAN COVER ,TOP
5304508010 5304508010 SPRING,FAN HUB
5304508017 5304508017 SUPPORT,DELI COVER ,RH
5304519618 5304519618 TRIM-CABINET CORNER,GRAY
Main Menu x
