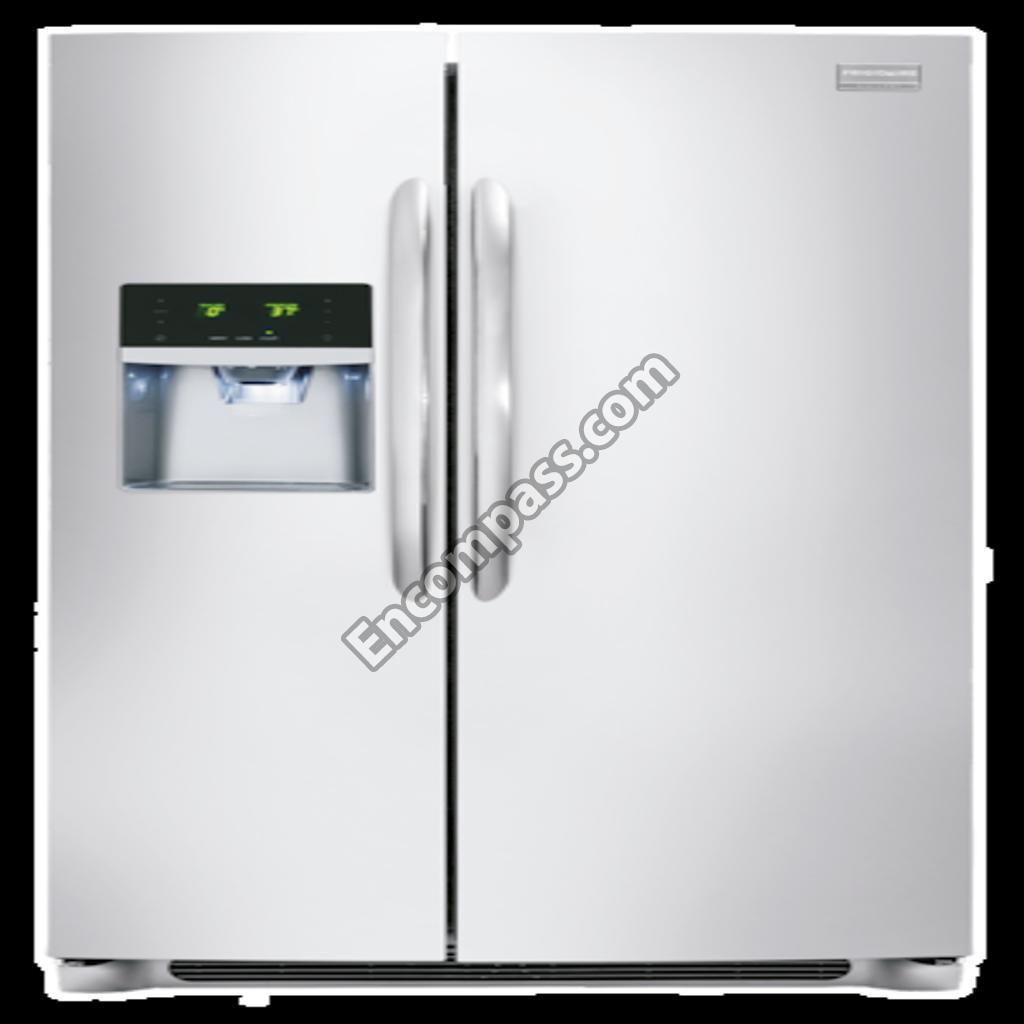

Model Image
Manufacturer

Electrolux

Model Number

FGHC2355PF7

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241676101 241676101 ACTUATORSOLENOID
241637601 241637601 BAFFLE-AIR
241726501 241726501 BAR-DRIVE
240330012 240330012 BASECOMPRESSOR
242009602 242009602 BASEWATER FILTER
241515001 241515001 BASKET-SLIDING
241760402 241760402 BEARING
241760404 241760404 BEARING
241990301 241990301 BEARING-HINGE
241990302 241990302 BEARINGHINGE(FRZ)
241511601 241511601 BIN-DOOR
241511701 241511701 BINDOOR
241505501 241505501 BINDOOR
241505301 241505301 BINDOOR
241639502 241639502 BLADE
241684107 241684107 BLADE
241684102 241684102 BLADE
241684103 241684103 BLADE
218679614 218679614 BLOCKEVAP COIL
240335006 240335006 BOLT-ROLLER ADJ
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
5304458374 5304458374 BRACKETICE MAKER
241918004 241918004 BRACKETLOWER HINGE
241761301 241761301 BRACKETUPPER HINGE
241518301 241518301 BUSHING
241685201 241685201 CAM-DRIVE
241532401 241532401 CHANNEL
241812502 241812502 CHANNEL
241674401 241674401 CHANNEL
241674402 241674402 CHANNEL
241513001 241513001 CHANNEL-SHELF MTG
240396801 240396801 CLAMP-TUBE
5304458398 5304458398 CLIP
242135301 242135301 CLIP
242036802 242036802 CLIP
241852502 241852502 CLIP
242285301 242285301 CLIP
241595202 241595202 CLIP
240362101 240362101 CLIP
241716801 241716801 CLIP
241519401 241519401 CLIP
218515403 218515403 CLIPGRILLE
242036801 242036801 CLIPPLASTIC
5304458401 5304458401 CLIPRETAINER
241515801 241515801 COMPARTMENT
242106605 242106605 CONDENSER
5304458399 5304458399 CONDUCTOR-HEAT
241515202 241515202 CONTAINER-ICE
241684402 241684402 CONTROL ROD
240362201 240362201 CONTROL-HUMIDITY
241516901 241516901 CORD-SERVICE
242286201 242286201 COVER
241733902 241733902 COVER
240326304 240326304 COVER
240599301 240599301 COVER
240350903 240350903 COVER-CRISPER PAN
241509804 241509804 COVERAIR DUCT
241719711 241719711 COVEREVAP COIL
241946709 241946709 COVERHINGE
241946710 241946710 COVERHINGE UPPER
5304458376 5304458376 COVERICE MAKER
240599803 240599803 COVERMEAT PAN
241675507 241675507 COVERMOTOR
5304458378 5304458378 CUPWATER INLET
241853801 241853801 DAMPER ASSEMBLY
241583301 241583301 DEFLECTOR-AIR
241990201 241990201 DOOR STOP
241990202 241990202 DOOR STOP
241515601 241515601 DOOR-CHEESE BUTTER
241993832 241993832 DOORFRZR
242178111 242178111 DOORREFR
241684501 241684501 DRIVE BLADE
241685101 241685101 DRUM
241690201 241690201 E-RING
5304458377 5304458377 EJECTORICE
5303918284 5303918284 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
241720601 241720601 EXTENSION
5308000010 5308000010 FAN BLADE
241684301 241684301 FIXED BLADE
241684203 241684203 FIXED BLADE
241515302 241515302 FRONTICE CONTAINER
241510206 241510206 GASKETFRZR DOOR
241510205 241510205 GASKETREFR DOOR
5304458380 5304458380 GEAR
240405201 240405201 GROMMET
218513300 218513300 GROMMET-COMPR MTG
241550701 241550701 GROMMET-SHELF MTG
241550801 241550801 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
241514501 241514501 HANGER-BASKET
241514601 241514601 HANGER-BASKET
241514701 241514701 HANGER-SHELF GLASS
241514801 241514801 HANGER-SHELF GLASS
242288101 242288101 HARNESS
241519902 241519902 HARNESSELECTRICAL
5304458379 5304458379 HARNESSWIRING
5304521771 5304521771 HARNESSWIRING
242199702 242199702 HARNESSWIRING
241891901 241891901 HARNESSWIRING
241835801 241835801 HARNESSWIRING
5303918327 5303918327 HEAT EXCHANGER KIT
242044113 242044113 HEATER-DEFROST
5303918222 5303918222 HOT TUBE REPAIR KIT
5304458395 5304458395 HOUSING
241983813 241983813 HOUSING-WATER FILTR
241861301 241861301 HOUSINGDAMPER
242286101 242286101 HOUSINGDIFFUSER
241845401 241845401 HOUSINGSENSOR
241914703 241914703 ICE CONTAINER ASSEMBLY
5304458390 5304458390 ICE STRIPPER
240350649 240350649 INSERT-GLASS
240350603 240350603 INSERT-PAN COVER
240443391 240443391 INSERTPAN COVER
242156301 242156301 INSULATIONAIR DUCT
5304458381 5304458381 INSULATOR
242125501 242125501 INSULATOR
242058233 242058233 INTERFACE ASSEMBLY
241577501 241577501 INVERTOR
242146254 242146254 LABEL
242202701 242202701 LENS
5304458391 5304458391 LEVER ARM
242196201 242196201 LIGHT BOARD
241890604 241890604 LOUVER
241918001 241918001 LOWER HINGE
241515901 241515901 LUG-DAIRY COMPARTME
242270101 242270101 MODULE
242018304 242018304 MOTORCONDENSER FAN
5304458382 5304458382 MOTORICE MAKER SVO
241998302 241998302 MOUNTWATER FILTER
241685001 241685001 NUT-AUGER
240351061 240351061 PANCRISPER
241920607 241920607 PANDEFROST
241974601 241974601 PANMEAT
241690402 241690402 PIN-SPIRAL
241684001 241684001 PLATE-FRONT
241504601 241504601 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
241917801 241917801 PLATEDOOR CLOSER
5304458383 5304458383 PLATEMOUNTING
240494001 240494001 PLUG-BUTTON
5303208309 5303208309 PLUG-HOLE
241891610 241891610 POWER BOARD
241516102 241516102 RACK-CAN
241676501 241676501 RAIL ASSEMBLY
241504702 241504702 RAIL-ICE CREAM SHEL
241504701 241504701 RAIL-ICE CREAM SHEL
5304458403 5304458403 RETAINER-THERMOSTAT
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
241676301 241676301 ROTATION STOP
242125401 242125401 SCOOP CRISPER AIR S
5304458389 5304458389 SCREW
5304458386 5304458386 SCREW
5304456684 5304456684 SCREW
5304456676 5304456676 SCREW
5304458394 5304458394 SCREW
5304458393 5304458393 SCREW
5304458387 5304458387 SCREW
5304458385 5304458385 SCREW
5304458384 5304458384 SCREW
241953907 241953907 SCREW
5304455650 5304455650 SCREW
240451503 240451503 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
218781101 218781101 SCREW
218252201 218252201 SCREW
241548003 241548003 SCREW
241637202 241637202 SCREW
218493101 218493101 SCREW
240363402 240363402 SCREW
215503203 215503203 SCREW
241551602 241551602 SCREW
241690501 241690501 SCREW
241690701 241690701 SCREW
218359202 218359202 SCREW
215005101 215005101 SCREW
218362501 218362501 SCREW
240442706 240442706 SCREW-#10-32 X 3/4
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
218249808 218249808 SEALCOIL COVER
241781601 241781601 SEALRETURN AIR
240561702 240561702 SEALWATER INLET
240597203 240597203 SENSOR
241711213 241711213 SHELF-FREEZER
240443358 240443358 SHELF-FREEZER
241691701 241691701 SHELF-ICE CREAM
240350160 240350160 SHELF-SPILL-SAFE,CANTILEVER
242204501 242204501 SHROUD-EVAP FAN MTG
241946106 241946106 SHROUDCOND FAN
5304458375 5304458375 SHUT-OFF ARM
241754301 241754301 SLEEVE
240349801 240349801 SLIDE CLIP
241861201 241861201 SLIDEDAMPER
241675803 241675803 SOLENOID
241675704 241675704 SOLENOID ASSEMBLY
241689801 241689801 SPACER
241684802 241684802 SPACER
240409302 240409302 SPACER-COND TUBE
241684901 241684901 SPACER-FIXED BLADES
5304458388 5304458388 SPACER-HOLD SWITCH
5304436616 5304436616 SPRING
241731801 241731801 SPRINGCONTROL ROD
241675902 241675902 SPRINGVALVE
5308000110 5308000110 STRAP-EVAP/HEATER
242176503 242176503 SUMP
241993101 241993101 SUPPORTCRISPER CVR
241993001 241993001 SUPPORTCRISPER CVR
241547901 241547901 SWITCH-LIGHT/LAMP
5304456667 5304456667 SWITCH-MICRO
241911705 241911705 SWITCHLIGHT
240346701 240346701 TAPE-FOAM SEAL
240346703 240346703 TAPEFOAM
5304458400 5304458400 THERMAL CUTOFF
5304456665 5304456665 THERMOSTAT
242194301 242194301 TRIM
242161206 242161206 TRIM
241510605 241510605 TRIM-BASKET
240367603 240367603 TRIM-SHELF
218976429 218976429 TUBE
218976438 218976438 TUBE
241856903 241856903 TUBECONNECTOR
241796406 241796406 TUBEWATER FILL
218976421 218976421 TUBEWATER INLET
5304467131 5304467131 USE 5304467131
242252702 242252702 VALVE
5304456689 5304456689 WASHER
215474201 215474201 WASHER
241690306 241690306 WASHER
ULTRAWF ULTRAWF WATER FILTER
