Model Image
Manufacturer

Electrolux

Model Number

FGHS2667KP4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241676101 241676101 ACTUATORSOLENOID
241868101 241868101 AIR GUIDE
241716101 241716101 AUGER-ICE
241726501 241726501 BAR-DRIVE
241513202 241513202 BASE
240330011 240330011 BASECOMPRESSOR MTG
242009602 242009602 BASEWATER FILTER
240530504 240530504 BASKET
240564401 240564401 BASKET-SLIDING
241760403 241760403 BEARING
241760401 241760401 BEARING
241990301 241990301 BEARING-HINGE
241990302 241990302 BEARINGHINGE(FRZ)
240351601 240351601 BIN-DOOR
240334201 240334201 BIN-DOOR
241684103 241684103 BLADE
241684102 241684102 BLADE
241684107 241684107 BLADE
241639502 241639502 BLADE
240335006 240335006 BOLT-ROLLER ADJ
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
5304458374 5304458374 BRACKETICE MAKER
241761301 241761301 BRACKETUPPER HINGE
316538904 316538904 BULB-LAMP
241563601 241563601 BUSHING-MOTOR MTG
241845301 241845301 BUSHINGMOTOR MTG
241685201 241685201 CAM-DRIVE
241812501 241812501 CHANNEL
241674402 241674402 CHANNEL
241674401 241674401 CHANNEL
241532401 241532401 CHANNEL
241513001 241513001 CHANNEL-SHELF MTG
241650901 241650901 CLAMP
5304455846 5304455846 CLAMP
241716801 241716801 CLIP
240362101 240362101 CLIP
241595202 241595202 CLIP
241852501 241852501 CLIP
5304458398 5304458398 CLIP
218515403 218515403 CLIPGRILLE
5304458401 5304458401 CLIPRETAINER
5304458399 5304458399 CONDUCTOR-HEAT
241561302 241561302 CONTAINER
241716002 241716002 CONTROL ROD
240362201 240362201 CONTROL-HUMIDITY
241516901 241516901 CORD-SERVICE
241513301 241513301 COVER
240599301 240599301 COVER
240326304 240326304 COVER
240435914 240435914 COVER
240350903 240350903 COVER-CRISPER PAN
241675502 241675502 COVER-MOTOR
241719711 241719711 COVEREVAP COIL
5304458376 5304458376 COVERICE MAKER
241946801 241946801 COVERMODULE
241946701 241946701 COVERUPPER HINGE
241946702 241946702 COVERUPPER HINGE
5304458378 5304458378 CUPWATER INLET
241853801 241853801 DAMPER ASSEMBLY
241756801 241756801 DAMPERMEAT KEEPER
241583301 241583301 DEFLECTOR-AIR
241587402 241587402 DEFLECTOR-ICE
240326203 240326203 DOOR-DAIRY
241837182 241837182 DOORFRZR
241837264 241837264 DOORREFR
241947001 241947001 DRIP TRAY
241684501 241684501 DRIVE BLADE
241690201 241690201 E-RING
3205266 3205266 EDGE PROTECTOR
5304458377 5304458377 EJECTORICE
241935564 241935564 ENERGY GUIDE
5303918284 5303918284 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
241720601 241720601 EXTENSION
5308000010 5308000010 FAN BLADE
241684203 241684203 FIXED BLADE
241684301 241684301 FIXED BLADE
241561402 241561402 FRONTICE CONTAINER
241786002 241786002 GASKET-FRZR DOOR
241786001 241786001 GASKET-REFR DOOR
5304458380 5304458380 GEAR

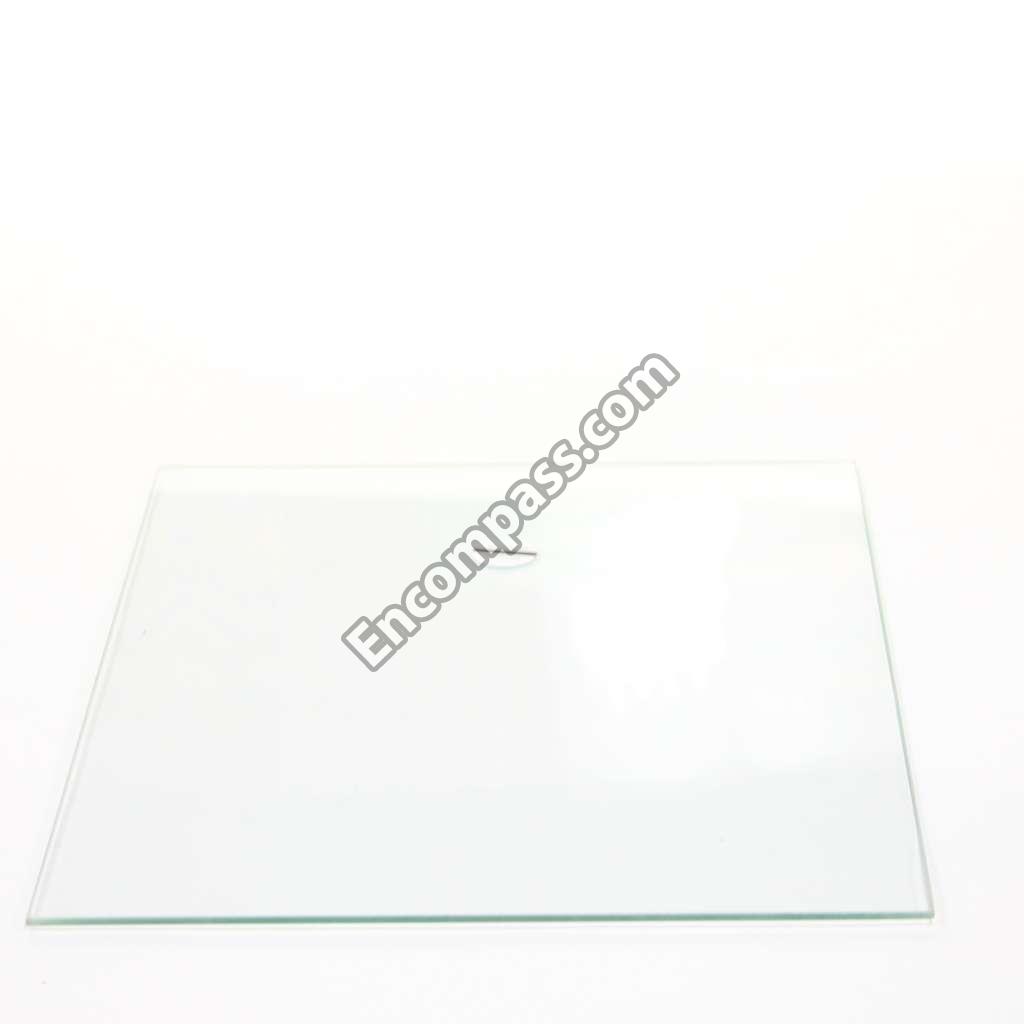

240350604 240350604 GLASS
241969401 241969401 GRILLE/KICKPLATE
240405201 240405201 GROMMET
241550801 241550801 GROMMET-SHELF MTG
241550701 241550701 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
240343102 240343102 HANGER-BASKET
240343002 240343002 HANGER-BASKET
240395602 240395602 HANGER-BASKET
240395502 240395502 HANGER-BASKET
241522901 241522901 HARNESS-ELECTRICAL
241519902 241519902 HARNESSELECTRICAL
241797601 241797601 HARNESSELECTRICAL
241835801 241835801 HARNESSWIRING
241834703 241834703 HARNESSWIRING
241891901 241891901 HARNESSWIRING
242008702 242008702 HARNESSWIRING
5304458379 5304458379 HARNESSWIRING
5303918328 5303918328 HEAT EXCHANGER KIT
242044113 242044113 HEATER-DEFROST
5303918222 5303918222 HOT TUBE REPAIR KIT
5304458395 5304458395 HOUSING
242010601 242010601 HOUSING-DIFFUSER & AIR F
241756901 241756901 HOUSINGDAMPER
241753701 241753701 HOUSINGLIGHT
241845401 241845401 HOUSINGSENSOR

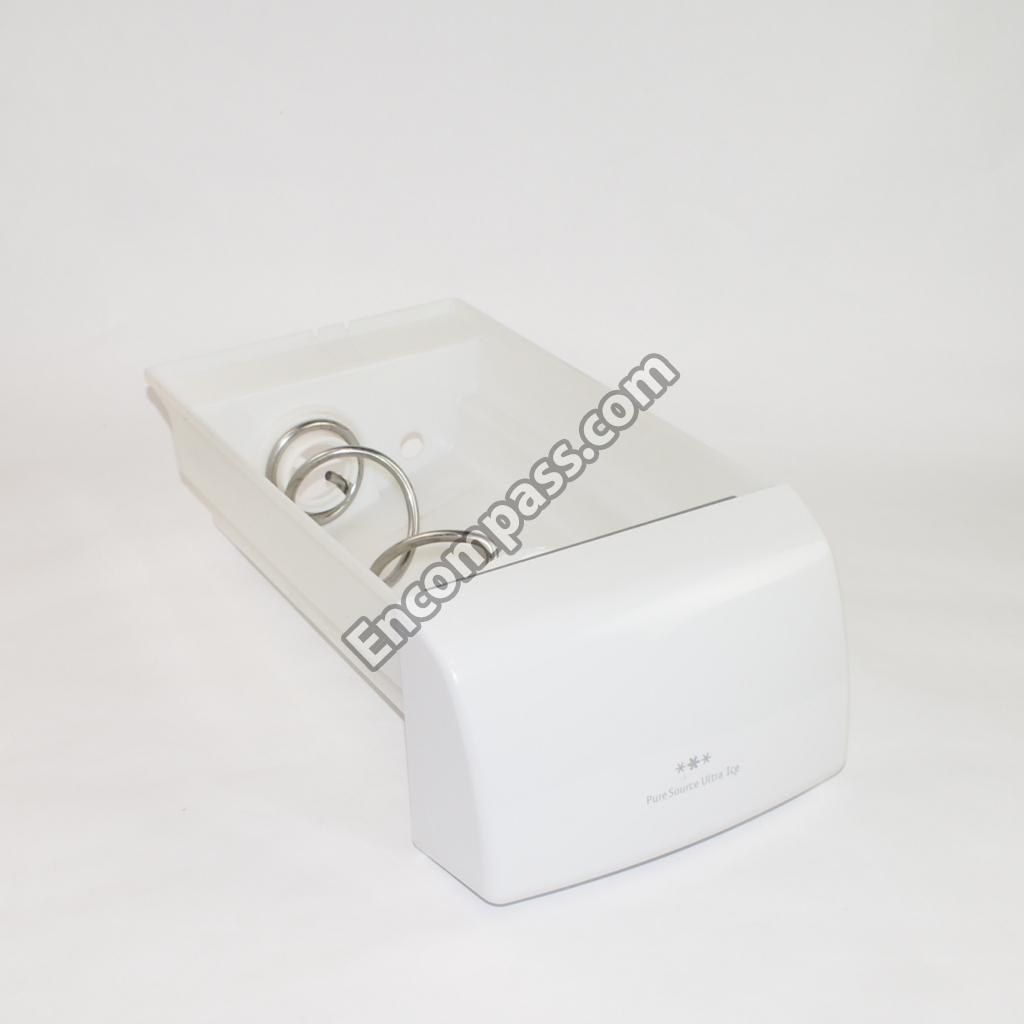

241860810 241860810 ICE CONTAINER ASSEMBLY
5304458390 5304458390 ICE STRIPPER
240350649 240350649 INSERT-GLASS
240350603 240350603 INSERT-PAN COVER
240443384 240443384 INSERTPAN COVER
241945101 241945101 INSULATIONAIR DUCT
5304458381 5304458381 INSULATOR
5304458391 5304458391 LEVER ARM
5304458382 5304458382 MOTORICE MAKER SVO
241998302 241998302 MOUNTWATER FILTER
241685001 241685001 NUT-AUGER
240351061 240351061 PANCRISPER
241697602 241697602 PANDEFROST
241969601 241969601 PANMEAT DRAWER
241690402 241690402 PIN-SPIRAL
241684001 241684001 PLATE-FRONT
5304456681 5304456681 PLATE-VALVE SWITCH
241917801 241917801 PLATEDOOR CLOSER
5304458383 5304458383 PLATEMOUNTING
240494001 240494001 PLUG
5303208309 5303208309 PLUG-HOLE
241734501 241734501 RAIL
241561001 241561001 RAIL-ICE CREAM SHEL
241692001 241692001 RAIL-ICE CREAM SHEL
241622802 241622802 RECEPTACLE
240323002 240323002 REFRIGERATOR DOOR BIN
5304458403 5304458403 RETAINER-THERMOSTAT
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
241676301 241676301 ROTATION STOP
218362501 218362501 SCREW
215005101 215005101 SCREW
218359202 218359202 SCREW
241690501 241690501 SCREW
241551602 241551602 SCREW
241690701 241690701 SCREW
241690601 241690601 SCREW
218493101 218493101 SCREW
241548003 241548003 SCREW
218252201 218252201 SCREW
218781101 218781101 SCREW
241710601 241710601 SCREW
241500303 241500303 SCREW
240451503 240451503 SCREW
5304455650 5304455650 SCREW
5304458394 5304458394 SCREW
5304458384 5304458384 SCREW
5304458385 5304458385 SCREW
5304458387 5304458387 SCREW
5304458393 5304458393 SCREW
5304456676 5304456676 SCREW
5304456684 5304456684 SCREW
5304458386 5304458386 SCREW
5304458389 5304458389 SCREW
240442706 240442706 SCREW-#10-32 X 3/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
218755405 218755405 SCREWSET
240363602 240363602 SCREWSHOULDER
218249808 218249808 SEALCOIL COVER
241781601 241781601 SEALRETURN AIR
240561703 240561703 SEALWATER INLET
240597203 240597203 SENSOR
240350605 240350605 SHELF-FREEZER
241691901 241691901 SHELF-ICE CREAM
240324101 240324101 SHELF-PIZZA
241513402 241513402 SHIELDLIGHT
241753601 241753601 SHIELDLIGHT
241946106 241946106 SHROUDCOND FAN
5304458375 5304458375 SHUT-OFF ARM
241754301 241754301 SLEEVE
240349801 240349801 SLIDE CLIP
241559801 241559801 SOCKET-LIGHT
241684802 241684802 SPACER
241689801 241689801 SPACER
240409302 240409302 SPACER-COND TUBE
241684901 241684901 SPACER-FIXED BLADES
5304458388 5304458388 SPACER-HOLD SWITCH
241731801 241731801 SPRINGCONTROL ROD
241707701 241707701 STARTER
241942603 241942603 STOPDOOR/FF BLACK
241942604 241942604 STOPDOOR/FRZR BLAC
5308000110 5308000110 STRAP-EVAP/HEATER
241993001 241993001 SUPPORTCRISPER CVR
241993101 241993101 SUPPORTCRISPER CVR
241911703 241911703 SWITCH
241973823 241973823 SWITCH ASSEMBLY
241547901 241547901 SWITCH-LIGHT/LAMP
5304456667 5304456667 SWITCH-MICRO
240346701 240346701 TAPE-FOAM SEAL
5304458400 5304458400 THERMAL CUTOFF
5304456665 5304456665 THERMOSTAT
241510607 241510607 TRIM
241946901 241946901 TRIM
240337608 240337608 TRIM-CABINET CORNER
240367602 240367602 TRIM-SHELF
218976429 218976429 TUBE
218976419 218976419 TUBE
218976409 218976409 TUBE
241957901 241957901 TUBE-DRAIN, LOWER
241856903 241856903 TUBECONNECTOR
241690306 241690306 WASHER
215474201 215474201 WASHER
5304456689 5304456689 WASHER
ULTRAWF ULTRAWF WATER FILTER
5303321319 5303321319 WHITE TOUCHUP PAINT
