Manufacturer
Electrolux
Model Number
FGHT2055VD1
Description
Refrigerator, Top Mount
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESS COVER, REAR |
|
|
BAFFLE, DIVIDER, HIGH SIDE |
|
|
BAFFLE, DRAIN PAN, AIR BLOCK |
|
|
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS |
|
|
BEARING, HINGE, GRAY |
|
|
BIN, DOOR, 4", CLEAR, FRESH FOOD |
|
|
BIN, DOOR, 6", CLEAR, FRESH FOOD |
|
|
BIN, DOOR, FREEZER |
|
|
BLADE, CONDENSER FAN, FAN |
|
|
BULB, LIGHT, E17/12 LED |
|
|

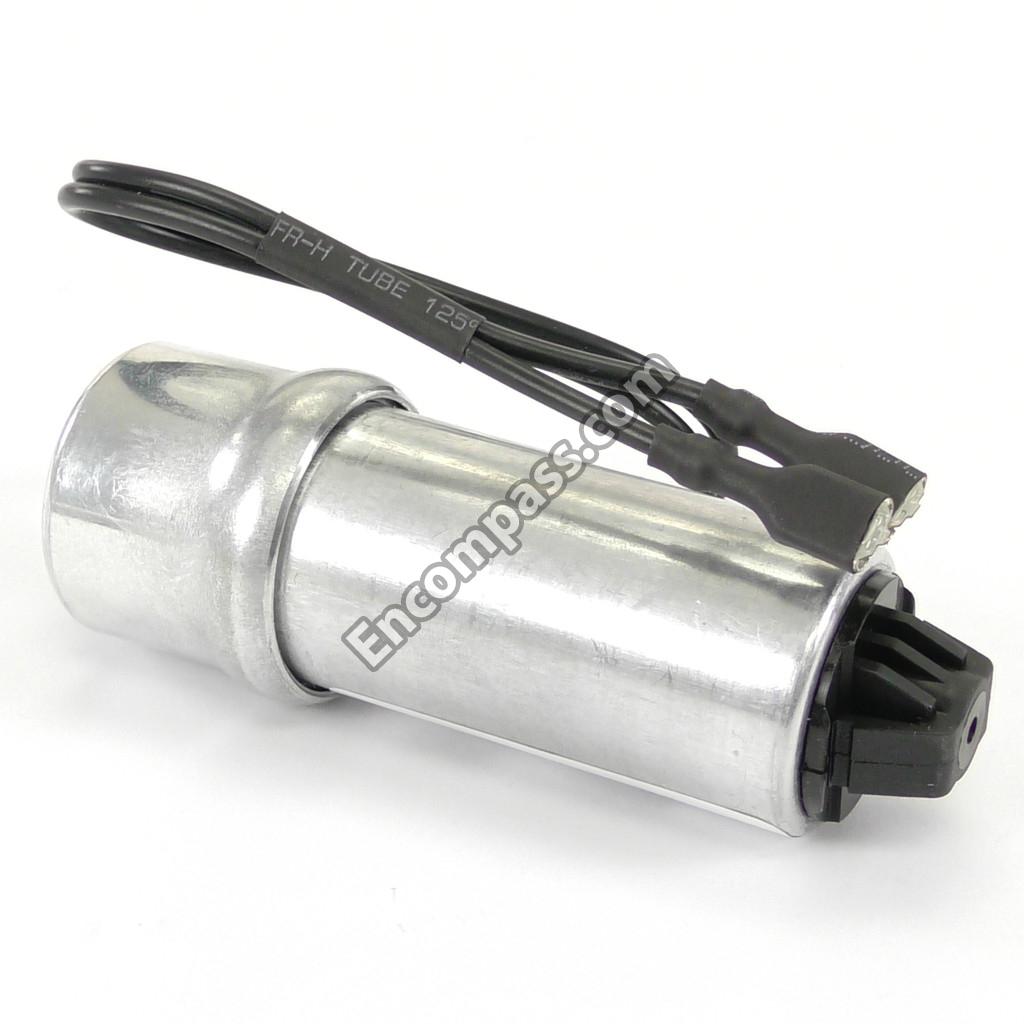

CAPACITOR, RUN, 12UF |
|
|
CARRIAGE, DELI DRAWER, FILL WIDTH |
|
|
CLAMP, COMPRESSOR |
|
|
CLAMP, WIRING HARNESS, GALV STEEL, STRN RELIEF |
|
|
CLIP, PLASTIC, W/ADHESIVE |
|
|
CLIP, WIRING HARNESS, PLASTIC, W/ADHESIVE |
|
|

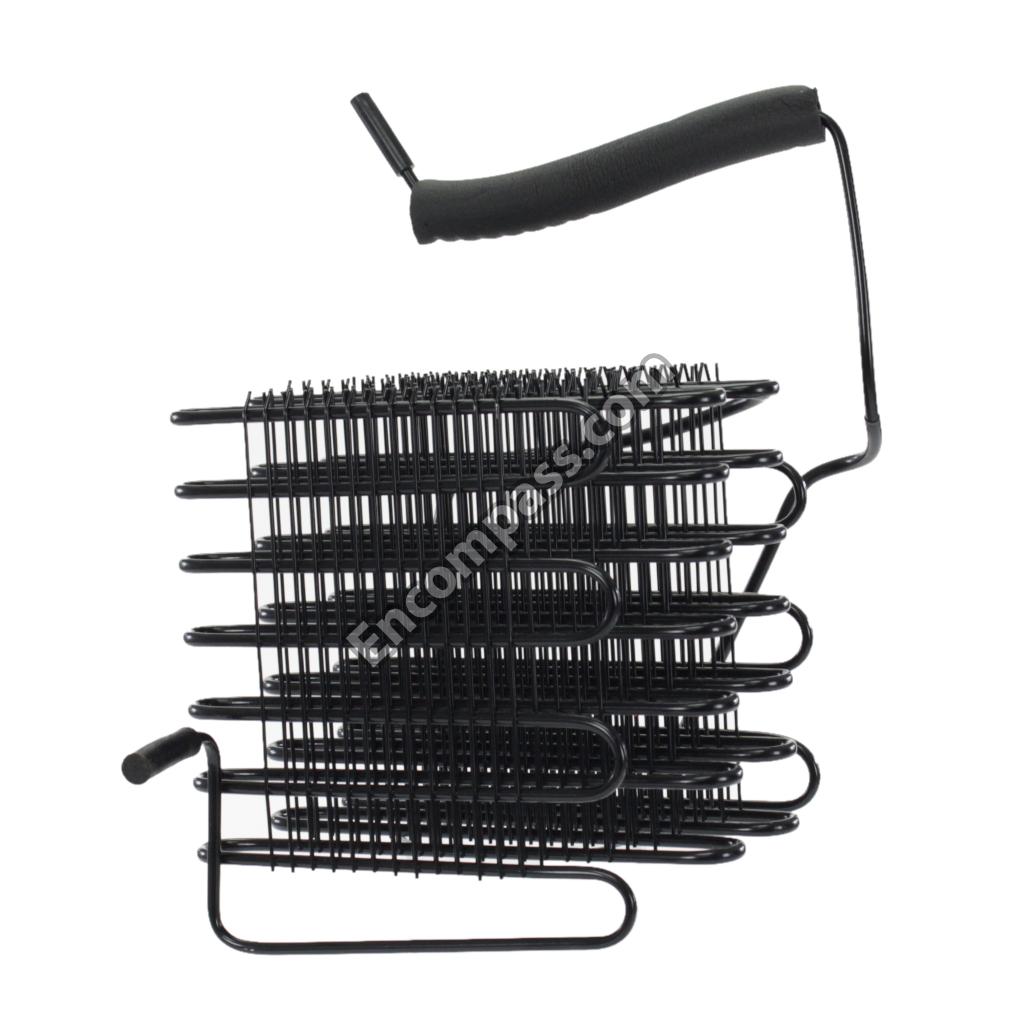

CONDENSER, DYNAMIC |
|
|
COVER ASSEMBLY, CRISPER, GLASS, COMPLETE |
|
|
COVER ASSEMBLY, EVAPORATOR, W/FRZ SLIDE |
|
|
COVER, ELECTRICALS, COMPRESSOR |
|
|
COVER, HINGE BEARING, GRAY |
|
|
COVER, HINGE SIDE, GRAY, LOWER |
|
|
COVER, HINGE, GRAY, LOWER, NON-HINGED |
|
|
COVER, HOUSING, REED SWITCH |
|
|
COVER, I/M CONNECTOR |
|
|
COVER, REED SWITCH, FRONT |
|
|
DIFFUSER, CONTROL BOX, BOTTOM |
|
|
DIFFUSER, CONTROL BOX, TOP |
|
|
DOOR ASSEMBLY, FREEZER, BLACK STAINLESS, W/GASKET-HRDWRE |
|
|
DOOR ASSEMBLY, FRESH FOOD, BLACK STAINLESS, W/GASKET-HRDWRE |
|
|
DRAWER, DELI, FULL WIDTH |
|
|
EVAPORATOR |
|
|
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM |
|
|
FILTER, DRIER, SERVICE |
|
|
GASKET, DOOR, BLACK, FREEZER |
|
|
GASKET, DOOR, BLACK, FRESH FOOD |
|
|
GROMMET, COMPRESSOR |
|
|
GROMMET, EVAPORATOR FAN, REAR |
|
|
HARNESS, WIRING, CONTROL BOX, W/TEMP SENSOR |
|
|
HARNESS, WIRING, MACHINE COMPT. |
|
|
HEATER, DEFROST |
|
|
HINGE ASSEMBLY, BOTTOM, BLACK, RH, W/PIN-CLOSER |
|
|
HINGE ASSEMBLY, BOTTOM, LH |
|
|
HINGE, DOOR, GRAY, CENTER |
|
|
HINGE, UPPER, GRAY, FREEZER DOOR, REVERSABLE |
|
|
HOOK, DOOR CLOSER, GRAY |
|
|
HOUSING, CONTROL BOX |
|
|
HOUSING, SENSOR MAGNET, FF DOOR |
|
|
LABEL, BLANK, WHITE, HOLE COVER |
|
|
LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN |
|
|
MAGNET, REED SWITCH |
|
|
MOTOR, EVAPORATOR FAN, BLOWER |
|
|
NAMEPLATE, BLACK STAINLESS |
|
|
PAN ASSEMBLY, CRISPER, LH, W/ROLLERS |
|
|
PAN ASSEMBLY, CRISPER, RH, W/ROLLERS |
|
|
PAN, DRAIN |
|
|
PC BOARD ASSEMBLY, MAIN, W/HOUSING |
|
|
PIN, CENTER HINGE, DOOR |
|
|
PIN, HINGE, UPPER DOOR |
|
|
REED SWITCH HARNESS, ASSEMBLY |
|
|
S/A PUR COMP ESC55CBT GEN2 MX |
|
|
SCREW, 8-18 X 1.25 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX WASHER HEAD, 8-18 X 5/16 |
|
|
SCREW, HEX WSH HD QUAD, M5 X 16 |
|
|
SCREW, HX WASH HD, M4.2 X 12 |
|
|
SCREW, PAN HD QDRX TRI, M5 X 12 |
|
|
SCREW, SHOULDER, M4.2 HI-LO QDRX |
|
|
SEAL, AIR DUCT, TOP |
|
|

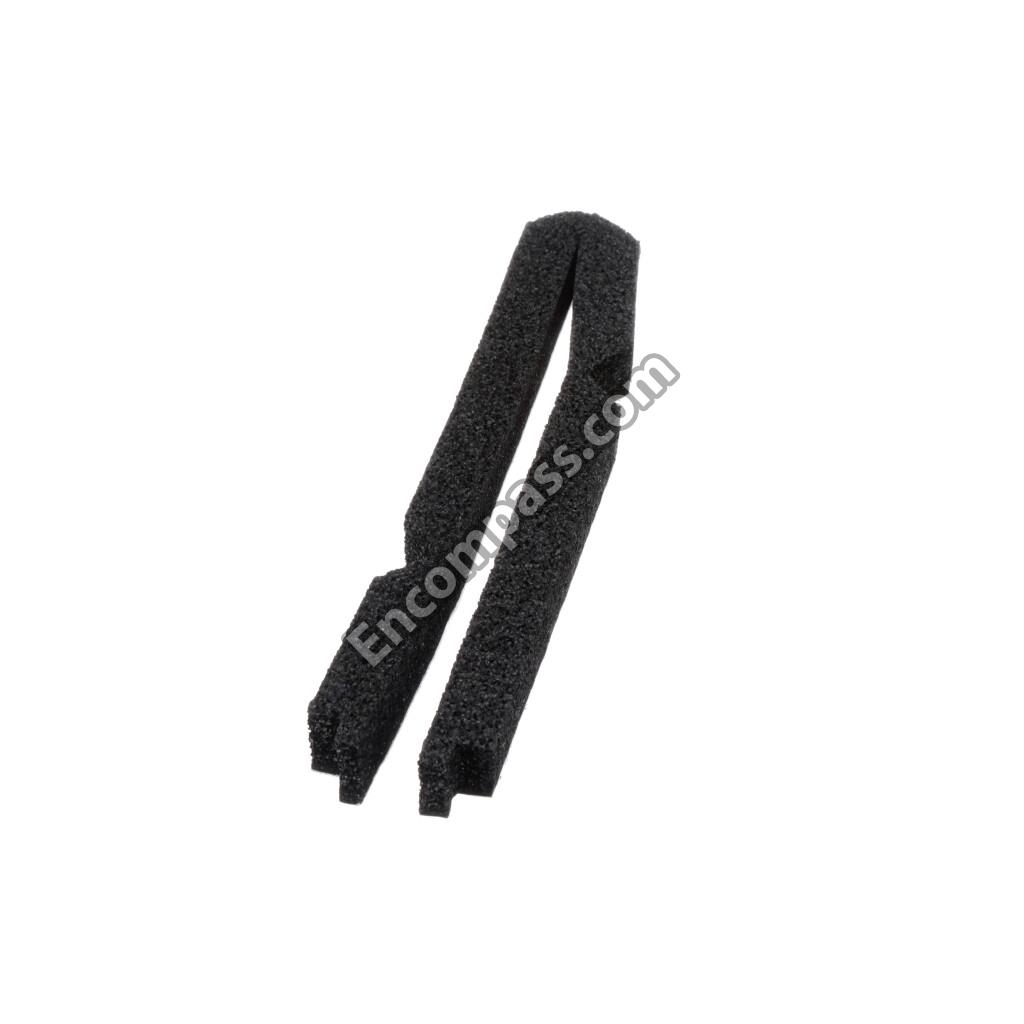

SEAL, FOAM, AIR BLOCK |
|
|
SEAL, FOAM, DRAIN PAN |
|
|
SHELF ASSEMBLY |
|
|
SHELF ASSEMBLY |
|
|
SHELF ASSEMBLY, FREEZER, GLASS, W/TRIM |
|
|
SHROUD, EVAPORATOR FAN |
|
|
SOCKET, LED LIGHT |
|
|
SPACER, CENTER HINGE, CLEAR |
|
|
STARTER, COMPRESSOR, TSD 2.1 |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SUPPORT, CRISPER COVER |
|
|
SUPPORT, EVAPORATOR, LH |
|
|
SUPPORT, EVAPORATOR, RH |
|
|
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR |
|
|
TROUGH, EVAP DRAIN |
|
|
TUBE, DRAIN EXTENSION |
|
|
TUBE, PROCESS |
|
|
TUBE-SUCTION JUMPER ES COMP |
|
|
UI BOARD & OVERLAY |
|
|
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT |
