Model Image
Manufacturer

Electrolux

Model Number

FGHT2132PF2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241665504 241665504 BASECOMPRESSOR
240527102 240527102 BEARING-HINGE

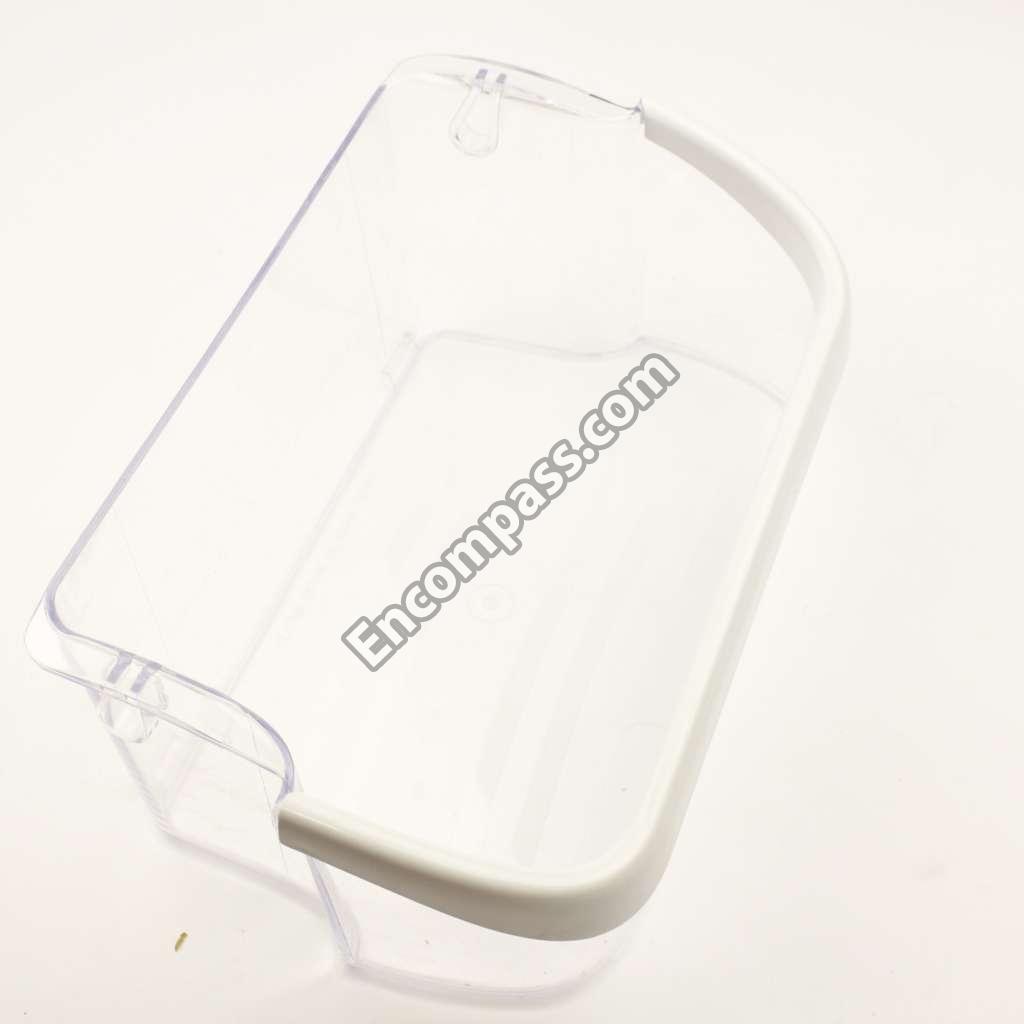

240495805 240495805 BIN-DOOR
241808201 241808201 BINDOOR
241639501 241639501 BLADE
242238301 242238301 BLOCK,EVAPORATOR,LH
242238401 242238401 BLOCK,EVAPORATOR,RH
240335502 240335502 BOLT-ROLLER ADJ
240368105 240368105 BOXCONTROL
240313806 240313806 BRACKET-CTR HINGE
240314011 240314011 BRACKET-LOWER HINGE
5303292396 5303292396 BRACKET-MOTOR MTG
5303292397 5303292397 BRACKET-MOTOR MTG
241555401 241555401 BULB-LAMP
297286803 297286803 CAPACITORRUN
240396801 240396801 CLAMP-TUBE
240362101 240362101 CLIP
218515401 218515401 CLIP
297030500 297030500 CLIP
218990901 218990901 CLIP-WIRE
240542601 240542601 CLIP-WIRING HARNESS
242037701 242037701 CLIPCOMPRESSOR MTG
240550937 240550937 COMPRESSOR
241733907 241733907 COVER
242205402 242205402 COVER
240313613 240313613 COVER-EVAP COIL,W/LIGHT

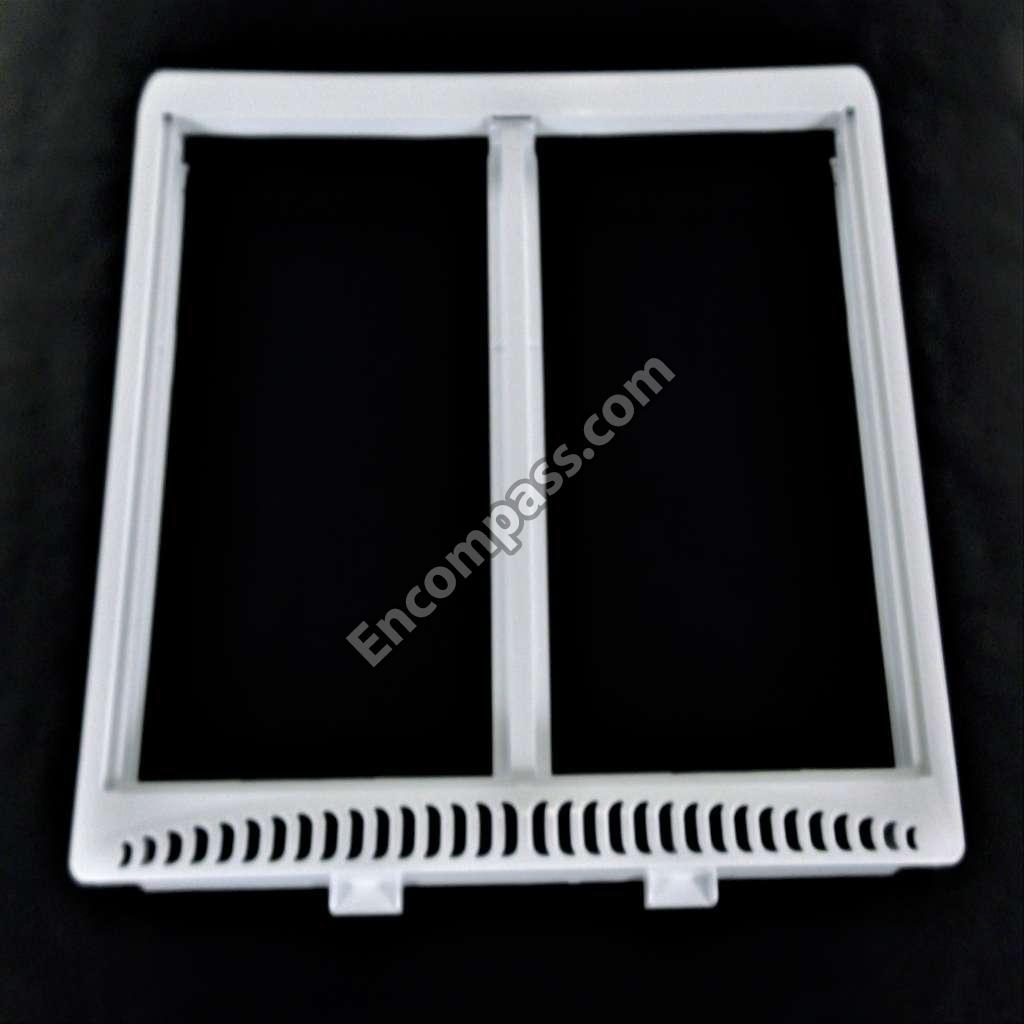

242201803 242201803 COVERCRISPER PAN
240355407 240355407 COVERFAN
241523701 241523701 DAMPER-FAN COVER
242213901 242213901 DEFLECTOR
240362601 240362601 DIFFUSER

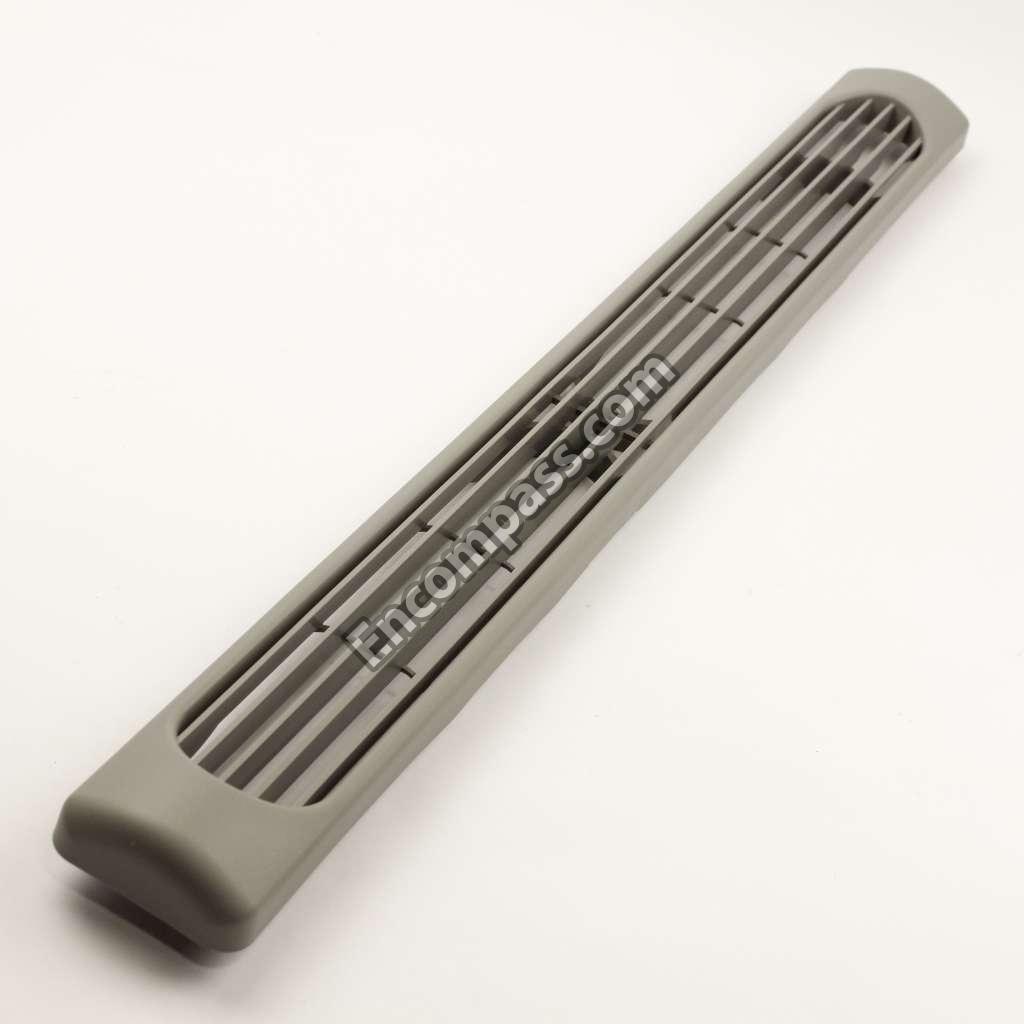

240545901 240545901 DIFFUSER-AIR
240338101 240338101 DOOR BIN SHELF
240312415 240312415 DOOR STOP
240312405 240312405 DOOR STOP

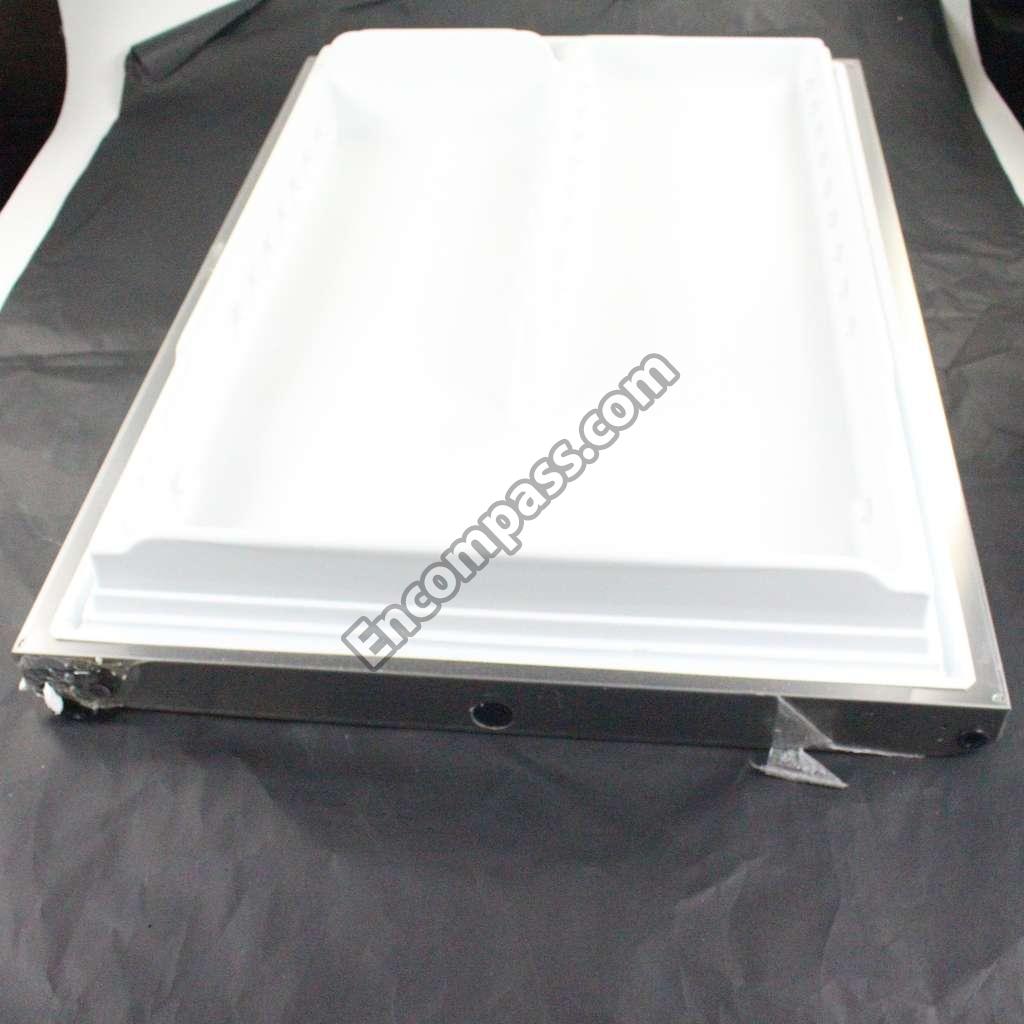

242178114 242178114 DOORREFR
5303918274 5303918274 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
242178001 242178001 FRZR DOOR
242193213 242193213 GASKETDOOR REF 21
242193205 242193205 GASKETFRZR DOOR
241839413 241839413 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
218513300 218513300 GROMMET-COMPR MTG
242019701 242019701 HARNESSWIRING
242044021 242044021 HEATERDEFROST
240350609 240350609 INSERT-PAN COVER
240360801 240360801 KNOB
240367001 240367001 KNOB-DAMPER CONTROL
241560701 241560701 LIGHT BULB
242322203 242322203 MEAT PAN
242018301 242018301 MOTORCONDENSER FAN
241854501 241854501 MOTOREVAP FAN
242218504 242218504 PAN
241697602 241697602 PANDEFROST
240516502 240516502 PIN-LOWER HINGE
240494006 240494006 PLUG-BUTTON
240494001 240494001 PLUG-BUTTON
240381306 240381306 PLUG-BUTTON
241586701 241586701 PLUG-FOAM-WTR-INLET
5303208309 5303208309 PLUG-HOLE
240374401 240374401 PLUG-WTR INLET TUBE
215774921 215774921 PLUGBUTTON
242193602 242193602 PLUGHOLE
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
240433204 240433204 SCREW
241710601 241710601 SCREW
241500303 241500303 SCREW
218252201 218252201 SCREW
240383406 240383406 SCREW
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240442706 240442706 SCREW-#10-32 X 3/4
240555002 240555002 SCREW-#8-32 X 3/8
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240568606 240568606 SEAL-COIL COVER
240358927 240358927 SHELFSPILLSAFE
240412702 240412702 SHIELD
242320401 242320401 SHIELD
240354303 240354303 SHIELDLIGHT
241946106 241946106 SHROUDCOND FAN
242215901 242215901 SLIDE
240349801 240349801 SLIDE CLIP
240364201 240364201 SOCKET-LIGHT/LAMP
5303299664 5303299664 SPACER
240409302 240409302 SPACER-COND TUBE
240336802 240336802 SPACER-HINGE
241705801 241705801 SPACERSHELF
241941005 241941005 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
241872203 241872203 SUPPORTBEAM
240505801 240505801 SWITCH
241554901 241554901 SWITCH-LIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
5303918634 5303918634 THERMOSTAT KIT
242161206 242161206 TRIM
241801301 241801301 TROUGH-DRAIN
240468202 240468202 TUBE
241871501 241871501 TUBECONNECTOR
215474201 215474201 WASHER
240311303 240311303 WASHER
241812301 241812301 WASHERCOMPR MTG
240388701 240388701 WIRING HARNESS
5304467131 5304467131 WRENCH
