Manufacturer

Electrolux

Model Number

FGIF3061NFB

Description

Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316112005 316112005 ANTI TIP KIT
316502006 316502006 BACK
316411106 316411106 BASE

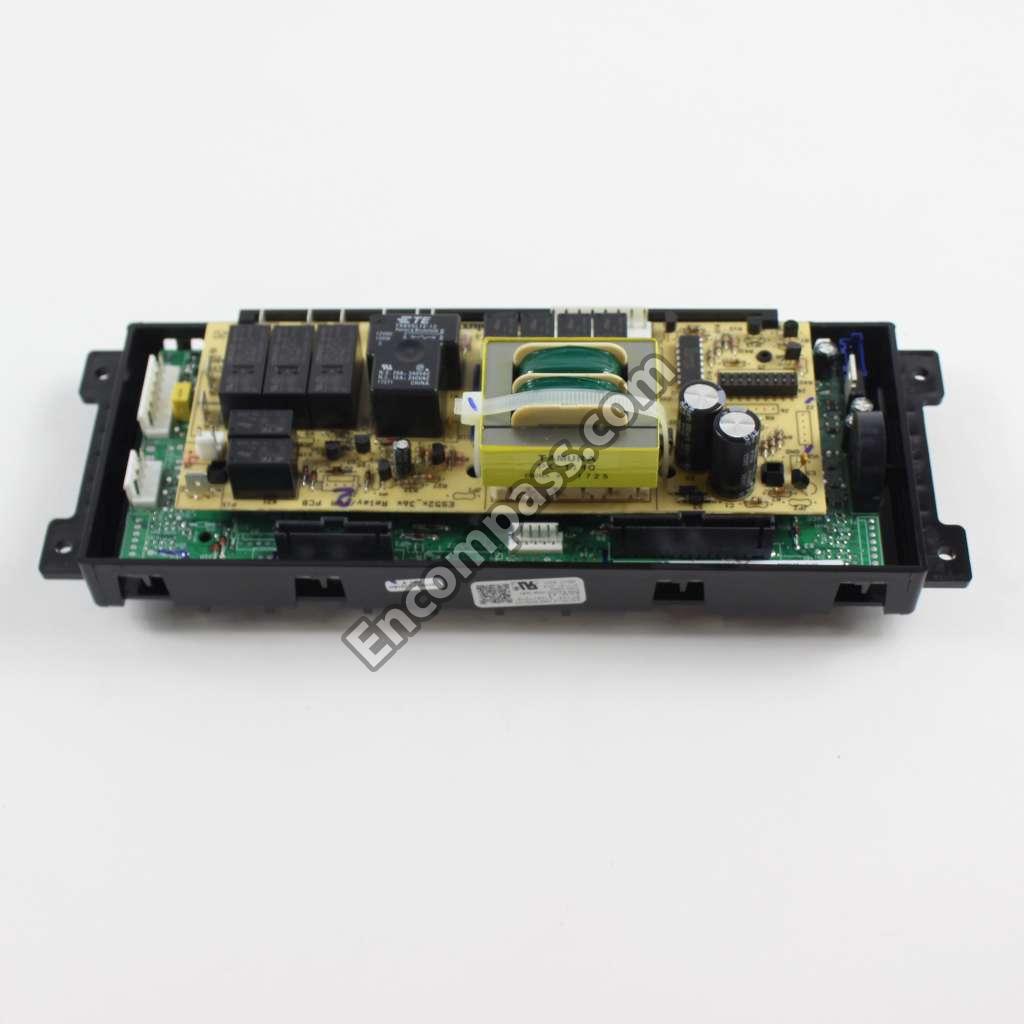

316578323 316578323 BOARD
316445605 316445605 BOARD
316435703 316435703 BOARD
316506000 316506000 BRACKET
316081200 316081200 BRACKET
316404100 316404100 BRACKET
316498200 316498200 BRACKET
316214202 316214202 BRACKET
316530800 316530800 BRACKET
316530403 316530403 BRACKETAIRWASH GLA
316286300 316286300 BRACKETBODYSIDE
316580800 316580800 BRACKETHINGE
316546702 316546702 CAP
316546703 316546703 CAP
316546601 316546601 CAP
316427604 316427604 CHANNEL
316468100 316468100 CLEANER
316408000 316408000 CLIP
316461700 316461700 CLIP
316305400 316305400 CONTROL ASSEMBLY
316457801 316457801 COVER
316026701 316026701 COVER
316408703 316408703 DRAWER
316211603 316211603 ELEMENT
316307600 316307600 ELEMENT
316430900 316430900 ELEMENT
316307501 316307501 ELEMENT
316305600 316305600 ELEMENT
316305900 316305900 ELEMENT
316306000 316306000 ELEMENT
316305800 316305800 ELEMENT
318398302 318398302 FAN BLADE
316303100 316303100 FASTENER
316452720 316452720 GLASS
316502601 316502601 GLASS
316502500 316502500 GLASS
316407301 316407301 GLIDE
316407400 316407400 GLIDE
316525625 316525625 HARNESS
316525626 316525626 HARNESS
316303503 316303503 HARNESS ASSEMBLY
316575908 316575908 HINGE
316082000 316082000 INSERT
316301700 316301700 INSULATION
316406602 316406602 INSULATION
316403802 316403802 INSULATION
316306800 316306800 INSULATION
316513000 316513000 INSULATION
316542200 316542200 INSULATOR
316564408 316564408 KNOB
316483100 316483100 LABEL
316510700 316510700 LAMP
316405800 316405800 LATCH ASSEMBLY
316448000 316448000 LENS
316498900 316498900 LEVELLING LEG ASSEMBLY
316022500 316022500 LIGHT/LAMP
316403300 316403300 LINER
316503618 316503618 LINER
316547900 316547900 LINK
316282980 316282980 MAINTOP ASSEMBLY
316256100 316256100 MOTOR
316464300 316464300 MOTOR-LATCH
316572700 316572700 NAMEPLATE
316247700 316247700 NUT
316205500 316205500 NUT
316136600 316136600 NUT

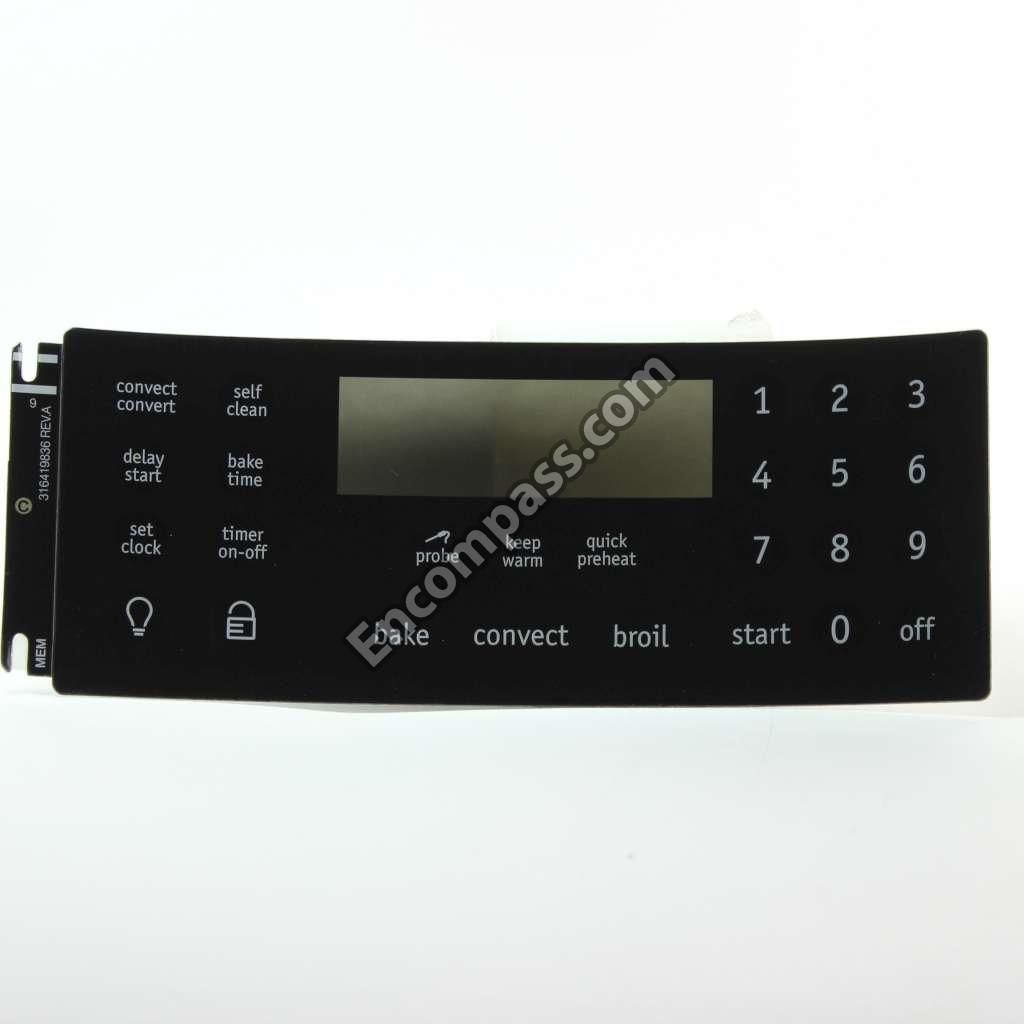

316419836 316419836 OVERLAY
316081900 316081900 PAN
316572443 316572443 PANEL
316400601 316400601 PANEL
316306401 316306401 PANEL
316306501 316306501 PANELMTG COILS LH
316542600 316542600 PLATE
316533801 316533801 PLATE
316577600 316577600 PLUG
316490000 316490000 PROBE
316441300 316441300 RECEPTACLE
316536900 316536900 RECEPTACLE
316203500 316203500 ROD
316021105 316021105 SCREW
316021109 316021109 SCREW
316021110 316021110 SCREW
316089500 316089500 SCREW
5303289910 5303289910 SCREW
316001003 316001003 SCREW
316418900 316418900 SCREW
316272900 316272900 SCREW
316279600 316279600 SCREW
316282700 316282700 SCREW
316116000 316116000 SCREW
5303285179 5303285179 SCREW
316021132 316021132 SCREW
5308014215 5308014215 SCREW
316405000 316405000 SEAL
316302203 316302203 SEALS
316302503 316302503 SHEILD
316557600 316557600 SHIELD
316234100 316234100 SHIELD
316406200 316406200 SHIELD
316407700 316407700 SHIELD
316404601 316404601 SHIELD
316306701 316306701 SHIELD
316408201 316408201 SHIELD
316503800 316503800 SHIELD
316247900 316247900 SPACER
316114100 316114100 SPACER
316517600 316517600 SPACER
316284100 316284100 SPACER
316502101 316502101 SPACER
316429100 316429100 SUPPORT
316095503 316095503 SWITCH
316445500 316445500 SWITCH
5303935271 5303935271 TERMINAL BLOCK KIT
316208304 316208304 TUBE
316208401 316208401 VENT TUBE
316247800 316247800 WASHER
316534100 316534100 WASHER
