Model Image
Manufacturer

Electrolux

Model Number

FGMC2765KWA

Description

Wall Oven/microwave Combo

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318357001 318357001 ADAPTER
318259213 318259213 BACK
318260511 318260511 BAFFLE
5304440814 5304440814 BASE
318272901 318272901 BOX
318394442 318394442 BOX & WIRES ASSEMBLY
318382301 318382301 BRACKET
318260623 318260623 BRACKET
318251300 318251300 BRACKET
318276206 318276206 BRACKET
318276204 318276204 BRACKET
318295301 318295301 BRACKET
318256201 318256201 BRACKET
5304462313 5304462313 BRACKET
5303013071 5303013071 BULB/LAMP
5304440288 5304440288 BUSHING
5304442133 5304442133 BUTTON
5304440816 5304440816 CABINET
318347800 318347800 CHIMNEY
5304474853 5304474853 CONTROL BOARD
5304472844 5304472844 CONTROL PANEL ASSEMBLY

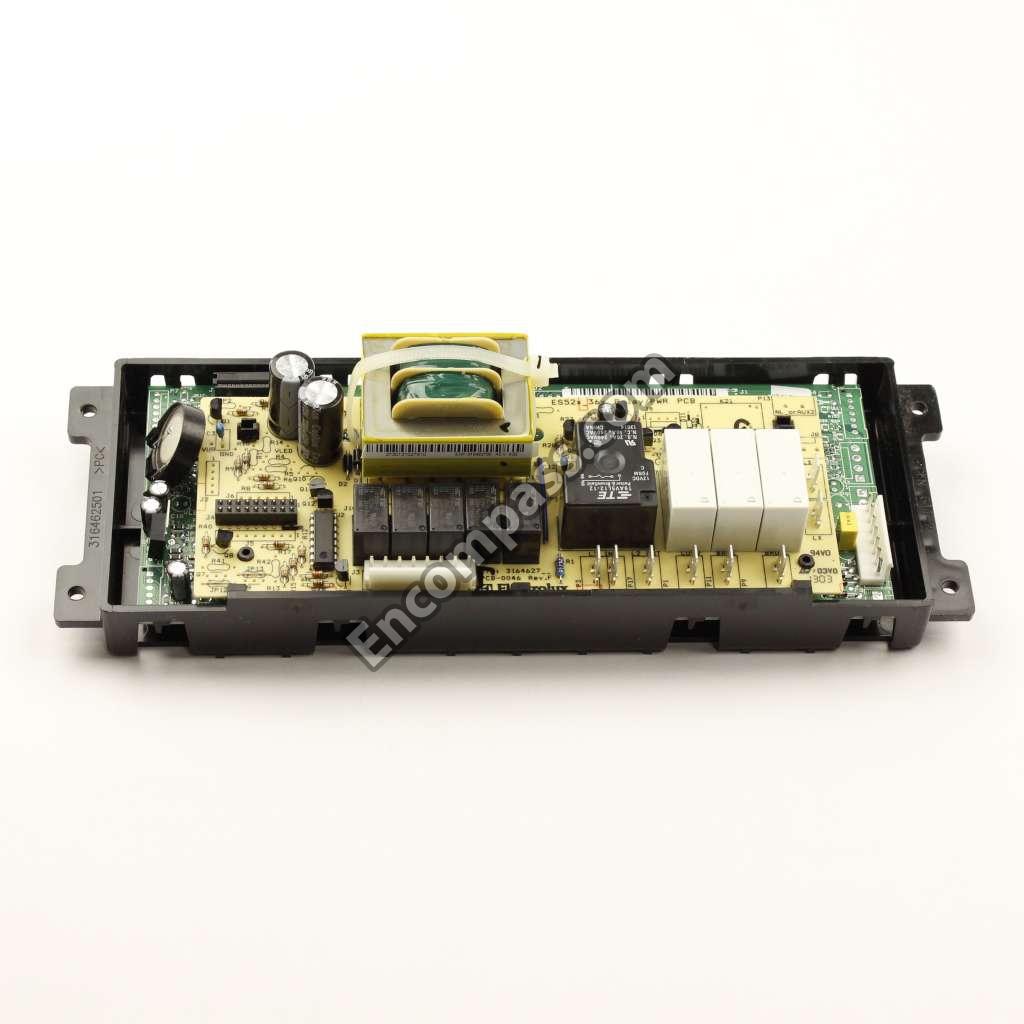

316560151 316560151 CONTROLLER
318219405 318219405 COVER
5304462314 5304462314 COVER
5304441910 5304441910 CUSHION
318123910 318123910 DEFLECTOR
318295705 318295705 DEFLECTOR
5304474855 5304474855 DOOR ASSEMBLY
5304442145 5304442145 DOOR STOP
5304440862 5304440862 DOOR STOP
5304490394 5304490394 DUCT
5304440844 5304440844 DUCT
318255504 318255504 ELEMENT
318398302 318398302 FAN BLADE
5304440843 5304440843 FAN BLADE
318297111 318297111 FLUE
5304440861 5304440861 FRAME
318930305 318930305 FRAME
5304440780 5304440780 FUSE
5303319550 5303319550 FUSE
318053126 318053126 GASKET
318212200 318212200 GLASS
318261326 318261326 GLASS ASSEMBLY
318927500 318927500 HANDLE ASSEMBLY
5304452260 5304452260 HARNESS
318567108 318567108 HINGE
318222400 318222400 HOUSING
318929703 318929703 INSERT
318372015 318372015 INSULATION
318268099 318268099 INSULATION
5304440334 5304440334 LABEL
5304440333 5304440333 LABEL
5304440779 5304440779 LAMP ASSEMBLY
318259652 318259652 LINER
318261810 318261810 LINER
5304472253 5304472253 MAGNETRON
318073028 318073028 MOTOR
5304448490 5304448490 MOTOR
316136600 316136600 NUT
318146833 318146833 OUTLET-ELECTRICAL
318575129 318575129 PANEL ASSEMBLY
318368300 318368300 PIN
318389400 318389400 PLATE
318003000 318003000 PLATE
5304440784 5304440784 POWER CORD
318919800 318919800 RACK
318922300 318922300 RACK
318926804 318926804 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304416408 5304416408 SCREW
5304452259 5304452259 SCREW
5304453707 5304453707 SCREW
5303324184 5303324184 SCREW
5304415832 5304415832 SCREW
5303307406 5303307406 SCREW
5304461333 5304461333 SCREW
5303323277 5303323277 SCREW
5303323129 5303323129 SCREW
5304462315 5304462315 SCREW
5303319641 5303319641 SCREW
5303319636 5303319636 SCREW
5304400794 5304400794 SCREW
5304440873 5304440873 SCREW
5304451553 5304451553 SCREW
5304450253 5304450253 SCREW
5304453725 5304453725 SCREW
5303211311 5303211311 SCREW
5304436875 5304436875 SCREW
5304456930 5304456930 SCREW
5304440860 5304440860 SEAL
318389000 318389000 SEAL
5304440785 5304440785 SENSOR
318277201 318277201 SHIELD
318258920 318258920 SHIELD
318264700 318264700 SPACER
318531800 318531800 SPACER
318165800 318165800 SPACER
318531703 318531703 SPACER
5304440316 5304440316 SPRING
318192400 318192400 SPRING
5304440831 5304440831 SPRING
318172904 318172904 SUPPORT
316445501 316445501 SWITCH
318004900 318004900 SWITCH
5303319559 5303319559 SWITCH
5304440026 5304440026 SWITCH
5304473321 5304473321 TRANSFORMER
5304440868 5304440868 TRAY
318260401 318260401 TRIM
318260211 318260211 TRIM
318259710 318259710 TRIM
318925000 318925000 TRIM
318257721 318257721 TRIM
318925102 318925102 TRIM
318249409 318249409 TUBE
318142100 318142100 WASHER
5304440870 5304440870 WIRE
318402209 318402209 WIRING HARNESS
