Model Image
Manufacturer

Electrolux

Model Number

FGS365ESA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318335500 318335500 ANTI-TIP & ACCESSOR
316401301 316401301 BAFFLE
318290400 318290400 BAFFLE
318288801 318288801 BOX
318291800 318291800 BOX
318262810 318262810 BRACKET
318260604 318260604 BRACKET
318291900 318291900 BRACKET
318251300 318251300 BRACKET
318288701 318288701 BRACKET
318327100 318327100 BRACKET
318306700 318306700 BRACKET
318382301 318382301 BRACKET
5303013071 5303013071 BULB/LAMP
318147430 318147430 BUMPER
316212300 316212300 BURNER
318292200 318292200 BURNER
318292300 318292300 BURNER
318233400 318233400 BUSHING
5303325174 5303325174 CAP
316206501 316206501 CAP
316242801 316242801 CAP
316242901 316242901 CAP-BURNER
318018100 318018100 CHANNEL
318018101 318018101 CHANNEL
318163600 318163600 CLEANER

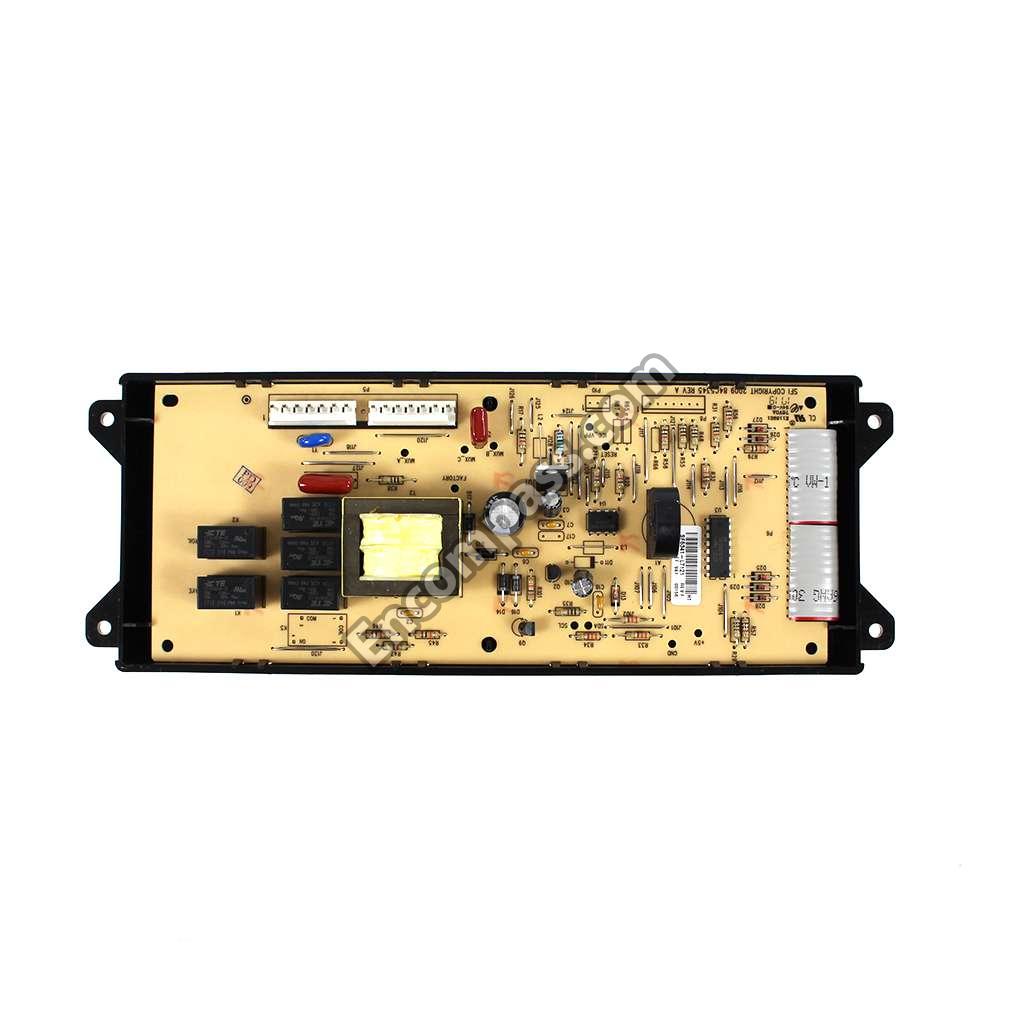

318414217 318414217 CLOCK/TIMER
318299100 318299100 CONSOLE
5303310526 5303310526 COVER
318229900 318229900 COVER
318291200 318291200 COVER
318298210 318298210 FRAME
318335600 318335600 FRAME & WHEEL ASSEM
318056217 318056217 FRONT
318223900 318223900 GASKET
316117500 316117500 GLASS
318231303 318231303 GRATE
318268600 318268600 HARNESS
318222400 318222400 HOUSING
318306304 318306304 IGNITOR/ORIFICE ASS
318306305 318306305 IGNITOR/ORIFICE ASS
318306306 318306306 IGNITOR/ORIFICE ASS
318306307 318306307 IGNITOR/ORIFICE ASS
318594510 318594510 INSULATION
318285084 318285084 INSULATION
316223025 316223025 KNOB
316221001 316221001 LABEL
318186908 318186908 LP CONVERSION KIT
318295404 318295404 MAINTOP
318305600 318305600 MANIFOLD
318305601 318305601 MANIFOLD
318267801 318267801 MIXER ELBOW
318233800 318233800 NUT
316237901 316237901 ORIFICE
316237902 316237902 ORIFICE
316237903 316237903 ORIFICE
318235185 318235185 PANEL
318224402 318224402 PANEL
318327500 318327500 PANEL
318296902 318296902 PANEL
318296903 318296903 PANEL
318289401 318289401 PANEL
318290501 318290501 PANEL
318287800 318287800 PANEL
318225210 318225210 PANEL
318225211 318225211 PANEL
318260007 318260007 PANEL
318298906 318298906 PANEL
5303320846 5303320846 PLATE
318227504 318227504 PLATE
316217002 316217002 PROBE
318233721 318233721 RETAINER
5304400195 5304400195 RETAINER
5303300265 5303300265 SCREW
5303311333 5303311333 SCREW
316215600 316215600 SCREW
5303300195 5303300195 SCREW
5303323133 5303323133 SCREW
5303211311 5303211311 SCREW
5303307980 5303307980 SCREW
318175503 318175503 SCREW
5303323129 5303323129 SCREW
3051050 3051050 SCREW
5304436875 5304436875 SCREW
5304415832 5304415832 SCREW
5304416408 5304416408 SCREW
318291300 318291300 SEAL
318258902 318258902 SHIELD
318236201 318236201 SHIELD
318165800 318165800 SPACER
318014800 318014800 SPACER
316402403 316402403 SPACER
318014411 318014411 SPACER
318192400 318192400 SPRING
318003614 318003614 THERMOSTAT
318298011 318298011 TRIM
318260201 318260201 TRIM
318260401 318260401 TRIM
318305200 318305200 TUBE
318305100 318305100 TUBE
318289500 318289500 TUBE
318233900 318233900 VALVE
318233910 318233910 VALVE
318233920 318233920 VALVE
316404900 316404900 VALVE
316136500 316136500 WASHER
3051063 3051063 WASHER
