Model Image
Manufacturer

Electrolux

Model Number

FGUB2642LP4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241926401 241926401 ACTUATOR
241926402 241926402 ACTUATOR
241829401 241829401 AUGERICE
241829001 241829001 BARDRIVE
242090701 242090701 BARSTABILIZER
241770703 241770703 BARTIMING
241602112 241602112 BASECOMPRESSOR
242009602 242009602 BASEWATER FILTER
241780809 241780809 BASKETFRZR
242026802 242026802 BASKETFRZR
241872201 241872201 BEAMCRISPER COVER
241760401 241760401 BEARING
242071401 242071401 BIN
242071301 242071301 BIN DOOR 2 LITER
242011501 242011501 BIN DOOR GALLON
242011701 242011701 BINDOOR
241830303 241830303 BLADE
241830302 241830302 BLADE
241830301 241830301 BLADE
241639502 241639502 BLADE
242029301 242029301 BLOCK
241838401 241838401 BLOCKEVAP COIL
241838402 241838402 BLOCKEVAP COIL
240335006 240335006 BOLT-ROLLER ADJ
241778701 241778701 BRACKETANTI TIP
241830101 241830101 BRACKETCONTROL
241972302 241972302 BRACKETFREEZER DRA
241761301 241761301 BRACKETUPPER HINGE
241979601 241979601 BUMPER
242068601 242068601 BUMPER
241518301 241518301 BUSHING
242075601 242075601 BUSHING
242075602 242075602 BUSHING
242075701 242075701 CAM-LOWER HINGE
241830201 241830201 CAMDRIVE
241969001 241969001 CAP
241842301 241842301 CAPTHERMISTOR
241532401 241532401 CHANNEL
242122101 242122101 CHANNELSHELF MTG
242122201 242122201 CHANNELSHELF MTG
242122301 242122301 CHANNELSHELF MTG
242122001 242122001 CHANNELSHELF MTG
240396801 240396801 CLAMP-TUBE
218515401 218515401 CLIP
242135301 242135301 CLIP
241949502 241949502 CLIP
242036801 242036801 CLIPPLASTIC
5303918437 5303918437 COMPRESSOR KIT
241862903 241862903 CONDENSER
242093101 242093101 CONTAINERICE

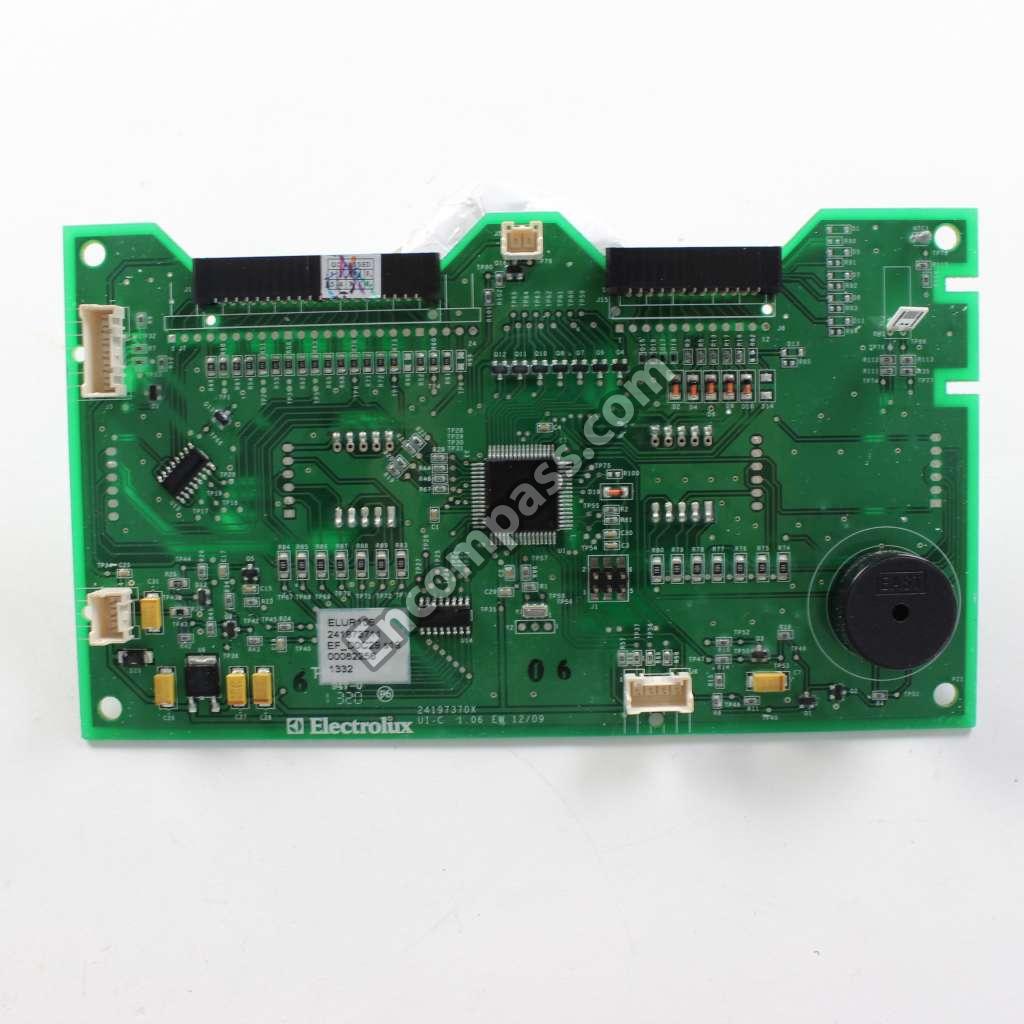

241973711 241973711 CONTROL
241817901 241817901 CONTROL ROD
241516901 241516901 CORD-SERVICE
241778005 241778005 COVER
241778006 241778006 COVER
242156901 242156901 COVER
242072201 242072201 COVER
242072002 242072002 COVER
242072101 242072101 COVER
242093201 242093201 COVER
242095002 242095002 COVER
242084102 242084102 COVEREVAP COIL
241860601 241860601 COVEREVAPORATOR
242099401 242099401 COVERFAN
241891401 241891401 COVERLIGHT
242089601 242089601 COVERMODULE
241862403 241862403 COVERUPPER HINGE
242117301 242117301 COVERWATER TANK
241971402 241971402 COVERWIRING
241971801 241971801 COVERWIRING
242094301 242094301 COVERWIRING
241518501 241518501 DAMPER
241987301 241987301 DEFLECTORAIR
5303918410 5303918410 DEFROST HEATER KIT
241868401 241868401 DOOR STOP
241868402 241868402 DOOR STOP
241987913 241987913 DSP DOORFRZR WT COMP ASSM
241988040 241988040 DSP DOORREFR
241988041 241988041 DSP DOORREFR
241690201 241690201 E-RING
3205266 3205266 EDGE PROTECTOR
242110215 242110215 ENERGY GUIDE
5303918569 5303918569 EVAPORATOR KIT
5303918567 5303918567 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
5308000010 5308000010 FAN BLADE
241830401 241830401 FIXED BLADE
241860101 241860101 GASKET
242095406 242095406 GASKET
5303918784 5303918784 GASKET
5303918578 5303918578 GASKET
241778301 241778301 GASKET DOOR
241860111 241860111 GASKETEVAP
241860112 241860112 GASKETEVAP
5303918737 5303918737 GASKETEVAP HOUSING
242106201 242106201 GATE
242054803 242054803 GRILL
241929901 241929901 GROMMET
241929902 241929902 GROMMET
242029402 242029402 HANDLEDOOR
241510802 241510802 HARNESS-WIRING
241510904 241510904 HARNESSDISPENSER
242061603 242061603 HARNESSELECTRICAL
242135901 242135901 HARNESSELECTRICAL
241788401 241788401 HARNESSWIRING
5304521764 5304521764 HARNESSWIRING
241969202 241969202 HARNESSWIRING
242119001 242119001 HARNESSWIRING
242119101 242119101 HARNESSWIRING
5303918445 5303918445 HEAT EXCHANGER
5303918446 5303918446 HEAT EXCHANGER
241779401 241779401 HINGE
241779801 241779801 HINGEMULLION
5303918428 5303918428 HOT TUBE REPAIR KIT
242021001 242021001 HOUSING
242034101 242034101 HOUSINGCONTROL
242093301 242093301 HOUSINGCRUSHER

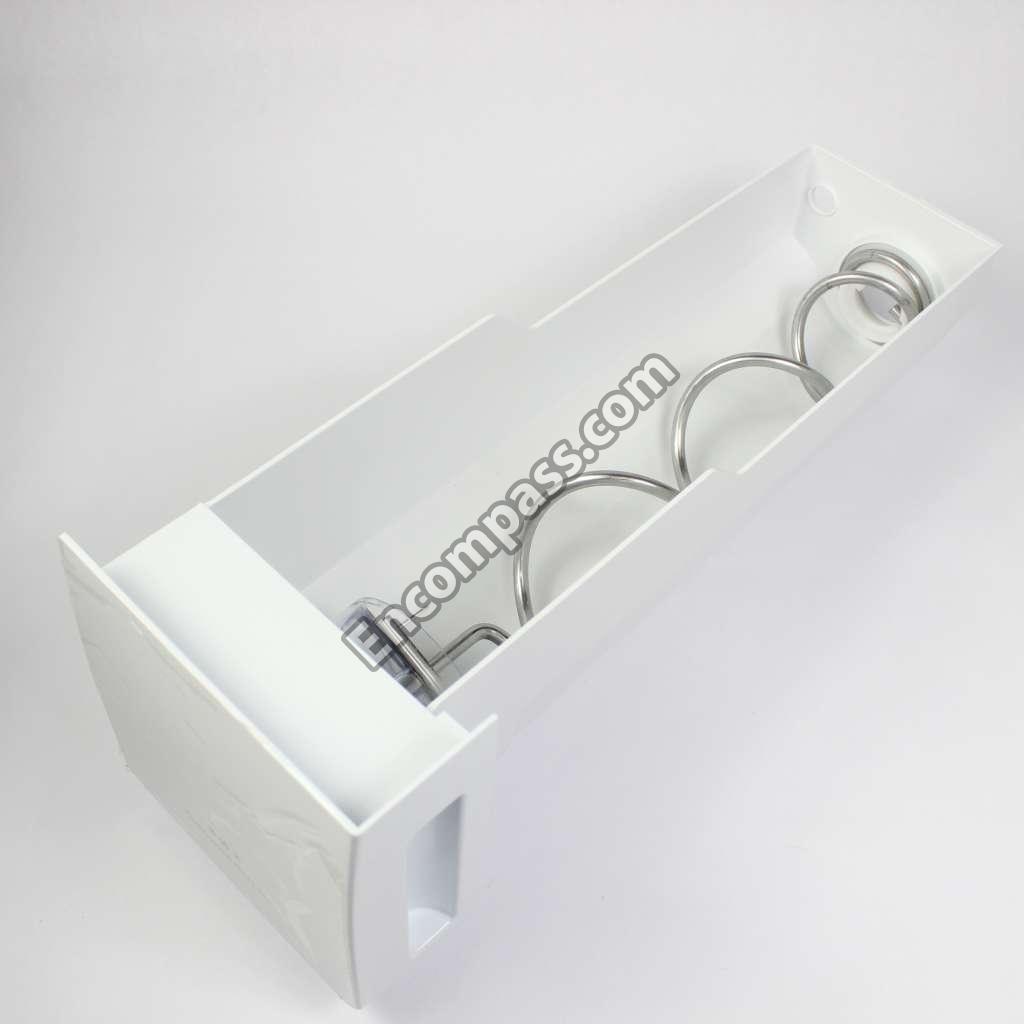

242093003 242093003 ICE CONTAINER ASSEMBLY
242072501 242072501 INSULATION
242072401 242072401 INSULATION
242095201 242095201 INSULATION
242096001 242096001 INSULATION
241577505 241577505 INVERTOR
241812201 241812201 MAGNET
241779103 241779103 MAGNET
241812202 241812202 MAGNET
241998302 241998302 MOUNTWATER FILTER
241778808 241778808 MULLION HEATER
241518001 241518001 NUT
241829601 241829601 NUTAUGER

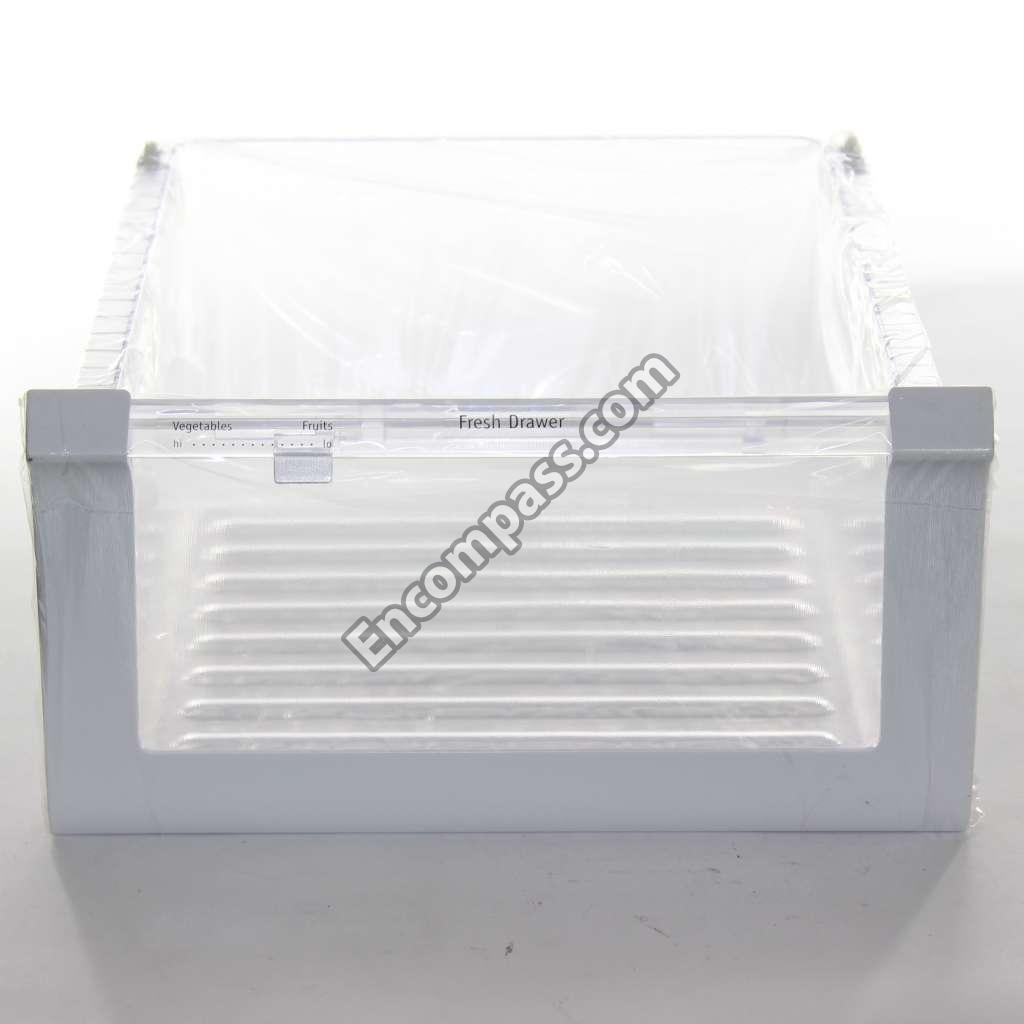

241801801 241801801 PAN-CRISPER
241869601 241869601 PIN
242095501 242095501 PINANTI TWIST BUCK
241770201 241770201 PINION
241770301 241770301 PINIONIDLER
242011101 242011101 PINLOCK
240494001 240494001 PLUG
5303208309 5303208309 PLUG-HOLE
242158001 242158001 RACKDRAWER TRAVEL
241752703 241752703 RETAINER
241824201 241824201 RETAINERBASKET
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
242010901 242010901 ROLLER ASSEMBLY
241695906 241695906 SCREW
241641502 241641502 SCREW
218252201 218252201 SCREW
241732101 241732101 SCREW
218362501 218362501 SCREW
241710601 241710601 SCREW
241500303 241500303 SCREW
5304515677 5304515677 SCREW
242077302 242077302 SCREW
242039701 242039701 SCREW
241899703 241899703 SCREW
242015001 242015001 SCREW
240451503 240451503 SCREW
241953901 241953901 SCREW
242017501 242017501 SCREW
241953904 241953904 SCREW
134549700 134549700 SCREW
242025601 242025601 SCREW
241853202 241853202 SCREW
5304455650 5304455650 SCREW
241701902 241701902 SCREW DRIVER
240555004 240555004 SCREW#832 X 3/8 B
240442706 240442706 SCREW-#10-32 X 3/4
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
241810104 241810104 SEAL
241518601 241518601 SEAL-DAMPER
240597203 240597203 SENSOR

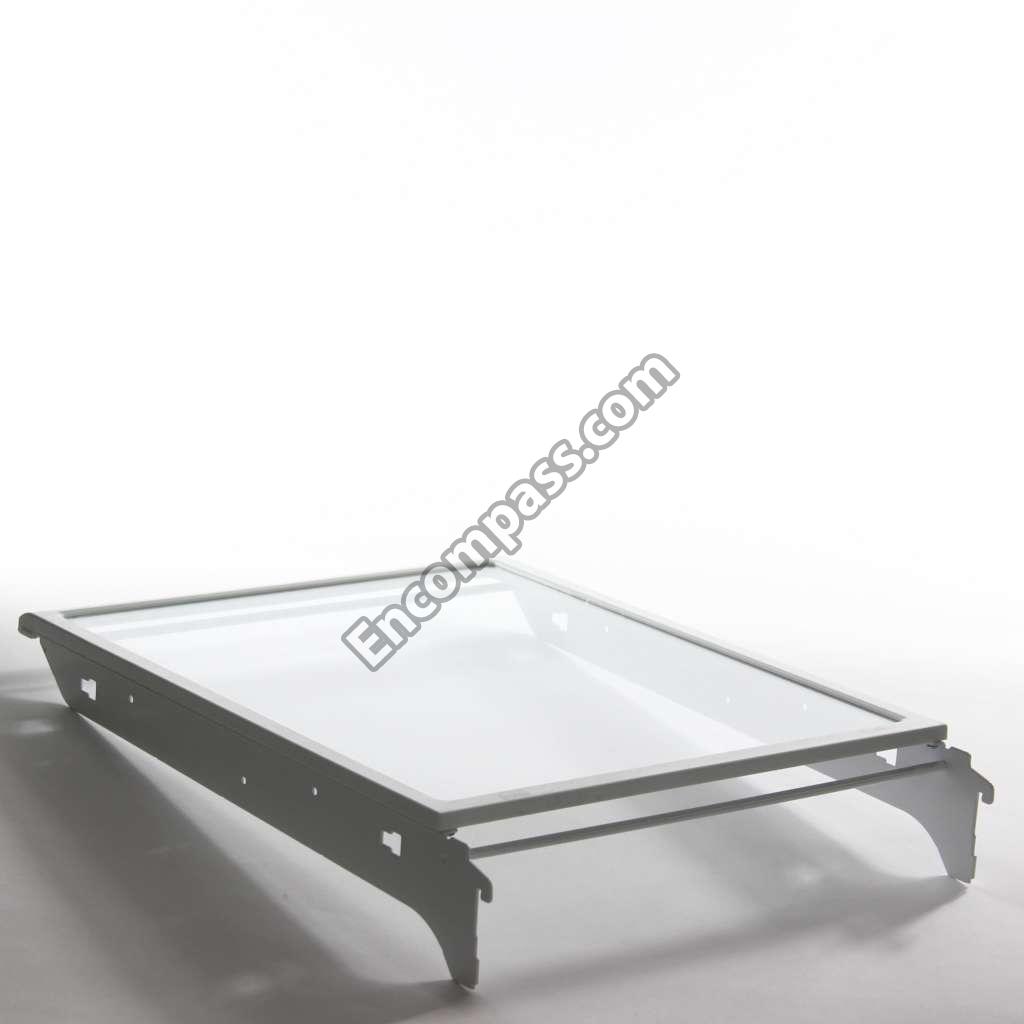

242068702 242068702 SHELF
242068703 242068703 SHELF
242072702 242072702 SHIELD
241971601 241971601 SHIELDLIGHT
241971202 241971202 SHIELDLIGHT
241946106 241946106 SHROUDCOND FAN
241883704 241883704 SLIDE ASSEMBLY
241883604 241883604 SLIDE ASSEMBLY
241689801 241689801 SPACER
241684802 241684802 SPACER
241868201 241868201 SPACER
241868202 241868202 SPACER
241947701 241947701 SPACER
240409302 240409302 SPACER-COND TUBE
241830701 241830701 SPACERFIXED BLADES
241839002 241839002 SPRINGCONTROL ROD
5308000110 5308000110 STRAP-EVAP/HEATER
242071201 242071201 SUMP
242034001 242034001 SUMP
242072601 242072601 SUPPORT
242067801 242067801 SUPPORT
242067901 242067901 SUPPORT
242082201 242082201 SUPPORT
242082202 242082202 SUPPORT
242082401 242082401 SUPPORT
241835501 241835501 SWITCHLIGHT
242060201 242060201 SWITCHLIGHT/LAMP
242166902 242166902 SWITCHMEMBRANE
240346701 240346701 TAPE-FOAM SEAL
5303918416 5303918416 THERMISTOR KIT
242046001 242046001 THERMOSTATDEFROST
5303918568 5303918568 THERMOSTATDEFROST
240337608 240337608 TRIM-CABINET CORNER
242116801 242116801 TRIMBASKET
242084201 242084201 TROUGHDRAIN
241964704 241964704 TUBE
241920106 241920106 TUBE
242082103 242082103 TUBE
5303918602 5303918602 TUBE
215346900 215346900 TUBEPROCESS
241871501 241871501 TUBESUCTION
241965901 241965901 TUBEWATER
218976424 218976424 TUBEWATER INLET
241690306 241690306 WASHER
215474201 215474201 WASHER
241868301 241868301 WASHER
5303918571 5303918571 WATER FILL CHUTE KI
ULTRAWF ULTRAWF WATER FILTER
242082001 242082001 WATER TANK
5304467131 5304467131 WRENCH
