Model Image
Manufacturer

Electrolux

Model Number

FGX831FS2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131398303 131398303 ASMY-TUB COVER/SEAL
5303281019 5303281019 BALL
5303311213 5303311213 BASE ASSEMBLY
131825900 131825900 BEARING
3204405 3204405 BEARING
5303212870 5303212870 BLOCK
131476300 131476300 BLOWER WHEEL
131106701 131106701 BRACKET
131091001 131091001 BRACKET
134263400 134263400 BRACKET
131724300 131724300 BRACKET
5303309493 5303309493 BRACKET
5304439185 5304439185 BRACKET
3204326 3204326 BRACKET
134075500 134075500 BUMPER
134197700 134197700 BURNER
131453000 131453000 BUSHING
131111501 131111501 BUTTON
5303286537 5303286537 BUZZER-DRYER
134046600 134046600 CABINET ASSEMBLY
3204395 3204395 CAP

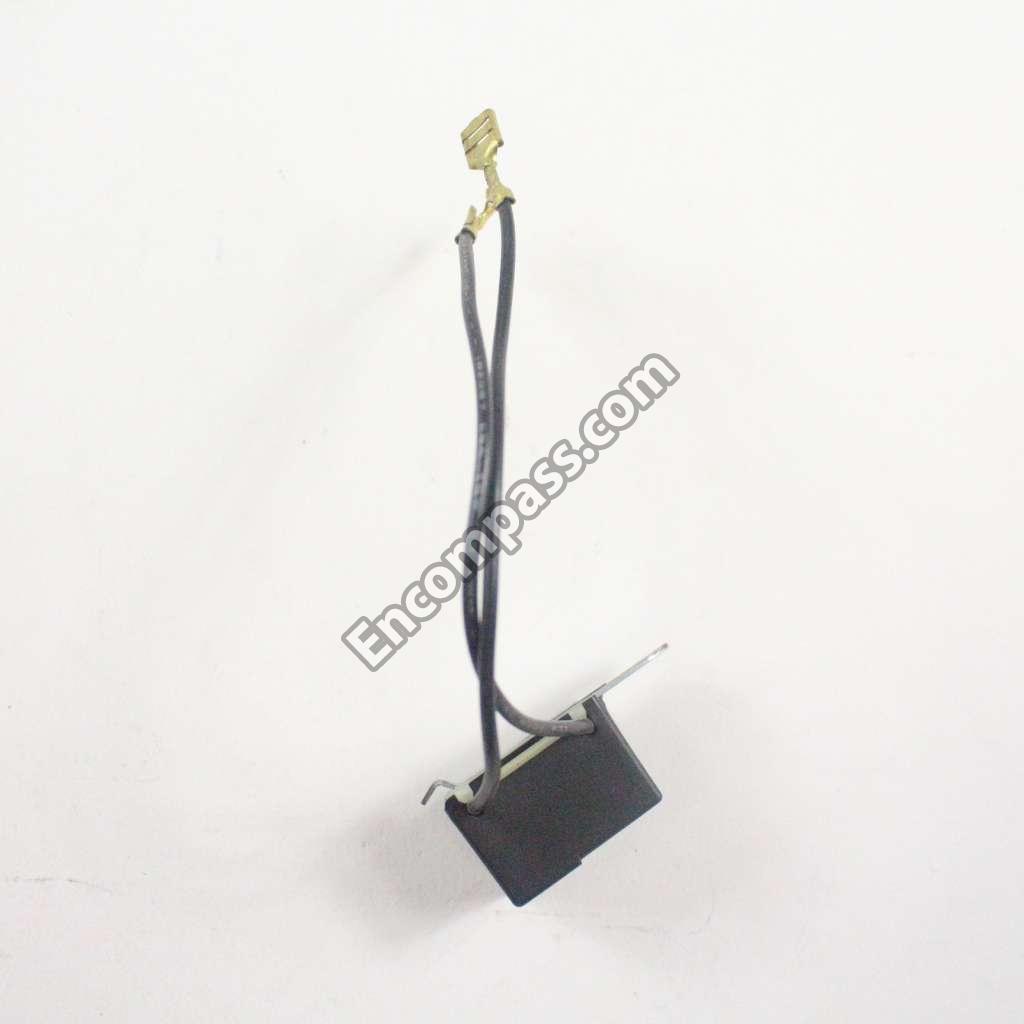

131212301 131212301 CAPACITOR
131306234 131306234 CLAMP
131209800 131209800 CLAMP
134242400 134242400 CLAMP
134261300 134261300 CLIP
134745300 134745300 CLIP
5303281020 5303281020 CLIP
3204357 3204357 CLIP
5303309503 5303309503 CLIP

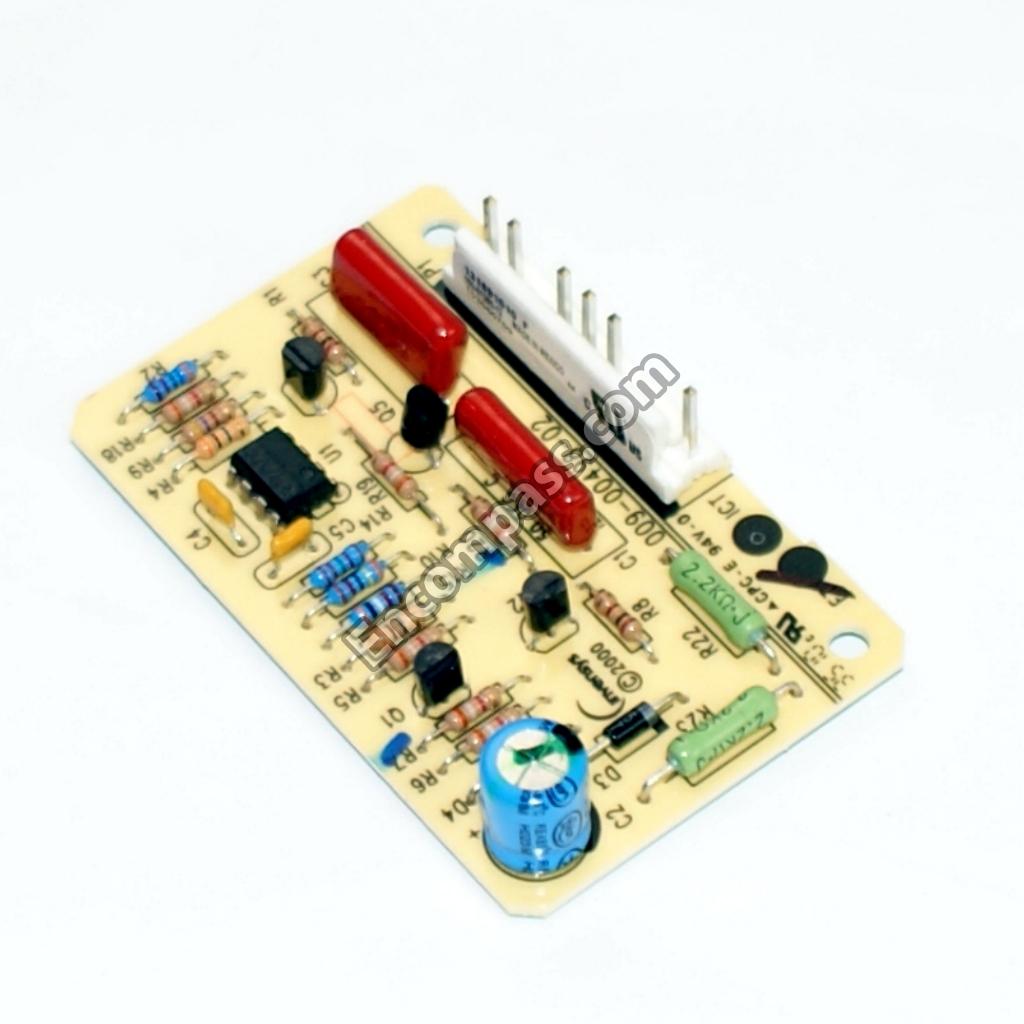

131891010 131891010 CONTROL BOARD
3204329 3204329 COVER
131413600 131413600 CRADLE & STUD
131663500 131663500 CUSHION
3204394 3204394 DISPENSER
131658800 131658800 DOOR CATCH
134122532 134122532 DRUM
134769400 134769400 ELBOW
3204320 3204320 ELBOW
131288211 131288211 END CAP
131288101 131288101 END CAP
131731500 131731500 FASTENER
131362400 131362400 FASTENER
134393700 134393700 GAS DRYER IGNITOR ASSEMBLY
131129900 131129900 GASKET
5303208743 5303208743 GROMMET
134608400 134608400 GROUND STRAP

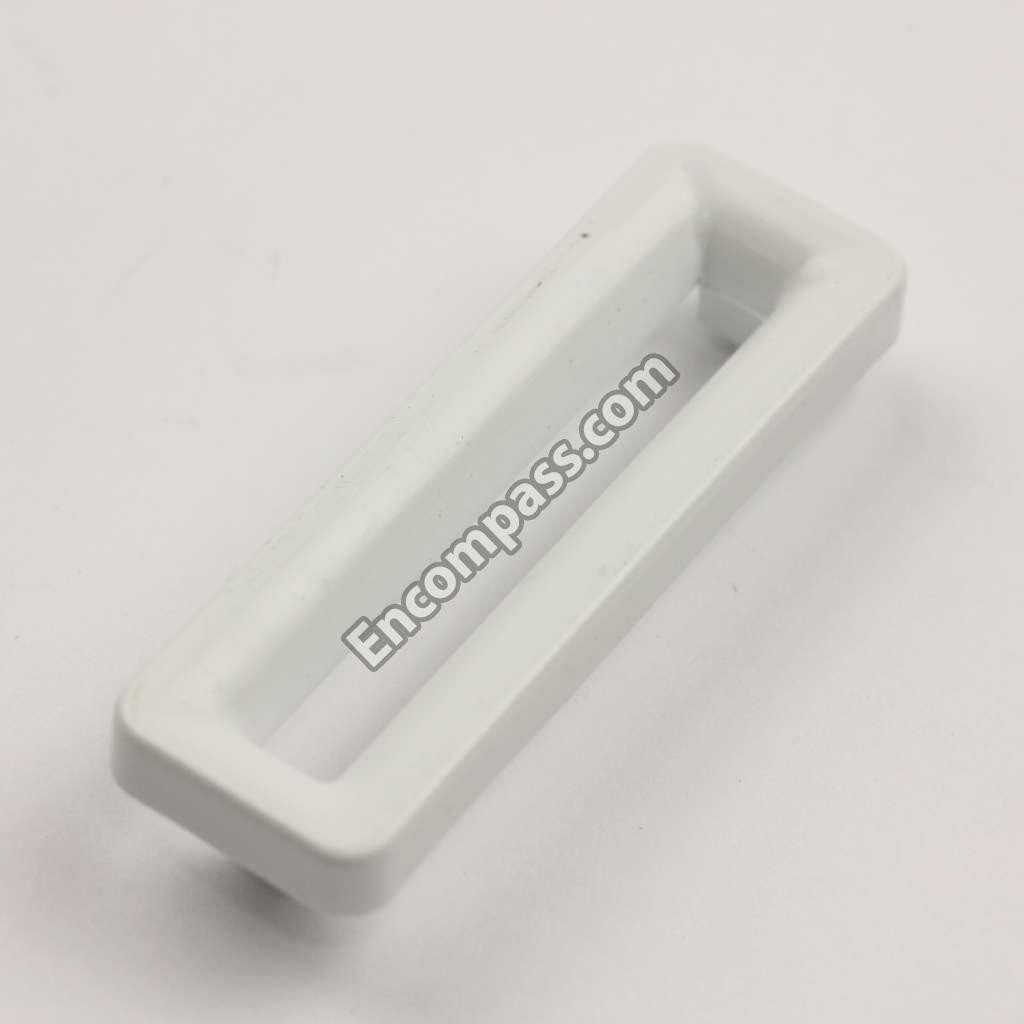

131789400 131789400 HANDLE
134222900 134222900 HINGE

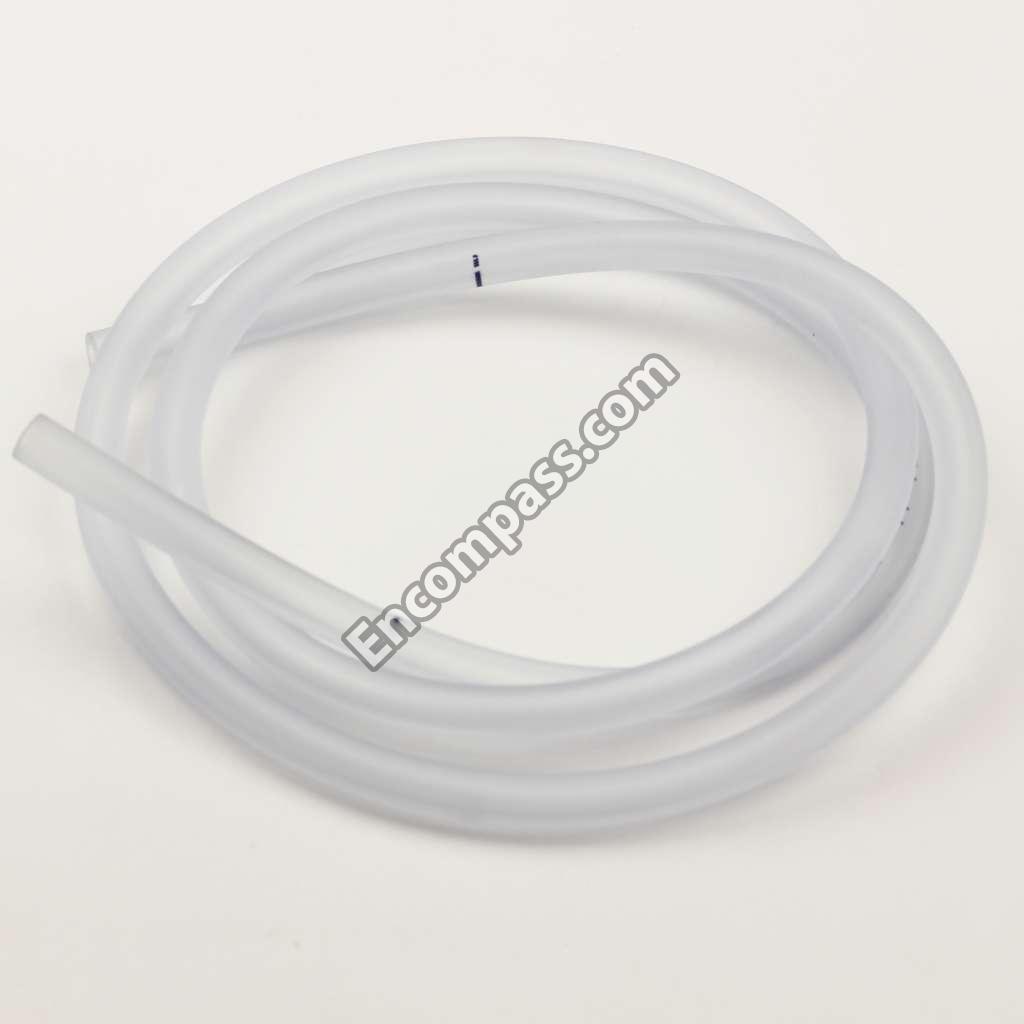

131494800 131494800 HOSE
134611700 134611700 HOUSING
131894600 131894600 HOUSING
131863100 131863100 IDLER ARM ASSEMBLY
131976804 131976804 INDICATOR
134768500 134768500 INSERT
5303212877 5303212877 INSERT
134535300 134535300 INSULATOR

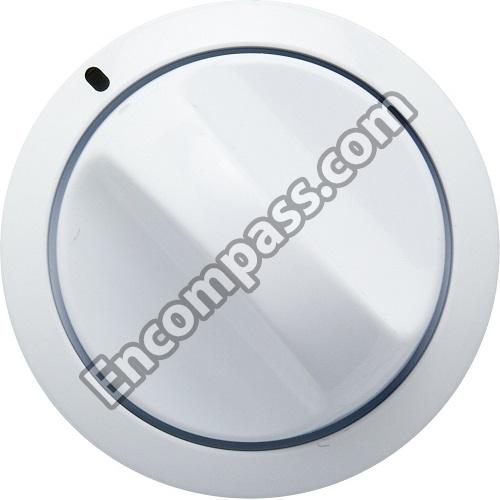

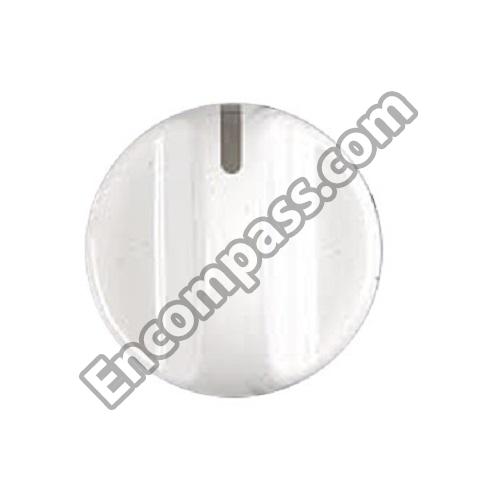

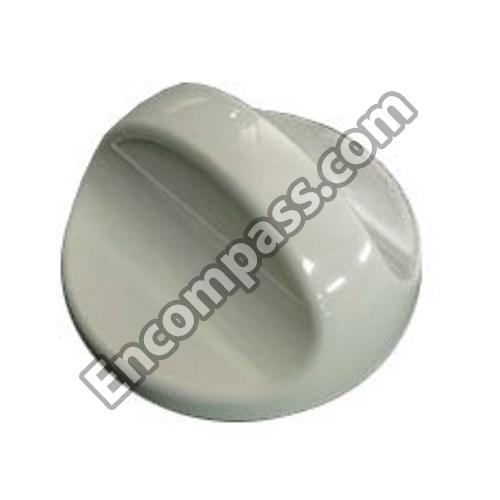

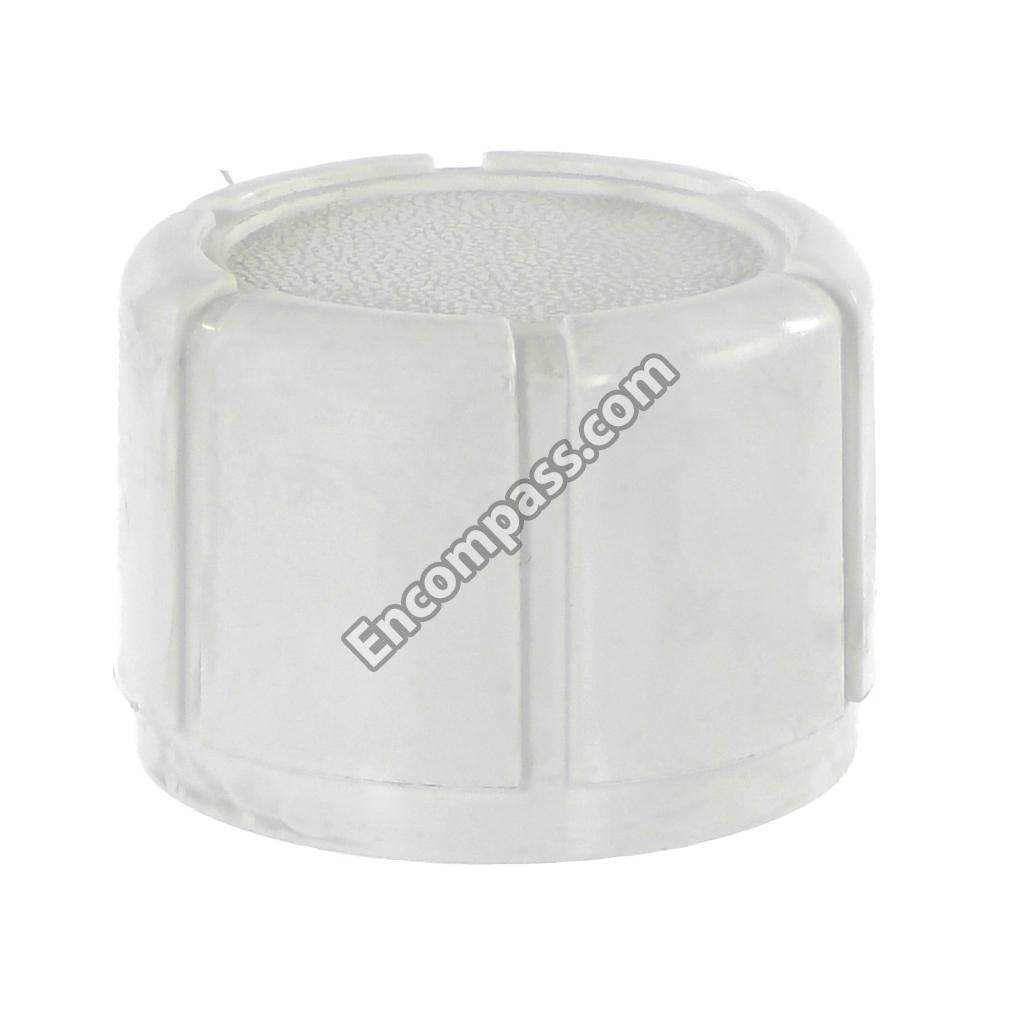

131873404 131873404 KNOB
131873304 131873304 KNOB
131977201 131977201 KNOB
131373610 131373610 LEG/DOME ASSEMBLY.
5303212872 5303212872 LID
134156400 134156400 MOTOR
134196600 134196600 MOTOR
5303318708 5303318708 NUT
131557201 131557201 OUTER TUB
131422100 131422100 PAD
131422200 131422200 PAD
131104303 131104303 PANEL
134310300 134310300 PANEL
137455500 137455500 PANEL
134613501 134613501 PANEL
131789303 131789303 PANEL
131084810 131084810 PANEL
131084710 131084710 PANEL
131084402 131084402 PANEL
137348210 137348210 PANEL
131883301 131883301 PANEL
131346401 131346401 PIN
131346400 131346400 PIN
3204374 3204374 PIN
5303207405 5303207405 PIPE
134264800 134264800 PLATE
134500500 134500500 POWER CORD
131498301 131498301 PULLEY
131707800 131707800 RING
3161433 3161433 RING
134203900 134203900 SCR 6-32X.337 PPH D
134197900 134197900 SCREW
134160900 134160900 SCREW
134164400 134164400 SCREW
131205500 131205500 SCREW
131658900 131658900 SCREW
131311700 131311700 SCREW
131892100 131892100 SCREW
131751500 131751500 SCREW
131205100 131205100 SCREW
134156200 134156200 SCREW
131205400 131205400 SCREW
131382300 131382300 SCREW
131202300 131202300 SCREW
131243800 131243800 SCREW
3205245 3205245 SCREW
5303283289 5303283289 SCREW
3204368 3204368 SCREW
5303283293 5303283293 SCREW
3205150 3205150 SCREW
134154100 134154100 SCREW 10-32X.375 CO
131901400 131901400 SEAL
131295200 131295200 SEAL
3204490 3204490 SEAL
3204396 3204396 SEAL
5303281135 5303281135 SENSOR
5303281153 5303281153 SHAFT
131513300 131513300 SHIELD
131731410 131731410 SHIELD
134287300 134287300 SHIELD
3204380 3204380 SHIPPING BLOCK
3204426 3204426 SLEEVE
131373900 131373900 SPRING
134886600 134886600 SPRING
134885900 134885900 SPRING
134890500 134890500 SPRING
3205241 3205241 SPRING
3204425 3204425 SPRING
131390000 131390000 STRIKE-LID
131206800 131206800 STUD

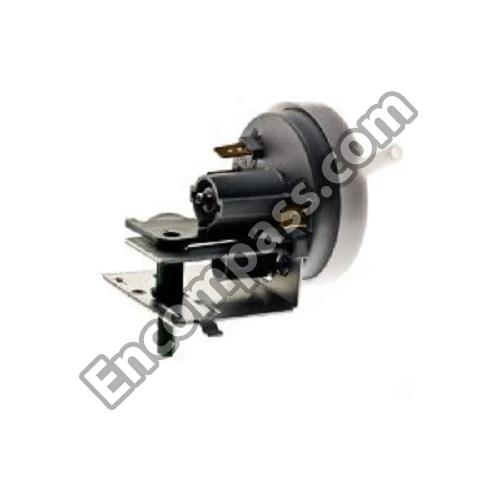

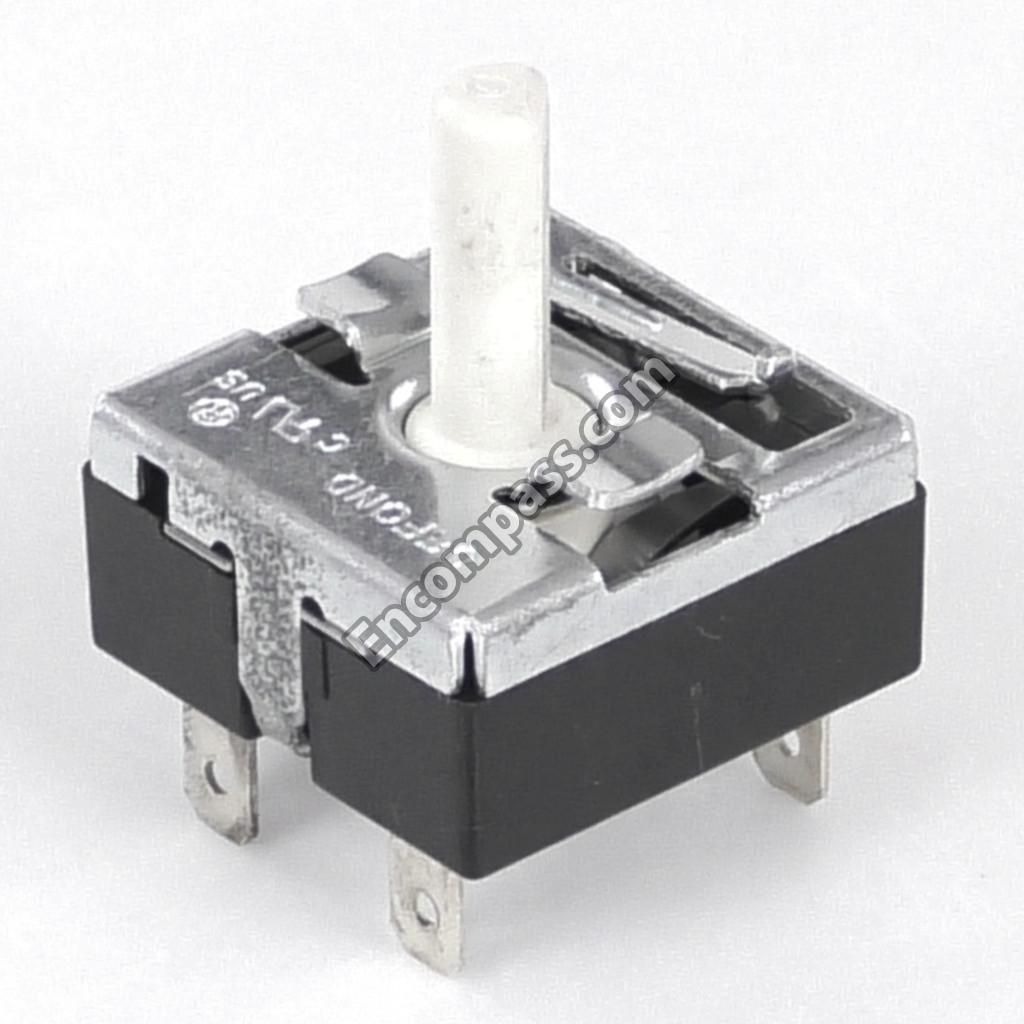

134410100 134410100 SWITCH

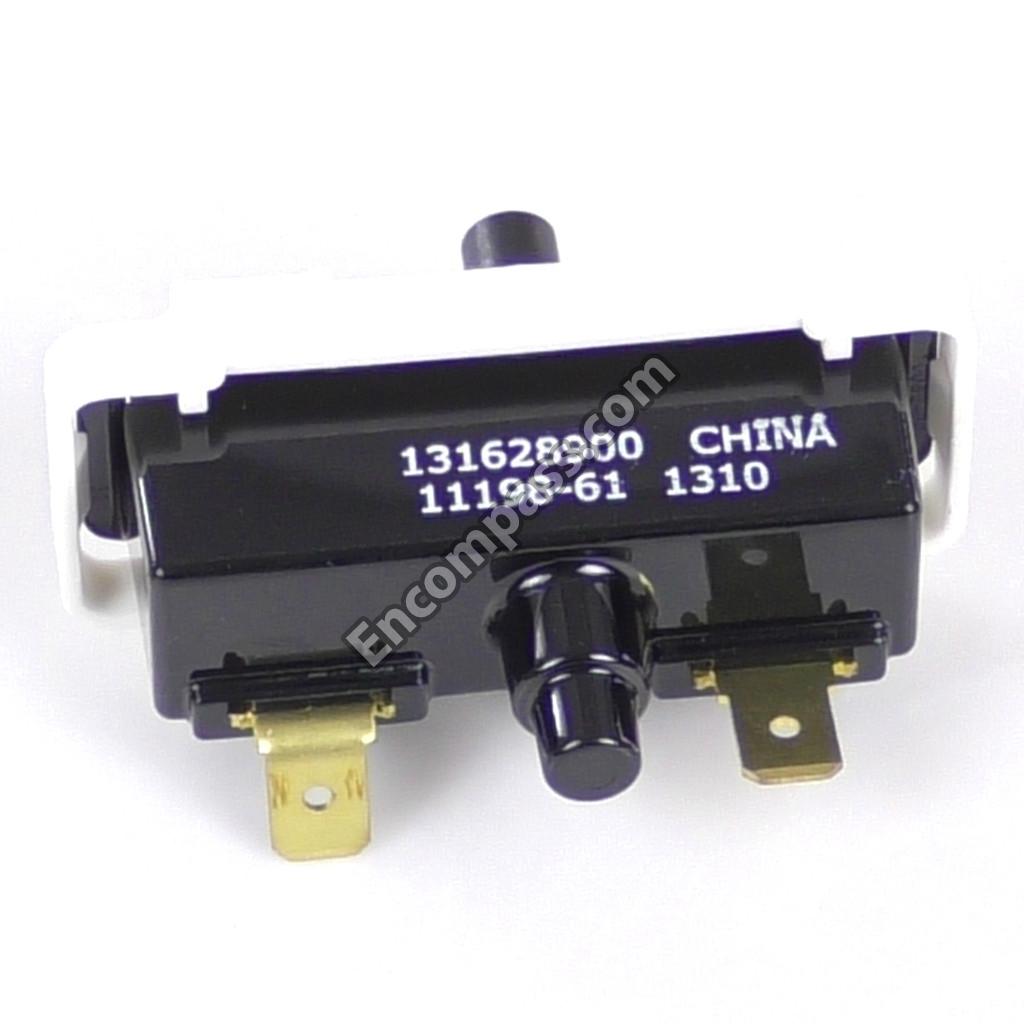

131628900 131628900 SWITCH

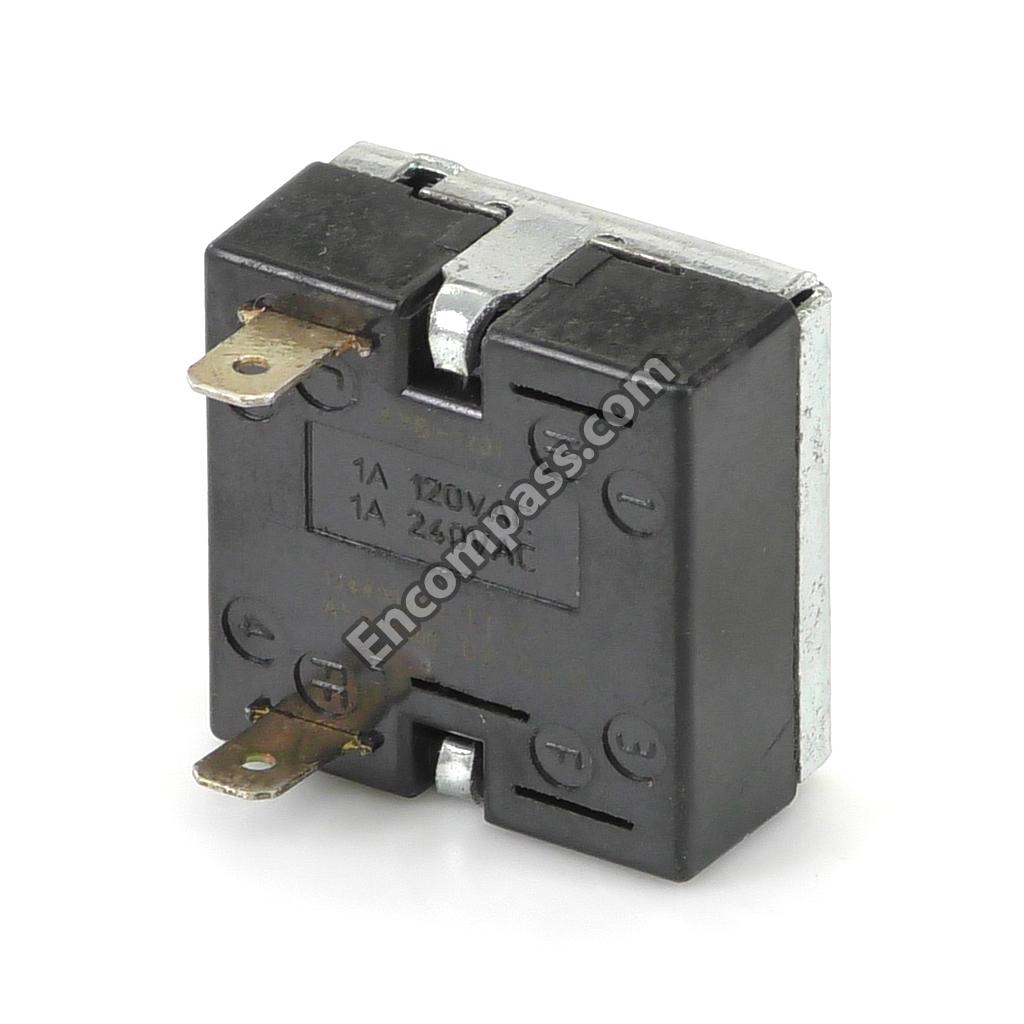

134422700 134422700 SWITCH
134400000 134400000 SWITCH
134185100 134185100 TAIL PIECE
134101400 134101400 TERMINAL BLOCK KIT
134721400 134721400 THERMOSTAT
5304406099 5304406099 THERMOSTAT
131758600 131758600 TIMER
5303297139 5303297139 TIMER
131545101 131545101 TRUNNION
5303279394 5303279394 TUB SEAL KIT FOR WASHER
131712401 131712401 TUBE
5304401845 5304401845 TUBE
5308015194 5308015194 UNION
134769600 134769600 USE 134769600
134511600 134511600 V-BELT FOR WASHER
5303207409 5303207409 VALVE
5308002401 5308002401 WASHER
5303261031 5303261031 WASHER
5303161296 5303161296 WASHER
5303161306 5303161306 WASHER

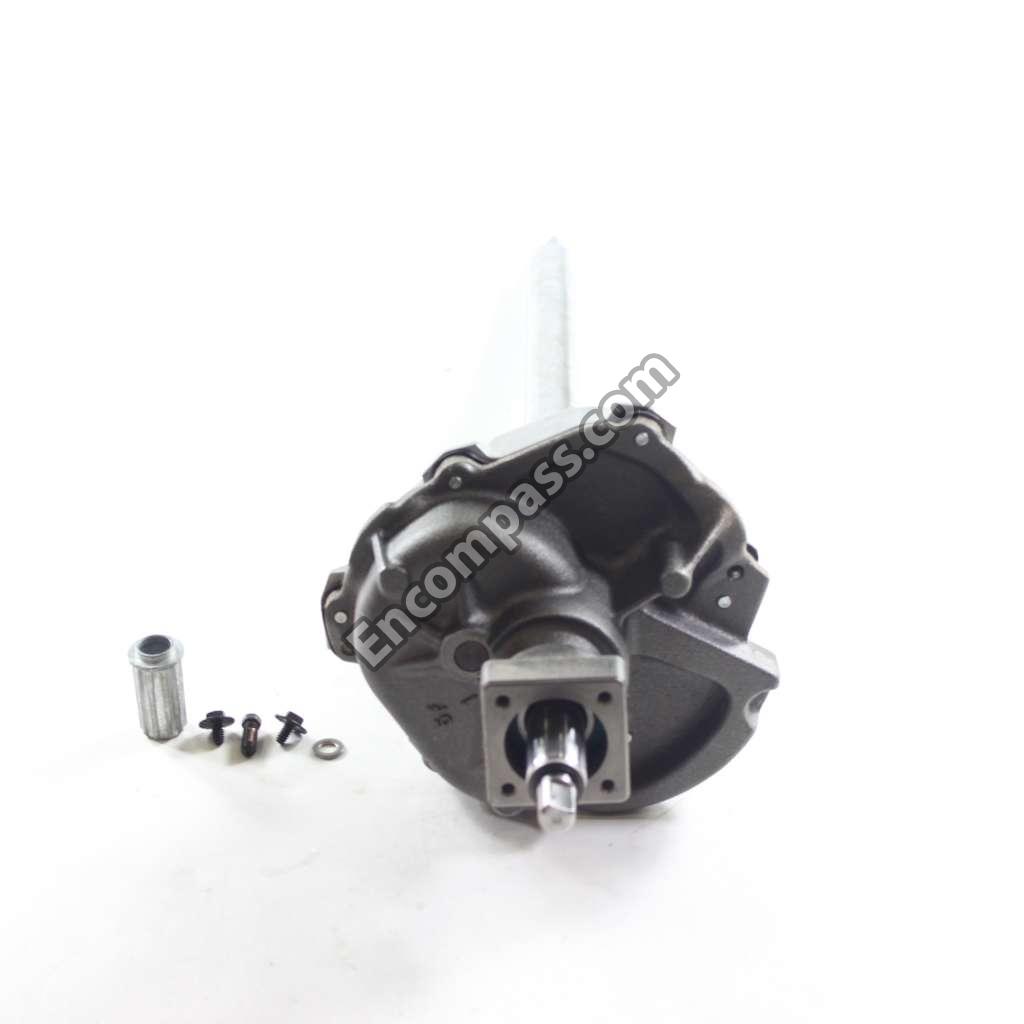

134735700 134735700 WASHER TRANSMISSION

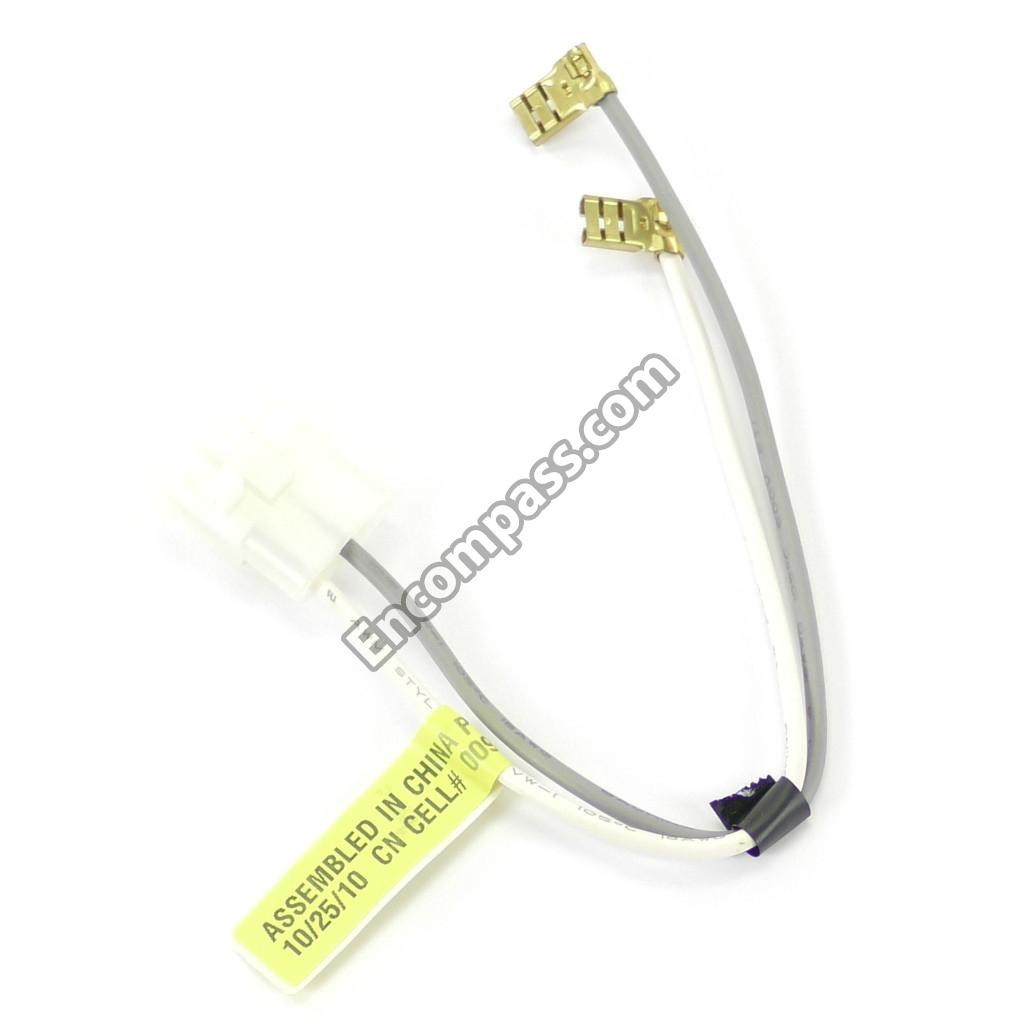

134605800 134605800 WIRING HARNESS
134542500 134542500 WIRING HARNESS
134066100 134066100 WIRING HARNESS
134846300 134846300 WIRING HARNESS
134805600 134805600 WIRING HARNESS
