Model Image
Manufacturer

Electrolux

Model Number

FLSE72GCT2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131427200 131427200 AGITATOR
3204254 3204254 BAFFLE,HEATER SHIELD
5303281019 5303281019 BALL,GROUNDING
5303311213 5303311213 BASE ASSEMBLY
3204405 3204405 BEARING,OUTER TUB
5303212870 5303212870 BLOCK
131476300 131476300 BLOWER WHEEL
131106701 131106701 BRACKET
131091001 131091001 BRACKET
3204326 3204326 BRACKET
131288002 131288002 BRACKET-CONTROLS
131268500 131268500 BRACKET-PUMP
131453000 131453000 BUSHING
5303210285 5303210285 BUZZER
131266800 131266800 CAP,DISPENSER
131212301 131212301 CAPACITOR,MOTOR
5304488479 5304488479 CLAMP,BLOWER WHEEL
131306234 131306234 CLAMP,PUMP TO TRAP
5303212834 5303212834 CLAMP-MOTOR
131506500 131506500 CLIP
3204357 3204357 CLIP
5303309503 5303309503 CLIP
5303281020 5303281020 CLIP,BALL ,STEEL ,FLAT NUT
5303281074 5303281074 CLIP,GUIDE ,(3)
5303283052 5303283052 CLIP-SHIELD
3204329 3204329 COVER
3204250 3204250 COVER,TERMINAL BLOCK
218891401 218891401 COVER-SELECTOR,WHITE
131367101 131367101 CRADLE
131206100 131206100 CUP,DISPENSER
3204394 3204394 DISPENSER,BLEACH
5303918455 5303918455 DOOR STOP,BLACK ,FRZR
5303300246 5303300246 DOOR-INNER
3204320 3204320 ELBOW
131288212 131288212 END CAP
131288102 131288102 END CAP
131288101 131288101 END CAP,WHITE ,LH
131362400 131362400 FASTENER,PUSH-IN
131219900 131219900 FILTER
5308015778 5308015778 GASKET
131129900 131129900 GASKET,DOOR SEAL
5303208743 5303208743 GROMMET-HINGE
131268600 131268600 GROMMET-PUMP
131789400 131789400 HANDLE,DOOR ,WHITE
131063601 131063601 HANDLE-DOOR
131499000 131499000 HARNESS-DOOR SWITCH
131446300 131446300 HARNESS-WASHER CONT
131475320 131475320 HEATER ASSY,W/HOUSING
131658100 131658100 HEATER-THERMOSTAT
3204276 3204276 HINGE-LOWER
3204275 3204275 HINGE-UPPER

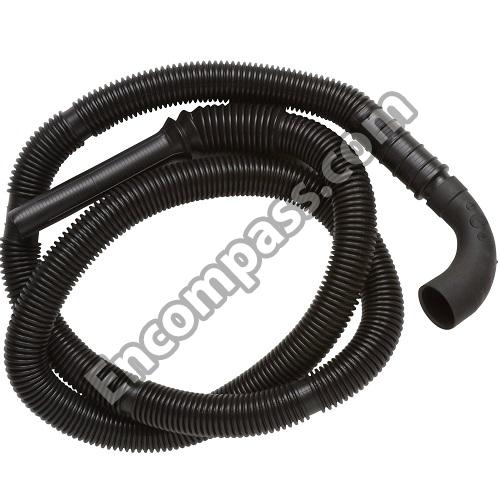

131461200 131461200 HOSE-DRAIN 90``
131434500 131434500 HOSE-PUMP TO TUB
131544900 131544900 HOUSING-LAMP
5303212877 5303212877 INSERT,SPRING ADJUSTER ,VERTICAL

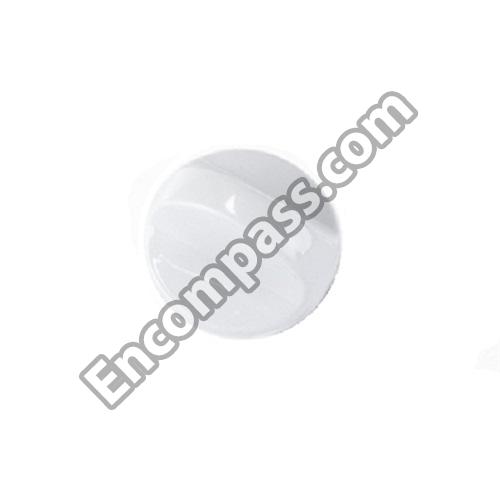

131167601 131167601 KNOB,WASHER TIMER ,WHITE
131167603 131167603 KNOB-TIMER WASHER
131373610 131373610 LEG AND DOME ASSEMBLY
131390000 131390000 LID STRIKE
5303212873 5303212873 LID-WASHER
5303283286 5303283286 LOWER FELT
3005242 3005242 OIL-TRANSMISSION
131422100 131422100 PAD,LEVELING LEG ,FRONT
131422200 131422200 PAD,SELF LVLG LEG ,REAR
131363901 131363901 PAN
5303916001 5303916001 PAN RETAINER, KIT, SERVICE
131084403 131084403 PANEL
131104303 131104303 PANEL,FRONT ,WHITE
131104305 131104305 PANEL-FRONT
131084701 131084701 PANEL-SIDE LEFT
131084801 131084801 PANEL-SIDE RIGHT
131346401 131346401 PIN
3204374 3204374 PIN
3204424 3204424 PIN - ROLL
131346400 131346400 PIN,PANEL LOCATOR ,SIDE
137107000 137107000 PLATE,LOCK
5303161224 5303161224 PLUG-PIPE
3204423 3204423 PULLEY MOTOR

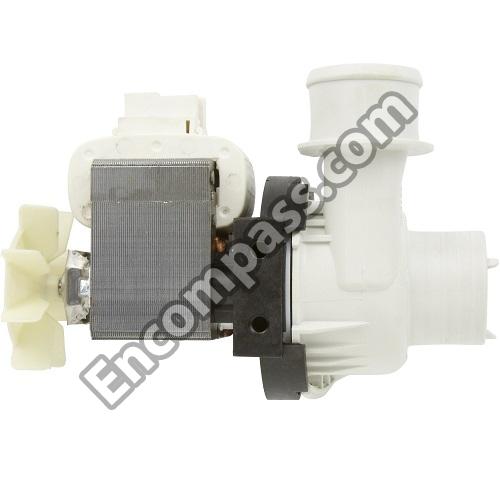

131268401 131268401 PUMP-COMPLETE
134446800 134446800 RESISTOR,POWER,4.4K OHM
5303161307 5303161307 RETAINING RING
5303161223 5303161223 RETAINING RING (2)
3161433 3161433 RING,RETAINING
131205500 131205500 SCREW
131205100 131205100 SCREW
131202300 131202300 SCREW
3205245 3205245 SCREW
3161259 3161259 SCREW
3204368 3204368 SCREW
131420300 131420300 SCREW (2)
5303283289 5303283289 SCREW, CR PAN HEAD, 8-32 X 0.250, THREAD FORMING
131477000 131477000 SCREW,10-16AB X 0.375
131302800 131302800 SCREW,10-16AB X 0.500
131468900 131468900 SCREW,AGITATOR MTG ,5/16-18 X 1.250
131205400 131205400 SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE
134156200 134156200 SCREW,FLAT HEAD `8-18AB X 0.44 ,CR/SQ DRIVE
5303309673 5303309673 SCREW,LEVELING LEG ,WITH PAD
131168200 131168200 SCREW,PAN HEAD ,8-18B X 0.31
131382300 131382300 SCREW,QUADREX HEAD ,10-14 X 1.00 ,VANE MTG.,SPECIAL
3205150 3205150 SCREW,TUB BEARING ,8-12B X 0.750
3204325 3204325 SCREW-BRACKET
131243800 131243800 SCREW-BRKT TOP,PAN HD LOCKING ,
5303211089 5303211089 SCREW-HINGE LID
3204459 3204459 SCREW-LEG TO TUB
131464900 131464900 SCREW-PUMP-TO BRACK
5303283072 5303283072 SCREW-SHIELD
131102900 131102900 SCREW-SHIPPING
5308002804 5308002804 SCREW-TRANSM.
137539500 137539500 SCREW-TRUNNION, UNC2A X .625, .312-18
5303283293 5303283293 SCREW-TRUNNION,UNC2AX.625 `.312-18
5303279394 5303279394 SEAL ASSY,TUB ,TRANSMISSION
131295200 131295200 SEAL,AIR DUCT
3204490 3204490 SEAL,BLOWER HOUSING ,TO AIR DUCT
5308014905 5308014905 SHAFT-LOWER
131494300 131494300 SHIELD
131513300 131513300 SHIELD
3204380 3204380 SHIPPING BLOCK
3204426 3204426 SLEEVE,IDLER PIVOT
5308002385 5308002385 SNUBBER RING ASSY
131339600 131339600 SPACER,AGITATOR MTG ,RUBBER
131268700 131268700 SPACER-PUMP
3205248 3205248 SPACER-TIMER SHAFT
131373900 131373900 SPRING,HORIZONTAL
3205241 3205241 SPRING,IDLER
3204425 3204425 SPRING,TORSIONAL
134885900 134885900 SPRING,VERTICAL
134886600 134886600 SPRING,VERTICAL ,SHORT
5303161300 5303161300 STRAP
5308008463 5308008463 SWITCH-WATER TEMP

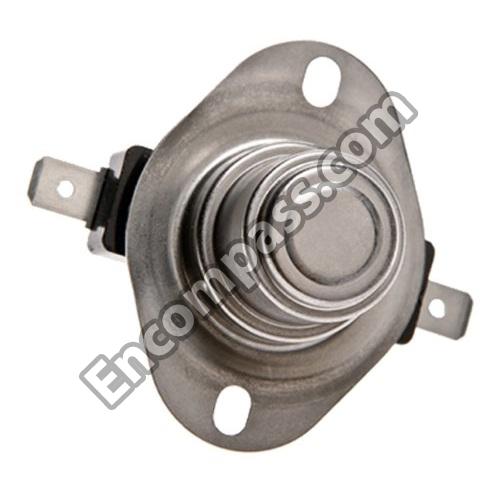

3204307 3204307 THERMOSTAT,CONTROL
3204267 3204267 THERMOSTAT,SAFETY

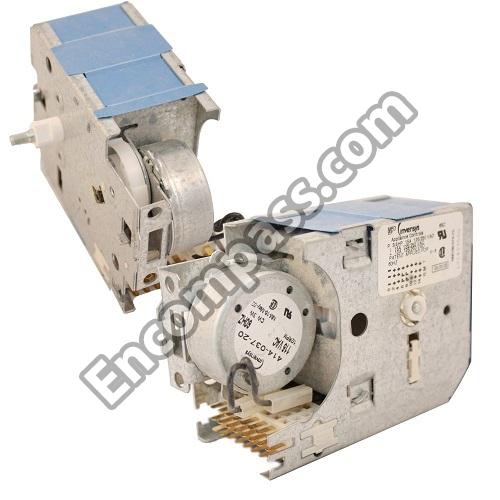

131437500 131437500 TIMER-WASHER
131221310 131221310 TUB,SPIN
131557200 131557200 TUB-SPLASH BRNG
5300771996 5300771996 TUBE,PRESSURE ,VINYL
137552900 137552900 VANE,STRAIGHT
5303161296 5303161296 WASHER,INLET HOSE
5303261031 5303261031 WASHER,PIVOT SHAFT
5308002401 5308002401 WASHER,SPIN BEARING ,UPPER
5303161306 5303161306 WASHER,SPRING TYPE
5303161226 5303161226 WASHER-THRUST
