Model Image
Manufacturer

Electrolux

Model Number

FLSE72GCTC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131901400 131901400 + SEAL,SPLSH TUB COVER
134101400 134101400 + TERMINAL BLOCK,MAIN
134046602 134046602 3 PC CABINET ASMY-A
131427200 131427200 AGITATOR
3204254 3204254 BAFFLE,HEATER SHIELD
5303281019 5303281019 BALL,GROUNDING
5303311213 5303311213 BASE ASSEMBLY
131825900 131825900 BEARING,DRUM SUPPORT
3204405 3204405 BEARING,OUTER TUB
5303212870 5303212870 BLOCK
131476300 131476300 BLOWER WHEEL
3204326 3204326 BRACKET
131091001 131091001 BRACKET
131106701 131106701 BRACKET
131724300 131724300 BRACKET,BEARING SUPPORT
134075500 134075500 BUMPER
131453000 131453000 BUSHING
5303286537 5303286537 BUZZER-DRYER
131266800 131266800 CAP,DISPENSER
131212301 131212301 CAPACITOR,MOTOR
5304488479 5304488479 CLAMP,BLOWER WHEEL
131419800 131419800 CLAMP,MOTOR MTG.
131306234 131306234 CLAMP,PUMP TO TRAP
5303309503 5303309503 CLIP
3204357 3204357 CLIP
131462500 131462500 CLIP
131506500 131506500 CLIP
5303281020 5303281020 CLIP,BALL ,STEEL ,FLAT NUT
5303281074 5303281074 CLIP,GUIDE ,(3)
3204329 3204329 COVER
3204250 3204250 COVER,TERMINAL BLOCK
131413600 131413600 CRADLE & STUD
131206100 131206100 CUP,DISPENSER
131663500 131663500 CUSHION
3204394 3204394 DISPENSER,BLEACH
131658800 131658800 DOOR CATCH
134122572 134122572 DRUM,DRYER ,PAINTED ,SERVICE KIT
3204320 3204320 ELBOW
131288103 131288103 END CAP
131288213 131288213 END CAP
131731500 131731500 FASTENER
131362400 131362400 FASTENER,PUSH-IN
131129900 131129900 GASKET,DOOR SEAL
137513300 137513300 GLIDE,DRUM
5303208743 5303208743 GROMMET-HINGE
131475320 131475320 HEATER ASSY,W/HOUSING
134211701 134211701 HOSE ASSY,W/NOZZLE,CLAMP
131494800 131494800 HOSE,PUMP TO TUB
N6561384 N6561384 HOSE-INLET
5304485558 5304485558 HOUSING,BLOWER ,FRONT ,WITH SEAL
131862900 131862900 IDLER ARM ASSY,VAW ,WITH PULLEY
131863100 131863100 IDLER ARM ASSY,WITH PULLEY
5303212877 5303212877 INSERT,SPRING ADJUSTER ,VERTICAL
131873303 131873303 KNOB
131168102 131168102 KNOB-ROTARY
131843500 131843500 LAMP ASSY,DRUM LIGHT ,W/MTG BRACKET
131373610 131373610 LEG AND DOME ASSEMBLY
131390000 131390000 LID STRIKE
5303212873 5303212873 LID-WASHER
131359600 131359600 LINT TRAP
5303318708 5303318708 NUT
131422100 131422100 PAD,LEVELING LEG ,FRONT
131422200 131422200 PAD,SELF LVLG LEG ,REAR
137455500 137455500 PAN
131363901 131363901 PAN
131883301 131883301 PANEL
131084403 131084403 PANEL
131104305 131104305 PANEL-FRONT
134031700 134031700 PANEL-FRONT ALMOND
131084701 131084701 PANEL-SIDE LEFT
131084801 131084801 PANEL-SIDE RIGHT
3204374 3204374 PIN
131346401 131346401 PIN
131346400 131346400 PIN,PANEL LOCATOR ,SIDE
137107000 137107000 PLATE,LOCK
131498301 131498301 PULLEY,XMSN DRIVE
137221600 137221600 PUMP,DRAIN
134446800 134446800 RESISTOR,POWER,4.4K OHM
131707800 131707800 RING,DRAIN HOSE
3161433 3161433 RING,RETAINING
3204368 3204368 SCREW
3161259 3161259 SCREW
3205245 3205245 SCREW
131202300 131202300 SCREW
131892100 131892100 SCREW
131205100 131205100 SCREW
131751500 131751500 SCREW
131658900 131658900 SCREW
131205500 131205500 SCREW
5303283289 5303283289 SCREW, CR PAN HEAD, 8-32 X 0.250, THREAD FORMING
131477000 131477000 SCREW,10-16AB X 0.375
131302800 131302800 SCREW,10-16AB X 0.500
131468900 131468900 SCREW,AGITATOR MTG ,5/16-18 X 1.250
131205400 131205400 SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE
134156200 134156200 SCREW,FLAT HEAD `8-18AB X 0.44 ,CR/SQ DRIVE
5303309673 5303309673 SCREW,LEVELING LEG ,WITH PAD
131168200 131168200 SCREW,PAN HEAD ,8-18B X 0.31
131382300 131382300 SCREW,QUADREX HEAD ,10-14 X 1.00 ,VANE MTG.,SPECIAL
3205150 3205150 SCREW,TUB BEARING ,8-12B X 0.750
137539500 137539500 SCREW-TRUNNION, UNC2A X .625, .312-18
5303283293 5303283293 SCREW-TRUNNION,UNC2AX.625 `.312-18
5303279394 5303279394 SEAL ASSY,TUB ,TRANSMISSION
131295200 131295200 SEAL,AIR DUCT
5303281153 5303281153 SHAFT,DRUM SUPPORT ,BALLHITCH
131731400 131731400 SHIELD
131513300 131513300 SHIELD
3204380 3204380 SHIPPING BLOCK
3204426 3204426 SLEEVE,IDLER PIVOT
5308002385 5308002385 SNUBBER RING ASSY
131339600 131339600 SPACER,AGITATOR MTG ,RUBBER
131784400 131784400 SPACER,BEARING BLOCK ,TRANSMISSION
131373900 131373900 SPRING,HORIZONTAL
3205241 3205241 SPRING,IDLER
3204425 3204425 SPRING,TORSIONAL
134885900 134885900 SPRING,VERTICAL
134886600 134886600 SPRING,VERTICAL ,SHORT
5303161300 5303161300 STRAP
134493500 134493500 SWITCH,PRESSURE ,INFINITE
134399700 134399700 SWITCH,START ,TURN TYPE
134120900 134120900 THERMAL LIMITER
3204307 3204307 THERMOSTAT,CONTROL
131658100 131658100 THERMOSTAT,HEATER
3204267 3204267 THERMOSTAT,SAFETY
131719100 131719100 TIMER,DRYER
134049600 134049600 TIMER,WASHER
131545101 131545101 TRUNNION
131221310 131221310 TUB,SPIN
131557201 131557201 TUB,SPLASH ,W/AIR DOME,BRG
5304401845 5304401845 TUBE,PRESSURE ,VINYL
137552900 137552900 VANE,STRAIGHT
5303161296 5303161296 WASHER,INLET HOSE
5303261031 5303261031 WASHER,PIVOT SHAFT
5308002401 5308002401 WASHER,SPIN BEARING ,UPPER
5303161306 5303161306 WASHER,SPRING TYPE

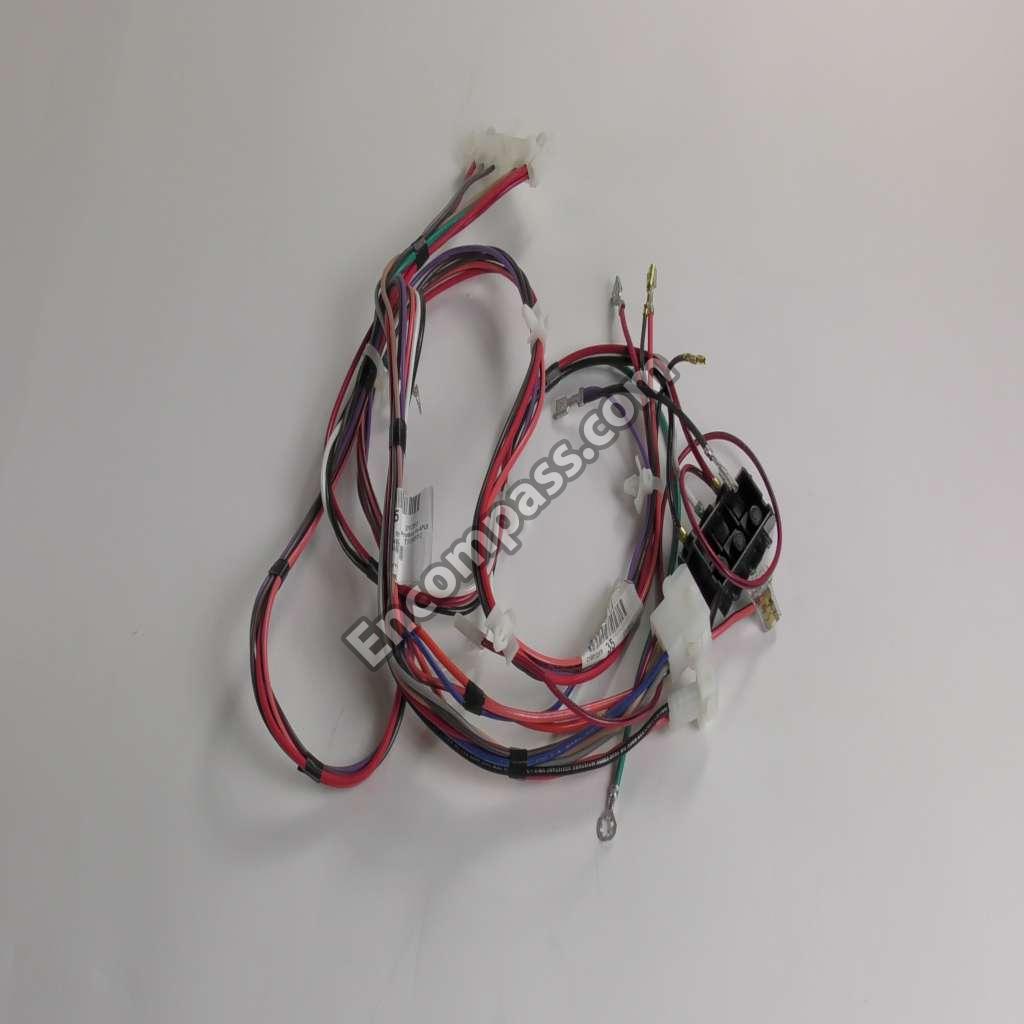

131786300 131786300 WIRING HARNESS
131662700 131662700 WIRING HARNESS
134119400 134119400 WIRING HARNESS,MAIN
