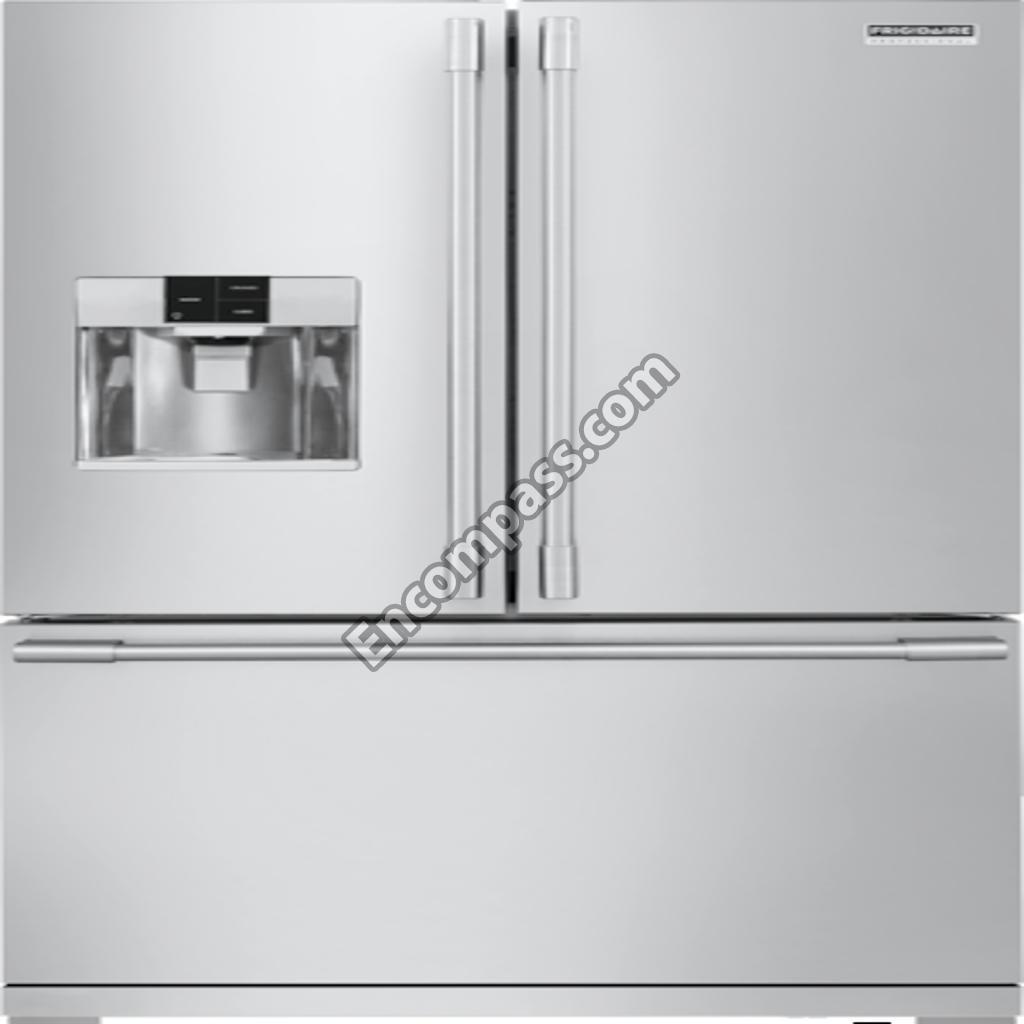

Model Image
Manufacturer

Electrolux

Model Number

FPBC2277RF2

Description

Refrigerator, French Door, Bottom Mount, W/dispens

Interactive Exploded View
Exploded View

Parts List

Part Number Description
242079801 242079801 242079801
241807605 241807605 BAR
241829001 241829001 BARDRIVE
242136901 242136901 BARTIMING
241602112 241602112 BASECOMPRESSOR
242130801 242130801 BASKETFRZR
241872201 241872201 BEAMCRISPER COVER
241760401 241760401 BEARING
242071401 242071401 BIN
242080201 242080201 BINDOOR
242037205 242037205 BINDOOR
241639502 241639502 BLADE
241838401 241838401 BLOCKEVAP COIL
241838402 241838402 BLOCKEVAP COIL
240335006 240335006 BOLT-ROLLER ADJ
242053001 242053001 BRACKET
241778701 241778701 BRACKETANTI TIP
241761301 241761301 BRACKETUPPER HINGE
242128001 242128001 BUCKET
241979601 241979601 BUMPER
242068601 242068601 BUMPER
242075602 242075602 BUSHING
242075601 242075601 BUSHING
241518301 241518301 BUSHING
242075701 242075701 CAM-LOWER HINGE
241657701 241657701 CAN DISPENSER
241969001 241969001 CAP
241824101 241824101 CAP
241824102 241824102 CAPDOOR RACK
241842301 241842301 CAPTHERMISTOR
242122202 242122202 CHANNEL
242122301 242122301 CHANNELSHELF MTG
242122101 242122101 CHANNELSHELF MTG
242122001 242122001 CHANNELSHELF MTG
240396801 240396801 CLAMP-TUBE
242135301 242135301 CLIP
218515401 218515401 CLIP
242036801 242036801 CLIPPLASTIC
241862903 241862903 CONDENSER
241516901 241516901 CORD-SERVICE
242095002 242095002 COVER
242072201 242072201 COVER
242157501 242157501 COVER
242072101 242072101 COVER
242157801 242157801 COVER
242157601 242157601 COVER
241733902 241733902 COVER
808462601 808462601 COVER,WIRING
241860402 241860402 COVEREVAP COIL
241860601 241860601 COVEREVAPORATOR
241518501 241518501 DAMPER
241987301 241987301 DEFLECTORAIR
5303918410 5303918410 DEFROST HEATER KIT
242131401 242131401 DIVIDER
242139401 242139401 DIVIDER
241780907 241780907 DIVIDER BASKET UPPE
242037202 242037202 DOOR BIN
241868402 241868402 DOOR STOP
241868401 241868401 DOOR STOP
242006902 242006902 DUCTAIR
242094603 242094603 EVAPORATOR
5303918569 5303918569 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
5308000010 5308000010 FAN BLADE
241778811 241778811 FLIPPER MULLION ASS
5304501270 5304501270 GASKET
5303918578 5303918578 GASKET
5303918784 5303918784 GASKET
242095406 242095406 GASKET
241860101 241860101 GASKET
241928201 241928201 GASKETAIR DUCT
241860105 241860105 GASKETCOIL COVER
241860104 241860104 GASKETCOIL COVER
241860111 241860111 GASKETEVAP
241860112 241860112 GASKETEVAP
241860103 241860103 GASKETEVAP
241860102 241860102 GASKETEVAP
5303918737 5303918737 GASKETEVAP HOUSING
242082304 242082304 GLASS
241929902 241929902 GROMMET
241929901 241929901 GROMMET
218513300 218513300 GROMMET-COMPR MTG
808274201 808274201 GUIDE
807999001 807999001 HARNESS,WIRING,FREEZER,LED MAI
241510904 241510904 HARNESSDISPENSER
242061604 242061604 HARNESSWIRING
241788401 241788401 HARNESSWIRING
242094802 242094802 HEATERDEFROST
241779401 241779401 HINGE
241779801 241779801 HINGEMULLION
242291001 242291001 HOUSING
242047901 242047901 HOUSINGAIR FILTER
242095702 242095702 HOUSINGAIR HANDLER
243297609 243297609 ICE MAKER ASSEMBLY
242253002 242253002 ICE MAKER WATER VALVE
242096001 242096001 INSULATION
242072401 242072401 INSULATION
242072501 242072501 INSULATION
242004802 242004802 INSULATIONAIR DUCT
5304512686 5304512686 INVERTOR
242202701 242202701 LENS
242196204 242196204 LIGHT BOARD,3 LED CLUSTER
241779101 241779101 MAGNET
241812202 241812202 MAGNET
241816602 241816602 MOTOR AUGER THREADS ARE LEFT H
242018304 242018304 MOTORCONDENSER FAN
242190501 242190501 MULLION
241920604 241920604 PAN
242095501 242095501 PINANTI TWIST BUCK
242011101 242011101 PINLOCK
241824008 241824008 RACK
241752702 241752702 RETAINER
242216301 242216301 RETAINERBASKET
5304455655 5304455655 RIVET
242236801 242236801 ROLLER
240335202 240335202 ROLLER
242010901 242010901 ROLLER ASSEMBLY
134549700 134549700 SCREW
241953904 241953904 SCREW
241853202 241853202 SCREW
242025601 242025601 SCREW
5304455650 5304455650 SCREW
242017501 242017501 SCREW
242039702 242039702 SCREW
242146401 242146401 SCREW
242015001 242015001 SCREW
242039701 242039701 SCREW
241953901 241953901 SCREW
5304515677 5304515677 SCREW
241690602 241690602 SCREW
240383412 240383412 SCREW
240451503 240451503 SCREW
241695904 241695904 SCREW
241710601 241710601 SCREW
218362501 218362501 SCREW
241732101 241732101 SCREW
241500303 241500303 SCREW
240383407 240383407 SCREW
218252201 218252201 SCREW
241641502 241641502 SCREW
240555004 240555004 SCREW#832 X 3/8 B
240442706 240442706 SCREW-#10-32 X 3/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
241518601 241518601 SEAL-DAMPER
240597203 240597203 SENSOR
242068706 242068706 SHELF
242068704 242068704 SHELF
242235502 242235502 SHELFSPILLSAFE
242200502 242200502 SHELFSPILLSAFE
242072704 242072704 SHIELD-LIGHT,REFR
241946106 241946106 SHROUDCOND FAN
242120001 242120001 SLIDE
242240101 242240101 SNAP BUCKET,WIDE SHIELD
241947701 241947701 SPACER
241868202 241868202 SPACER
241868201 241868201 SPACER
240409302 240409302 SPACER-COND TUBE
242139201 242139201 SPRINGCOMPRESSION
5308000110 5308000110 STRAP-EVAP/HEATER
242071201 242071201 SUMP
242082401 242082401 SUPPORT
242079402 242079402 SUPPORT
242079401 242079401 SUPPORT
242120102 242120102 SUPPORT
242120101 242120101 SUPPORT
242072601 242072601 SUPPORT
807854301 807854301 SUPPORT,HOUSING,MAIN BOARD
241872203 241872203 SUPPORTBEAM
242139301 242139301 SUPPORTBEAM
242060202 242060202 SWITCHLIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
808137001 808137001 THERMISTOR,DEFROST TEMP
5304521781 5304521781 THERMOSTAT,DEFROST SAFETY
242161206 242161206 TRIM
242116801 242116801 TRIMBASKET
241791201 241791201 TROUGHDRAIN
242220204 242220204 TUBE-WATER INLET,.315 - 93.50
241871501 241871501 TUBECONNECTOR
215346900 215346900 TUBEPROCESS
241964707 241964707 TUBEWATER
241965906 241965906 TUBEWATER
218976435 218976435 TUBEWATER INLET
241868301 241868301 WASHER
215474201 215474201 WASHER
241812301 241812301 WASHERCOMPR MTG
EPTWFU01 EPTWFU01 WATER FILTER
5304467131 5304467131 WRENCH
