Model Image
Manufacturer

Electrolux

Model Number

FPCC3685KSA

Description

Cook-top

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316435703 316435703 BOARD
316543605 316543605 BOARD
318388400 318388400 BOARD
316442070 316442070 BOARD
318225451 318225451 BOX
318121902 318121902 BRACKET
318389600 318389600 BRACKET
318146012 318146012 BUSHING
318163601 318163601 CLEANER,COOKTOP
318163602 318163602 CLEANER-COOKTOP
216273000 216273000 CLIP
318346910 318346910 COOLING FAN ASSEMBL
318576500 318576500 DEFLECTOR
318258203 318258203 ELEMENT
318329214 318329214 ELEMENT
318347010 318347010 FILTER
318086007 318086007 FLAT WASHER
5304424462 5304424462 FOAM TAPE
318373300 318373300 FUSE
318337101 318337101 GASKET
318347100 318347100 GENERATOR
318402414 318402414 HARNESS
318231879 318231879 HARNESS
318532141 318532141 HARNESS
318402376 318402376 HARNESS
318329620 318329620 HOUSING ASSEMBLY
318330537 318330537 INSULATION
316564609 316564609 KNOB

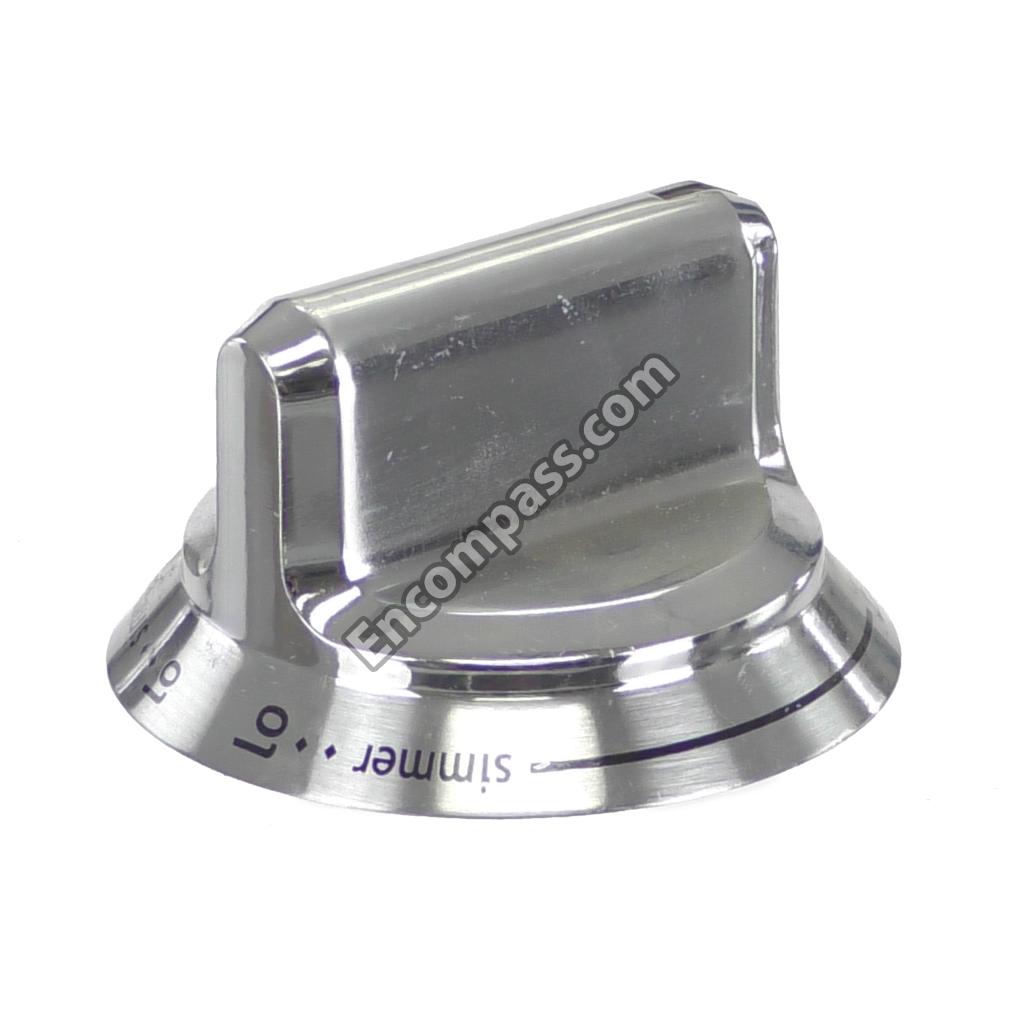

316564612 316564612 KNOB
318319020 318319020 LENS
318367101 318367101 LENS CLAMP
318250409 318250409 LIGHT
318079242 318079242 MAIN TOP ASSEMBLY
5303323144 5303323144 NUT
316247700 316247700 NUT
316459400 316459400 PAD
318330408 318330408 PANEL
318330405 318330405 PANEL
318567500 318567500 PANEL
5303300265 5303300265 SCREW
5303323140 5303323140 SCREW
5304450850 5304450850 SCREW
5304462994 5304462994 SCREW,8-32 X 5/16
318534300 318534300 SPRING
5304475958 5304475958 STANDOFF
318567200 318567200 SUPPORT
318568600 318568600 SUPPORT
318402374 318402374 WIRING HARNESS
