Model Image
Manufacturer

Electrolux

Model Number

FPEF4085KFC

Description

Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317100 318317100 ADAPTER ASSEMBLY
318229000 318229000 BAFFLE
5303310511 5303310511 BAR
318055500 318055500 BRACKET
318144211 318144211 BRACKET
5304405241 5304405241 BRACKET
318125906 318125906 BRACKET
318147420 318147420 BUMPER
318147412 318147412 BUMPER
318563000 318563000 BUSHING
5303205904 5303205904 CLIP
5303284616 5303284616 CLIP
318235300 318235300 CONNECTOR ASSEMBLY.
316462890 316462890 CONTROLLER
318219405 318219405 COVER
318123901 318123901 DEFLECTOR
318156908 318156908 DOOR
318344025 318344025 DOOR ASSEMBLY
3202108 3202108 DRAWER
318255505 318255505 ELEMENT
318255605 318255605 ELEMENT
318255700 318255700 ELEMENT

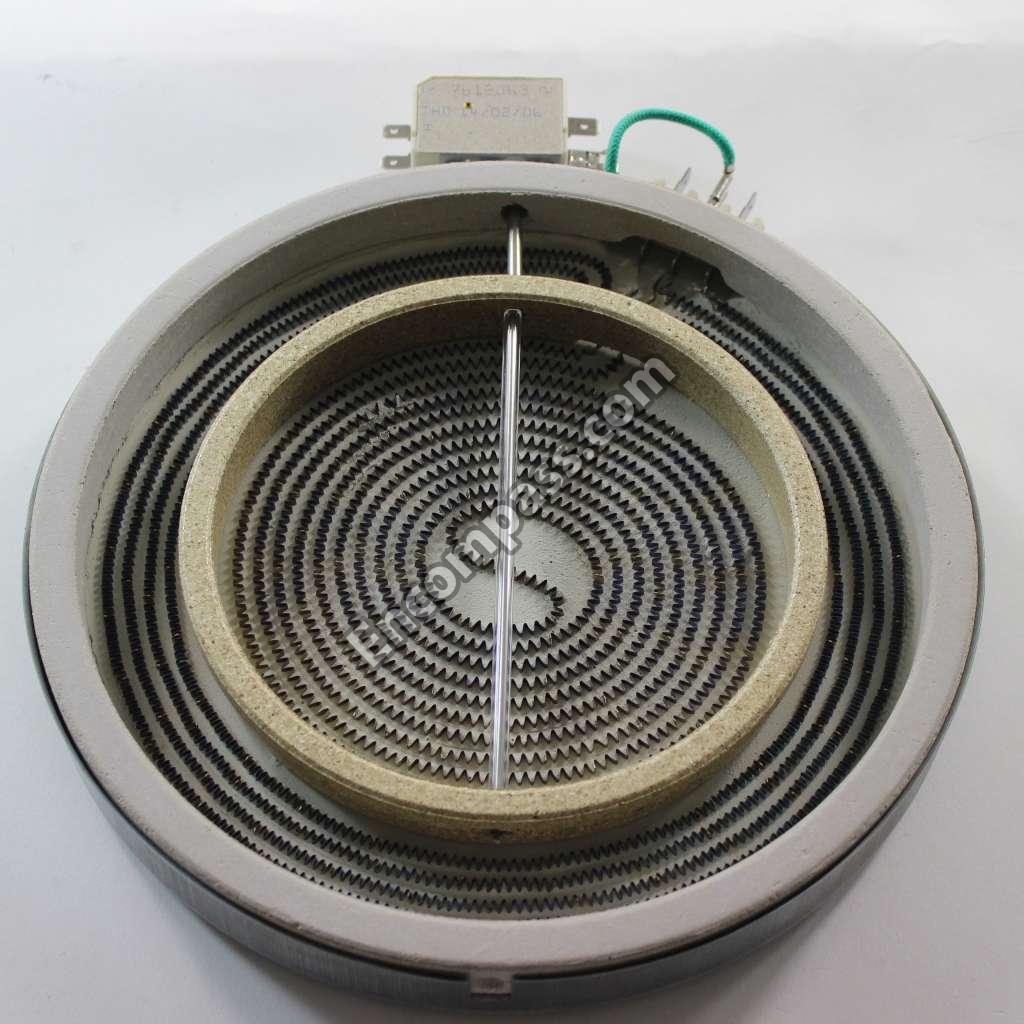

318198933 318198933 ELEMENT
318258203 318258203 ELEMENT
318398302 318398302 FAN BLADE
318182011 318182011 FLUE CONDUIT INF.
318056010 318056010 FRAME
318053103 318053103 GASKET
318404115 318404115 GLASS PANEL
318259507 318259507 GLIDE
316105501 316105501 GLIDE
318259506 318259506 GLIDE
318919701 318919701 HANDLE
318919703 318919703 HANDLE
318919702 318919702 HANDLE
318024508 318024508 HINGE
318024509 318024509 HINGE
318567103 318567103 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
318285006 318285006 INSULATION
807080401 807080401 INSULATION
318285016 318285016 INSULATION
318285050 318285050 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X
316564621 316564621 KNOB
316564622 316564622 KNOB
316564620 316564620 KNOB
316221001 316221001 LABEL
318090310 318090310 LATCH
5303310536 5303310536 LATCH
318228301 318228301 LENS
318406100 318406100 LENS
318369500 318369500 LIGHT
318044827 318044827 LIGHT
318089200 318089200 LINER
318089617 318089617 LINER
318048225 318048225 LINER
318159639 318159639 MAINTOP
5303311202 5303311202 MOTOR
318095965 318095965 MOTOR
5303323144 5303323144 NUT
316136600 316136600 NUT
316081900 316081900 PAN
318192937 318192937 PANEL
318071900 318071900 PANEL
318073714 318073714 PANEL
318133000 318133000 PANEL
318066415 318066415 PANEL
318066134 318066134 PANEL
318066135 318066135 PANEL
318055701 318055701 PANEL
5303310515 5303310515 PANEL
318324103 318324103 PANEL
318158223 318158223 PANEL
318041603 318041603 PANEL
318111800 318111800 PLATE
5303320846 5303320846 PLATE
318264200 318264200 PLATE
5303321106 5303321106 PLUG
318345205 318345205 RACK
318345206 318345206 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5303323146 5303323146 RIVET
5303311160 5303311160 ROD
5303323134 5303323134 SCREW
5303211311 5303211311 SCREW
5303323277 5303323277 SCREW
318175503 318175503 SCREW
5303323129 5303323129 SCREW
5303323133 5303323133 SCREW
5303323139 5303323139 SCREW
5303311528 5303311528 SCREW
5304415832 5304415832 SCREW
3051009 3051009 SCREW
5304416408 5304416408 SCREW
5303317975 5303317975 SCREW
5304461333 5304461333 SCREW
318053110 318053110 SEAL
318293501 318293501 SEAL
318562500 318562500 SENSOR
318086916 318086916 SHIELD
318179113 318179113 SHIELD
5303304544 5303304544 SPACER
318141800 318141800 SPACER
318404500 318404500 SPACER
5303310504 5303310504 SPACER
318042103 318042103 SPACER
318192400 318192400 SPRING
5303311164 5303311164 SPRING
318122004 318122004 SPRING
318122006 318122006 SPRING
318122007 318122007 SPRING
318122008 318122008 SPRING
318090220 318090220 STRIKE
5304403015 5304403015 SUPPORT
318172904 318172904 SUPPORT
318078801 318078801 SWITCH
318191000 318191000 SWITCH
318293824 318293824 SWITCH

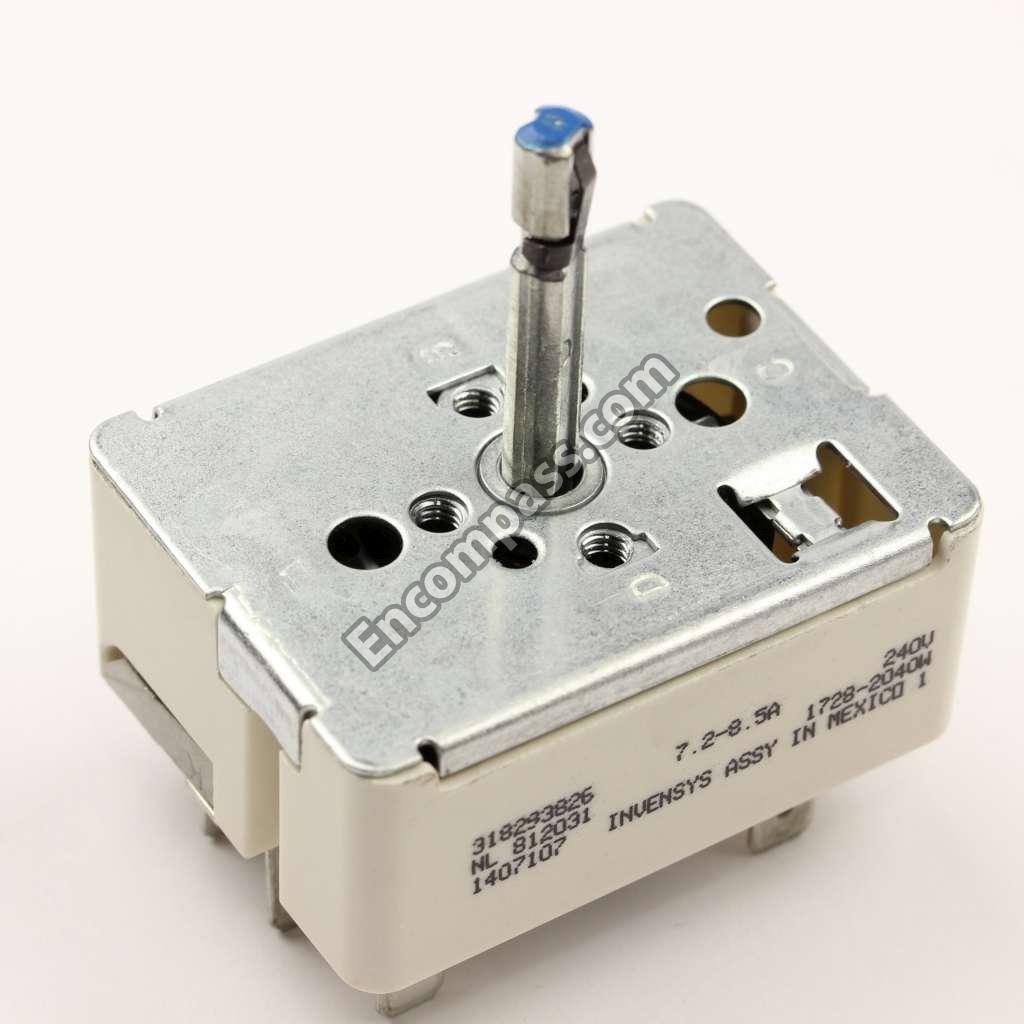

318293826 318293826 SWITCH
318183000 318183000 THERMOSTAT
318003600 318003600 THERMOSTAT
318107700 318107700 TOEPLATE
318549803 318549803 TUBE
3201909 3201909 WASHER
318232349 318232349 WIRING HARNESS
318232363 318232363 WIRING HARNESS
