Model Image
Manufacturer

Electrolux

Model Number

FPET3085KFC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318578902 318578902 ADAPTER
318317105 318317105 ADAPTER ASSEMBLY
318259224 318259224 BACK
318260531 318260531 BAFFLE,DOOR,LOWER

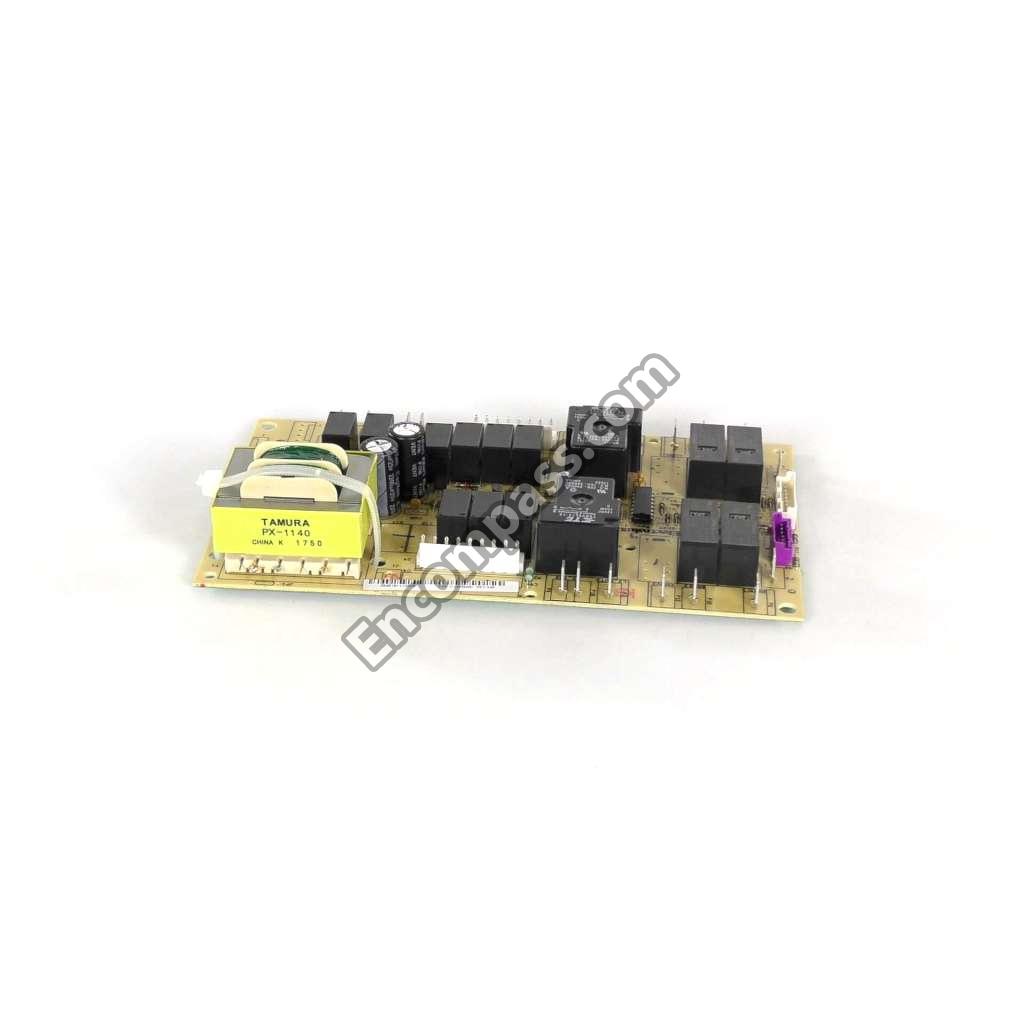

316443948 316443948 BOARD
318574801 318574801 BOTTOM
318394443 318394443 BOX & WIRES ASSEMBLY
318579001 318579001 BRACKET
318361801 318361801 BRACKET
318256203 318256203 BRACKET
318260622 318260622 BRACKET
318242702 318242702 BRACKET
318382301 318382301 BRACKET
318370600 318370600 BRACKET
316095800 316095800 CLIP
316443883 316443883 CONTROL
318260104 318260104 COVER
318550200 318550200 COVER
318262111 318262111 COVER
318123910 318123910 DEFLECTOR
318927838 318927838 DOOR ASSEMBLY
318927842 318927842 DOOR ASSEMBLY
318601604 318601604 ELEMENT
318255807 318255807 ELEMENT
318535300 318535300 ELEMENT
318398302 318398302 FAN BLADE
318056292 318056292 FRONT
318053132 318053132 GASKET
316117500 316117500 GLASS
318212210 318212210 GLASS
316551500 316551500 HANDLE
318572723 318572723 HARNESS
318582630 318582630 HARNESS
318532135 318532135 HARNESS
318567100 318567100 HINGE
318222400 318222400 HOUSING
318929702 318929702 INSERT
316082000 316082000 INSERT
318594323 318594323 INSULATION
318268099 318268099 INSULATION
318372006 318372006 INSULATION
318330501 318330501 INSULATION
318406100 318406100 LENS
318261452 318261452 LINER
318411646 318411646 LINER
318261226 318261226 MOTOR
318575604 318575604 MOTOR
316136600 316136600 NUT
5303323144 5303323144 NUT
316081900 316081900 PAN
318260007 318260007 PANEL
318570500 318570500 PANEL
318577700 318577700 PANEL
318361610 318361610 PANEL
318575101 318575101 PANEL ASSEMBLY
318368300 318368300 PIN
5303320846 5303320846 PLATE
318389400 318389400 PLATE
318919801 318919801 RACK
318926803 318926803 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304454881 5304454881 SCREW
5304436875 5304436875 SCREW
5304401490 5304401490 SCREW
5303211311 5303211311 SCREW
5303323139 5303323139 SCREW
5303323277 5303323277 SCREW
5303323129 5303323129 SCREW
5303323130 5303323130 SCREW
5304417153 5304417153 SCREW
5304461333 5304461333 SCREW
5304415832 5304415832 SCREW
5303300265 5303300265 SCREW
316418900 316418900 SCREW
5303323134 5303323134 SCREW
5304476599 5304476599 SCREW
5304472906 5304472906 SCREW
318389000 318389000 SEAL
318562500 318562500 SENSOR
318257305 318257305 SHIELD
318259105 318259105 SHIELD
318293702 318293702 SPACER
316114100 316114100 SPACER
318531800 318531800 SPACER
318531703 318531703 SPACER
316517600 316517600 SPACER
318165800 318165800 SPACER
5304455945 5304455945 SPACER
318264724 318264724 SPACER
318192400 318192400 SPRING
318252804 318252804 SUPPORT
318172904 318172904 SUPPORT
5304403015 5304403015 SUPPORT
318944000 318944000 THERMAL CUTOFF
318257706 318257706 TRIM
318259859 318259859 TRIM
318903677 318903677 TRIM
318903676 318903676 TRIM
318260401 318260401 TRIM
318249412 318249412 TUBE
318370374 318370374 WIRING HARNESS
318231870 318231870 WIRING HARNESS
