Manufacturer
Electrolux
Model Number
FPEW3077RFE
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BOX, BAKE ELEMENT |
|
|
BRACKET, CABLE BOX |
|
|
BRACKET, GLASS, AIR WASH |
|
|
BRACKET, OVC SUPPORT |
|
|
BRACKET, SUPPORT, CHASSIS/FAN |
|
|
BRACKET, WIRE |
|
|
BRACKET, WIRE SUPPORT |
|
|
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY |
|
|
BULB, HALOGEN, G9, 25W, 120V |
|
|
BUMPER, FRONT, MAIN |
|
|
CIRCUIT BOARD, ASSEMBLY, OVC1, W/HOUSING |
|
|
CLIP, ROD |
|
|

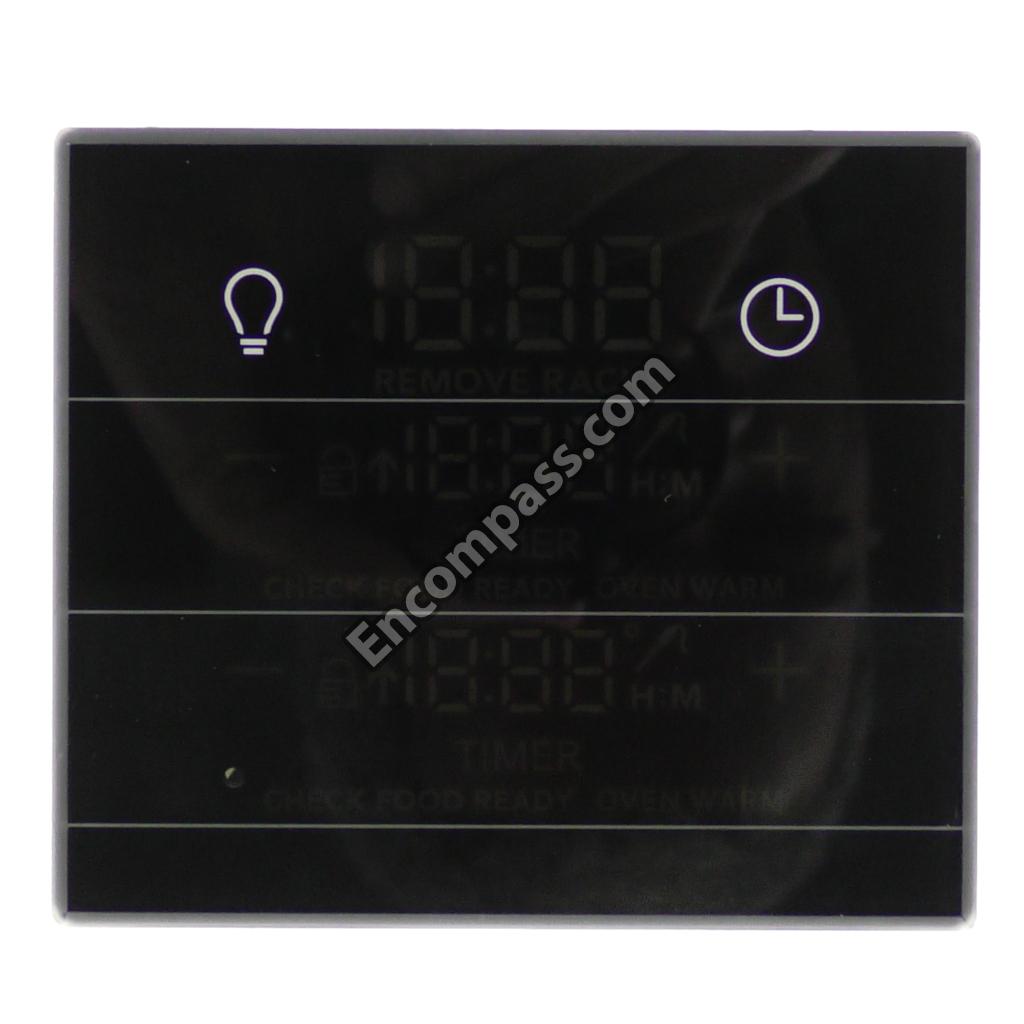

CONTROL ASSEMBLY, COMPLETE, HMI |
|
|
CONTROL PANEL, ASSEMBLY, STAINLESS, OUTER |
|
|

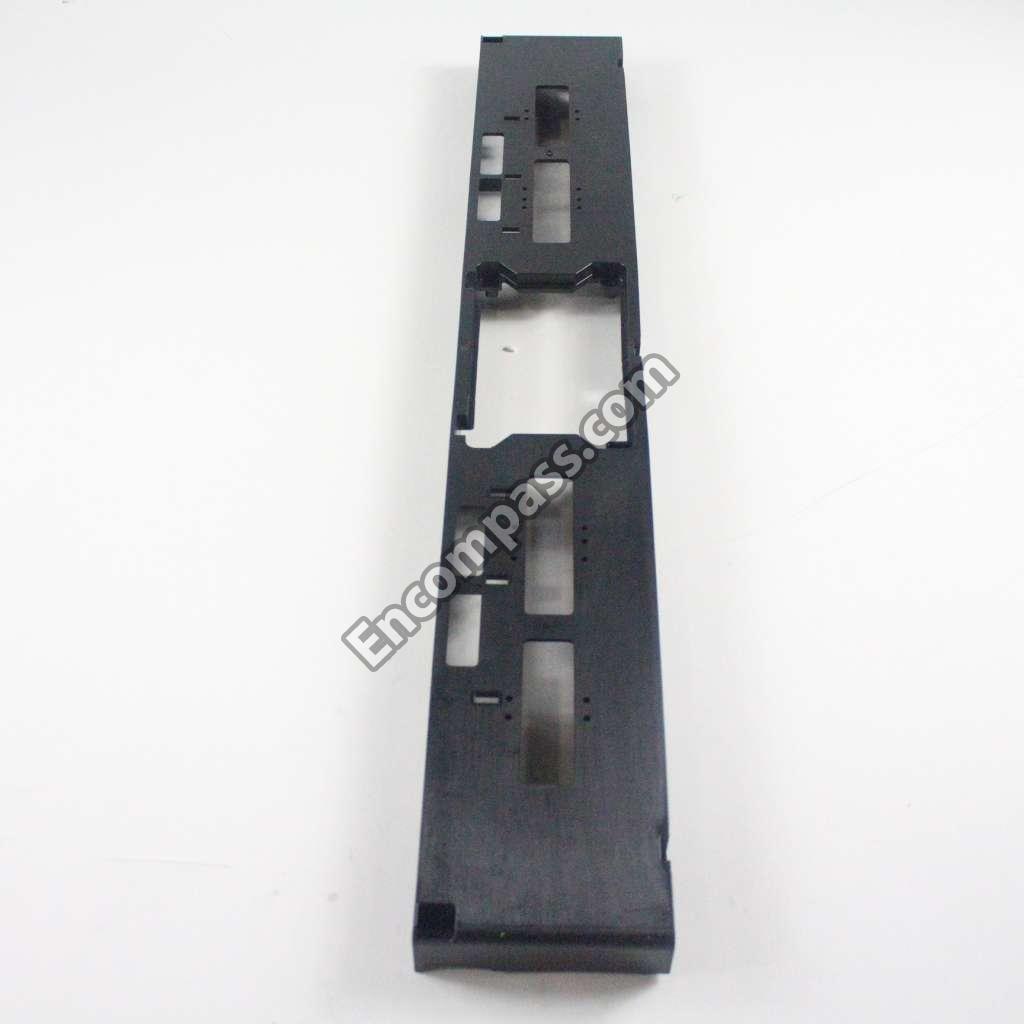

CONTROL PANEL, FRAME |
|
|
COVER, CONTROL ACCESS |
|
|
COVER, DUAL FAN, BLACK, CONVECTION |
|
|
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, W/TRIM & BADGE |
|
|
DUCT, COOL FAN, LOWER |
|
|
DUCT, COOLING FAN, UPPER |
|
|
ELEMENT, BROIL, 4000W, 8 PASS |
|
|
ELEMENT, CONVECTION, DUAL, 3400W |
|
|
ELEMENT, HIDDEN BAKE, 2200W |
|
|
FAN BLADE |
|
|
GLASS, DOOR, AIRWASH, HBII |
|
|
GLASS,DOOR ,INNER ,(2) |
|
|
HANDLE, DOOR/DRAWER, STAINLESS |
|
|
HARNESS ASSEMBLY, CONDUIT, ELBOW CONNECTOR, & WIRING |
|
|
HARNESS, WIRING, ADS MDL |
|
|
HARNESS, WIRING, COMMUNICATION, OVC1 TO OVC2 |
|
|

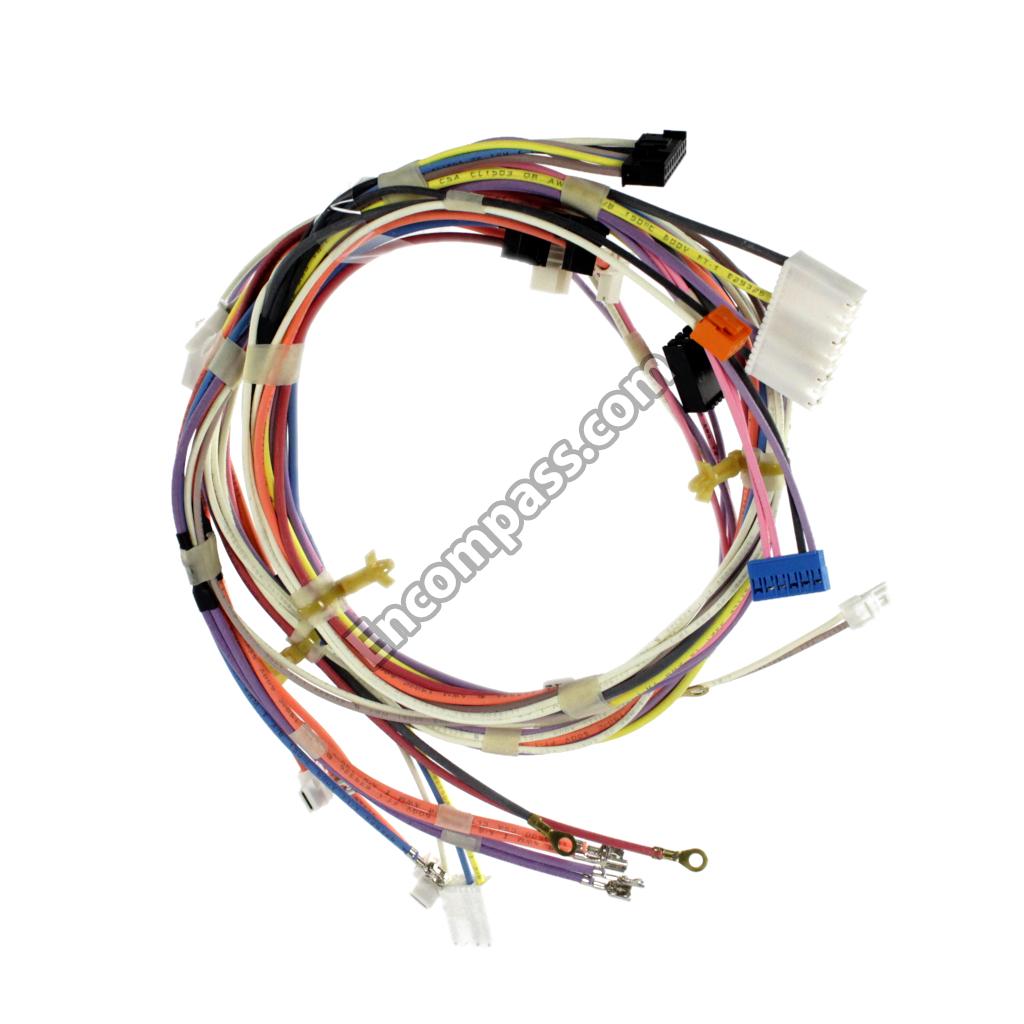

HARNESS, WIRING, MAIN |
|
|
HARNESS, WIRING, POTENTIOMETERS, SINGLE OVEN |
|
|
HARNESS, WIRING, UPPER OVEN, HALL EFFECT |
|
|
HINGE, DOOR, GOLD, DUAL SPRING |
|
|
INSULATION, BAKE ELEMENT, FRONT |
|
|
INSULATION, BOTTOM |
|
|
INSULATION, DOOR, SIDE, (2) |
|
|
INSULATION, DOOR, UPPER |
|
|
INSULATION, OVEN BACK |
|
|
INSULATION, OVEN WRAPPER |
|
|
KNOB, OVEN CONTROL, STAINLESS |
|
|
LAMP ASSEMBLY, ROUND, HALOGEN |
|
|
LENS-LIGHT/LAMP, INDICATOR, CLEAR |
|
|
LIGHT/LAMP, INDICATOR, BLUE, OVEN |
|
|
LIGHT/LAMP, INDICATOR, BLUE, PREHEAT |
|
|
LINER, OVEN DOOR, BLACK |
|
|
MOTOR ASSEMBLY, DOOR LATCH |
|
|

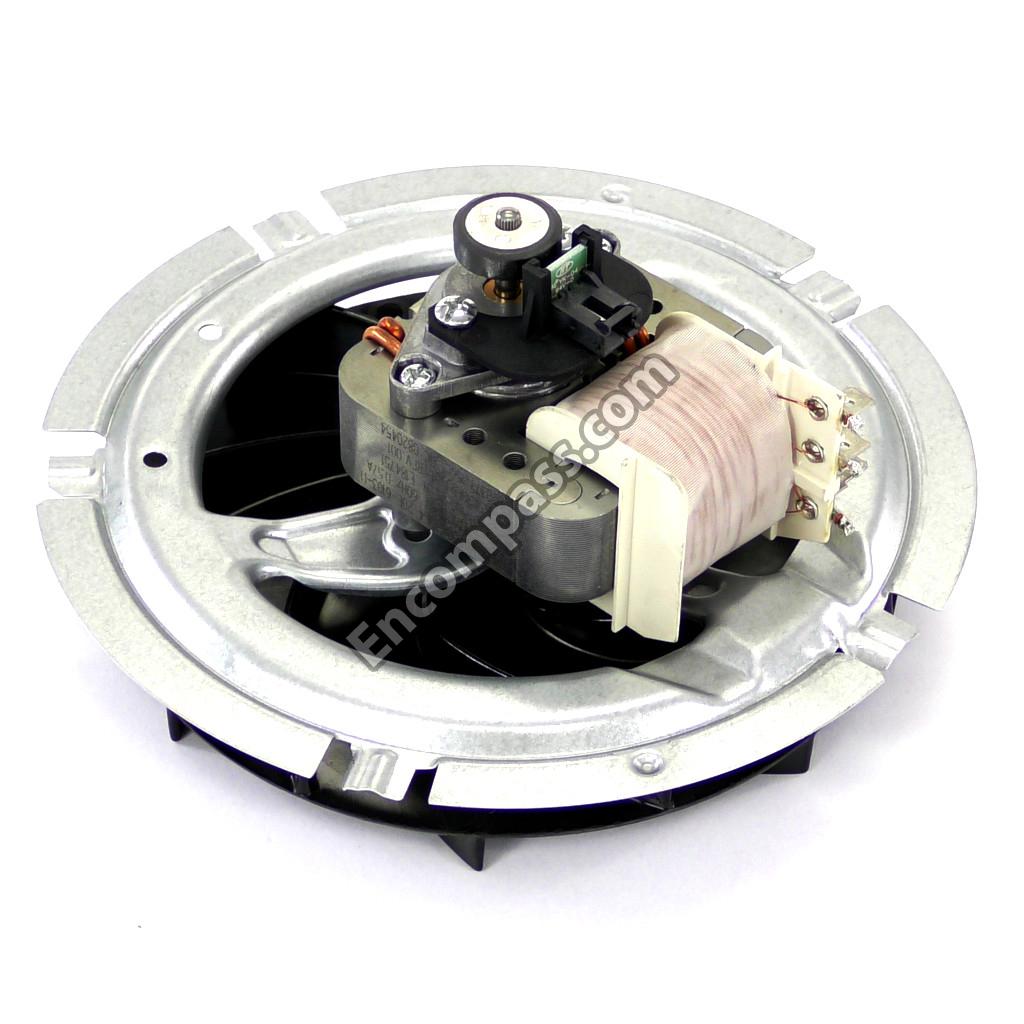

MOTOR ASSEMBLY, FAN |
|
|
MOTOR, CONVECTION FAN, 2 SPEED |
|
|
NUT, FAN RETAINER |
|
|
NUT, HEX FLANGE, 3/8 10-32 |
|
|
PANEL, MAIN BACK |
|
|
POTENTIOMETER, OVEN MODE |
|
|
POTENTIOMETER, OVEN TEMP |
|
|
PROBE, MEAT TEMP, RED |
|
|
PROBE, TEMP |
|
|
RACK ASSEMBLY, GLIDING, NICKEL, W/HANDLE |
|
|
RACK, OVEN, OFFSET, W/HANDLE |
|
|
RACK, OVEN, W/HANDLE |
|
|
RECEPTACLE ASSY, MEAT PROBE |
|
|
RECEPTACLE, HINGE, DUAL SPRING |
|
|
ROD, DOOR LATCH |
|
|
SCREW, 10-24 X 0.625 |
|
|
SCREW, 8 X 0.750 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, 8-18 X 5/16, BLACK |
|
|
SCREW, ANTI-TIP, 8 - 5/8, BLACK, (2) |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, SELF TAPPING, 8-18 X 11/32, (4) |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, TRUSS SQDR, 8-32 X 3/16, SWITCH MTG |
|
|
SCREW, TRUSS SQDR, 8A X 1", 62* |
|
|
SEAL, OVEN DOOR |
|
|
SHEILD, AIR WASH, LOWER |
|
|
SHIELD, BAKE TRAY, REAR |
|
|
SHIELD, INSULATION, LOWER |
|
|
SHIELD, INSULATION, SIDES, (2) |
|
|
SHIELD, INSULATION, TOP |
|
|
SHIELD, REAR WALL |
|
|
SHIELD, TERMINALS, BAKE ELEMENT |
|
|
SHIELD, WIRE, TOP |
|
|
SHIELD, WOOL, OVEN DOOR |
|
|
SPACER, DOOR GLASS |
|
|
SPACER, GLASS, FOAM |
|
|
SPACER, OVEN SHIELD, (2) |
|
|
SPRING |
|
|
SUPPORT, FLOOR |
|
|
SUPPORT, GLASS |
|
|
SWITCH,OVEN LIGHT ,DOOR FRAME |
|
|
TERMINAL BLOCK KIT |
|
|
THERMOSTAT |
|
|
TRIM, OVEN DOOR, BLACK, SIDE VENT |
|
|
TRIM, SIDE, BLACK, LH |
|
|
TRIM, SIDE, BLACK, RH |
|
|
TRIM, VENT, BLACK, UPPER |
|
|
TRIM, VENT, STAINLESS, LOWER |
|
|
TUBE, CONVECTION FAN |
|
|
VENT BOX ASSY., W/CATALYST |
|
|
WASHER,3/4 OD X 1/4 ID ,STEEL |
