Manufacturer
Electrolux
Model Number
FPFU19F8WF2
Description
Professional 19 Cu. Ft. Single-door Freezer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BAFFLE, DIVIDER |
|
|
BAFFLE, DRAIN PAN, AIR BLOCK |
|
|
BASE ASSEMBLY, COMPRESSOR, W/LEG LEVELERS |
|
|
BASE, LEVELER LEG, FRONT |
|
|
BASKET, ICE |
|
|
BEARING ASSEMBLY, LOWER HINGE, LH, W/STOP |
|
|
BEARING, DOOR, LOWER |
|
|
BIN, DOOR, 2 LITER |
|
|
BIN, DOOR, GALON |
|
|
BIN, DOOR, TALL ITEMS |
|
|
BRACKET, FAN MOUNTING |
|
|
CLAMP, CABLE |
|
|
CLAMP, COMPRESSOR |
|
|
CLIP, PLASTIC, W/ADHESIVE |
|
|
CLOSER ASSEMBLY, DOOR, LH UPPER |
|
|

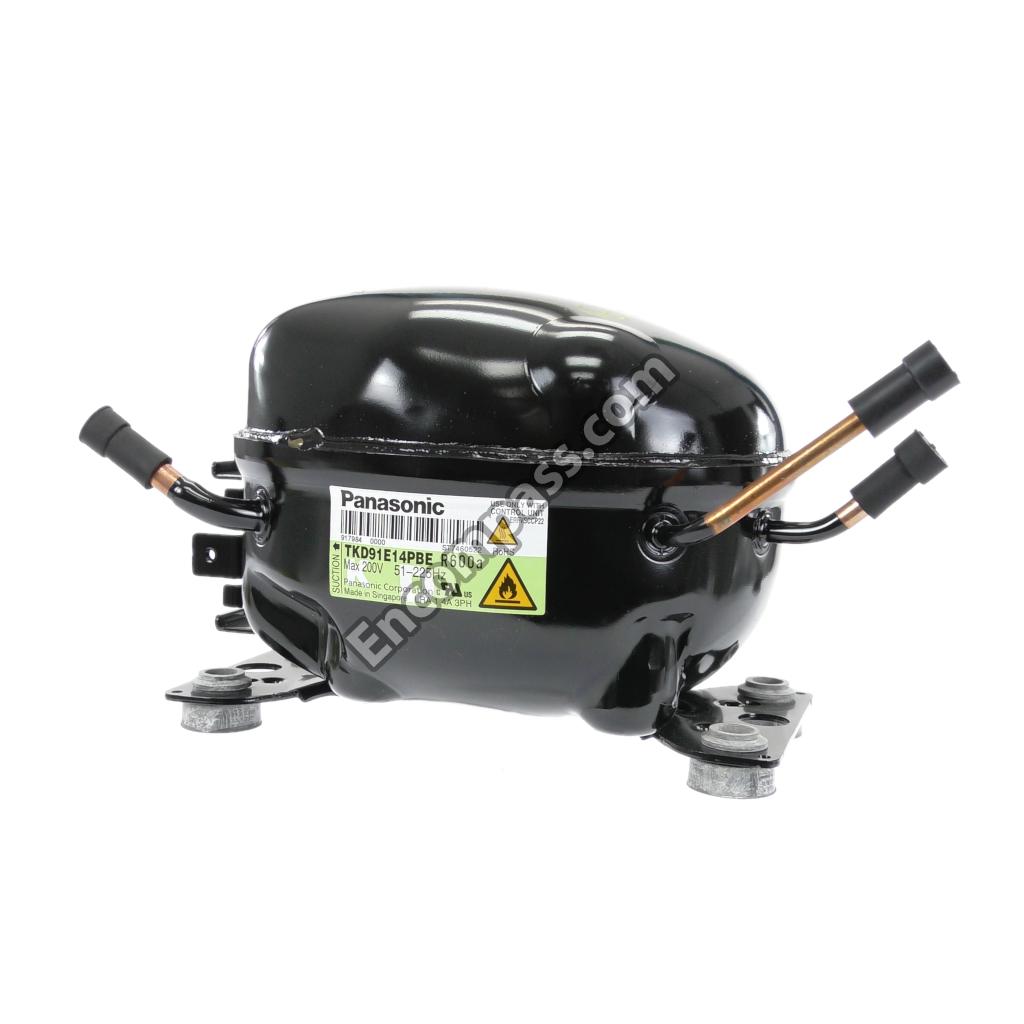

COMPRESSOR, ASSEMBLY, TKD91E, W/GROMMETS |
|
|
CONDENSER, DYNAMIC |
|
|
CONTROL COVER, ASSEMBLY, WHITE, COMPLETE |
|
|
COVER ASSEMBLY, AIR TOWER, W/AIR DUCT |
|
|
COVER ASSEMBLY, CRISPER, UPPER, W/FRONT GASKET |
|
|

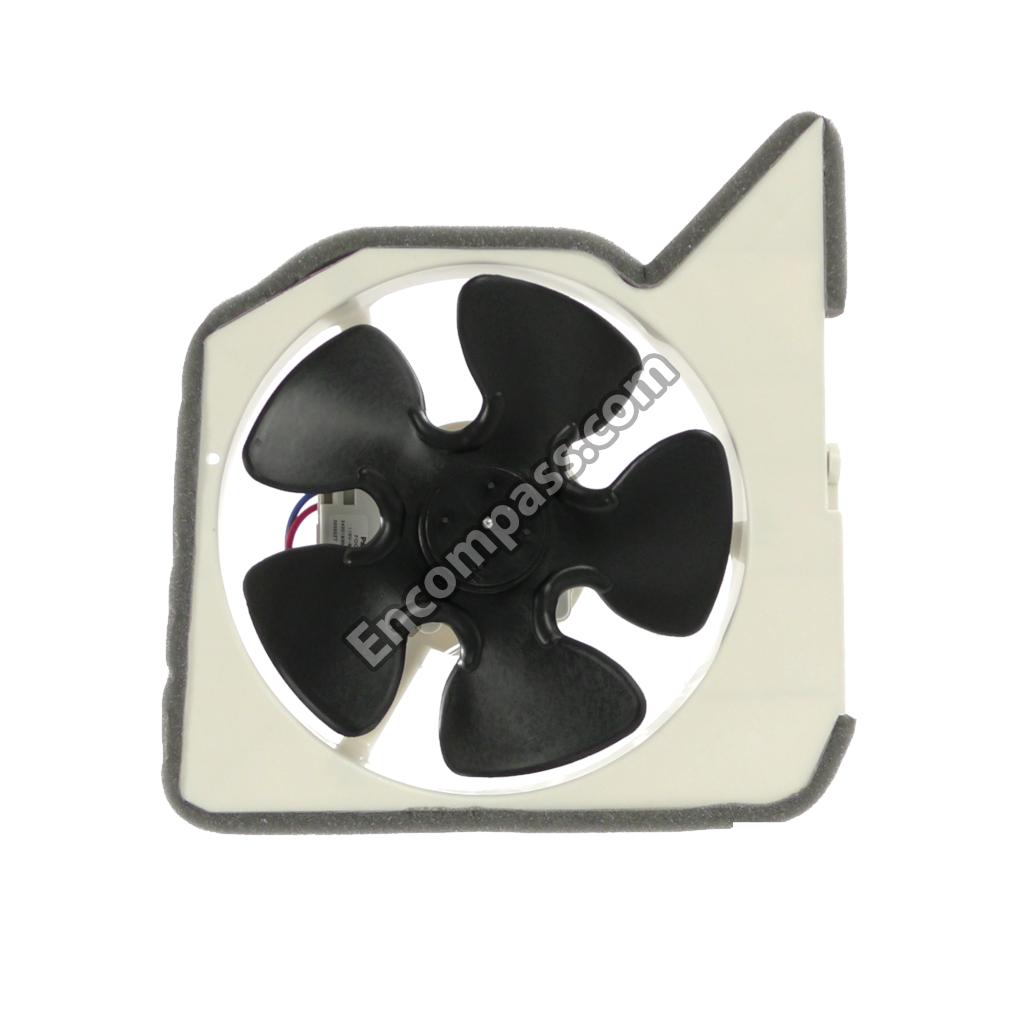

COVER ASSEMBLY, EVAP FAN, W/AIR DUCT |
|
|
COVER ASSEMBLY, EVAPORATOR |
|
|
COVER, ACCESS, MACHINE COMPT. |
|
|
COVER, AIR FILTER, FRIG PRO |
|
|
COVER, DOOR CAP, GRAY, LH, CLOSER SIDE |
|
|
COVER, DOOR CAP, GRAY, RH, NON-CLOSER SIDE |
|
|
COVER, DRAIN JUMPER |
|
|
COVER, HINGE, LH LOWER |
|
|
COVER, HINGE, STAINLESS, LH UPPER |
|
|
COVER, REED SWITCH |
|
|
COVER, SENSOR |
|
|
DIVIDER, DOOR BIN, 2 LITER |
|
|
DIVIDER, DOOR BIN, TALL ITEMS |
|
|
DIVIDER, GALLON, DOOR BIN |
|
|
DIVIDER, LOWER DRAWER, LH |
|
|
DIVIDER, LOWER DRAWER, RH |
|
|
DOOR ASSEMBLY, LH SWING, STAINLESS |
|
|
DRAIN JUMPER, ASSEMBLY, W/SEAL |
|
|
DRAWER ASSEMBLY, FULL WIDTH, LOWER, W/DIVIDERS |
|
|
DRAWER ASSEMBLY, FULL WIDTH, UPPER |
|
|

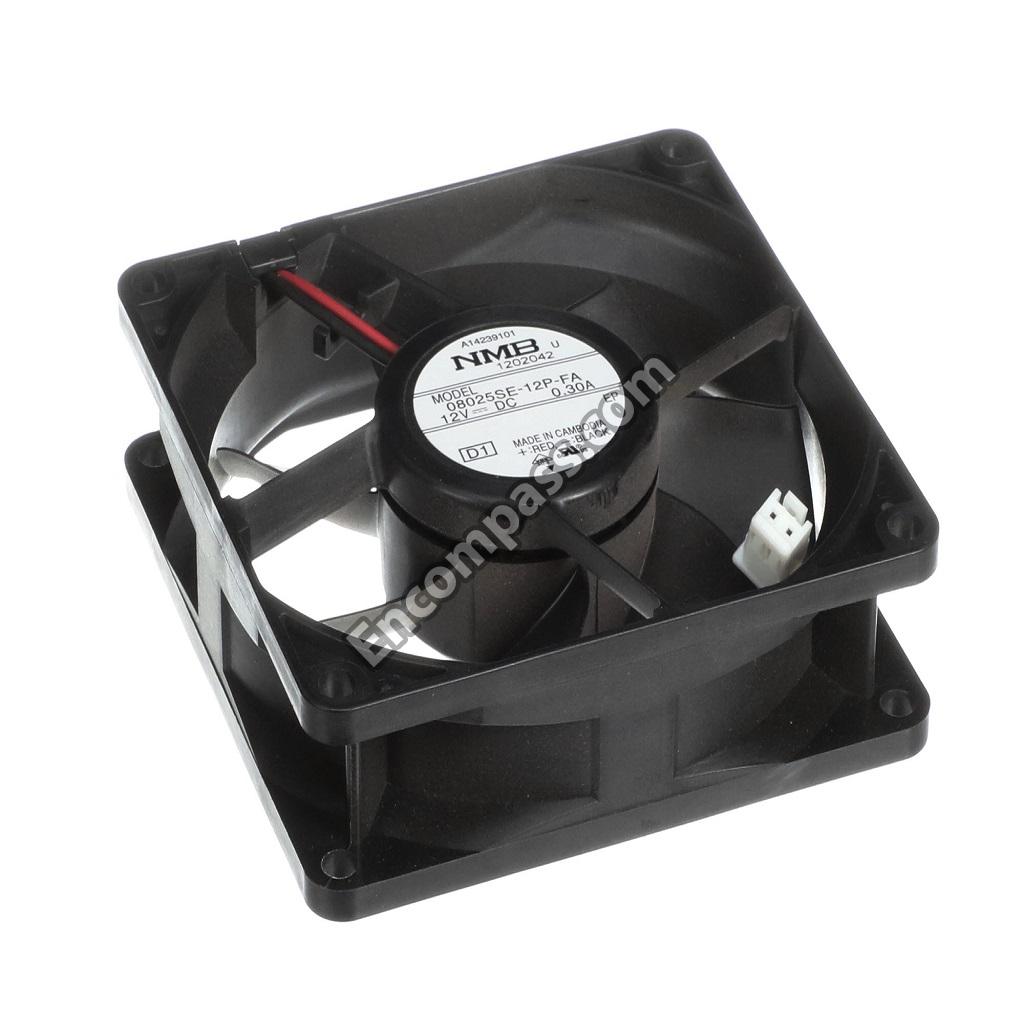

FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM |
|
|

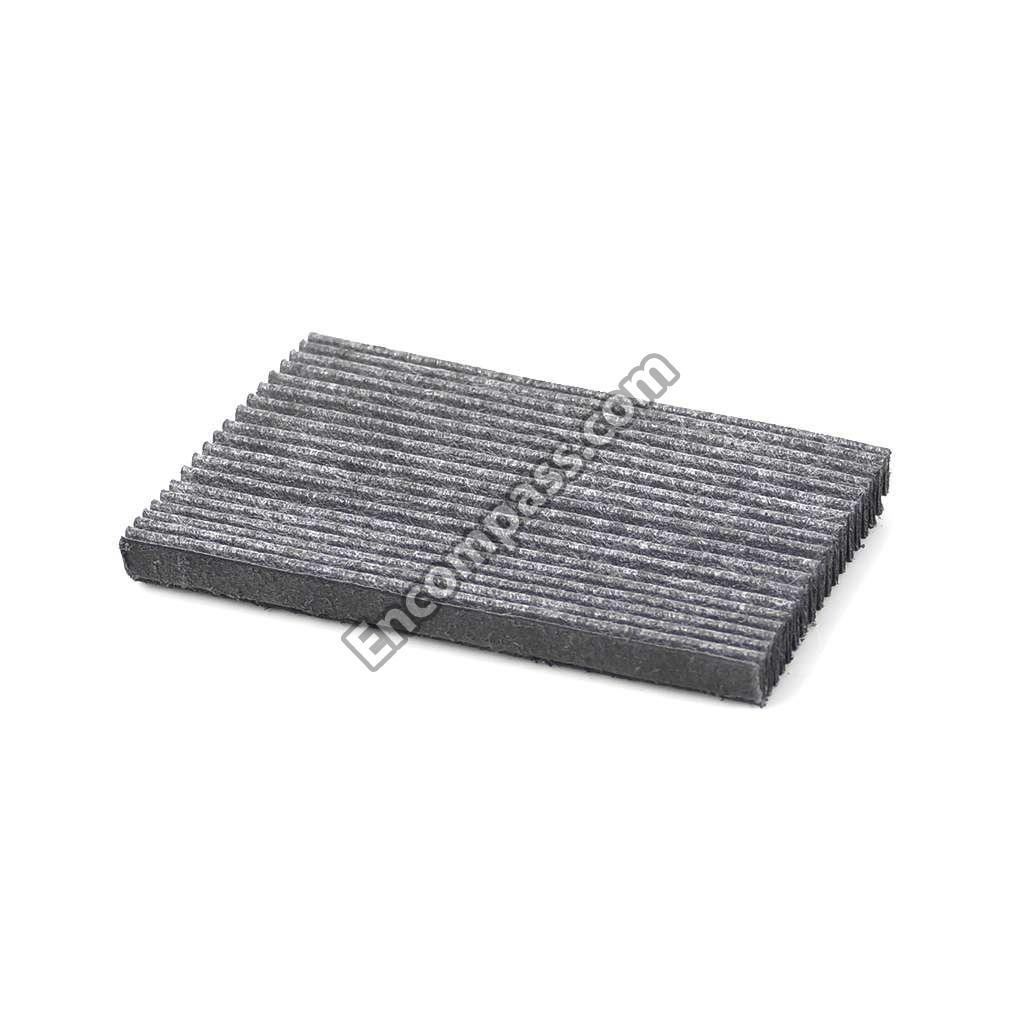

FILTER, AIR |
|
|
FOOT, LEG LEVELER |
|
|
FRAME, POWER SUPPLY |
|
|
GASKET, DOOR, GRAY |
|
|
GASKET, SHELF |
|
|
GLASS, CONTROL COVER |
|
|
GROMMET, COMPRESSOR |
|
|

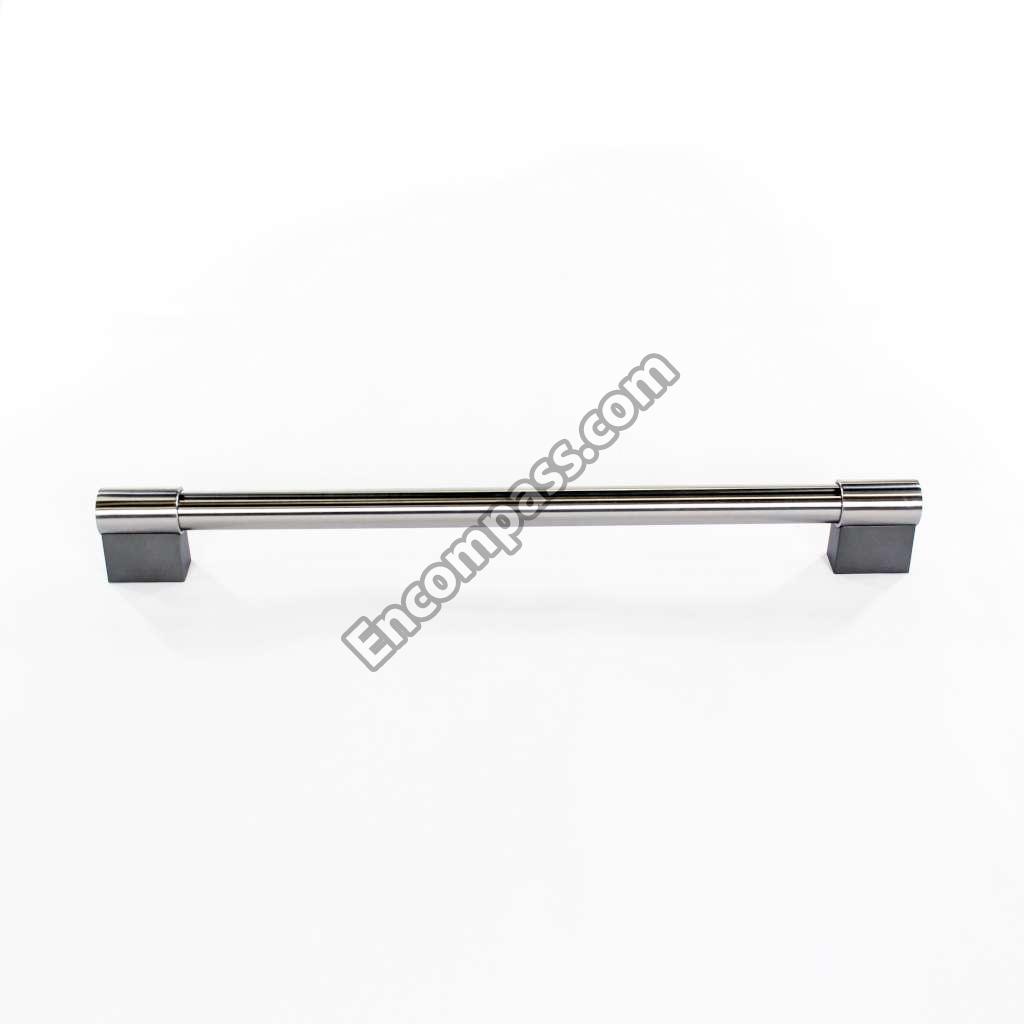

HANDLE ASSEMBLY, STAINLESS, W/SET SCREWS |
|
|
HARNESS ASSEMBLY, DEFROST NTC |
|
|
HARNESS, INETRMEDIATE, TO ICE MAKER |
|
|
HARNESS, JUMPER, LED |
|
|

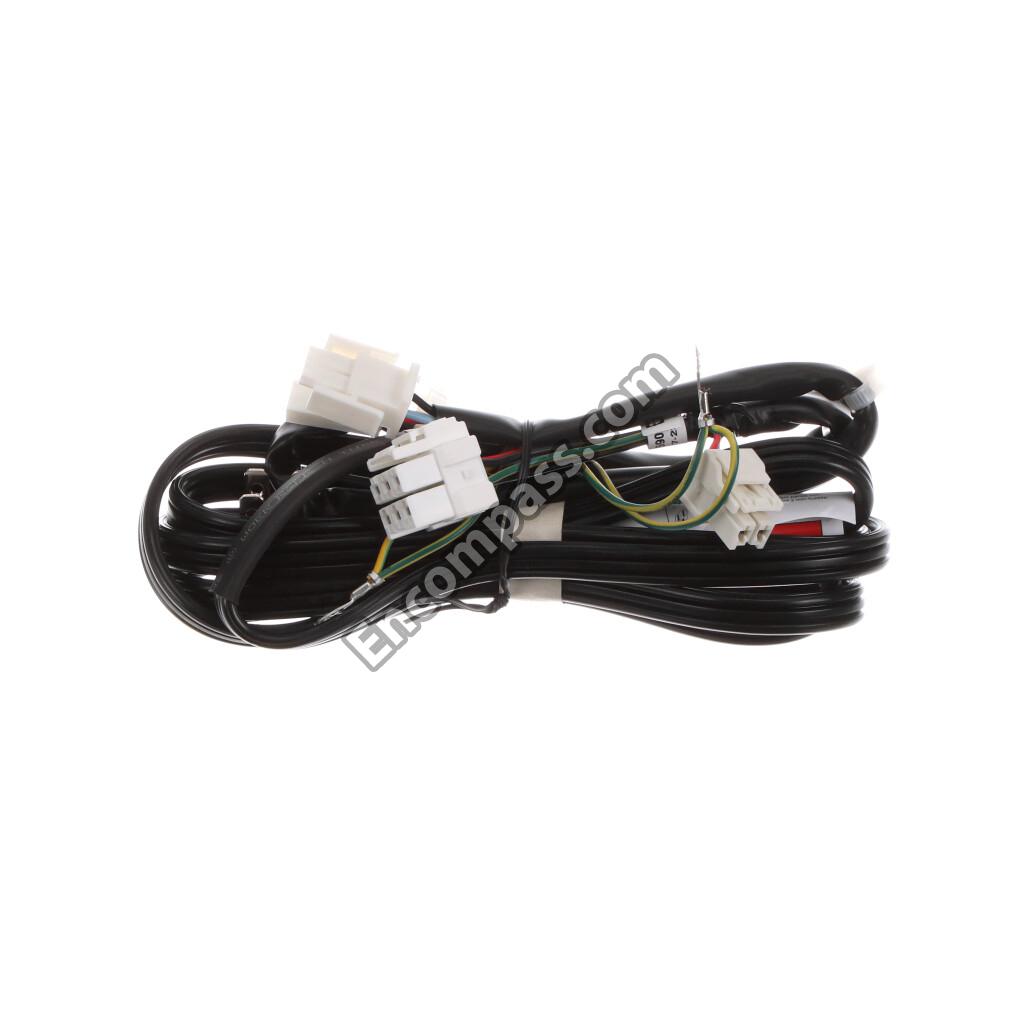

HARNESS, WIRING, MACHINE COMPT. |
|
|
HEATER, DEFROST |
|
|
HINGE ASSEMBLY, LOWER, LH |
|
|
HINGE, DOOR, LH UPPER |
|
|
HOUSING, ICE MAKER |
|
|
ICE MAKER, ASSEMBLY, 6-PIN |
|
|

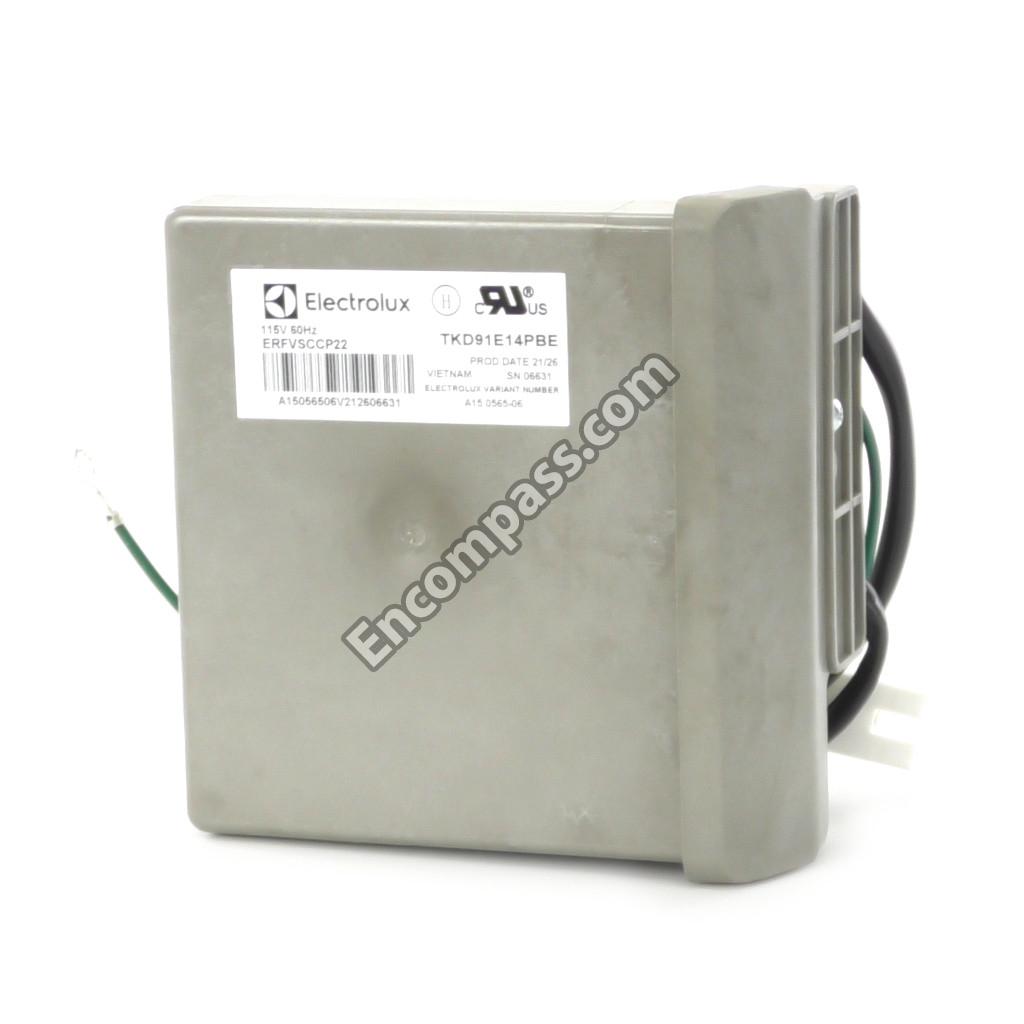

INVERTER, FLEXDRIVE 2.2 |
|
|
LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN |
|
|
LIGHT ASSEMBLY, LED, 2X UPPER, W/LENS, PCB, HARN |
|
|
LIGHT ASSEMBLY, LED, 3X, W/LENS, PCB, HARN |
|
|
MOTOR, FAN, ICE MAKER |
|
|

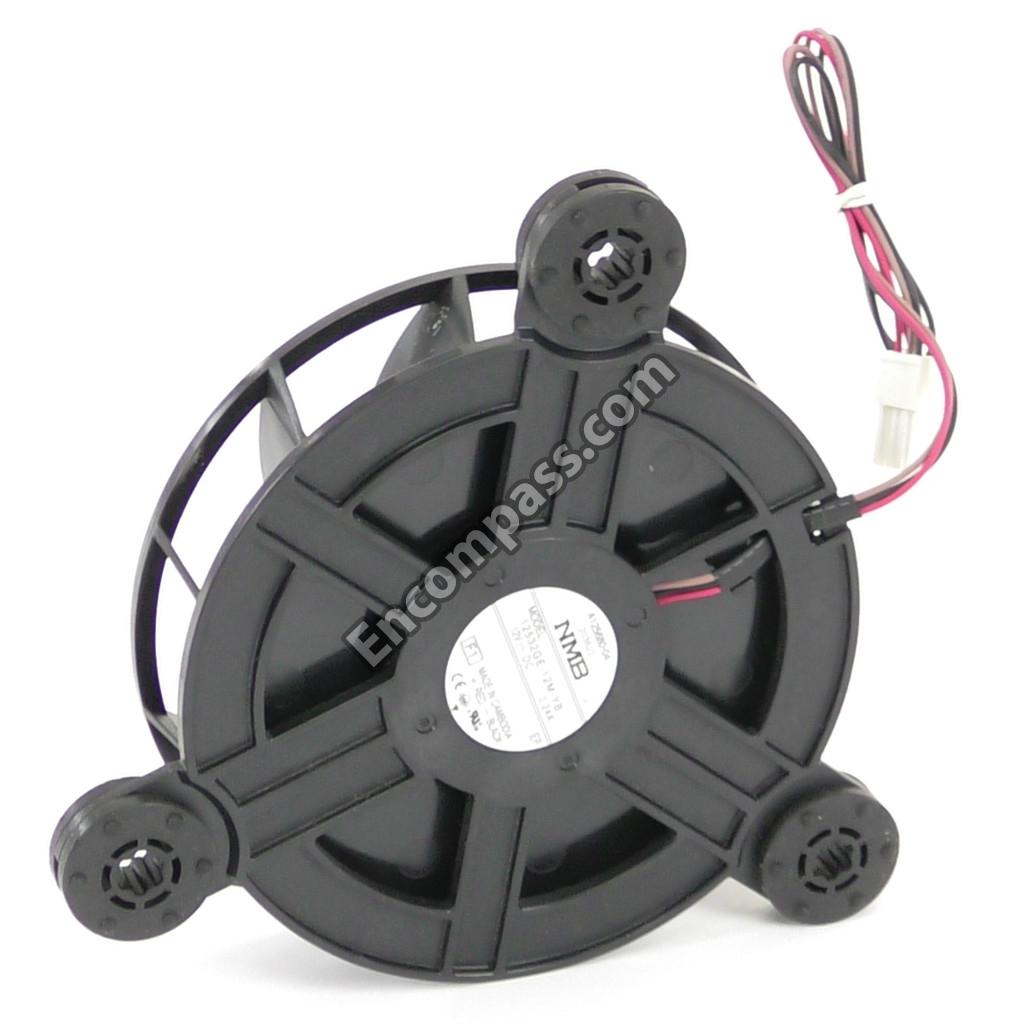

MOTOR-FAN, EVAPORATOR |
|
|
NUT, LEG LEVELER |
|
|
PAN, DRAIN |
|
|

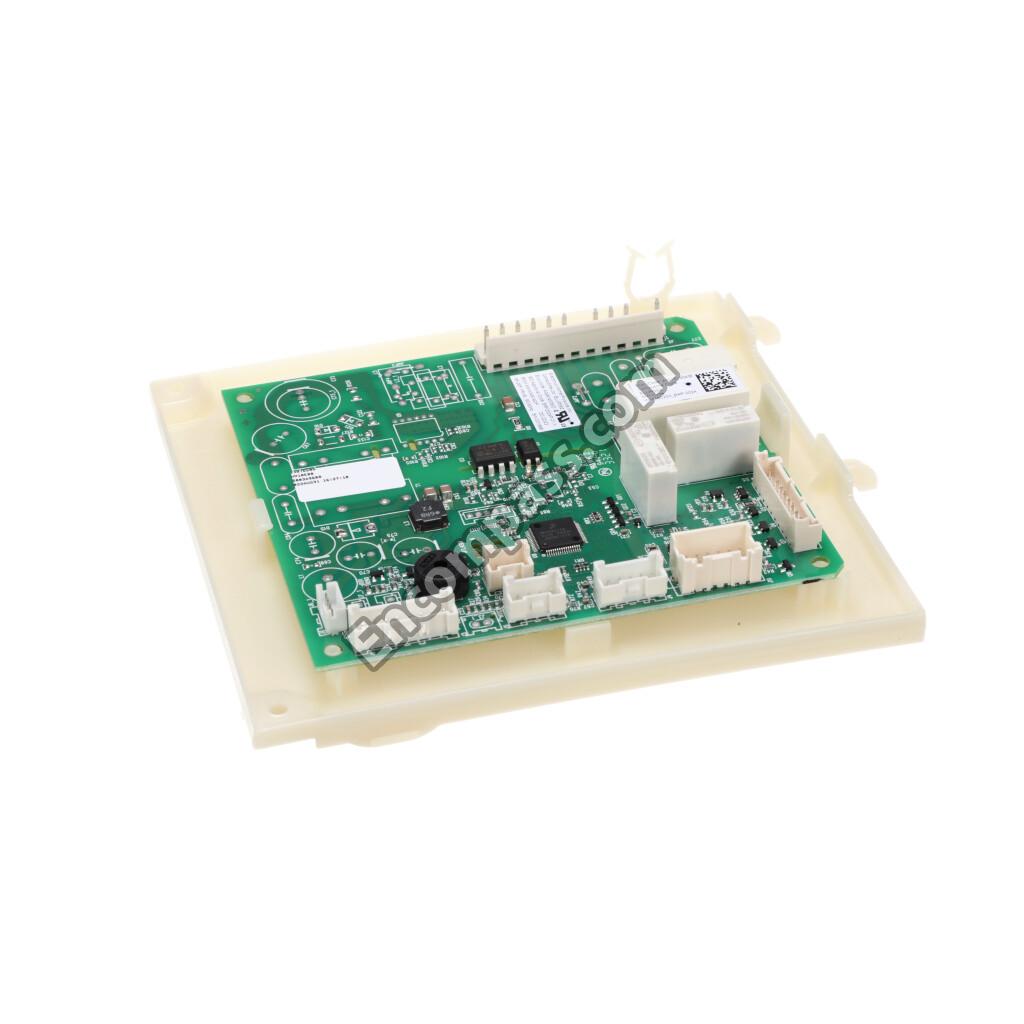

PC BOARD, ASSEMBLY, MAIN, W/HOUSING |
|
|

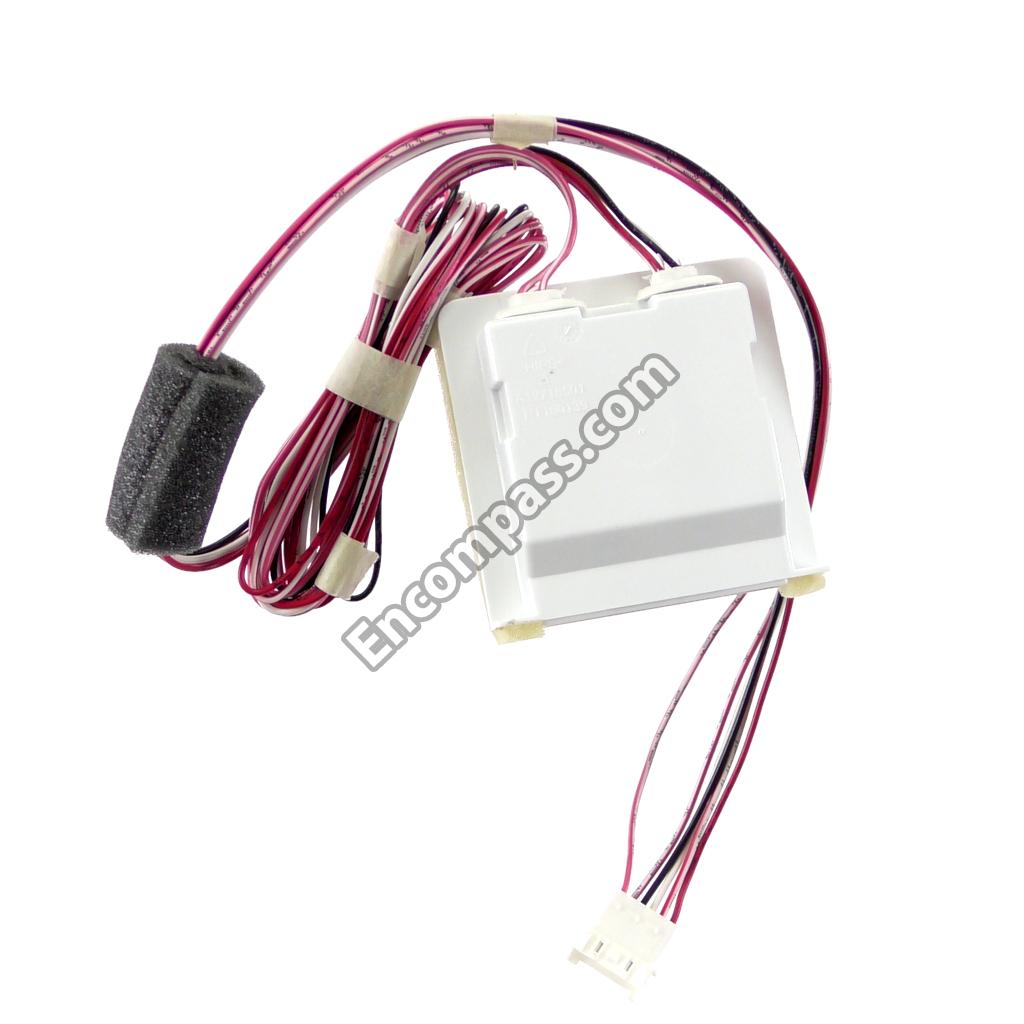

PC BOARD, ASSEMBLY, POWER SUPPLY, W/HOUSING |
|
|
PC BOARD, LED CLUSTER, POLARIS |
|
|
RAIL, SHELF SUPPORT |
|
|
SCOOP, ICE |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, 8-18 X 1.25 |
|
|
SCREW, DOOR STOP, LOWER |
|
|

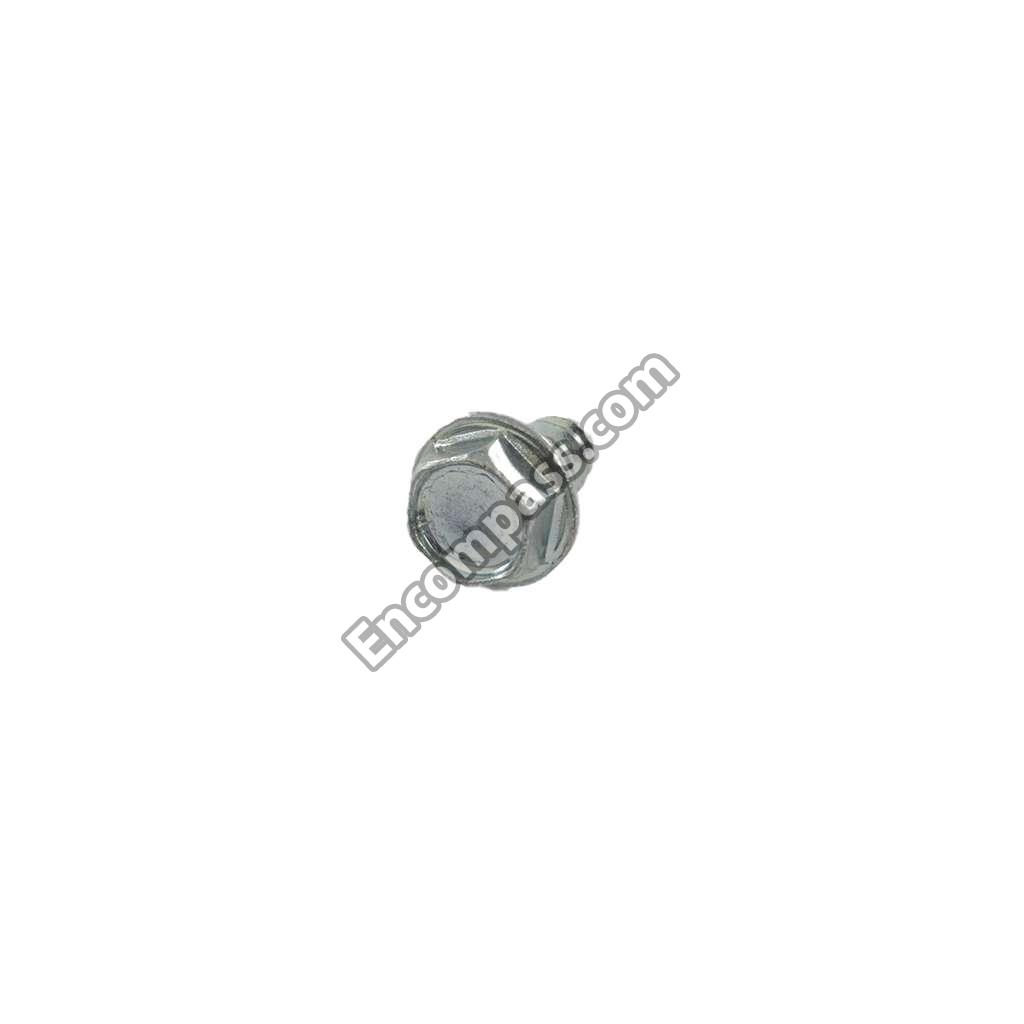

SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX WASH HD, M4 X 10 |
|
|
SCREW, HEX WASH HD, M4.2 X 16 |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE |
|
|
SCREW, HEX WASHER HEAD, 8-18 X 5/16 |
|
|
SCREW, HEX WSH HD QUAD, M5 X 16 |
|
|
SCREW, HX WASH HD, M4.2 X 12 |
|
|
SCREW, QUAD HILO, #8-18 X 0.380 |
|
|
SCREW, QUAD HILO, 4.2X1.41X15.9, SLIDE MTG |
|
|
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING |
|
|

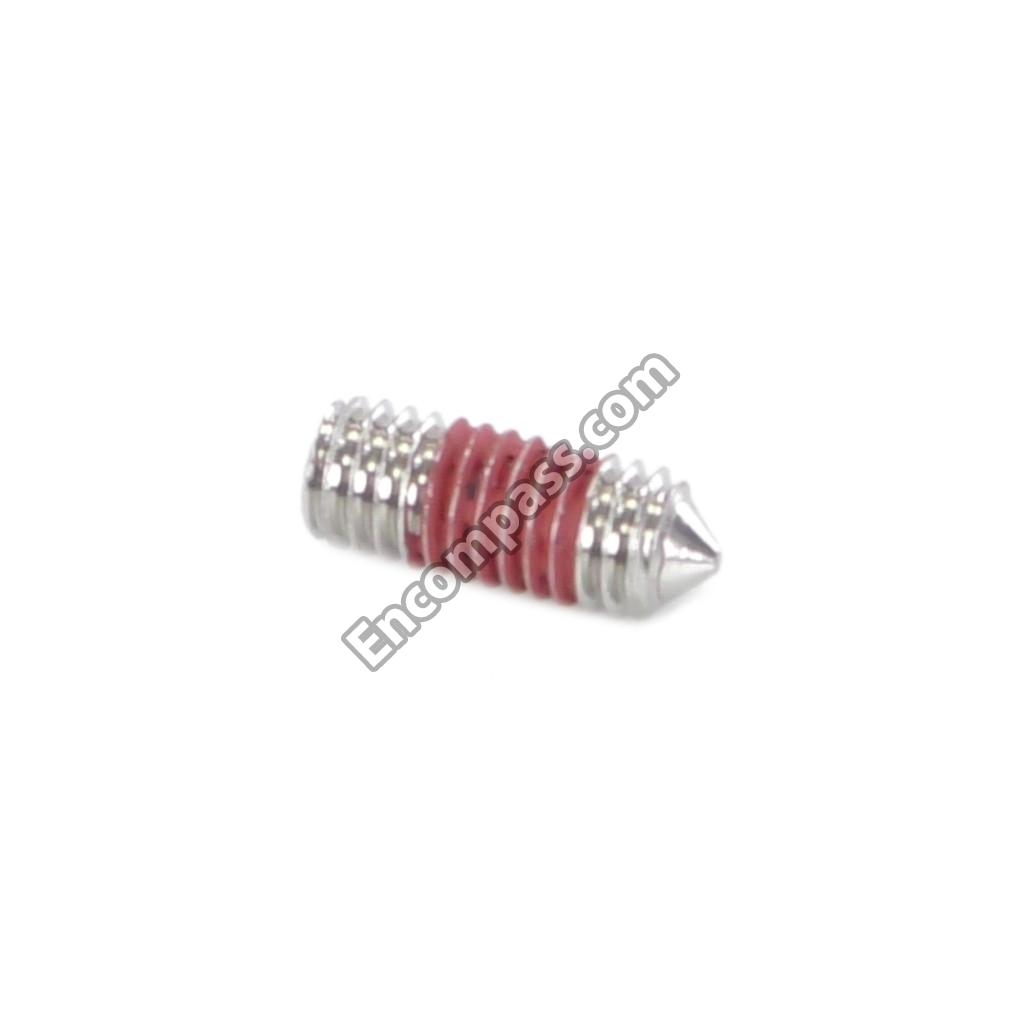

SCREW-SET, 10-32 X .500 IN |
|
|
SEAL, DRAIN PAN, FOAM |
|
|
SEAL, FOAM, AIR BLOCK |
|
|
SHELF ASSEMBLY, METALIC |
|
|
SHELF ASSEMBLY, SLIDE OUT |
|
|
SLIDE ASSEMBLY, 8 INCH, LH |
|
|
SLIDE ASSEMBLY, 8 INCH, RH |
|
|
SLIDE ASSEMBLY, 9 INCH, LH |
|
|
SLIDE ASSEMBLY, 9 INCH, RH |
|
|
STOP, DOOR, LOWER BEARING |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SUPPORT, EVAPORATOR, LH |
|
|
SUPPORT, EVAPORATOR, RH |
|
|
SWITCH, REED |
|
|

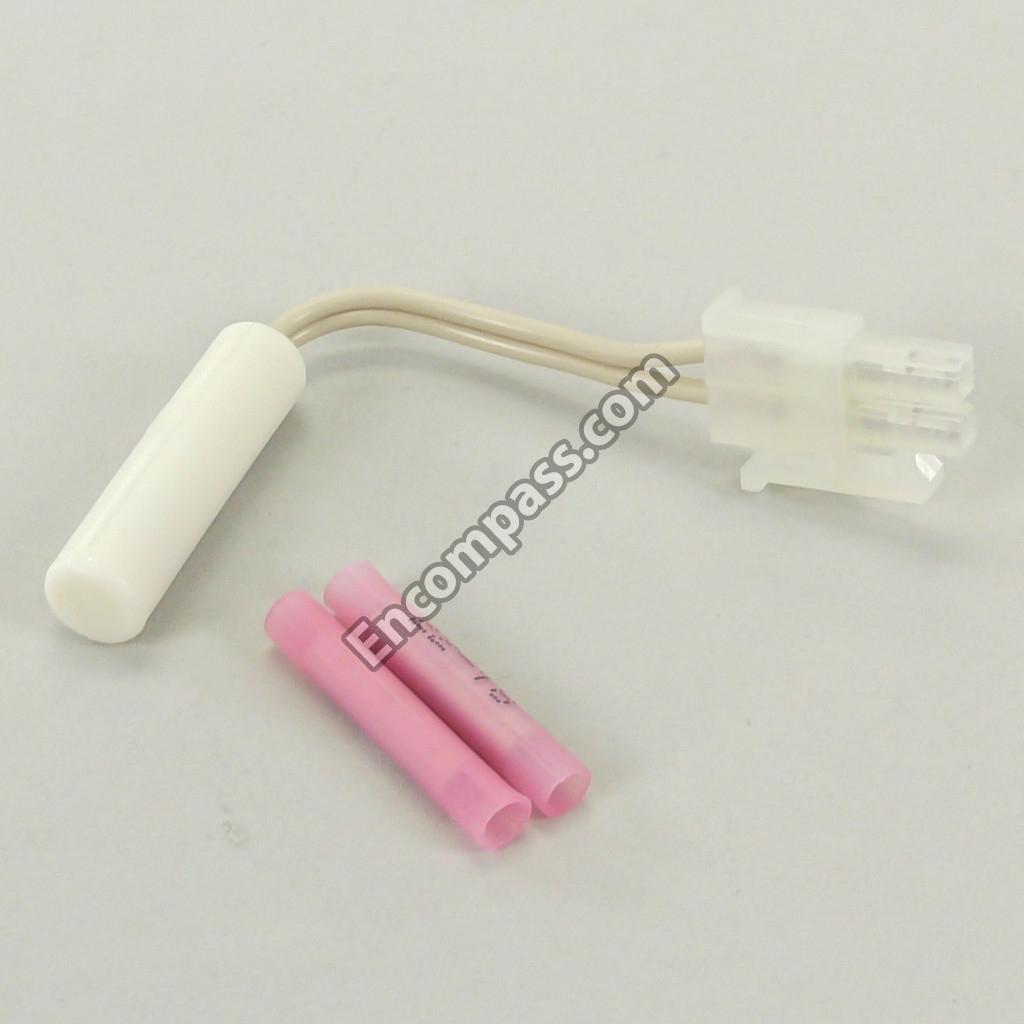

THERMISTOR KIT, TEMPERATURE, NTC, W/CONNECTORS |
|
|
TROUGH, DRAIN, EVAPORATOR |
|
|
TUBE, DRAIN, EXTENSION |
|
|
TUBE, SUCTION JUMPER |
|
|
TUBE, WATER |
|
|

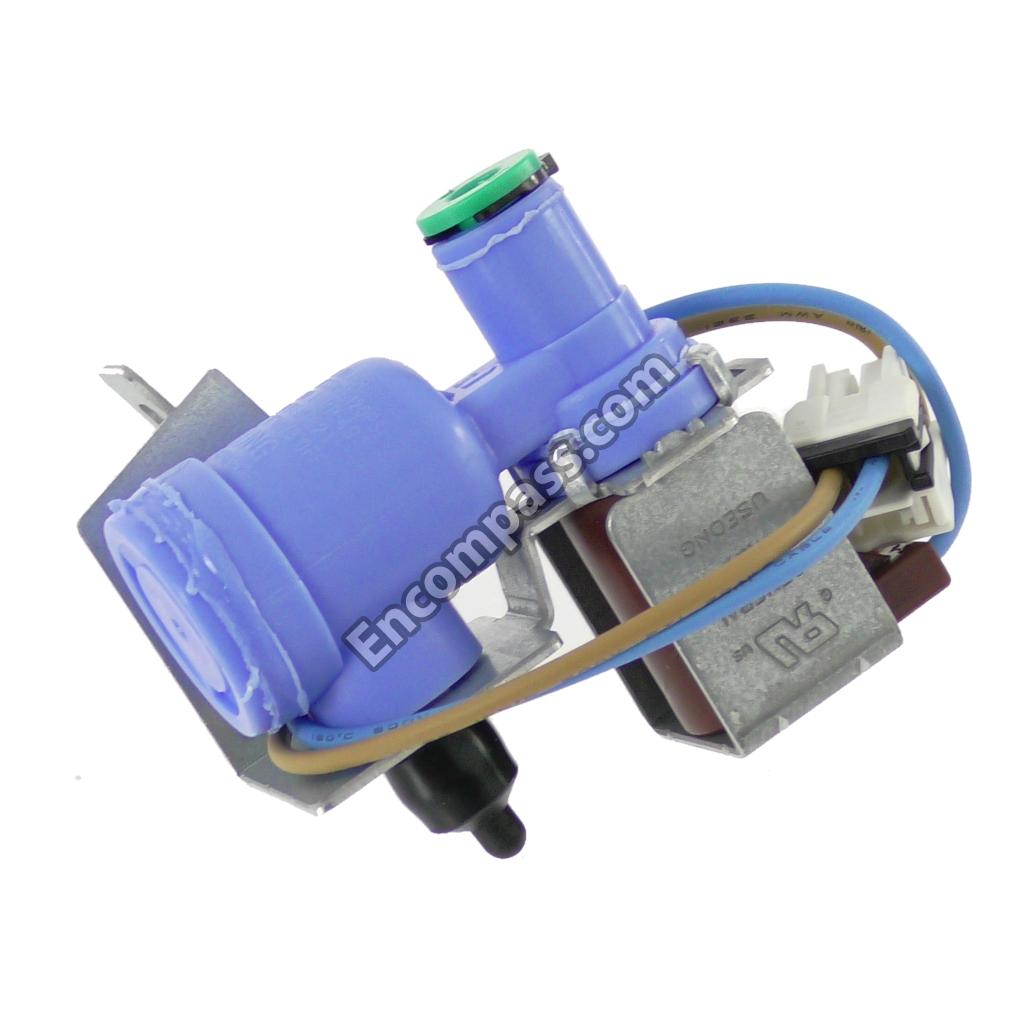

VALVE, WATER, SINGLE SOLENOID |
|
|
WIRE TIE |
|
|

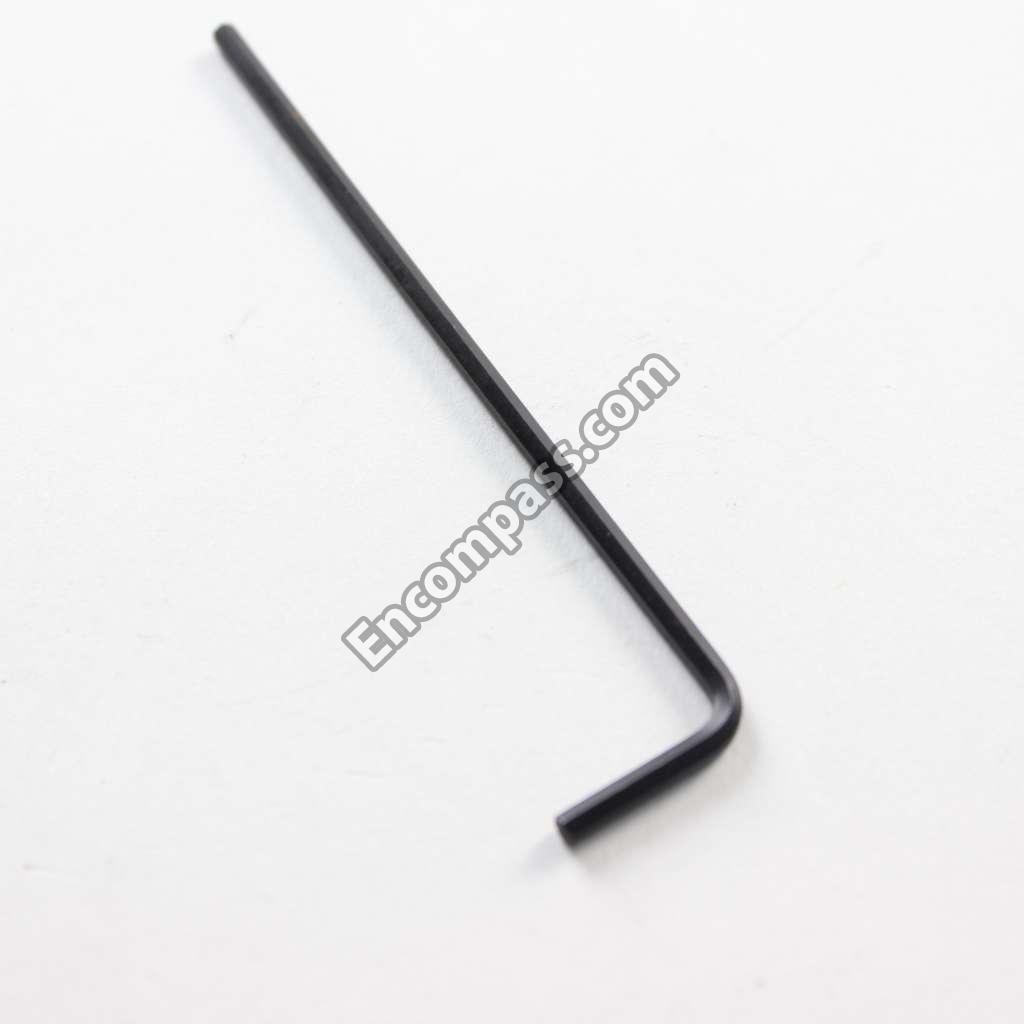

WRENCH, ALLEN |
