Model Image
Manufacturer

Electrolux

Model Number

FPGF3685LSA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304405240 5304405240 ANTI-TIP ACCESSORIE
318076305 318076305 BACK
318133301 318133301 BAFFLE
318168701 318168701 BAFFLE
5308011508 5308011508 BAFFLE
318336401 318336401 BOX
318316100 318316100 BOX
318122100 318122100 BRACKET
318316003 318316003 BRACKET
318316002 318316002 BRACKET
318262301 318262301 BRACKET
318340500 318340500 BRACKET
318192606 318192606 BRACKET
318262810 318262810 BRACKET
318316202 318316202 BRACKET
318147412 318147412 BUMPER
5303311548 5303311548 BURNER
5303311544 5303311544 BURNER
316206401 316206401 BURNER
316223400 316223400 BURNER
316223300 316223300 BURNER
316212300 316212300 BURNER
316242000 316242000 BURNER SEAL
318563000 318563000 BUSHING
316219905 316219905 CAP
316271904 316271904 CAP
316206604 316206604 CAP
316213605 316213605 CAP
316213505 316213505 CAP
5303051056 5303051056 CHANNEL
5303051055 5303051055 CHANNEL
318332800 318332800 CHANNEL
5303205904 5303205904 CLIP
316418565 316418565 CLOCK/TIMER
318057204 318057204 DEFLECTOR
318315900 318315900 DEFLECTOR
318336200 318336200 DIVIDER
318336100 318336100 DIVIDER

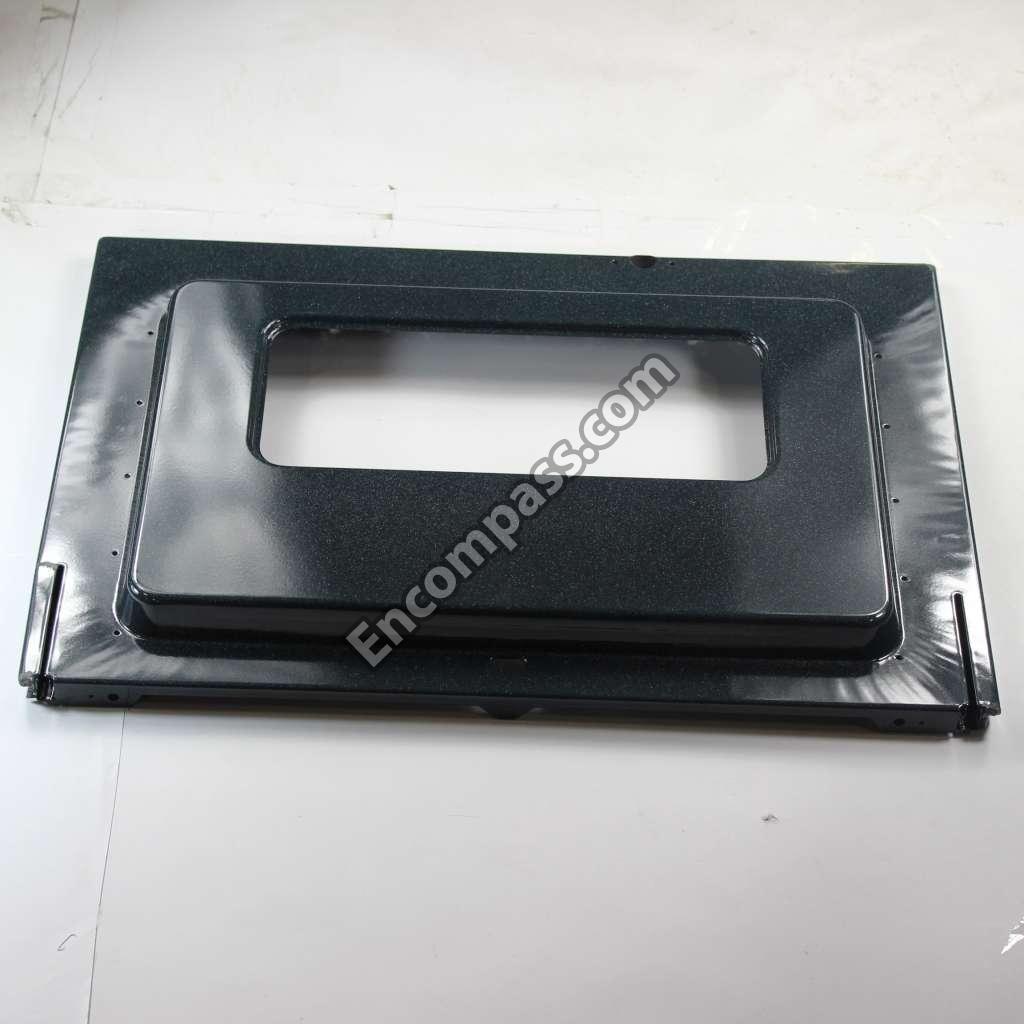

318344014 318344014 DOOR ASSEMBLY
318157611 318157611 DRAWER
5303311547 5303311547 ELBOW
318134700 318134700 FRAME
318320801 318320801 FRAME

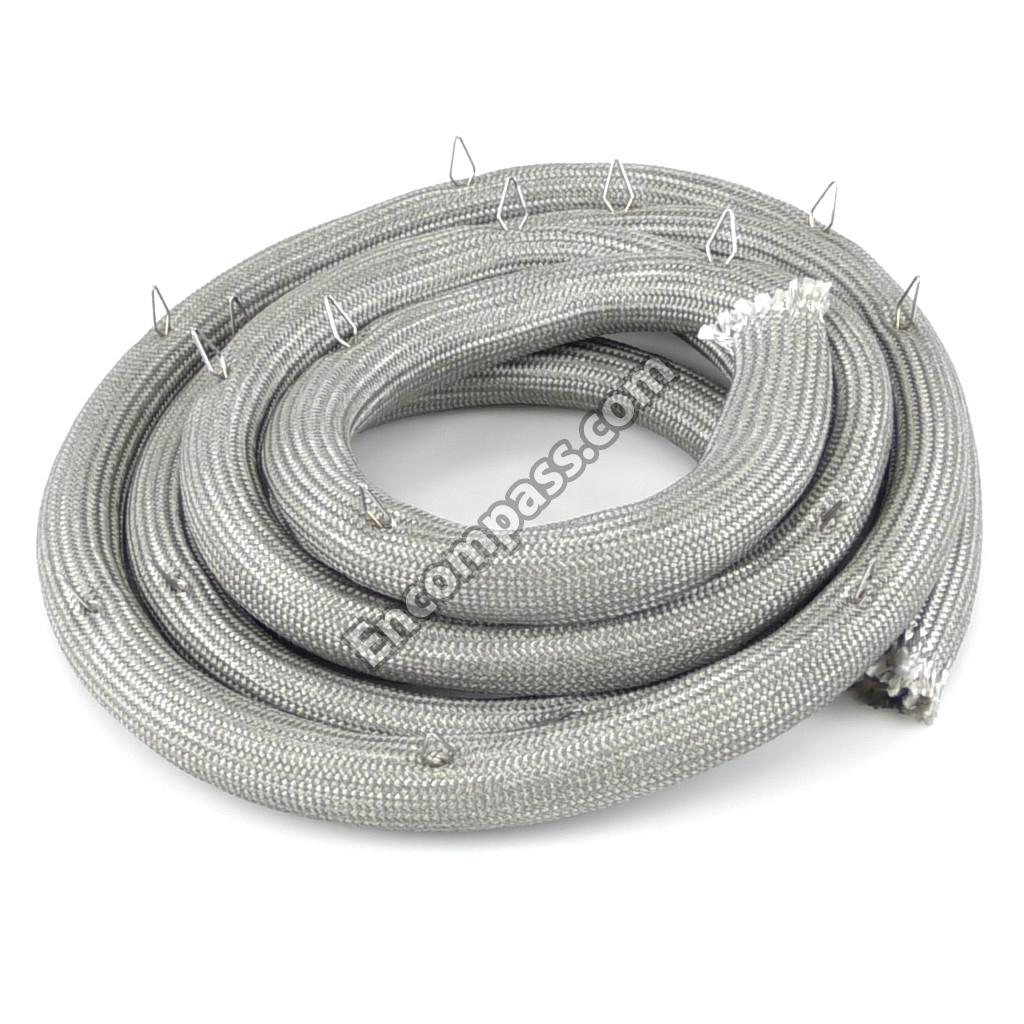

318315301 318315301 GASKET
318041610 318041610 GLASS
5303271567 5303271567 GLASS
318404117 318404117 GLASS PANEL

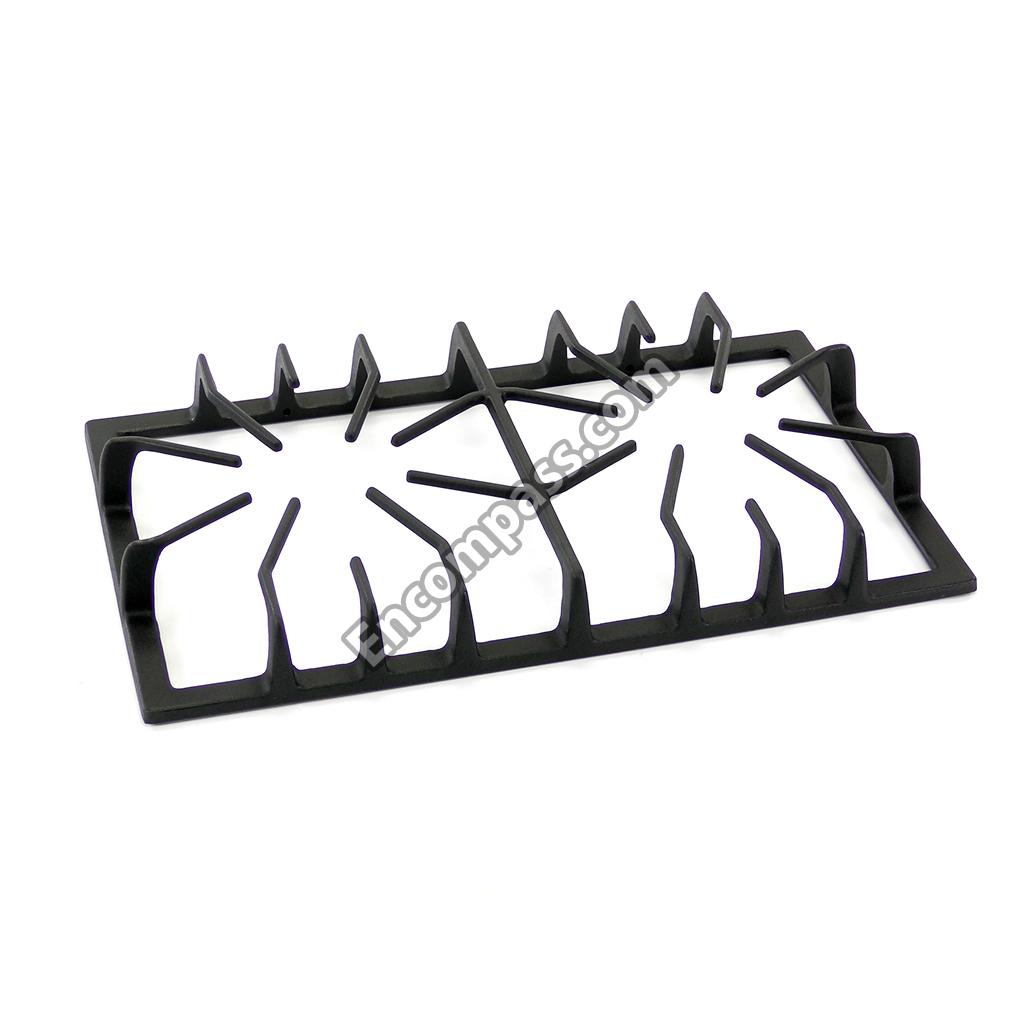

318221760 318221760 GRATE
318221759 318221759 GRATE
318919700 318919700 HANDLE
318231874 318231874 HARNESS
318199777 318199777 HARNESSELECTRICAL
318348801 318348801 HINGE ASSEMBLY
318348800 318348800 HINGE ASSEMBLY

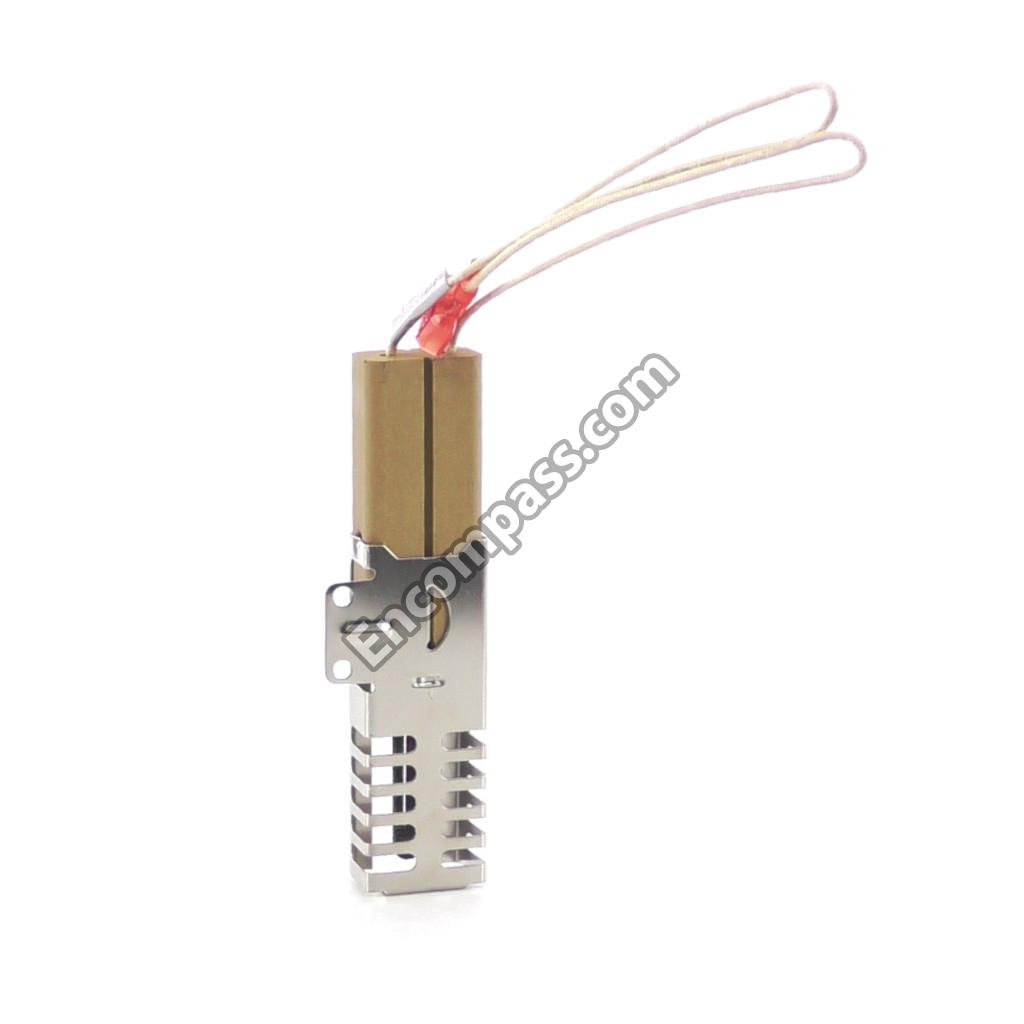

318177730 318177730 IGNITOR
318177720 318177720 IGNITOR
318221357 318221357 IGNITOR/ORIFICE ASS
318221355 318221355 IGNITOR/ORIFICE ASS
318221352 318221352 IGNITOR/ORIFICE ASS
318221390 318221390 IGNITOR/ORIFICE ASS
318221351 318221351 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
318594400 318594400 INSULATION
318285081 318285081 INSULATION
807208301 807208301 INSULATION
316564624 316564624 KNOB
316221001 316221001 LABEL
318065102 318065102 LATCH
318406100 318406100 LENS
318134401 318134401 LINER
318134400 318134400 LINER
318135300 318135300 LINER
318134511 318134511 LINER
318185246 318185246 MAIN TOP ASSEMBLY

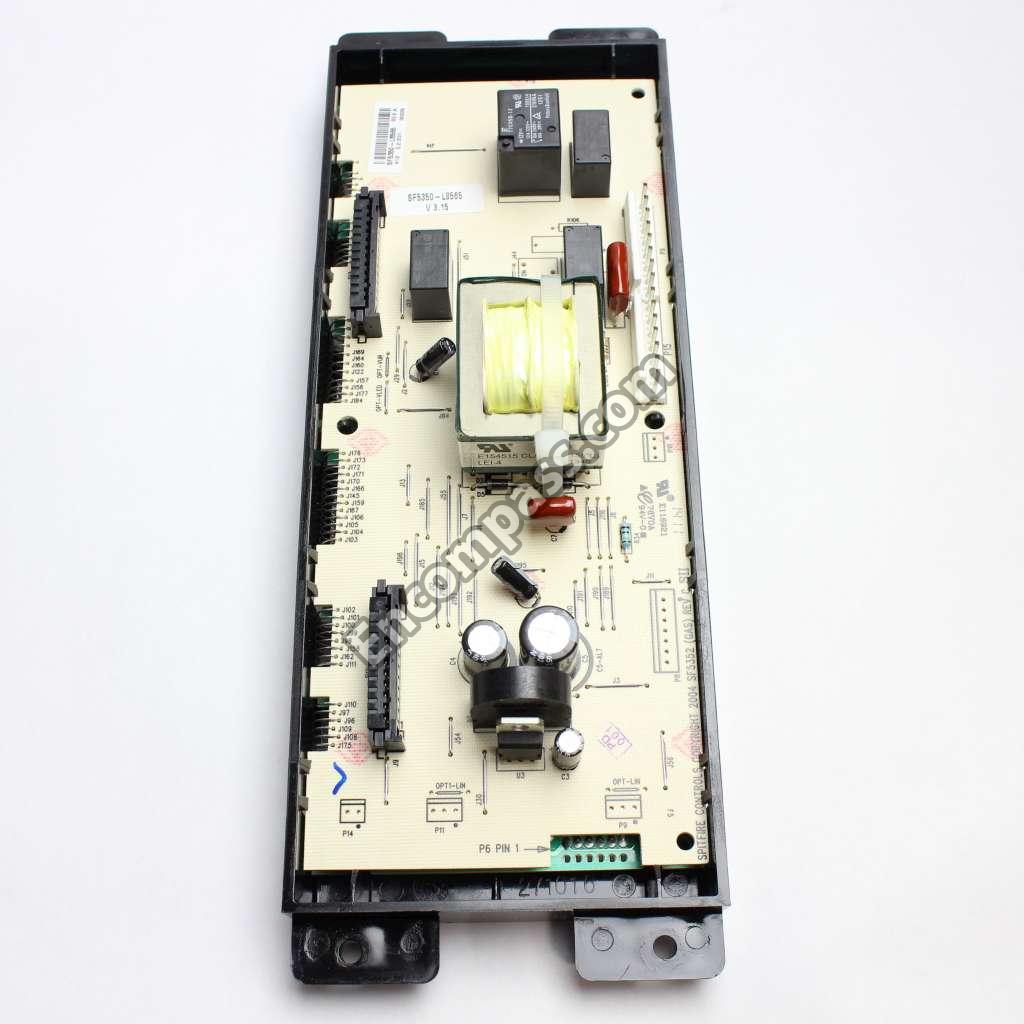

318079001 318079001 MODULE
318095960 318095960 MOTOR
316237900 316237900 ORIFICE
316237903 316237903 ORIFICE
316237902 316237902 ORIFICE
316237901 316237901 ORIFICE
318076600 318076600 PAN
316081900 316081900 PAN
318157211 318157211 PANEL
318315102 318315102 PANEL
318135500 318135500 PANEL
318315002 318315002 PANEL
318317903 318317903 PANEL-BODYSIDE
318315810 318315810 RACK
318121201 318121201 RETAINER
318118906 318118906 ROD
5304400794 5304400794 SCREW
3051050 3051050 SCREW
5304415832 5304415832 SCREW
5304416408 5304416408 SCREW
5303300265 5303300265 SCREW
5303311528 5303311528 SCREW
5303211311 5303211311 SCREW
5303323277 5303323277 SCREW
316215600 316215600 SCREW
316240600 316240600 SCREW
5303300195 5303300195 SCREW
3051009 3051009 SCREW
5303311333 5303311333 SCREW
318053140 318053140 SEAL
316242004 316242004 SEAL
316242001 316242001 SEAL
316242003 316242003 SEAL-BURNER
316242002 316242002 SEAL-BURNER
318562500 318562500 SENSOR
318319601 318319601 SHIELD
3131871 3131871 SHIELD
316241904 316241904 SKIRT
316241804 316241804 SKIRT
316241704 316241704 SKIRT
316264903 316264903 SKIRT
316264803 316264803 SKIRT
318531702 318531702 SPACER
5303304544 5303304544 SPACER

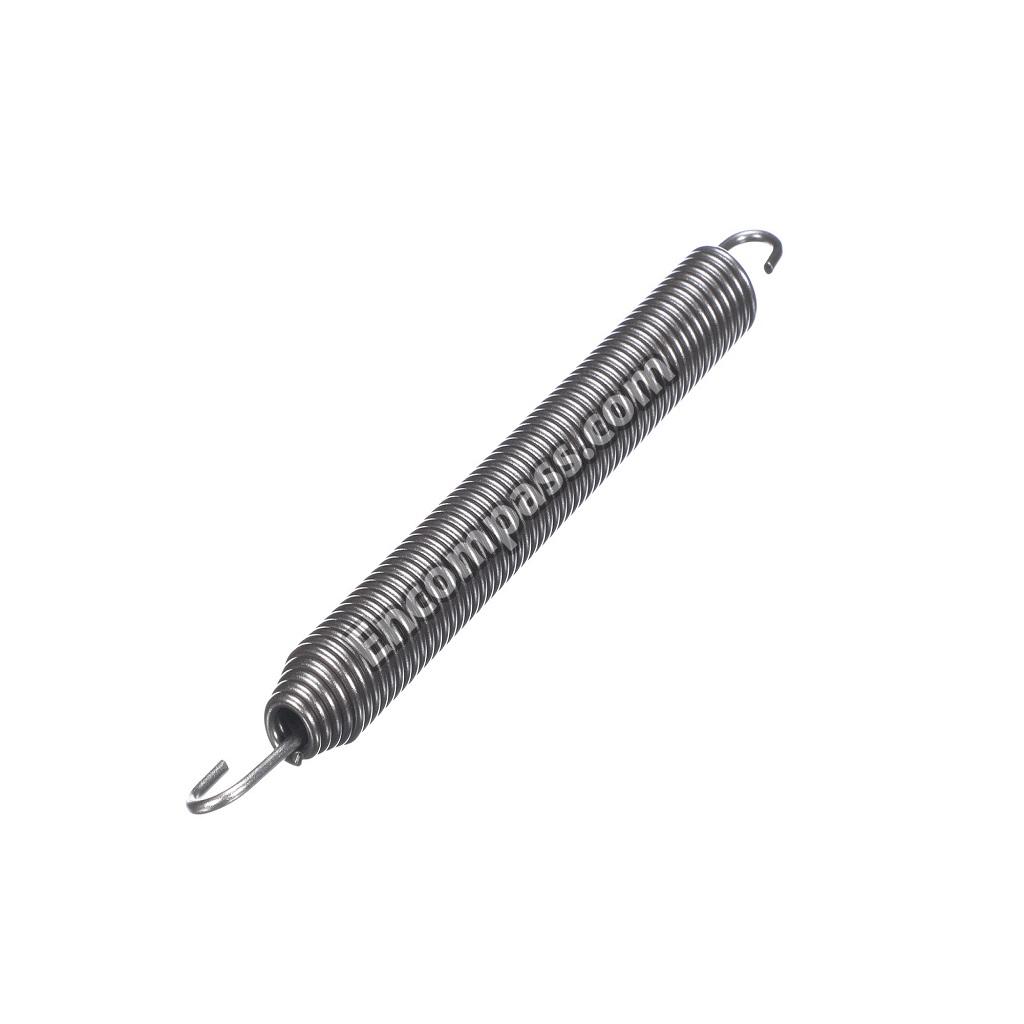

5303311164 5303311164 SPRING
5303207651 5303207651 SPRING
318088400 318088400 SPRING
318172902 318172902 STIFFENER
5303286692 5303286692 SUPPORT
3051096 3051096 SUPPORT
318089916 318089916 SWITCH
318315200 318315200 TRIM
318054511 318054511 TUBE
318249301 318249301 TUBE

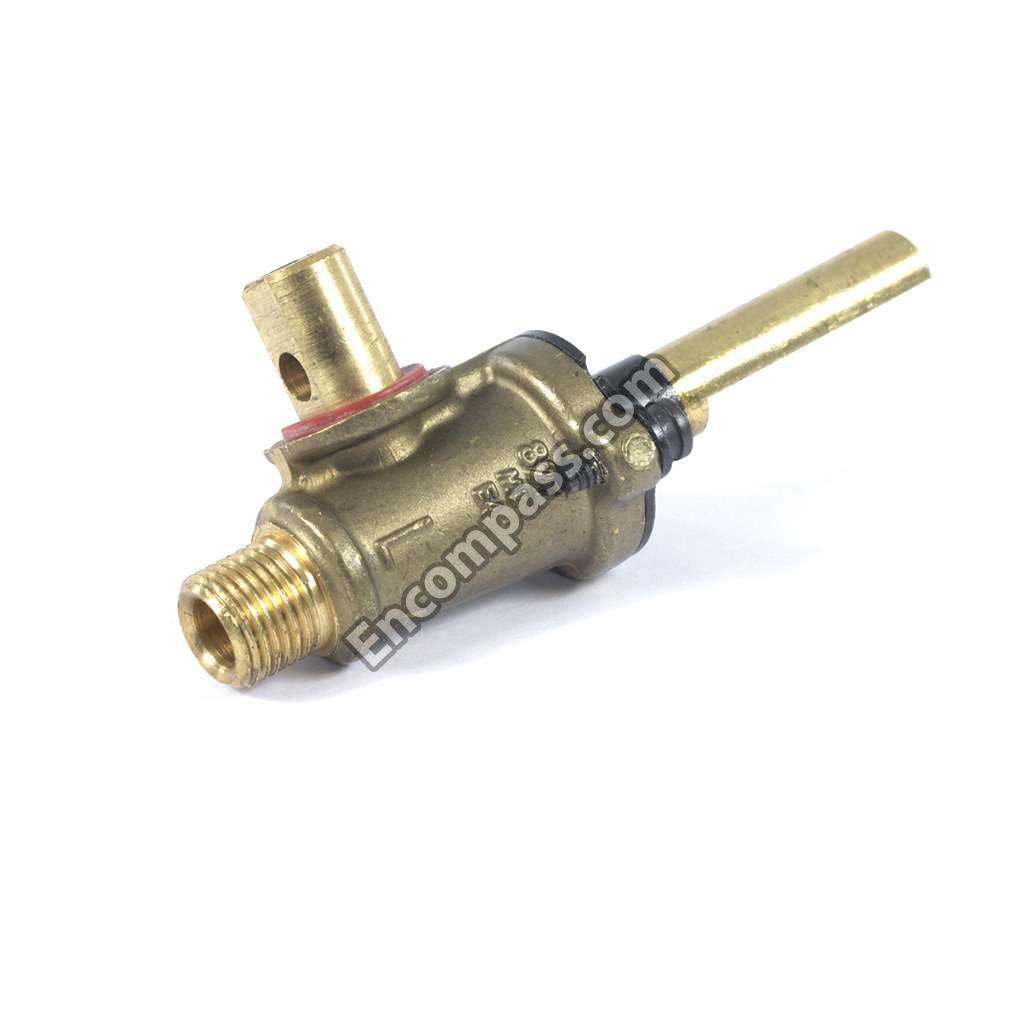

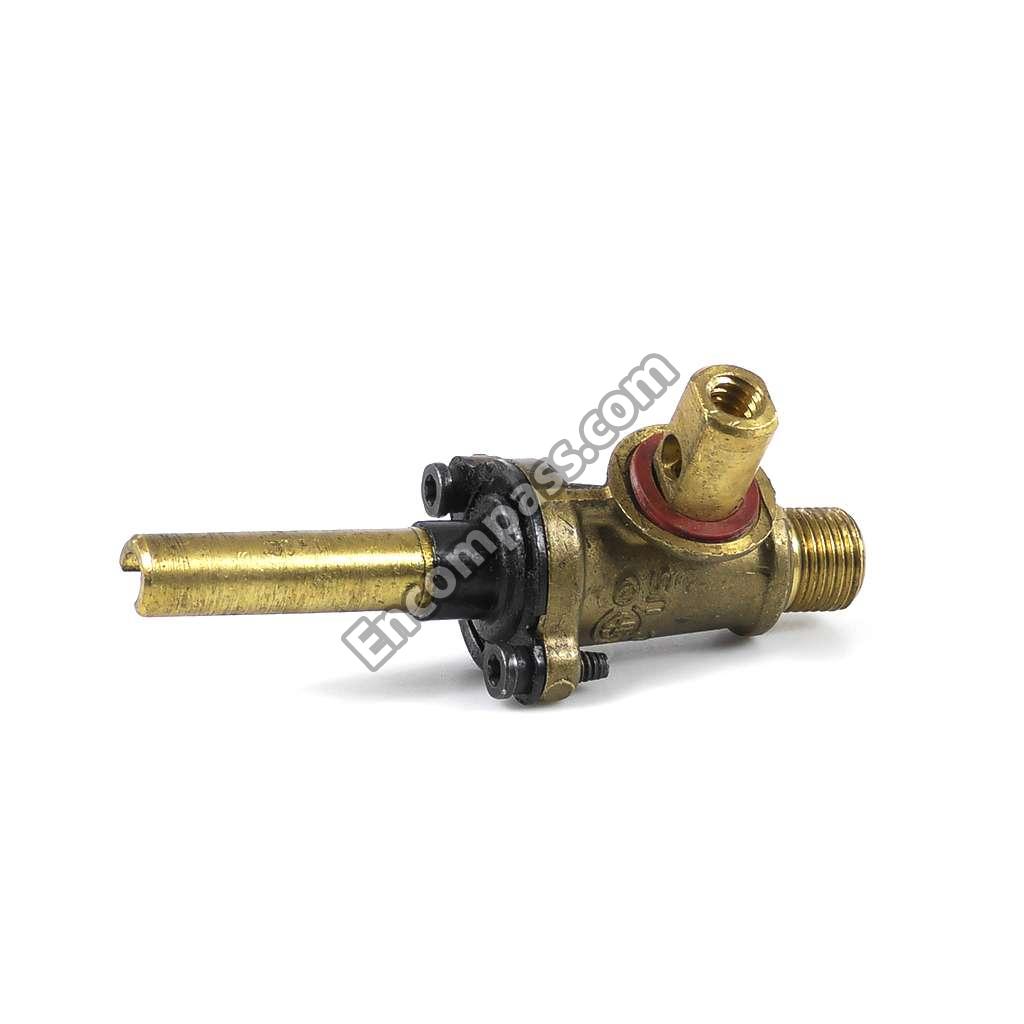

316031400 316031400 VALVE
318234022 318234022 VALVE
318234021 318234021 VALVE
318234025 318234025 VALVE
318234024 318234024 VALVE
318234023 318234023 VALVE
5303304015 5303304015 WASHER
318224706 318224706 WIRING HARNESS
318232613 318232613 WIRING HARNESS
318224715 318224715 WIRING HARNESS
