Model Image
Manufacturer

Electrolux

Model Number

FPGS3085KFE

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318335500 318335500 ANTI-TIP & ACCESSOR
318259220 318259220 BACK
318260531 318260531 BAFFLE
318290400 318290400 BAFFLE
316401301 316401301 BAFFLE
318291800 318291800 BOX
318288801 318288801 BOX
318370600 318370600 BRACKET
318382301 318382301 BRACKET
318242702 318242702 BRACKET
318367401 318367401 BRACKET
318251300 318251300 BRACKET
318298410 318298410 BRACKET
318288701 318288701 BRACKET
318291900 318291900 BRACKET
318906703 318906703 BRACKET
318384103 318384103 BRACKET
318262810 318262810 BRACKET
318921300 318921300 BRACKET
318928500 318928500 BRACKET
5303013071 5303013071 BULB/LAMP
318147430 318147430 BUMPER
316558300 316558300 BURNER
318292300 318292300 BURNER
318292200 318292200 BURNER
316438200 316438200 BURNER
316438600 316438600 BURNER
318567000 318567000 BURNER ASSEMBLY
316095800 316095800 CLIP
316462863 316462863 CONTROLLER
318565406 318565406 CONVERSION KIT
318569268 318569268 COOK TOP ASSEMBLY BLACK
318262111 318262111 COVER
318308303 318308303 COVER
318291102 318291102 COVER
318219405 318219405 COVER
318913300 318913300 DEFLECTOR
318927801 318927801 DOOR ASSEMBLY
318304404 318304404 DRAWER
316409703 316409703 ELBOW
318255301 318255301 ELEMENT
318255504 318255504 ELEMENT
318398302 318398302 FAN BLADE
318298230 318298230 FRAME
318298226 318298226 FRAME
318056292 318056292 FRONT
318053132 318053132 GASKET
318212210 318212210 GLASS
316117500 316117500 GLASS
316105501 316105501 GLIDE
318259509 318259509 GLIDE
318259508 318259508 GLIDE

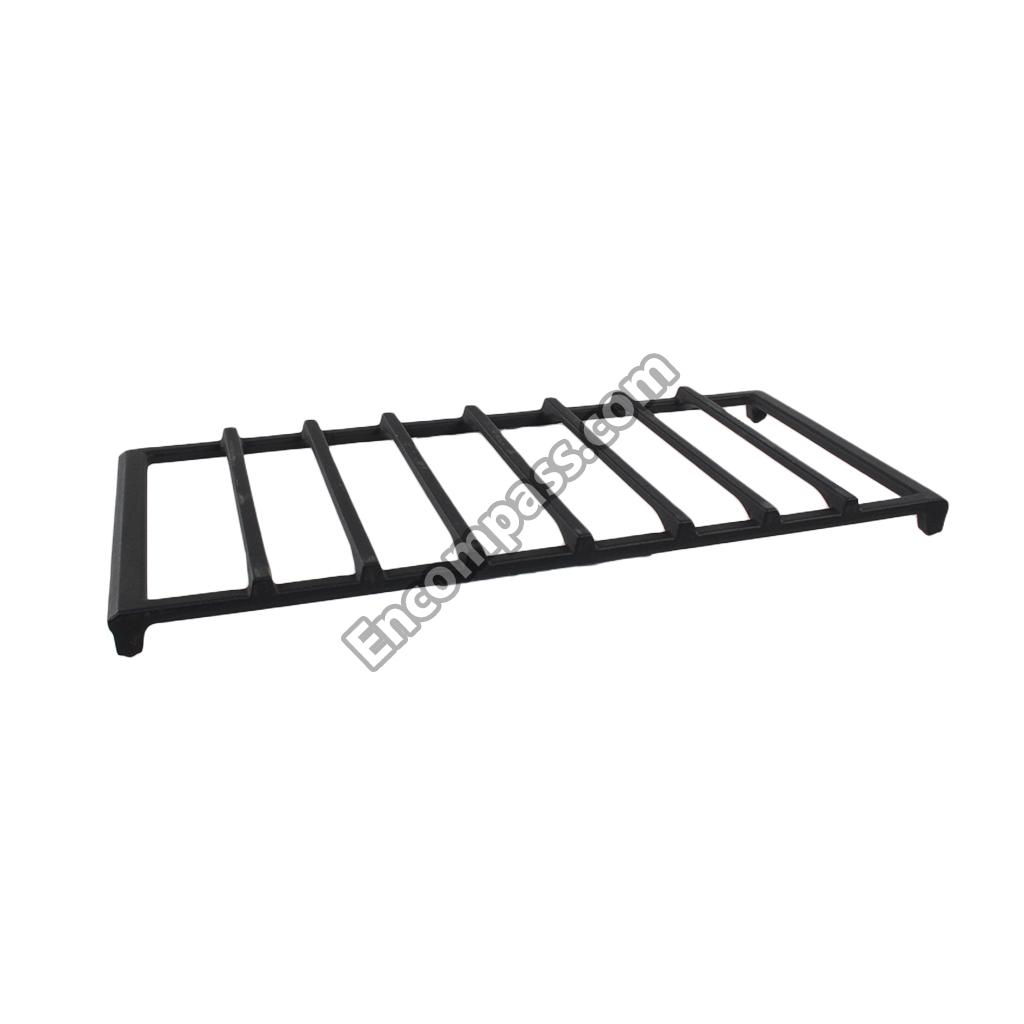

318560340 318560340 GRATE
316551500 316551500 HANDLE
318306638 318306638 HARNESS
318268600 318268600 HARNESS
318224852 318224852 HARNESS
318567100 318567100 HINGE
318222400 318222400 HOUSING
318177710 318177710 IGNITOR
316540800 316540800 IGNITOR/ORIFICE ASS
316540700 316540700 IGNITOR/ORIFICE ASS
316440100 316440100 IGNITOR/ORIFICE ASS
316543206 316543206 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
318929702 318929702 INSERT
318285099 318285099 INSULATION
318594510 318594510 INSULATION
318285084 318285084 INSULATION
318594400 318594400 INSULATION
316564411 316564411 KNOB
316221001 316221001 LABEL
318406100 318406100 LENS
318411610 318411610 LINER
318327030 318327030 LINER
316547900 316547900 LINK
318907200 318907200 MANIFOLD
318913400 318913400 MANIFOLD
316135702 316135702 MODULE
318073028 318073028 MOTOR
316136600 316136600 NUT
316527514 316527514 ORIFICE
316527513 316527513 ORIFICE
316527504 316527504 ORIFICE
316081900 316081900 PAN
318300102 318300102 PANEL
318300003 318300003 PANEL
318295611 318295611 PANEL
318303907 318303907 PANEL
318225211 318225211 PANEL
318225210 318225210 PANEL
318225110 318225110 PANEL
318287800 318287800 PANEL
318290501 318290501 PANEL
318296904 318296904 PANEL
318296905 318296905 PANEL
318327500 318327500 PANEL
318289401 318289401 PANEL
318260007 318260007 PANEL
318912907 318912907 PANEL
318922147 318922147 PANEL ASSEMBLY
5303320846 5303320846 PLATE
807328301 807328301 RACK
318922301 318922301 RACK
318921600 318921600 RACK
318926803 318926803 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5304440988 5304440988 SCREW
5304436875 5304436875 SCREW
5303307980 5303307980 SCREW
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
5303323139 5303323139 SCREW
5303323129 5303323129 SCREW
5303324184 5303324184 SCREW
316215600 316215600 SCREW
316240600 316240600 SCREW
5303211311 5303211311 SCREW
5303300195 5303300195 SCREW
5303323277 5303323277 SCREW
5304463705 5304463705 SCREW
5303325980 5303325980 SCREW
5303300265 5303300265 SCREW
5304454881 5304454881 SCREW
5304453707 5304453707 SCREW
5304472906 5304472906 SCREW
5303323134 5303323134 SCREW
5304476599 5304476599 SCREW
318291300 318291300 SEAL
318562500 318562500 SENSOR
318259105 318259105 SHIELD
318258902 318258902 SHIELD
316566901 316566901 SLEEVE
318165800 318165800 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318192400 318192400 SPRING
318927600 318927600 SUPPORT
316445501 316445501 SWITCH
318005108 318005108 THERMOSTAT
318003633 318003633 THERMOSTAT
316536100 316536100 TRANSFORMER
318260401 318260401 TRIM
318913101 318913101 TRIM
318249409 318249409 TUBE
318305203 318305203 TUBE
318913600 318913600 TUBE
318913500 318913500 TUBE
318916800 318916800 TUBE
318916600 318916600 TUBE
318289500 318289500 TUBE
318916500 318916500 TUBE
318928200 318928200 TUBE
318928100 318928100 TUBE
316404901 316404901 VALVE
318915703 318915703 VALVE
318915701 318915701 VALVE
318915700 318915700 VALVE
316412513 316412513 VALVE
3201909 3201909 WASHER
318199748 318199748 WIRING HARNESS
318199776 318199776 WIRING HARNESS
318232659 318232659 WIRING HARNESS
