Model Image
Manufacturer

Electrolux

Model Number

FPHI1887KR0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304456671 5304456671 BEARING & INLET
240527102 240527102 BEARING-HINGE
240495805 240495805 BIN-DOOR
241808227 241808227 BINDOOR
241639501 241639501 BLADE
240335502 240335502 BOLT-ROLLER ADJ
240313802 240313802 BRACKET-CTR HINGE
5303292397 5303292397 BRACKET-MOTOR MTG
5303292396 5303292396 BRACKET-MOTOR MTG
240346501 240346501 BRACKET-SUPPORT
241555401 241555401 BULB-LAMP
241657701 241657701 CAN DISPENSER
218233300 218233300 CHANNEL
241566901 241566901 CHANNEL-SHELF MTG
5304455846 5304455846 CLAMP
218931001 218931001 CLAMP-MOTOR WIRING
240396801 240396801 CLAMP-TUBE
5304456288 5304456288 CLAMP-WIRING HARNES
297030500 297030500 CLIP
240542601 240542601 CLIP-WIRING HARNESS
240385201 240385201 CONTAINER
241613501 241613501 CONTROL-HUMIDITY
241613502 241613502 CONTROL-HUMIDITY
241733907 241733907 COVER
241652301 241652301 COVER
241652213 241652213 COVER-EVAP COIL
240364787 240364787 COVERCRISPER PAN
240354405 240354405 COVERUPPER HINGE
241523701 241523701 DAMPER-FAN COVER
241542001 241542001 DEFLECTOR
240362601 240362601 DIFFUSER
240338313 240338313 DOOR
240338101 240338101 DOOR BIN SHELF
240312405 240312405 DOOR STOP
240312406 240312406 DOOR STOP
241623328 241623328 DOORFRZR
241623440 241623440 DOORREFR
241935551 241935551 ENERGY GUIDE
5303918274 5303918274 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
241872503 241872503 GASKET-FRZR DOOR
241839411 241839411 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
240346601 240346601 GROMMET-BRACKET
218513300 218513300 GROMMET-COMPR MTG
241978001 241978001 HANDLEDOOR
5304456875 5304456875 HARNESS-WIRING
241566801 241566801 HARNESS-WIRING
241593901 241593901 HARNESS-WIRING
5303918263 5303918263 HEAT EXCHANGER KIT

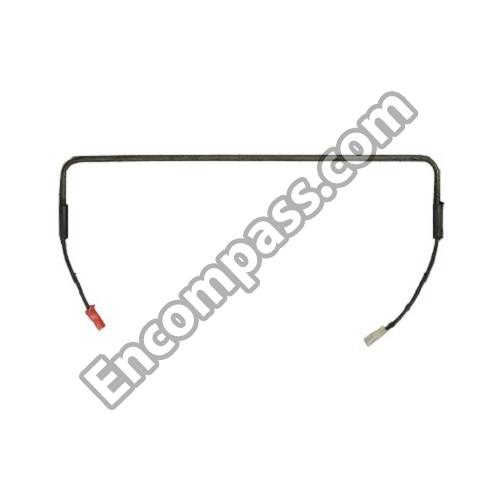

240356221 240356221 HEATER-DEFROST
5303918222 5303918222 HOT TUBE REPAIR KIT
5304456672 5304456672 ICE STRIPPER
240350608 240350608 INSERT-PAN COVER
241551902 241551902 INSULATION BLOCK
5304469406 5304469406 INSULATOR
240360801 240360801 KNOB
240367001 240367001 KNOB-DAMPER CONTROL
5304456690 5304456690 LABEL
242015101 242015101 LABELNAMEPLATE
5304456675 5304456675 LEVER ARM
241560701 241560701 LIGHT BULB
241552802 241552802 LIGHT BULB
241779603 241779603 LINER
241854501 241854501 MOTOREVAP FAN
5304456657 5304456657 NAMEPLATE
5304456693 5304456693 NUT
240337103 240337103 PAN-CRISPER
240530811 240530811 PAN-MEAT
240516502 240516502 PIN-LOWER HINGE
5304456659 5304456659 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
215774920 215774920 PLUG BUTTON
5303208309 5303208309 PLUG-HOLE
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
241665606 241665606 S/APUR COMPR BASE
5304455680 5304455680 SCREW
5304456666 5304456666 SCREW
5304456674 5304456674 SCREW
5304456678 5304456678 SCREW
5304456691 5304456691 SCREW
5304456677 5304456677 SCREW
5304456676 5304456676 SCREW
5304456660 5304456660 SCREW
5304456684 5304456684 SCREW
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
240383406 240383406 SCREW
218252201 218252201 SCREW
218362501 218362501 SCREW
240433204 240433204 SCREW
241500304 241500304 SCREW
241710601 241710601 SCREW
215005101 215005101 SCREW
241701902 241701902 SCREW DRIVER
240442708 240442708 SCREW#1032 X 3/4
5304455677 5304455677 SCREW,8-32 X 3/8
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
5304456687 5304456687 SCREW-IM BRKT MTG
218755504 218755504 SCREW-SHOULDER
5304456679 5304456679 SCREW-TIMING ADJ
241730504 241730504 SHELFSPILLSAFE
241616607 241616607 SHELFSPILLSAFE
241562101 241562101 SHIELD-HEAT
241562202 241562202 SHIELD-LIGHT MID LE
240354302 240354302 SHIELDLIGHT
5304478729 5304478729 SHROUDCOND FAN
241507803 241507803 SOCKET-LIGHT
240364202 240364202 SOCKET-LIGHT/LAMP
240409302 240409302 SPACER-COND TUBE
240336802 240336802 SPACER-HINGE
5304456661 5304456661 SPACER-HOLD SWITCH
5304456682 5304456682 SPRING
5304445223 5304445223 SPRING BEAM
5308000110 5308000110 STRAP-EVAP/HEATER
5304456668 5304456668 SUPPORT
241554901 241554901 SWITCH-LIGHT/LAMP
5304456667 5304456667 SWITCH-MICRO
240346701 240346701 TAPE-FOAM SEAL
5304456688 5304456688 TERMINAL
5304456665 5304456665 THERMOSTAT
240356501 240356501 TRACK
240365401 240365401 TRACK
241611305 241611305 TRIMCABINET CORNER
241801301 241801301 TROUGH-DRAIN
240500801 240500801 TUBE-DRAIN
241871501 241871501 TUBECONNECTOR
5304456689 5304456689 WASHER
5304456737 5304456737 WASHER
5304456692 5304456692 WASHER
240311303 240311303 WASHER
215474201 215474201 WASHER
241812301 241812301 WASHERCOMPR MTG
5303321319 5303321319 WHITE TOUCHUP PAINT
5304467131 5304467131 WRENCH
