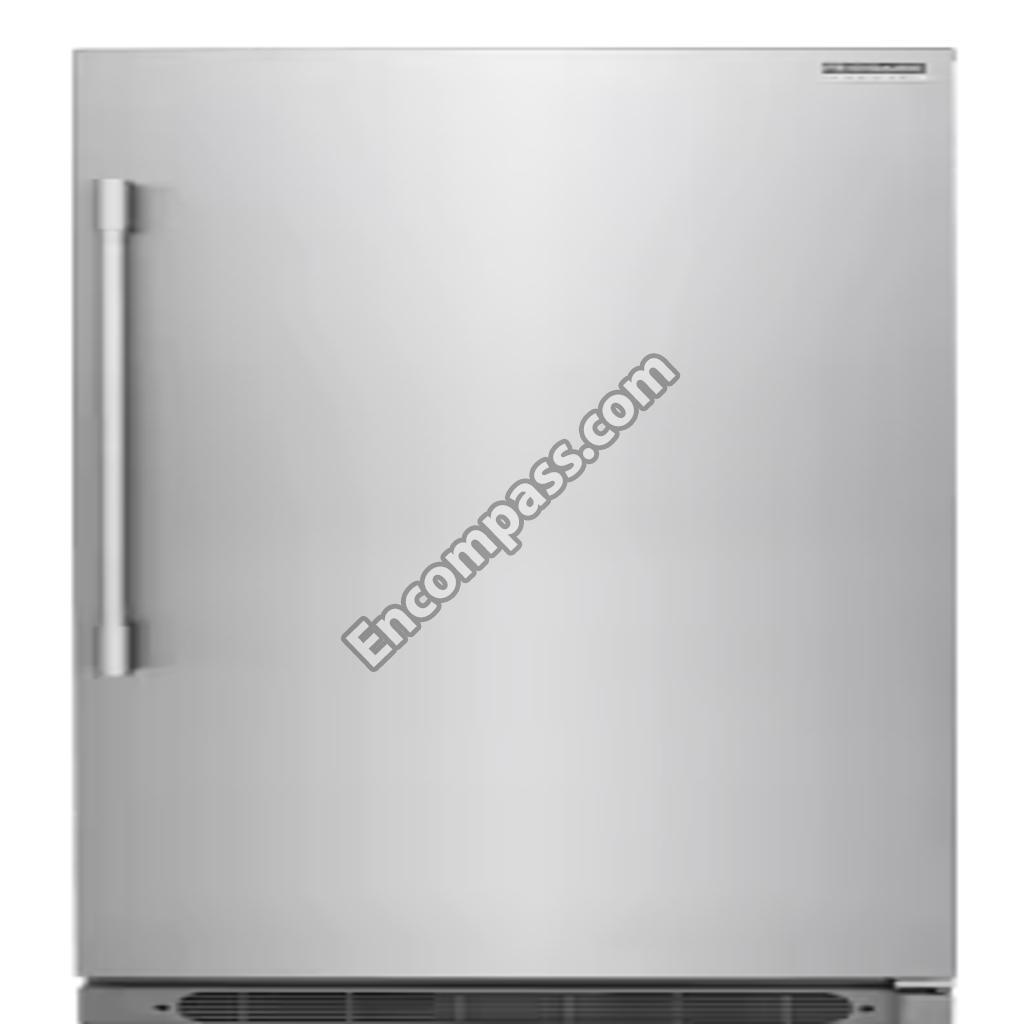

Model Image
Manufacturer

Electrolux

Model Number

FPRU19F8RFA

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216970801 216970801 BEARING
297302900 297302900 BEARING
297295700 297295700 BIN
297295400 297295400 BINDOOR
241639501 241639501 BLADE
241891608 241891608 BOARDLED POWER
297269000 297269000 BOXCONTROL
297164650 297164650 BRACKET
297164651 297164651 BRACKET
297092701 297092701 BRACKET
297092700 297092700 BRACKET
297200100 297200100 BREAKER KIT W/CORNE
297200900 297200900 BREAKER KIT W/CORNE
297286802 297286802 CAPACITORRUN
297130200 297130200 CHANNELSHELF MTG
216273000 216273000 CLIP
5304406520 5304406520 CLIP
5303313703 5303313703 CLIP
297315800 297315800 CLIP
5304472186 5304472186 CLIP
216649200 216649200 CLIP GE CONTROLLER
297368500 297368500 COMP BOLT UPRIGHTS
297411101 297411101 COMPRESSOR,EM3Y50
297152201 297152201 CONDENSER
216954234 216954234 CONTROLLER,COMPRESSOR
297366805 297366805 CORD,POWER,RT ANGLE
297099255 297099255 COVEREVAPORATOR
297304000 297304000 COVERHINGE
297194700 297194700 DIVIDER
297164200 297164200 DIVIDER
297099400 297099400 DIVIDERCRISPER
297295300 297295300 DOOR BIN
297302800 297302800 DOOR STOP
297326200 297326200 DOORDAIRY
5308005500 5308005500 DRAIN
297292300 297292300 DRAWER

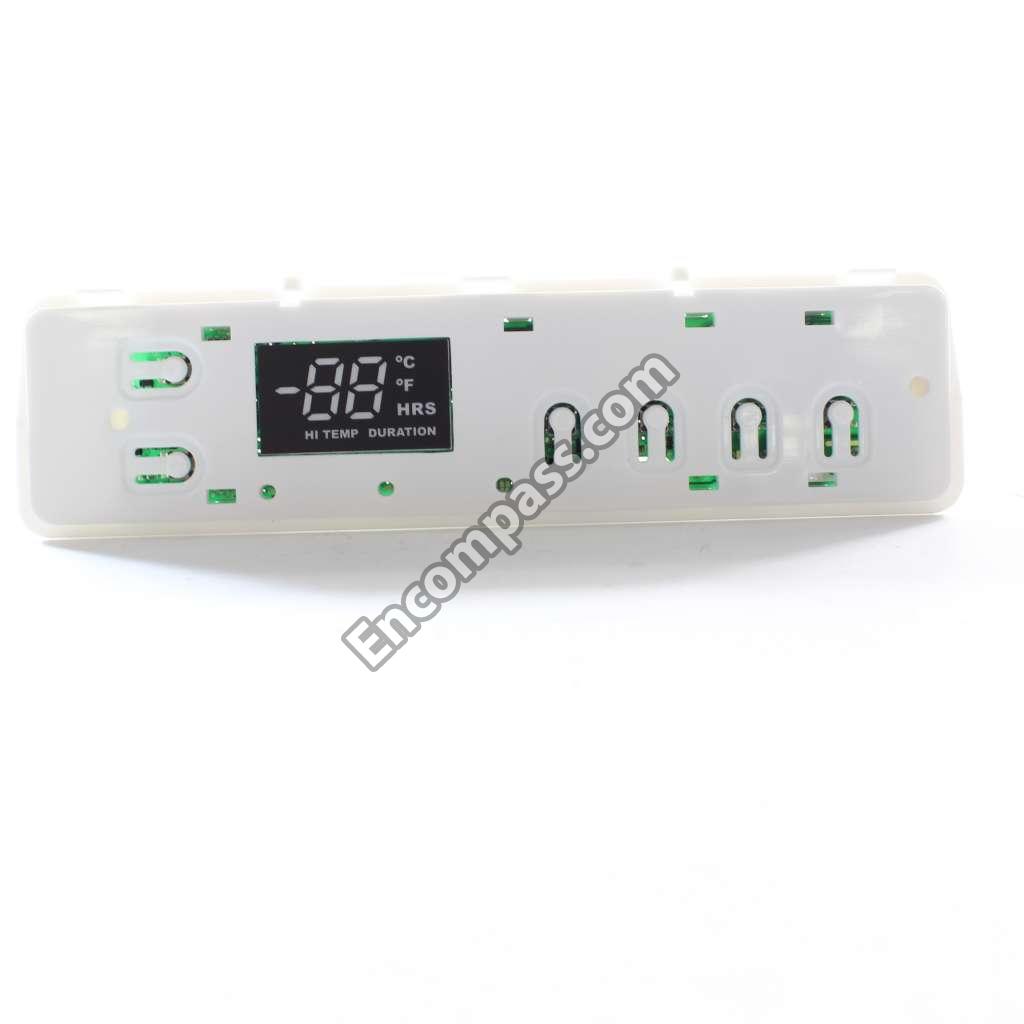

297326524 297326524 ELECTRONIC CONTROL,ASSEMBLY
297414900 297414900 EVAPORATOR
297259600 297259600 FAN BLADE
297050600 297050600 FRAME-SHELF
297271701 297271701 FRAMECRISPER COVER
297271700 297271700 FRAMECRISPER COVER
216524201 216524201 GASKET
216204902 216204902 GASKETEVAP COVER
297102704 297102704 GLASS
297102705 297102705 GLASS
297265900 297265900 GLASSSHELF
297036904 297036904 GRILLE/KICKPLATE
240405201 240405201 GROMMET
297293302 297293302 GROMMET
5304495183 5304495183 HARNESS-JUMPER
297325400 297325400 HARNESSMAIN
5304494381 5304494381 HEATER
216730700 216730700 HEATER-DEFROST
297302510 297302510 HINGELOWER
297303900 297303900 HINGEUPPER
297294301 297294301 HOLDER
297001704 297001704 INSULATION
297078801 297078801 INSULATOREVAP
297078701 297078701 INSULATOREVAP
297250000 297250000 MOTOR
297279500 297279500 MOTOR
240537301 240537301 NUT-ANCHOR
297165800 297165800 PANDRAIN
297280800 297280800 PANELINNER DOOR
216403701 216403701 PLUGBUTTON
216503100 216503100 SCREENDRAIN
216905301 216905301 SCREW
216858001 216858001 SCREW
216036601 216036601 SCREW
216912401 216912401 SCREW
216337701 216337701 SCREW
297410600 297410600 SCREW
297197500 297197500 SCREW
297146821 297146821 SCREW
297236250 297236250 SCREW
297146820 297146820 SCREW
297142600 297142600 SCREW
297048000 297048000 SCREW
297174300 297174300 SCREW
08016582 08016582 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
297165400 297165400 SHIELD
297294501 297294501 SHIELDLIGHT
297164000 297164000 SHROUDFAN ORFICE
216502500 216502500 SLEEVE
297291210 297291210 SLIDE
297291211 297291211 SLIDE
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
297099500 297099500 SUPPORT-CRISPER
216822901 216822901 SWITCH
297110400 297110400 THERMISTER
216731001 216731001 THERMOSTAT
TRIMKITEZ1 TRIMKITEZ1 TRIM KIT
TRIMKITEZ2 TRIMKITEZ2 TRIM KIT
297273903 297273903 TRIMCABINET CORNER
297261400 297261400 TRIMSHELF
297261500 297261500 TRIMSHELF
297280403 297280403 VALVE
297175300 297175300 WRENCH
