Model Image
Manufacturer

Electrolux

Model Number

FRS6HR5HW5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241681901 241681901 ACTUATOR-ICE
241682001 241682001 ACTUATOR-WATER
241676101 241676101 ACTUATORSOLENOID
218888001 218888001 ADAPTER
241716101 241716101 AUGER-ICE
241726501 241726501 BAR-DRIVE
240330011 240330011 BASECOMPRESSOR MTG
240564401 240564401 BASKET-SLIDING
5304456671 5304456671 BEARING & INLET
241688302 241688302 BEARING PLATE
241688301 241688301 BEARING PLATE
240328402 240328402 BEARING-HINGE
240328201 240328201 BEARING-HINGE(REF)
240334201 240334201 BIN-DOOR
240351601 240351601 BIN-DOOR
240356402 240356402 BIN-DOOR
241684103 241684103 BLADE
241684101 241684101 BLADE
241684102 241684102 BLADE
218396700 218396700 BLOCK
241633501 241633501 BOX-CONTROL
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
240327207 240327207 BRACKET-UPPER HINGE
241555401 241555401 BULB-LAMP
241563601 241563601 BUSHING-MOTOR MTG
240421701 240421701 BUTTON-HANDLE MTG
241685201 241685201 CAM-DRIVE
240542901 240542901 CAP-WATER VALVE
241674401 241674401 CHANNEL
241674402 241674402 CHANNEL
240430501 240430501 CHANNEL
218659500 218659500 CHANNEL-SHELF MTG

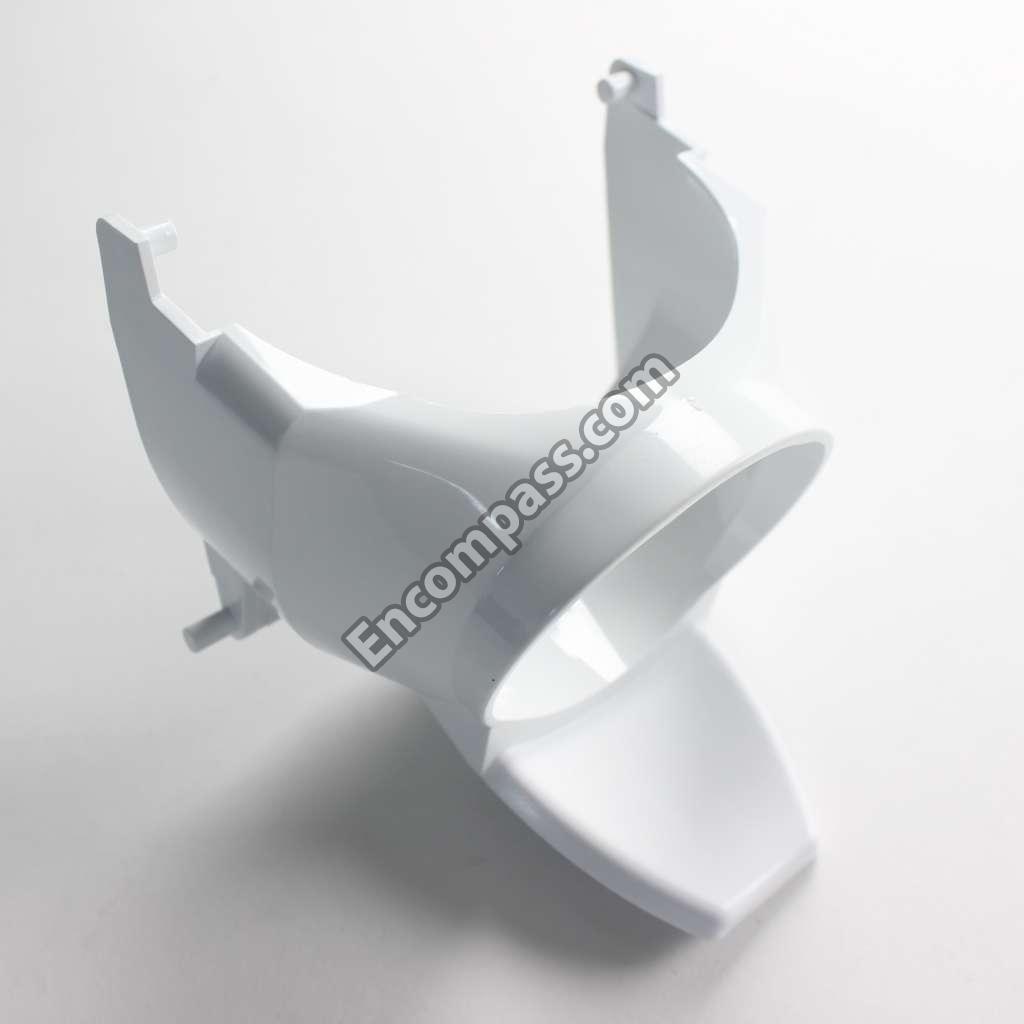

241525101 241525101 CHUTE-ICE
241650901 241650901 CLAMP
240396801 240396801 CLAMP-TUBE
240362101 240362101 CLIP
240542601 240542601 CLIP-WIRING HARNESS
218515403 218515403 CLIPGRILLE
241806601 241806601 CONNECTOR-WATER
241734001 241734001 CONTAINER-ICE
241716002 241716002 CONTROL ROD
240362201 240362201 CONTROL-HUMIDITY
241733902 241733902 COVER
240350702 240350702 COVER
241679001 241679001 COVER
241734902 241734902 COVER
240327005 240327005 COVER-UPPER HINGE
240376002 240376002 COVER-WATER FILTER
240435912 240435912 COVERAIR DUCT
241719711 241719711 COVEREVAP COIL
240434401 240434401 CUP
241689301 241689301 DAMPER-ROTARY
240507202 240507202 DEFLECTOR-ICE CONTA
240374301 240374301 DIFFUSER-AIR
5303918256 5303918256 DISPENSER HEATER KI
241688401 241688401 DOOR ASSEMBLY-ICE CHUTE
241688501 241688501 DOOR CENTER
241688701 241688701 DOOR SEAL
240581902 240581902 DOOR STOP
240581901 240581901 DOOR STOP
241734101 241734101 DOOR-ACCESS
240326203 240326203 DOOR-DAIRY
241649001 241649001 DRIP TRAY
241684501 241684501 DRIVE BLADE
241668112 241668112 DSP 26DOOR-COMPLETE
240451900 240451900 DSP 26DOOR-REFR
240380101 240380101 DUCT-ICE MAKER
241690201 241690201 E-RING
240545201 240545201 ELBOW-WATER TUBE
5303918284 5303918284 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
241684201 241684201 FIXED BLADE
241684301 241684301 FIXED BLADE
241734201 241734201 FRONT-ICE CONTAINER
241786002 241786002 GASKET-FRZR DOOR
241786001 241786001 GASKET-REFR DOOR

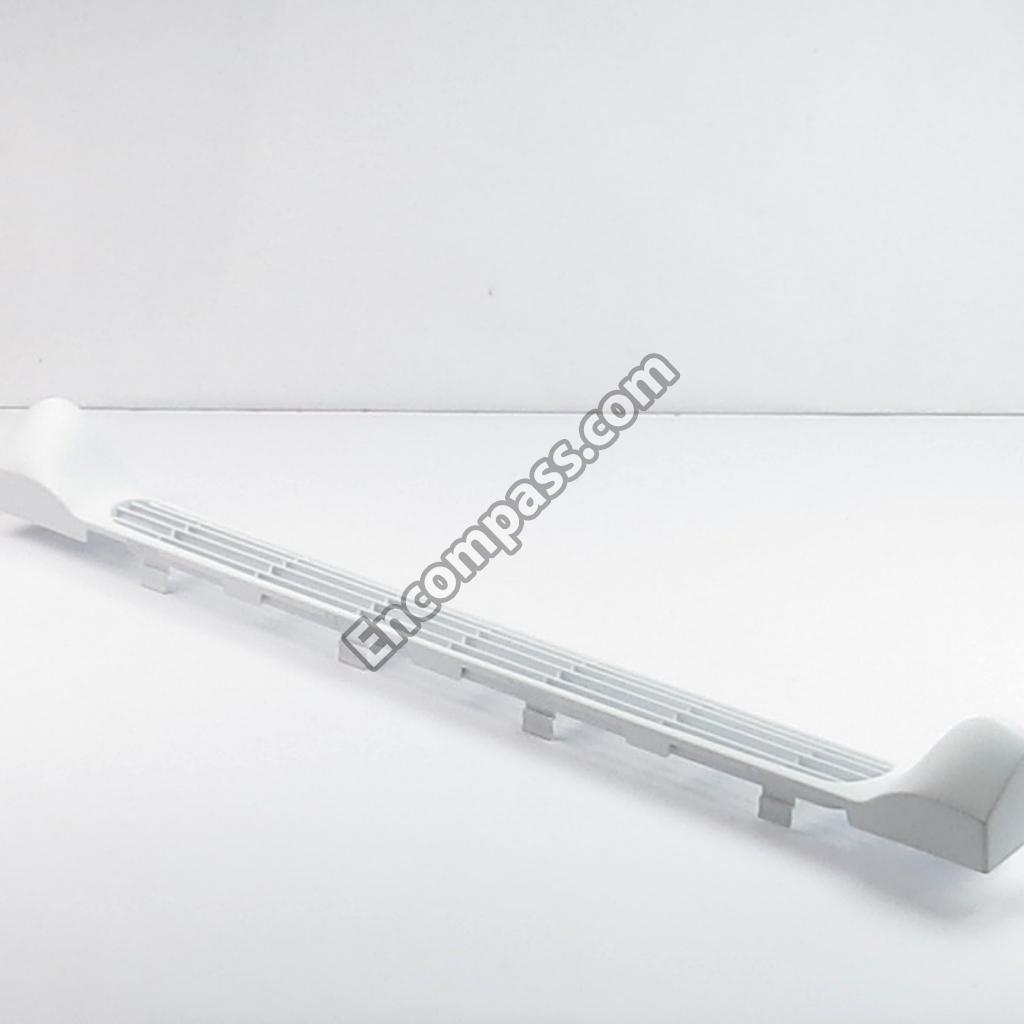

240324409 240324409 GRILLE/KICKPLATE
240405201 240405201 GROMMET
241550701 241550701 GROMMET-SHELF MTG
241550801 241550801 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
240343002 240343002 HANGER-BASKET
240343102 240343102 HANGER-BASKET
5304456664 5304456664 HARNESS-WIRING
240552101 240552101 HARNESS-WIRING
241737801 241737801 HARNESS-WIRING
241651601 241651601 HARNESS-WIRING
241586801 241586801 HARNESS-WIRING
241679201 241679201 HARNESS-WIRING
241732001 241732001 HARNESSELECTRICAL
241686001 241686001 HARNESSWIRING
5303918328 5303918328 HEAT EXCHANGER KIT
5303918222 5303918222 HOT TUBE REPAIR KIT
240434301 240434301 HOUSING
241860803 241860803 ICE CONTAINER ASSEMBLY

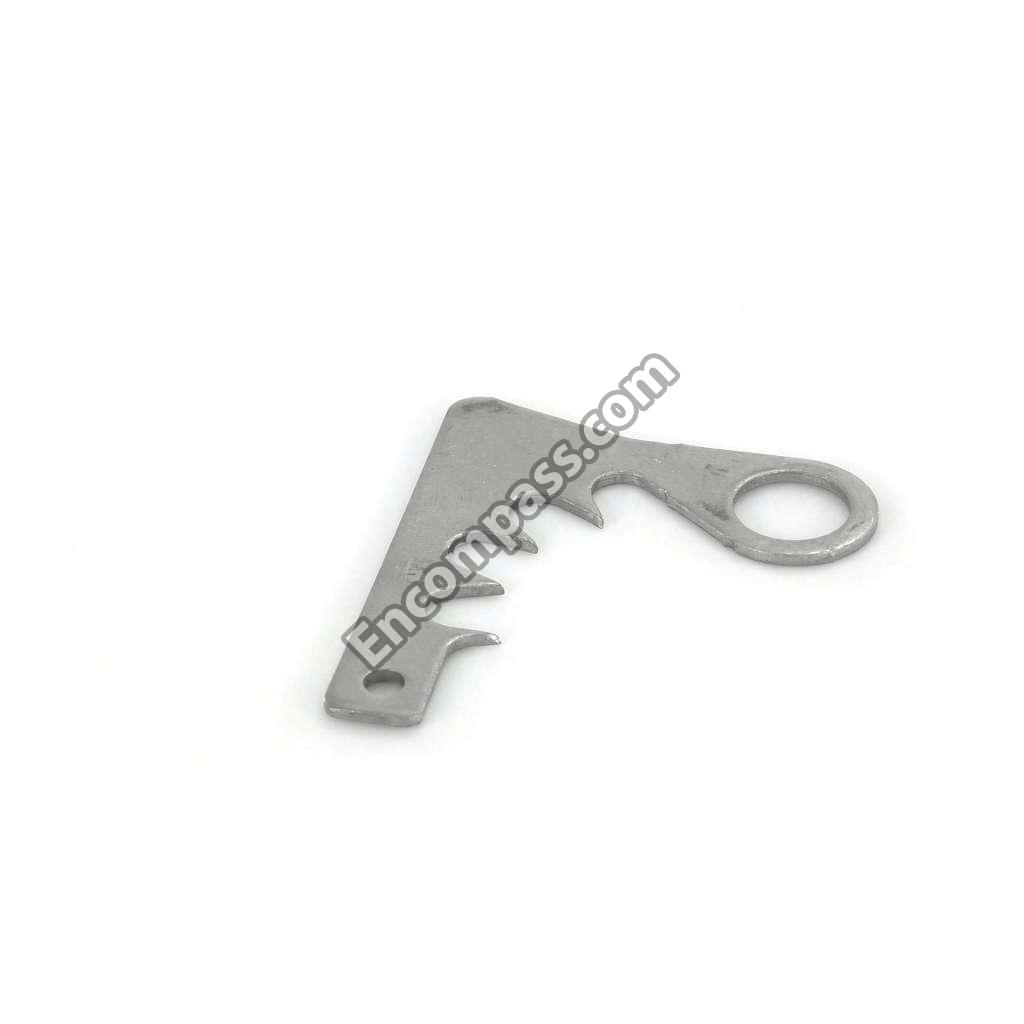

5304456672 5304456672 ICE STRIPPER
241641201 241641201 INSERT
240350603 240350603 INSERT-PAN COVER
241688601 241688601 INSULATION-DOOR
240394102 240394102 INSULATION-WATER FI
5304469406 5304469406 INSULATOR
5304456690 5304456690 LABEL
241604003 241604003 LABEL-CONTROL BOX

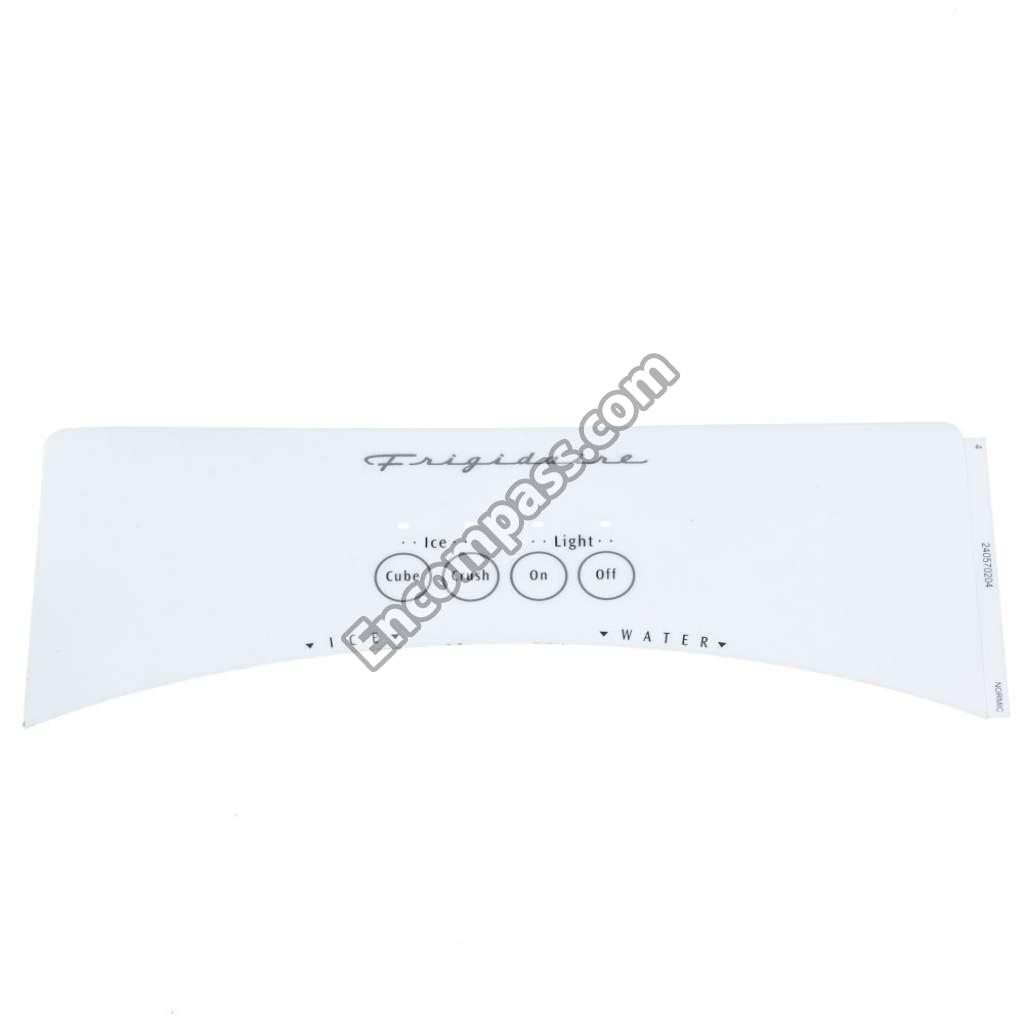

240570204 240570204 LABEL-MODULE COVER

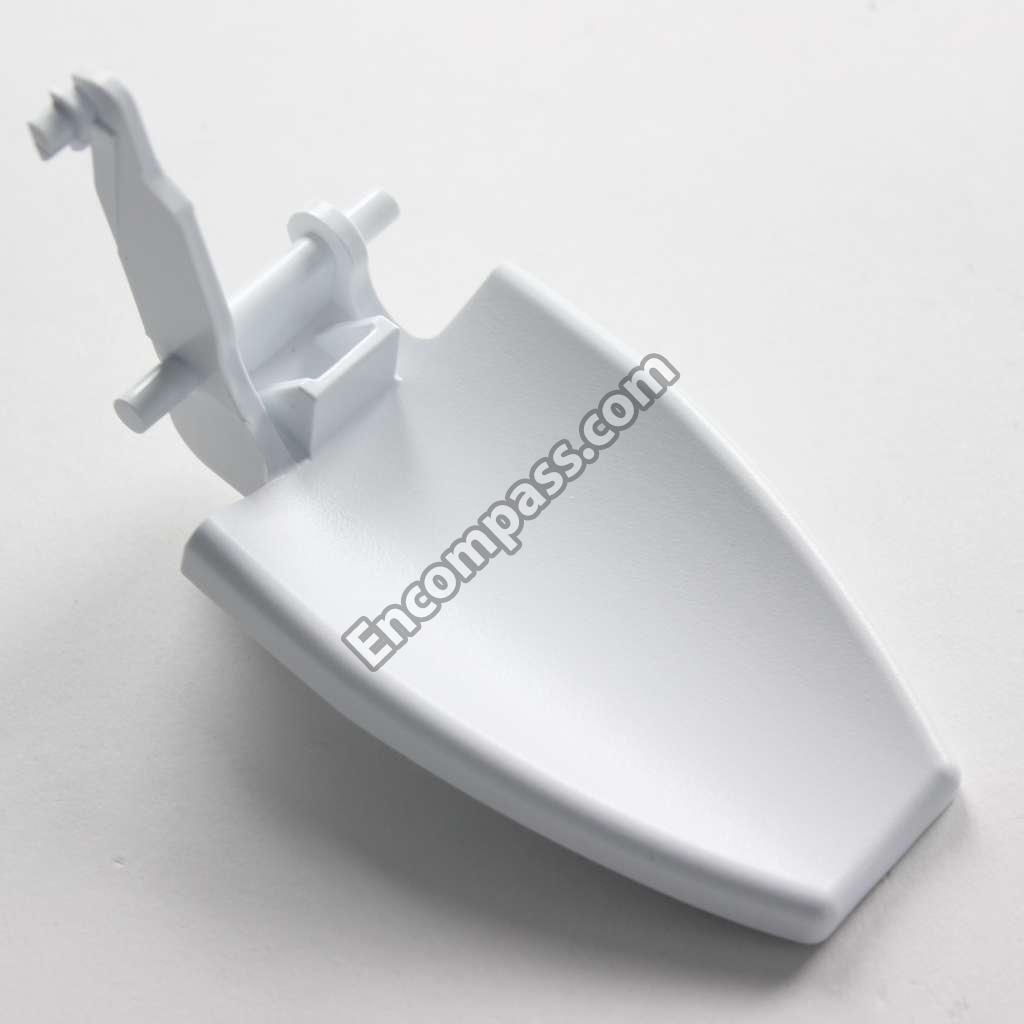

5304456675 5304456675 LEVER ARM
241680505 241680505 MODULE-DISPENSER
5304456657 5304456657 NAMEPLATE
5304456693 5304456693 NUT
241685001 241685001 NUT-AUGER
218904301 218904301 O-RING
240351005 240351005 PAN-CRISPER
240342806 240342806 PAN-MEAT
241688801 241688801 PIN-HINGE
240518802 240518802 PIN-PUSH
241690402 241690402 PIN-SPIRAL
240457701 240457701 PLATE
241684001 241684001 PLATE-FRONT

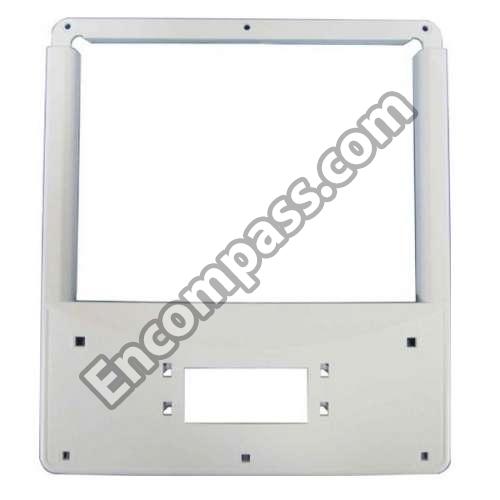

5304456659 5304456659 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
240494001 240494001 PLUG
5303208309 5303208309 PLUG-HOLE
241734501 241734501 RAIL
240323002 240323002 REFRIGERATOR DOOR BIN
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
240335006 240335006 ROLLER ASSEMBLY
241676301 241676301 ROTATION STOP
5304456666 5304456666 SCREW
5304456678 5304456678 SCREW
5304456674 5304456674 SCREW
5304456691 5304456691 SCREW
5304456676 5304456676 SCREW
5304456660 5304456660 SCREW
5303207328 5303207328 SCREW
5304456684 5304456684 SCREW
5304456677 5304456677 SCREW
5304455680 5304455680 SCREW
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
215503204 215503204 SCREW
218781101 218781101 SCREW
240521304 240521304 SCREW
240451503 240451503 SCREW
240598402 240598402 SCREW
241710601 241710601 SCREW
218252201 218252201 SCREW
241500303 241500303 SCREW
218493101 218493101 SCREW
215005101 215005101 SCREW
241637202 241637202 SCREW
218897004 218897004 SCREW
241679801 241679801 SCREW
215503205 215503205 SCREW
241690501 241690501 SCREW
241690701 241690701 SCREW
218359202 218359202 SCREW
5304455677 5304455677 SCREW,8-32 X 3/8
240402702 240402702 SCREW-#10-32 X 1/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
5304456687 5304456687 SCREW-IM BRKT MTG
5304456679 5304456679 SCREW-TIMING ADJ
218709101 218709101 SCREWHDL MTG
241689201 241689201 SCREWMICRO SWITCH
240363602 240363602 SCREWSHOULDER
218249808 218249808 SEALCOIL COVER
241657502 241657502 SHELF
241657504 241657504 SHELF
241657602 241657602 SHELF
240355208 240355208 SHELF-SPILL-SAFE
241686101 241686101 SHIELDLIGHT
240349801 240349801 SLIDE CLIP
240548901 240548901 SOCKET
241559801 241559801 SOCKET-LIGHT
241689801 241689801 SPACER
241684801 241684801 SPACER
241684901 241684901 SPACER-FIXED BLADES
5304456661 5304456661 SPACER-HOLD SWITCH
5304456682 5304456682 SPRING
5304445223 5304445223 SPRING BEAM
241689001 241689001 SPRINGACTUATOR
241731801 241731801 SPRINGCONTROL ROD
241707701 241707701 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
5304456668 5304456668 SUPPORT
240505801 240505801 SWITCH
241547901 241547901 SWITCH-LIGHT/LAMP

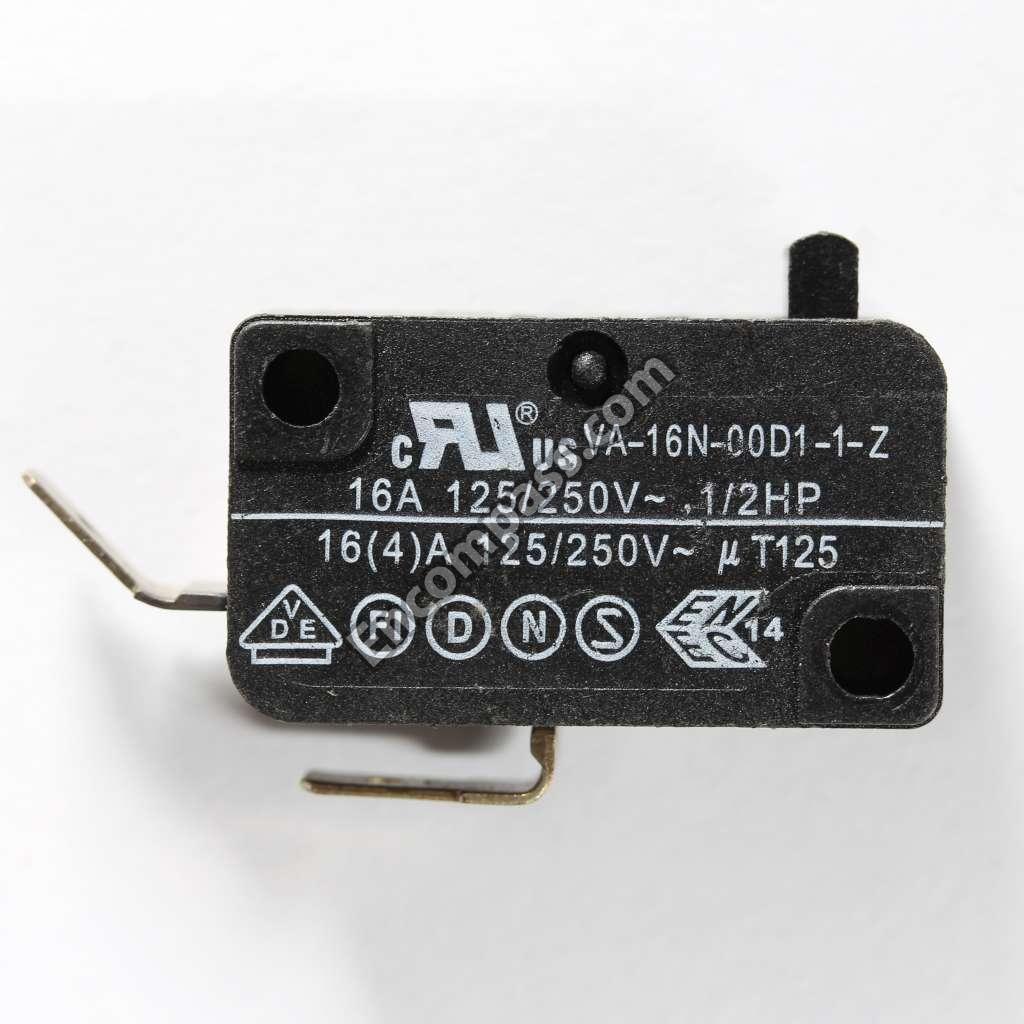

5304456667 5304456667 SWITCH-MICRO
241689101 241689101 SWITCH-MICRO
240545308 240545308 TANK
240346701 240346701 TAPE-FOAM SEAL
5304456688 5304456688 TERMINAL
241608501 241608501 THERMISTER-FRZR
241608401 241608401 THERMISTOR-REFR
5304456665 5304456665 THERMOSTAT
240356501 240356501 TRACK
240365401 240365401 TRACK
240337608 240337608 TRIM-CABINET CORNER
240430702 240430702 TRIM-SHELF
240430706 240430706 TRIM-SHELF
241719501 241719501 TUBE
218976409 218976409 TUBE
218976419 218976419 TUBE
218976420 218976420 TUBE
5304456692 5304456692 WASHER
5304456689 5304456689 WASHER
215474201 215474201 WASHER
241690306 241690306 WASHER
5303321319 5303321319 WHITE TOUCHUP PAINT
218710300 218710300 WRENCH-FILTER
