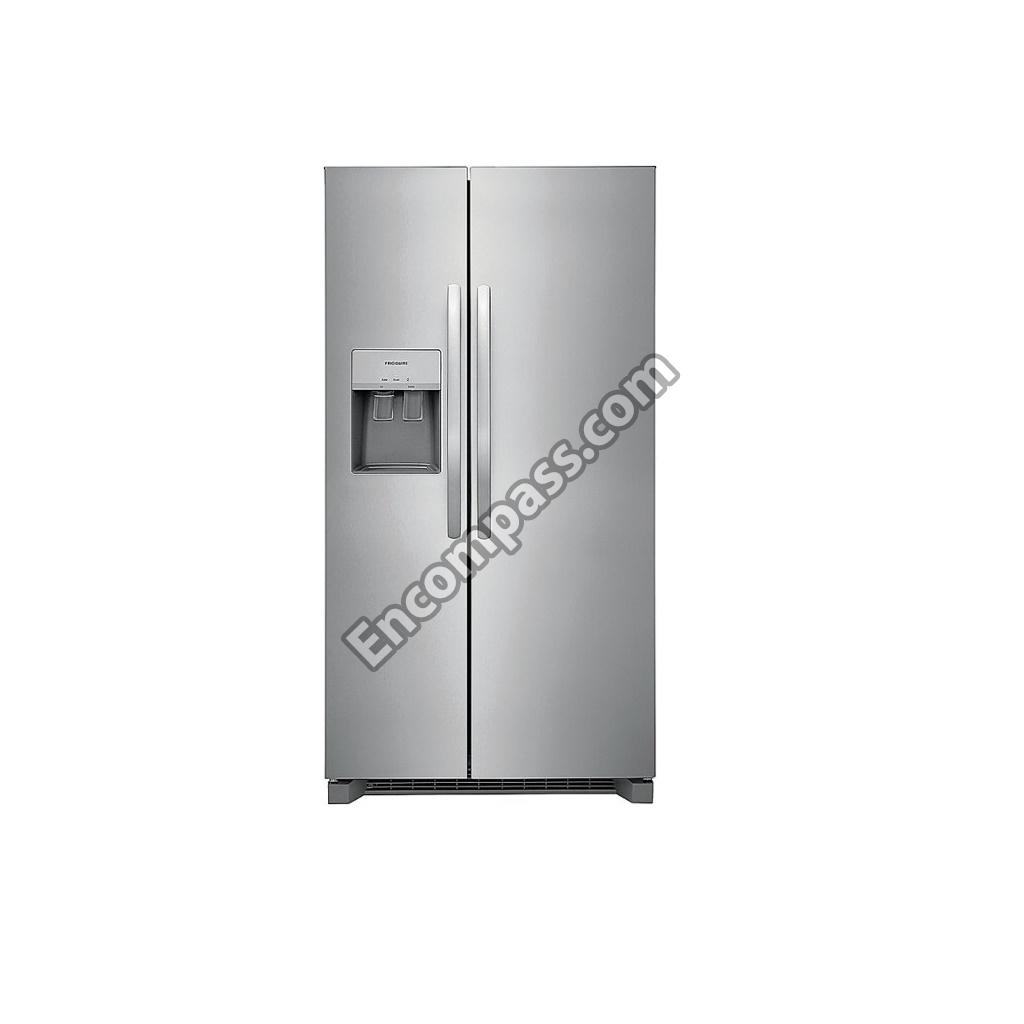

Model Image
Manufacturer

Electrolux

Model Number

FRSS2633AS0

Description

Frigidaire 25.6 Cu. Ft. 36'' Standard Depth Side

Interactive Exploded View

Parts List

Part Number Description
5304526006 5304526006 BASE
5304526050 5304526050 BASE
5304525919 5304525919 BASKET
5304525905 5304525905 BIN ASSEMBLY
5304525906 5304525906 BIN ASSEMBLY
5304525904 5304525904 BIN ASSEMBLY
5304525908 5304525908 BIN ASSEMBLY
5304525907 5304525907 BIN ASSEMBLY
5304525958 5304525958 BRACKET
5304525957 5304525957 BRACKET
218990801 218990801 BRACKET EVAPORATOR
5304522314 5304522314 BULB,LIGHT ,E17/12 LED
5304525924 5304525924 BUSHING
5304525921 5304525921 BUSHING
240396802 240396802 CLAMP,TUBE/WIRING ,NYLON ,BLACK/NATURAL
5304525911 5304525911 CLIP

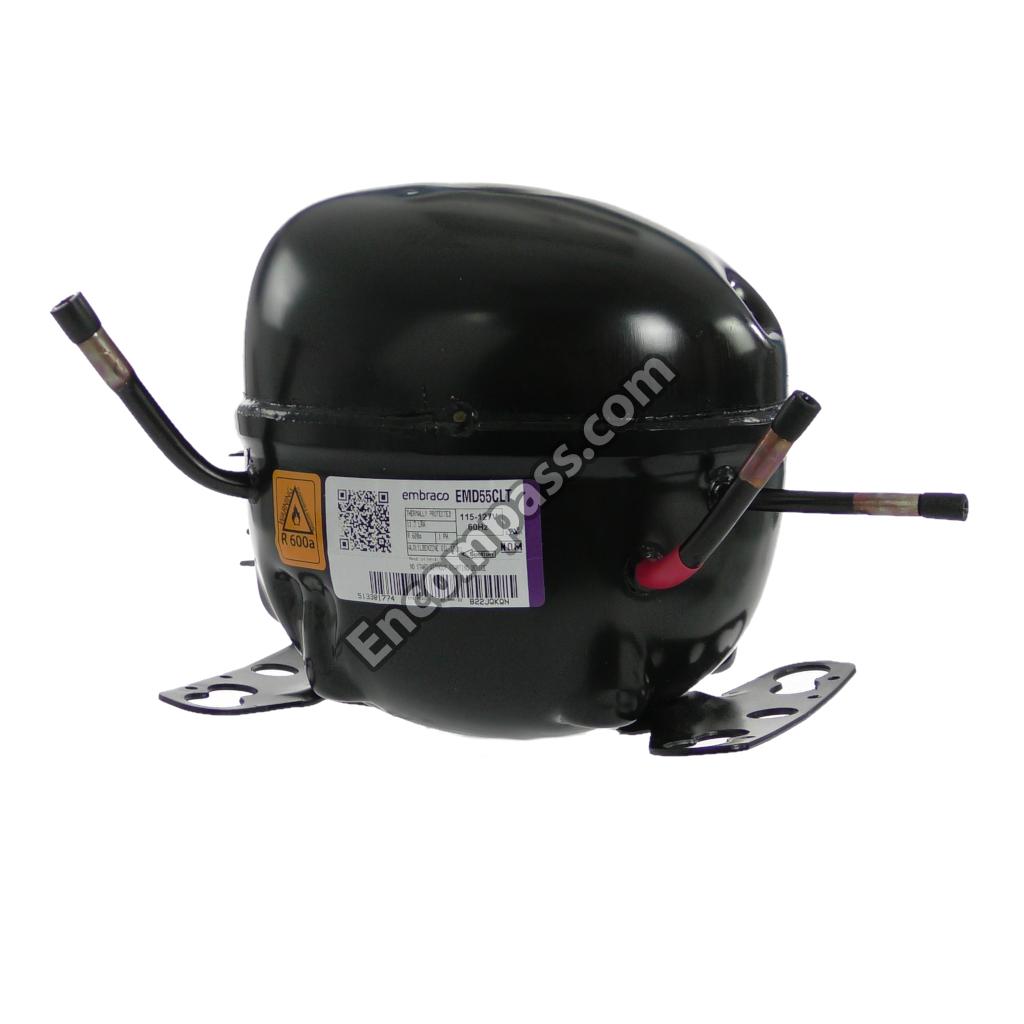

5304526016 5304526016 COMPRESSOR
241812301 241812301 COMPRESSOR WASHER
5304526056 5304526056 CONDENSER
5304526071 5304526071 CONNECTOR
5304526068 5304526068 CONTROL-ELEC
241516904 241516904 CORD-SERVICE
241734903 241734903 COVER
5304526063 5304526063 COVER
5304525914 5304525914 COVER
5304526051 5304526051 COVER
5304525960 5304525960 COVER
5304525959 5304525959 COVER
5304526079 5304526079 COVER
5304525975 5304525975 COVER GUARD
5304525944 5304525944 COVER GUARD
5304525943 5304525943 CRIDSPER PAN
5304525942 5304525942 CRIDSPER PAN
5304525935 5304525935 CRISPER COVE
5304525934 5304525934 CRISPER COVE
5304525979 5304525979 DISPENSER MO
5304525970 5304525970 DOOR ASSEMBL
5304525969 5304525969 DOOR ASSEMBL
5303305677 5303305677 FILTER
FPPWFU01 FPPWFU01 FILTER,WATER ,WF-1 ,FRIG PUREPOUR
240521303 240521303 FREEZER DOOR HANDLE MOUNTING BOLT
218755402 218755402 FREEZER DOOR HANDLE SET SCREW
5304523829 5304523829 GROMMET

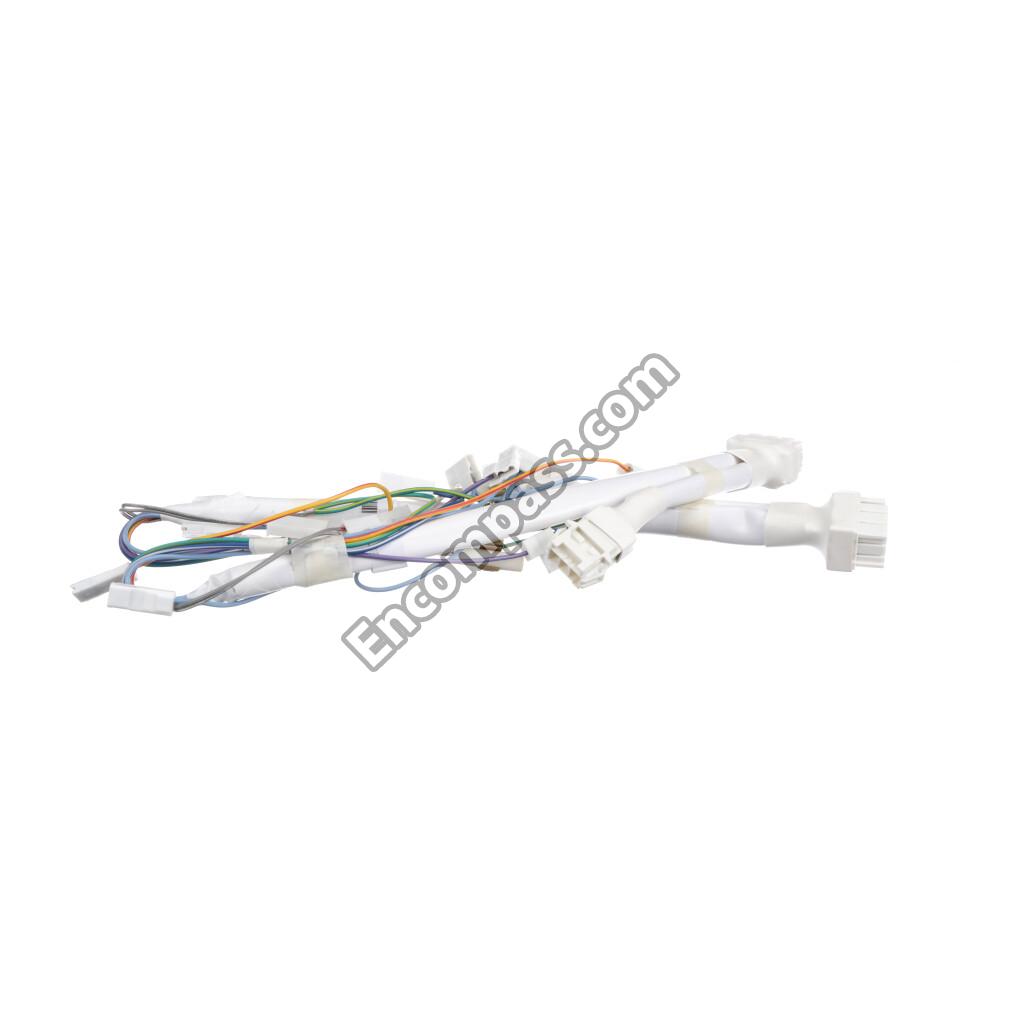

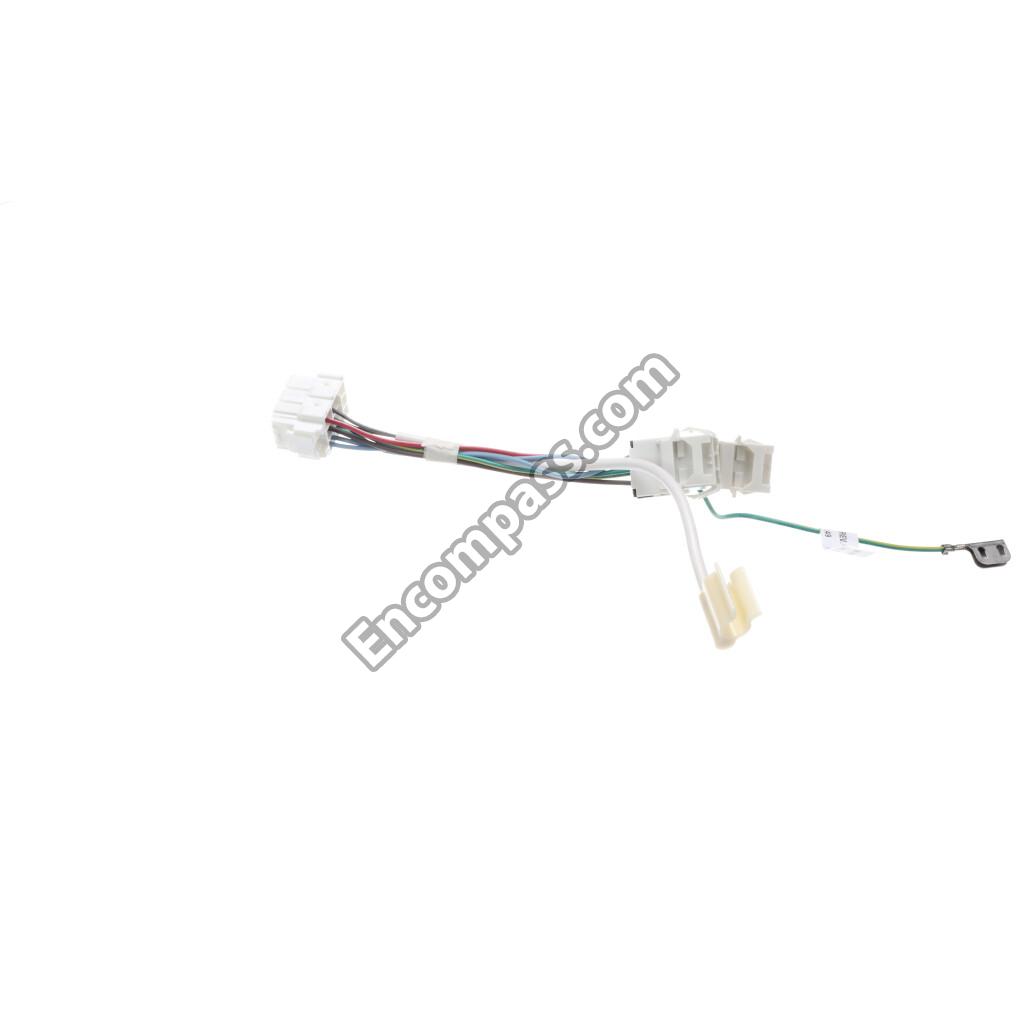

5304525991 5304525991 HARNESS
5304525986 5304525986 HARNESS
5304525990 5304525990 HARNESS ASSE
5304526032 5304526032 HEATER

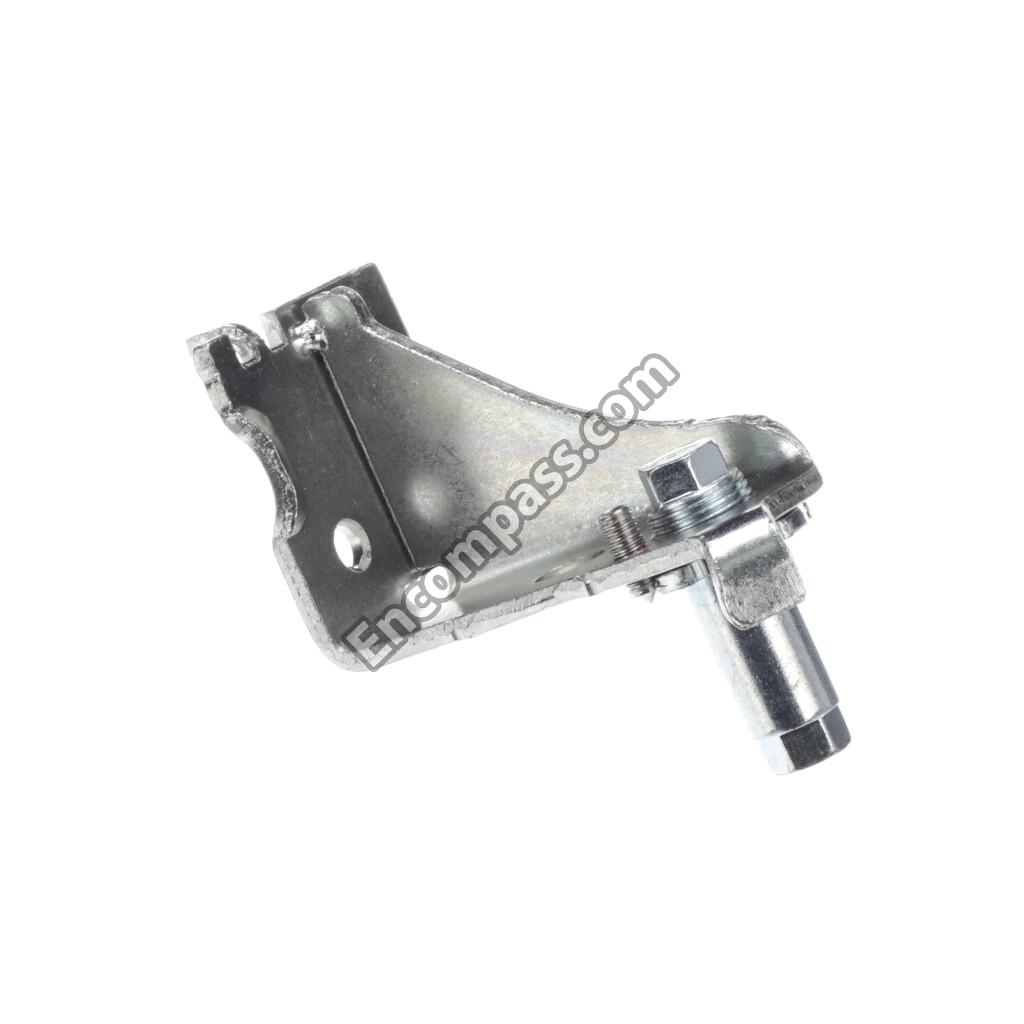

5304525965 5304525965 HINGE ASSEMB
5304525964 5304525964 HINGE ASSEMB
5304525915 5304525915 HOUSING
5304526001 5304526001 HOUSING
5304526053 5304526053 HOUSING ASSE

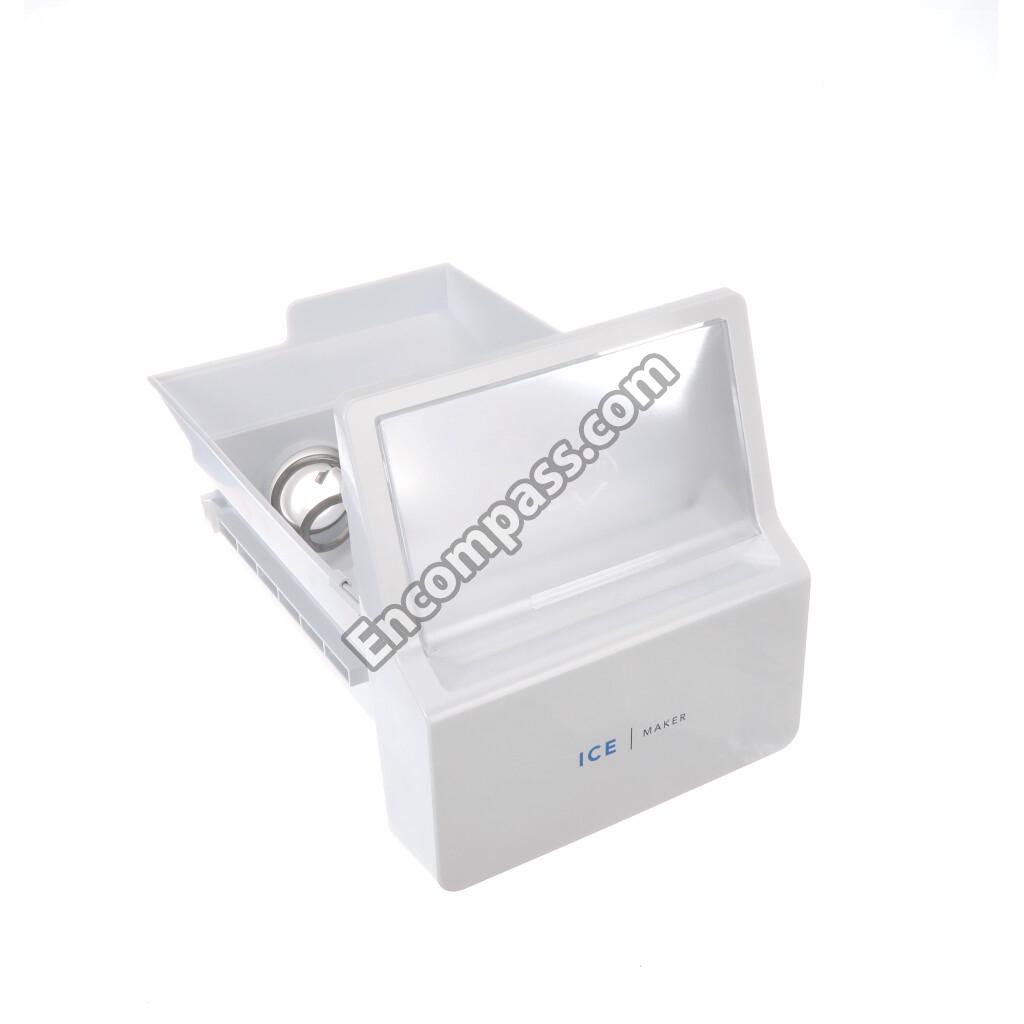

5304525931 5304525931 ICE CONTAINE

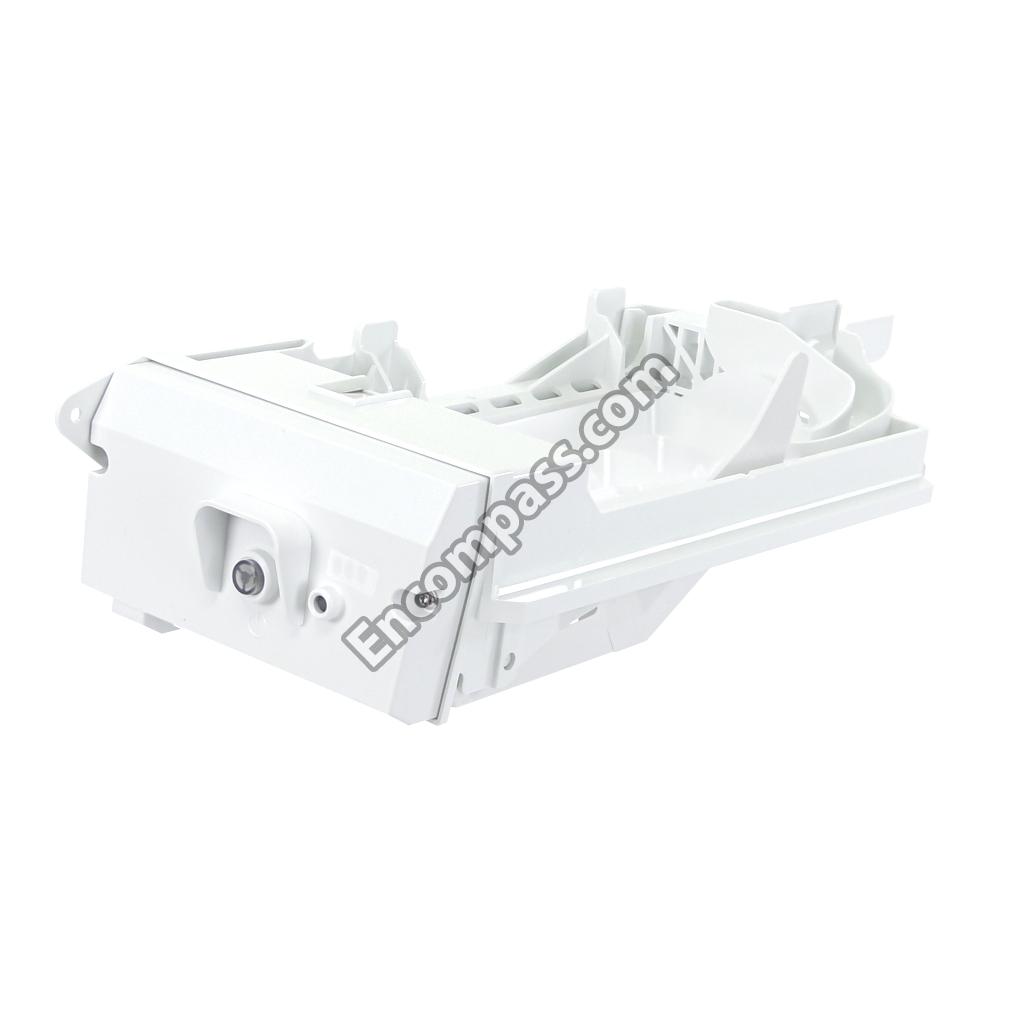

5304525923 5304525923 ICE MAKER
5304525913 5304525913 INSULATION

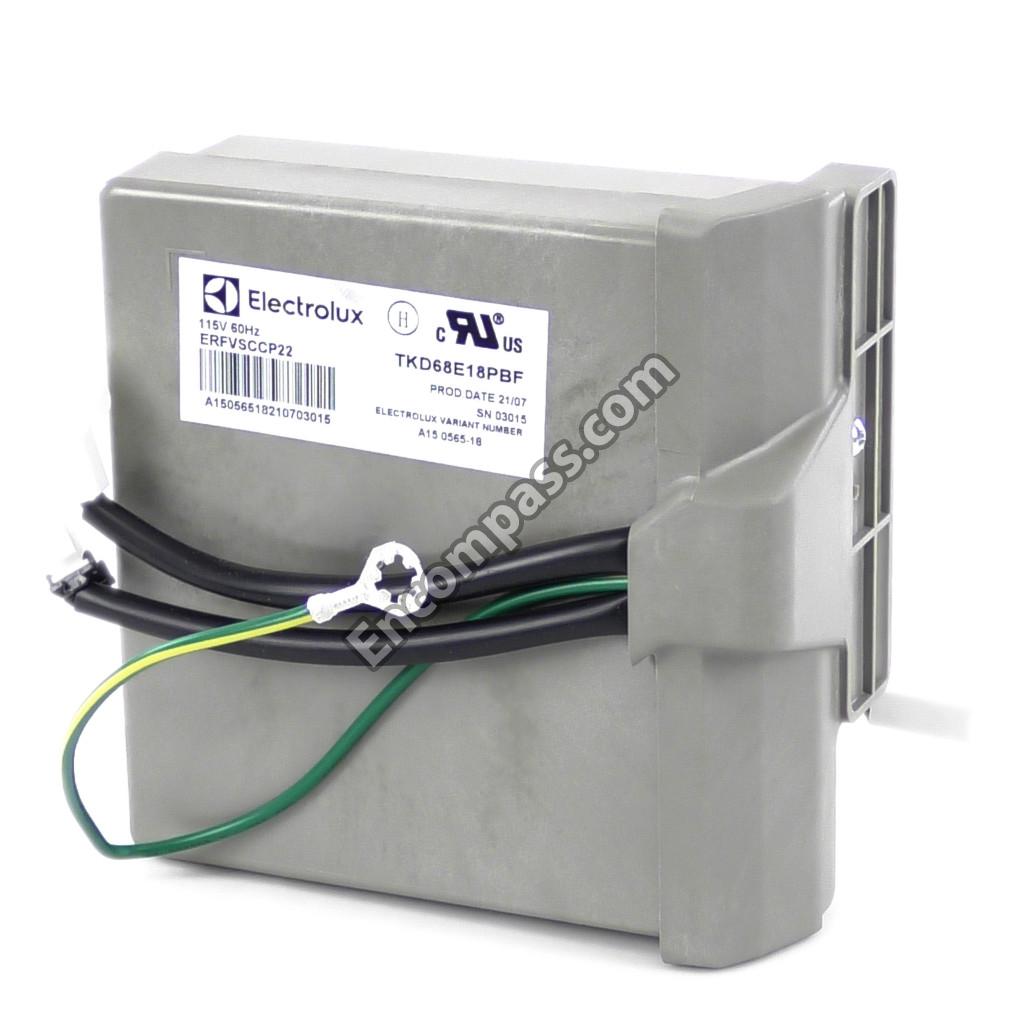

5304527038 5304527038 INVERTER BOA
5304526002 5304526002 LENS
5304524817 5304524817 MANIFOLD
5304526014 5304526014 MOTOR
242018303 242018303 MOTOR
242077707 242077707 MOTOR

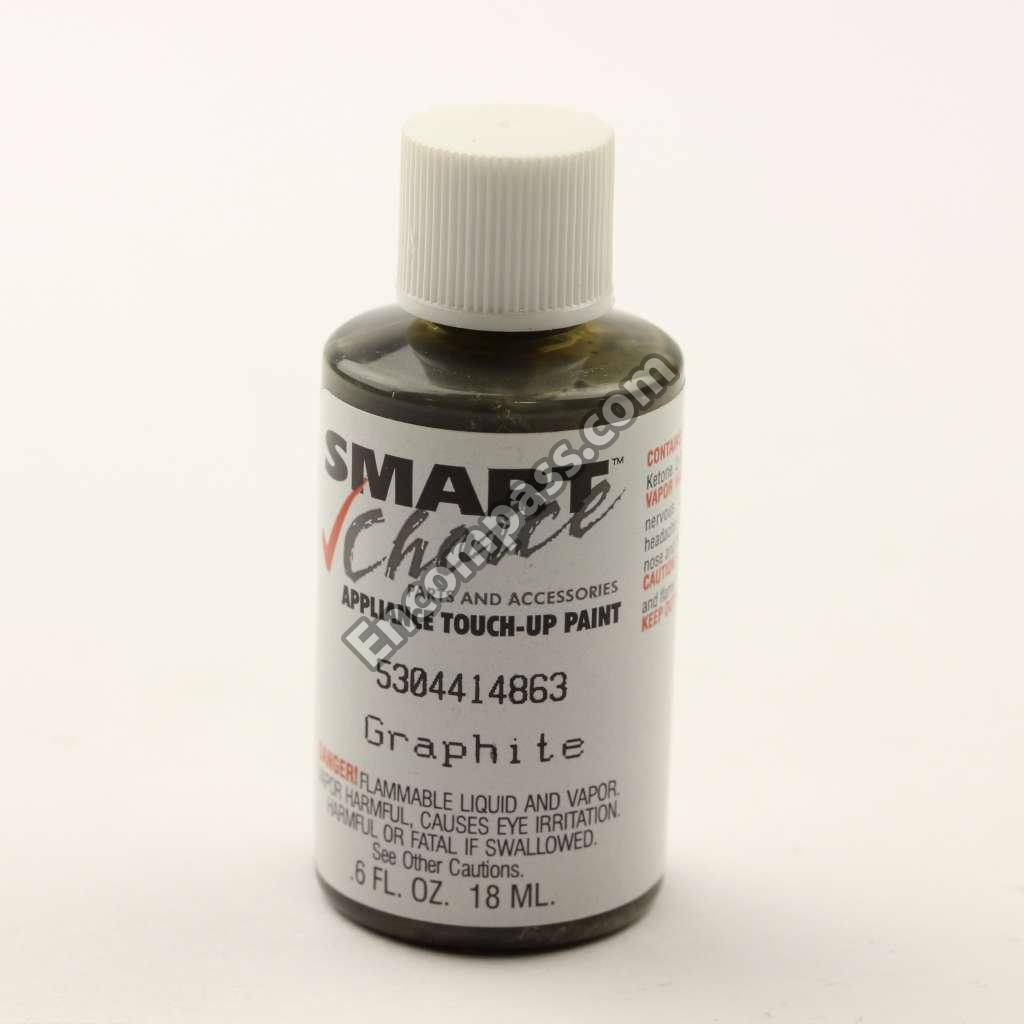

5304414863 5304414863 PAINT,TOUCH-UP ,GRAPHITE
5304525995 5304525995 PLATE
5304526011 5304526011 POWER BOARD
5304525946 5304525946 RAIL
5304525945 5304525945 RAIL
241518501 241518501 REFRIGERATOR AIR DAMPER
241518601 241518601 REFRIGERATOR AIR DAMPER GASKET
240435912 240435912 REFRIGERATOR AIR DUCT COVER
241726501 241726501 REFRIGERATOR AUGER MOTOR COUPLER
241674401 241674401 REFRIGERATOR AUGER MOUNTING CHANNEL, LEFT
241674402 241674402 REFRIGERATOR AUGER MOUNTING CHANNEL, RIGHT
241760403 241760403 REFRIGERATOR BEARING
5303208309 5303208309 REFRIGERATOR CABINET HOLE PLUG
242036801 242036801 REFRIGERATOR CLIP
242200102 242200102 REFRIGERATOR CLIP
240405201 240405201 REFRIGERATOR CONDENSER COIL GROMMET
241639502 241639502 REFRIGERATOR CONDENSER FAN BLADE
241946106 241946106 REFRIGERATOR CONDENSER FAN SHROUD
218679614 218679614 REFRIGERATOR CONTROL BLOCK EVAPORATOR
218976438 218976438 REFRIGERATOR DISPENSER WATER TUBE
241786009 241786009 REFRIGERATOR DOOR GASKET (GRAY)
5304511770 5304511770 REFRIGERATOR DOOR HANDLE ASSEMBLY (STAINLESS)
218755504 218755504 REFRIGERATOR DOOR HANDLE SCREW
241760401 241760401 REFRIGERATOR DOOR HINGE BEARING, UPPER
241697602 241697602 REFRIGERATOR DRAIN PAN
241830905 241830905 REFRIGERATOR DRAIN TUBE
218493101 218493101 REFRIGERATOR DRAWER SLIDE RAIL SCREW
807854301 807854301 REFRIGERATOR ELECTRONIC CONTROL BOARD COVER
5303918284 5303918284 REFRIGERATOR EVAPORATOR
808217502 808217502 REFRIGERATOR EVAPORATOR COVER COIL, LOWER
241500303 241500303 REFRIGERATOR EVAPORATOR COVER SCREW
218249808 218249808 REFRIGERATOR EVAPORATOR COVER SEAL
5308000010 5308000010 REFRIGERATOR EVAPORATOR FAN BLADE
242135301 242135301 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET, REAR
242015001 242015001 REFRIGERATOR EVAPORATOR FAN MOTOR COVER SCREW
215474201 215474201 REFRIGERATOR EVAPORATOR FAN SHAFT WASHER
241563601 241563601 REFRIGERATOR EVAPORATOR MOTOR MOUNT BUSHING
5308000039 5308000039 REFRIGERATOR EVAPORATOR MOTOR SCREW
240346701 240346701 REFRIGERATOR FOAM TAPE
240343102 240343102 REFRIGERATOR FREEZER BASKET SUPPORT RAIL
240343002 240343002 REFRIGERATOR FREEZER BASKET SUPPORT RAIL
241786010 241786010 REFRIGERATOR FREEZER DOOR GASKET (GRAY)
240350605 240350605 REFRIGERATOR FREEZER GLASS SHELF
241550801 241550801 REFRIGERATOR FREEZER SHELF SUPPORT GROMMET
241550701 241550701 REFRIGERATOR FREEZER SHELF SUPPORT GROMMET
5304504418 5304504418 REFRIGERATOR GRILLE KICK PLATE
241676101 241676101 REFRIGERATOR ICE DISPENSER SOLENOID ACTUATOR
241675601 241675601 REFRIGERATOR ICE DISPENSER SOLENOID STIRRUP
240380101 240380101 REFRIGERATOR ICE MAKER AIR DUCT
5304455852 5304455852 REFRIGERATOR ICE MAKER MOUNTING SCREW
241547901 241547901 REFRIGERATOR LIGHT SWITCH
240335202 240335202 REFRIGERATOR ROLLER
5304455655 5304455655 REFRIGERATOR ROLLER WHEEL AXLE PIN
218359202 218359202 REFRIGERATOR SCREW
215503203 215503203 REFRIGERATOR SCREW
240569202 240569202 REFRIGERATOR SCREW
241953901 241953901 REFRIGERATOR SCREW
242039702 242039702 REFRIGERATOR SCREW
241710601 241710601 REFRIGERATOR SCREW
241548003 241548003 REFRIGERATOR SCREW
218781101 218781101 REFRIGERATOR SCREW
240578902 240578902 REFRIGERATOR SCREW
218252201 218252201 REFRIGERATOR SCREW
240451503 240451503 REFRIGERATOR SCREW
240442706 240442706 REFRIGERATOR SCREW
218709101 218709101 REFRIGERATOR SCREW, #10-32 X 0.5-IN
5304455650 5304455650 REFRIGERATOR SCREW, #8-15 X 0.625-IN
241953902 241953902 REFRIGERATOR SCREW, #8-18 X 0.38-IN
240555002 240555002 REFRIGERATOR SCREW, #8-32-IN
218843801 218843801 REFRIGERATOR SCREW, 8-15A X 0.5-IN
241657504 241657504 REFRIGERATOR SHELF
241657502 241657502 REFRIGERATOR SHELF
241676001 241676001 REFRIGERATOR SOLENOID E-RING
807688301 807688301 REFRIGERATOR SPRING
242037702 242037702 REFRIGERATOR SPRING CLIP
5308000110 5308000110 REFRIGERATOR STRAP
240597203 240597203 REFRIGERATOR TEMPERATURE SENSOR
5303918645 5303918645 REFRIGERATOR TEMPERATURE SENSOR
5303918775 5303918775 REFRIGERATOR TEMPERATURE SENSOR
241519401 241519401 REFRIGERATOR TEMPERATURE SENSOR CLIP
5304508041 5304508041 REFRIGERATOR THERMISTOR COVER
218515401 218515401 REFRIGERATOR TOE GRILLE CLIP
241806601 241806601 REFRIGERATOR WATER TUBE FITTING
242220119 242220119 REFRIGERATOR WATER TUBING
5304455846 5304455846 REFRIGERATOR WATER TUBING CLAMP
5304525902 5304525902 ROLLER ASSEM
5304525901 5304525901 ROLLER ASSEM
5304520905 5304520905 S/A-ACCESS COVER METAL
5304527119 5304527119 SCREW
241500304 241500304 SCREW
240359403 240359403 SCREW-FAN SH
240363602 240363602 SCREW-SHOULD
5304525933 5304525933 SHELF ASSEMB
5304521688 5304521688 SHIELD
5304526087 5304526087 SHIELD
5304521331 5304521331 SHROUD-EVAP FAN MTG,W/SEAL
5304522315 5304522315 SOCKET,LED LIGHT
241675804 241675804 SOLENOID
241675705 241675705 SOLENOID
241675902 241675902 SPRING-SOLEN
5304527379 5304527379 STOP
5304527380 5304527380 STOP
5304511761 5304511761 STOP-ROTATION
5304525909 5304525909 SUPPORT
240505804 240505804 SWITCH

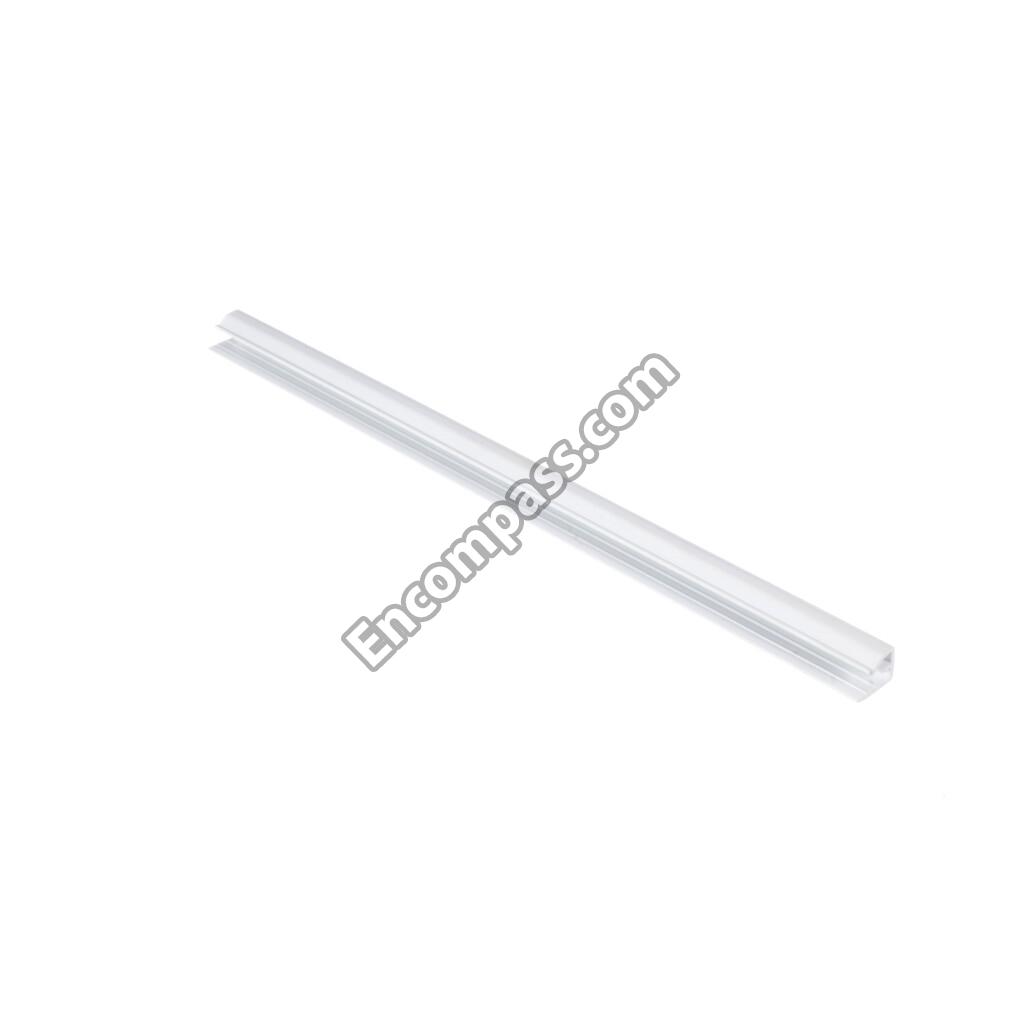

5304527128 5304527128 TRIM
5304525937 5304525937 TRIM
5304525936 5304525936 TRIM
5304519618 5304519618 TRIM-CABINET CORNER,GRAY
5304526003 5304526003 TROUGH
5304525893 5304525893 TUBE
242220126 242220126 TUBE

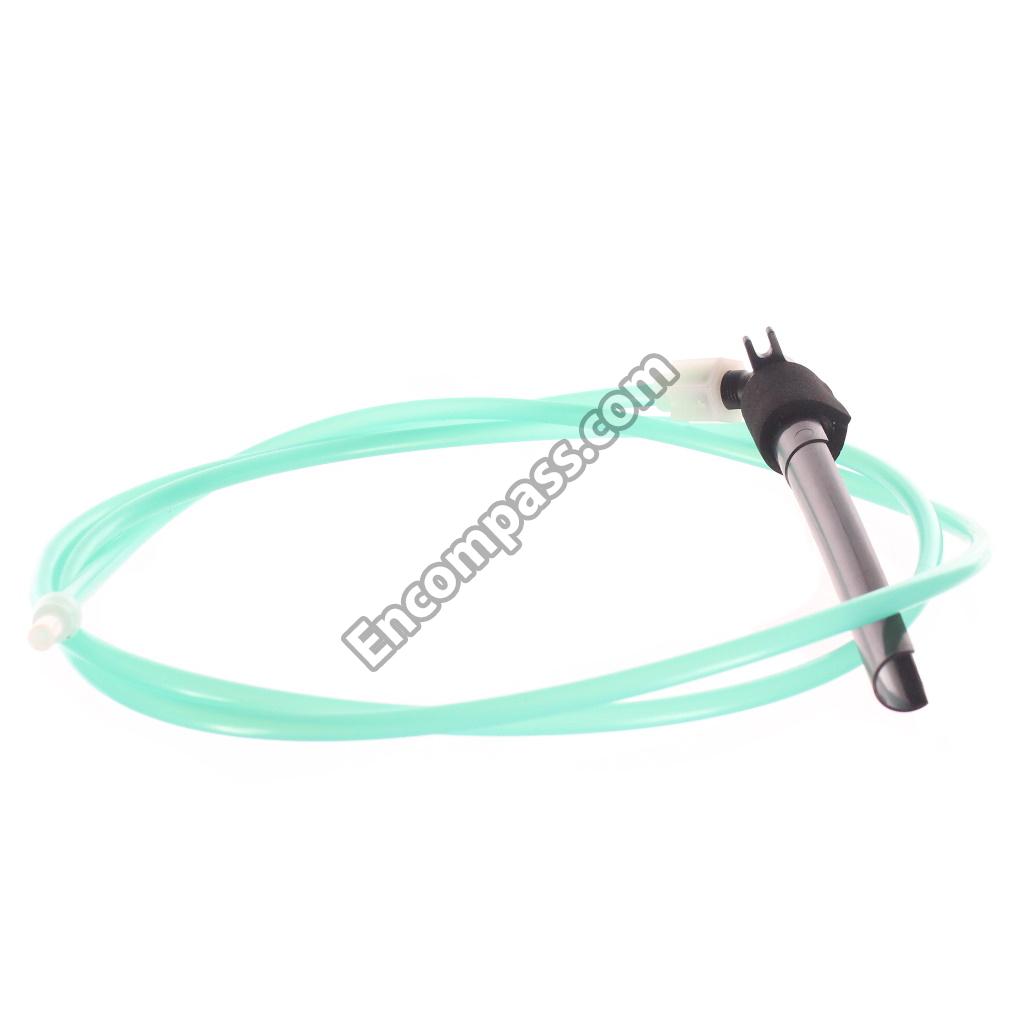

241850622 241850622 TUBE ASSEMBL
215346902 215346902 TUBE-PROCESS
5304526015 5304526015 USER INTERFA

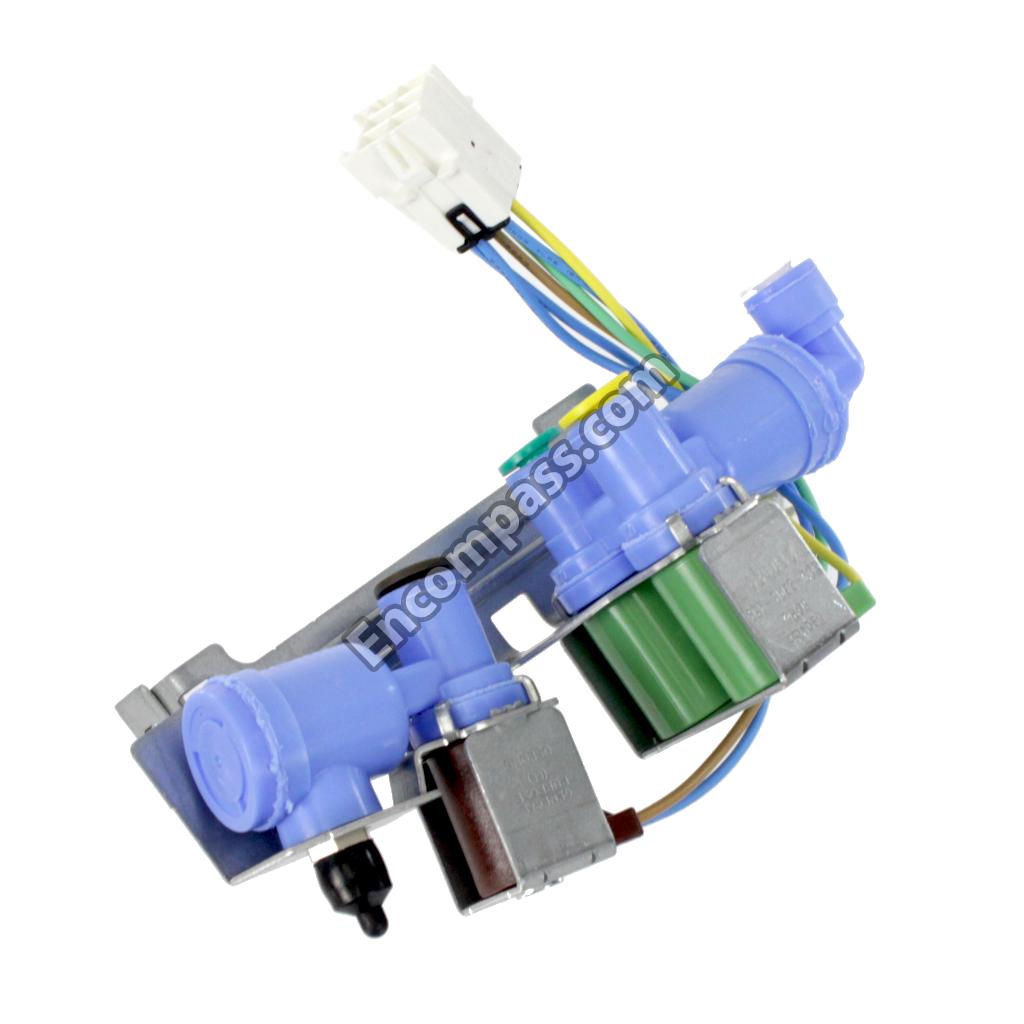

5304525994 5304525994 VALVE
218976439 218976439 WATER TUBE
5304456288 5304456288 WIRING CLAMP
