Manufacturer
Electrolux
Model Number

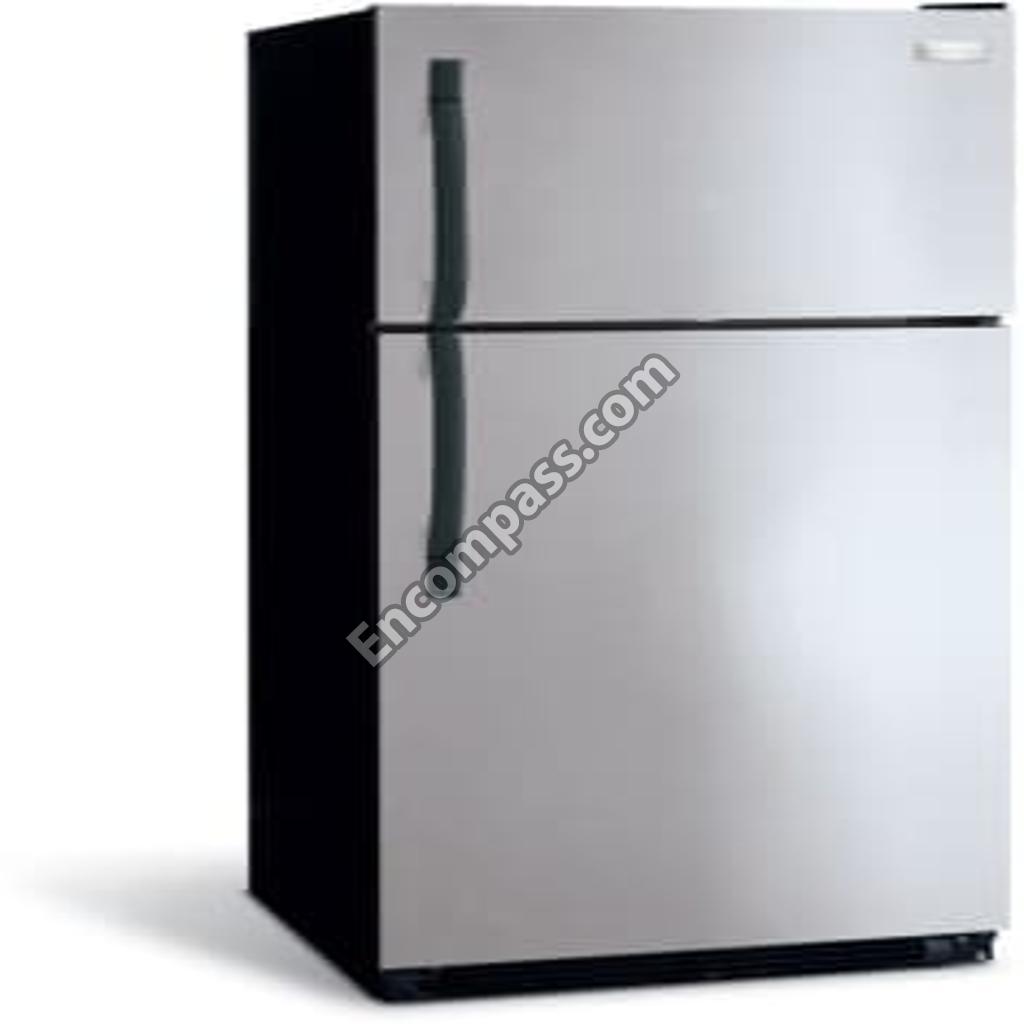

FRT17G5CSB3
Description
Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BASE-COMPRESSOR |
|
|
BEARING-HINGE,BLACK |
|
|
BIN-DOOR,2-LITER |
|
|
BIN-DOOR,GALLON |
|
|
BRACKET |
|
|
BRACKET, MOTOR MTG, REAR |
|
|
BRACKET-MOTOR MTG |
|
|
CLAMP-MOTOR WIRING |
|
|
CLAMP-WIRING HARNES |
|
|
CLEANER |
|
|
CLIP-WIRING HARNESS |
|
|
CONTROL,TEMPERATURE |
|
|
COVER-ACCESS |
|
|
COVER-UPPER HINGE,BLACK |
|
|
DAMPER,HUMIDITY CONT. |
|
|
DAMPER-FAN COVER |
|
|
DEFROST HEATER KIT |
|
|
DIFFUSER,AIR ,BOTTOM |
|
|
DIFFUSER,AIR ,TOP |
|
|
DOOR STOP |
|
|
DOOR STOP,BLACK ,REFR |
|
|
EVAPORATOR KIT |
|
|
FAN BLADE,GALV STEEL ,CONDENSER FAN |
|
|
FAN BLADE,RED ,EVAPORATOR FAN |
|
|
FRAME,SLIDING SHELF ,FULL WIDTH |
|
|
FRAME,SLIDING SHELF ,FULL WIDTH ,W/HANGER TABS |
|
|
GLASS-SHELF,22.16`` X 16.08`` ,REFR |
|
|
GRILLE/KICKPLATE |
|
|
GROMMET |
|
|
GROMMET,SHELF MTG ,1.25`` ,LH ,(4) |
|
|
GROMMET-COMPR MTG |
|
|
HANDLE-DOOR,BLACK |
|
|
HARNESS-ELECTRICAL |
|
|
HARNESS-WIRING |
|
|
HARNESS-WIRING,MACHINE COMPT |
|
|
HEAT EXCHANGER KIT,SUCTION LINE |
|
|
HOT TUBE REPAIR KIT,SERVICE |
|
|
KNOB,TEMP CONTROL |
|
|
KNOB-DAMPER CONTROL |
|
|
LABEL-ENERGY |
|
|
LABEL-NAMEPLATE |
|
|
LIGHT BULB/LAMP,A-15 ,CLEAR ,40 W ,120 V,MINIATURE |
|
|
MOTOR,CONDENSOR FAN |
|
|
OVERLOAD PROTECTOR |
|
|
PIN-LOWER HINGE |
|
|
PLUG |
|
|
PLUG-FOAM-WTR-INLET |
|
|
PLUG-HOLE, FACTORRY TEST |
|
|
PLUG-WTR INLET TUBE |
|
|
PLUGBUTTON |
|
|
RACK-DOOR |
|
|
RACK-DOOR |
|
|
RELAY |
|
|
RIVET,FLAT HEAD `1/4 OD X 1-3/4 `ROLLER PIN |
|
|
ROLLER ASSY,FRONT LH ,(2) |
|
|
ROLLER,COMPRESSOR BASE ,REAR ,(2) |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW, NO.8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW,HANGER/RLR MTG ,8-10 X 0.438 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.500 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.625 , |
|
|
SCREW,TRUSS HD QUAD ,NO.10-16 X .500 |
|
|
SCREW-#10-32 X 3/4 |
|
|
SCREW-COMPRESSOR MT |
|
|
SCREW-FAN SHROUD |
|
|
SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875 |
|
|
SCREW-HINGE MTG,HEX HEAD ,1/4-20 X 5/8 |
|
|
SOCKET-LIGHT |
|
|
SPACER-HINGE,CENTER |
|
|
STRAP - EVAPORATOR/HEATER |
|
|
SWITCH-LIGHT/LAMP |
|
|
TAPE-FOAM SEAL |
|
|
THERMOSTAT-DEFROST,KIT |
|
|
TRACK,MEAT PAN HANGER ,LH |
|
|
TRACK,MEAT PAN HANGER ,RH |
|
|
TRAY,ICE CUBE ,PLASTIC |
|
|
TRIM,SHELF ,FRONT |
|
|
TRIM-CABINET CORNER,BLACK ,(2) |
|
|
TRIM-HANDLE |
|
|
TRIM-SHELF,22.16`` ,REAR |
|
|
TROUGH-DRAIN |
|
|
TUBE-CONNECTOR |
|
|
TUBE-DRAIN,RUBBER ,LOWER |
|
|
WASHER |
|
|
WASHER,HINGE ,NYLON ,(2) |
|
|
WIRING HARNESS |
