Manufacturer
Electrolux
Model Number
FRTD2021AB0
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BADGE, FRIGIDAIRE, BLACK |
|
|
BASE, COMPRESSOR MTG. |
|
|
BEARING-HINGE, BLACK, (8) |
|
|
BIN, DOOR, FREEZER, PSEUDO |
|
|
BIN, DOOR, LOWER, PSEUDO |
|
|
BIN, DOOR, MIDDLE, PSEUDO |
|
|
BIN, DOOR, UPPER, PSEUDO |
|
|
BLACK HANDLE KIT |
|
|
BLADE, CONDENSER FAN |
|
|
BLADE, CONDENSER FAN, FAN |
|
|
BRACKET, DEFROST, HEATER |
|
|
BRACKET, DEFROST, HEATER |
|
|
BRACKET-CTR HINGE, BLACK |
|
|
BRACKET-LOWER HINGE,ZINC |
|
|
BRACKET-UPPER HINGE |
|
|
BULB, LIGHT, E17/12 LED |
|
|
BUTTON, PLUG, BLACK |
|
|
BUTTON, PLUG, BLACK, HINGE BRG HOLE |
|
|
BUTTON, PLUG, WHITE |
|
|
CAPACITOR, 24 # |
|
|
CARRIAGE, DELI PAN |
|
|
CLAMP, ELEC CONT MTG, COMPRESSOR |
|
|
CLAMP, TUBE/WIRING, 1/2", NYLON, BLACK/NATURAL |
|
|
CLAMP-WIRING HARNESS,STRAIN RELIEF ,GALV STEEL |
|
|
CLIP, GRILLE/TUBE, & HINGE |
|
|
CLIP, WIRE/TUBE |
|
|
CLIP-COMPRESSOR MTG |
|
|
CLIP-WIRING HARNESS |
|
|
COLD CONTROL, TEMPERATURE |
|
|
COMPRESSOR KIT W/ E |
|
|
CONDENSER, DYNAMIC |
|
|
CONTROLLER, COMPRESSOR PTC |
|
|
COVER ASSEMBLY, FAN, W/DAMPER-KNOB |
|
|
COVER, ACCESS, MACHINE COMPT. |
|
|
COVER, CONNECTION, ICE MAKER |
|
|
COVER, ELECTRICALS, 19, COMPRESSOR |
|
|
COVER, EVAPORATOR COIL, 10 |
|
|
COVER-CRISPER PAN |
|
|
COVER-UPPER HINGE, BLACK |
|
|
DIFFUSER, CONTROL BOX |
|
|
DOOR ASSEMBLY, COMPLETE, BLACK, FREEZER |
|
|
DOOR ASSEMBLY, COMPLETE, BLACK, REFRIGERATOR |
|
|
DOOR STOP, BLACK, FRZR |
|
|
DOOR STOP, BLACK, REF |
|
|
DOOR-DAIRY |
|
|
DRAWER, DELI, HALF WIDTH |
|
|
DRIER-FILTER,R12 & R134A |
|
|
EVAPORATOR |
|
|
GASKET SEAL |
|
|
GASKET-FRZR DOOR, BLACK, MAGNETIC |
|
|
GASKET-REFR DOOR, BLACK, MAGNETIC |
|
|
GRILLE/KICKPLATE, BLACK |
|
|
GROMMET, COMPRESSOR |
|
|
GROMMET, EVAPORATOR FAN, FRONT |
|
|
GROMMET, EVAPORATOR FAN, REAR |
|
|
GROMMET, RUBBER, BLACK, 23 # |
|
|
GROMMET, SHELF MTG |
|
|
HARNESS, WIRING, CONTROL BOX |
|
|
HARNESS, WIRING, FREEZER |
|
|
HARNESS, WIRING, MAIN |
|
|

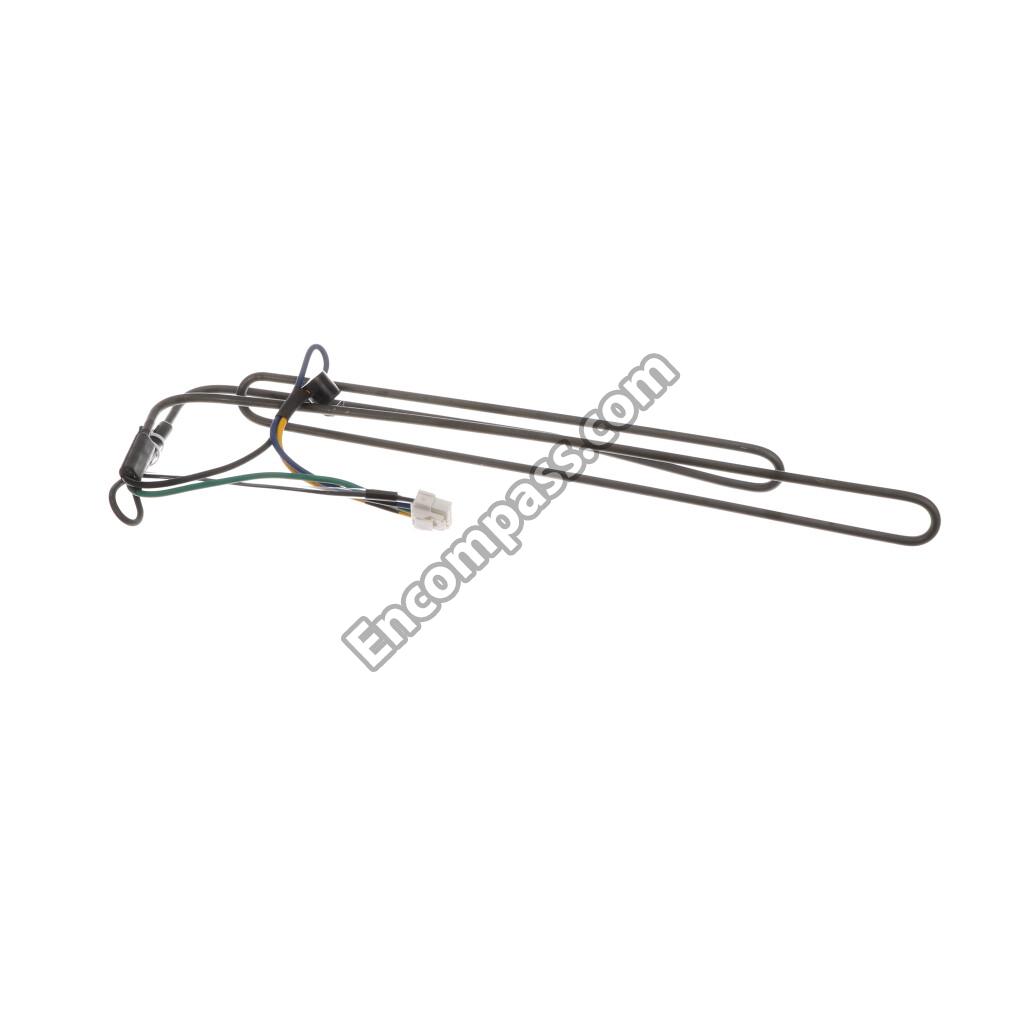

HEATER, DEFROST |
|
|
HOUSING, CONTROL BOX |
|
|
INSERT-PAN COVER, GLASS |
|
|
KNOB, COLD CONTROL |
|
|
MOTOR, CONDENSER FAN |
|
|
MOTOR, EVAPORATOR FAN, BLOWER |
|
|
PAN, CRISPER, (2) |
|
|
PAN-DEFROST |
|
|
PIN-CENTER HINGE |
|
|
PIN-LOWER HINGE |
|
|
PLATE, DIFFUSER |
|
|
PLUG, BUTTON, BLACK, UPR HINGE HOLES |
|
|
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET |
|
|
RING, LOCKING, (2) |
|
|
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN |
|
|
ROLLER ASSY, FRONT LH |
|
|
ROLLER ASSY, FRONT RH |
|
|
ROLLER, COMPRESSOR BASE, REAR |
|
|
SCREW, #10-16 X 1/2 |
|
|
SCREW, #8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, DRILLING, 10-24 X 3/4 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD, 1/4-20 X 5/8 |
|
|
SCREW, HEX HEAD, 10-32 X 0.500 |
|
|
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE |
|
|
SCREW,8-32 X 0.437 ,(4) |
|
|
SCREW,CONTROL MTG. |
|
|
SCREW,KIT FOUR SCREWS |
|
|
SCREW-#10-32 X 3/4, BLACK |
|
|
SCREW-#8-32 X 3/8 |
|
|
SCREW-FAN SHROUD, (2) |
|
|
SEAL,FOAM ,EVAP FAN ASSY |
|
|
SEAL-COIL COVER |
|
|
SHELF, FREEZER, WIRE |
|
|
SHELF, FULL WIDTH, GLASS, DELI, W/TRIM-STOP |
|
|
SHELF, FULL WIDTH, GLASS, W/TRIM-STOP |
|
|
SHIELD, FRONT, CONTROL BOX |
|
|
SHROUD BRACKET, EVAPORATOR FAN |
|
|
SHROUD-COND FAN |
|
|
SOCKET, LIGHT, LED |
|
|
SPACER, SHELF/WTR TUBE |
|
|
SPACER-COND TUBE, BLACK |
|
|
SPACER-HINGE, CENTER, BLACK |
|
|

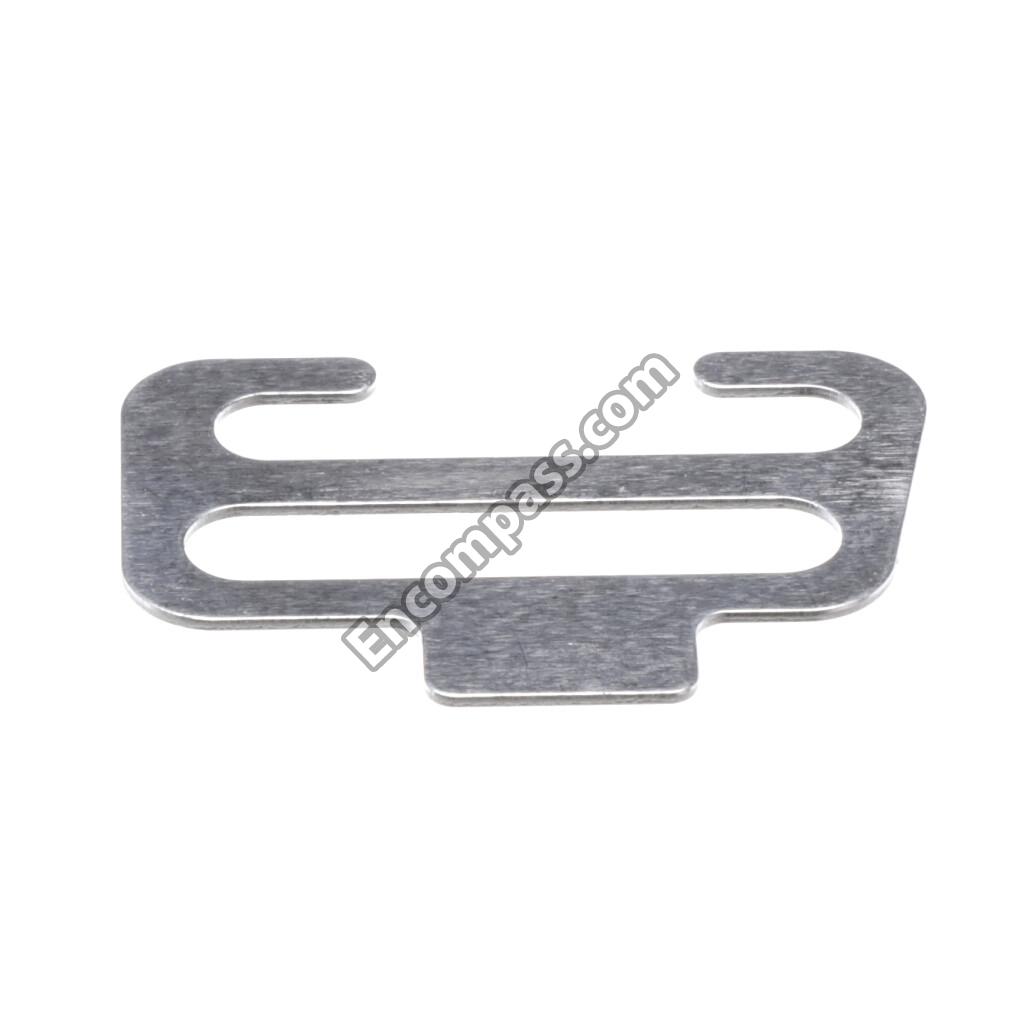

STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SUPPORT, EPS, LEFT |
|
|
SUPPORT, EPS, RIGHT |
|
|
SWITCH-LIGHT/LAMP |
|
|

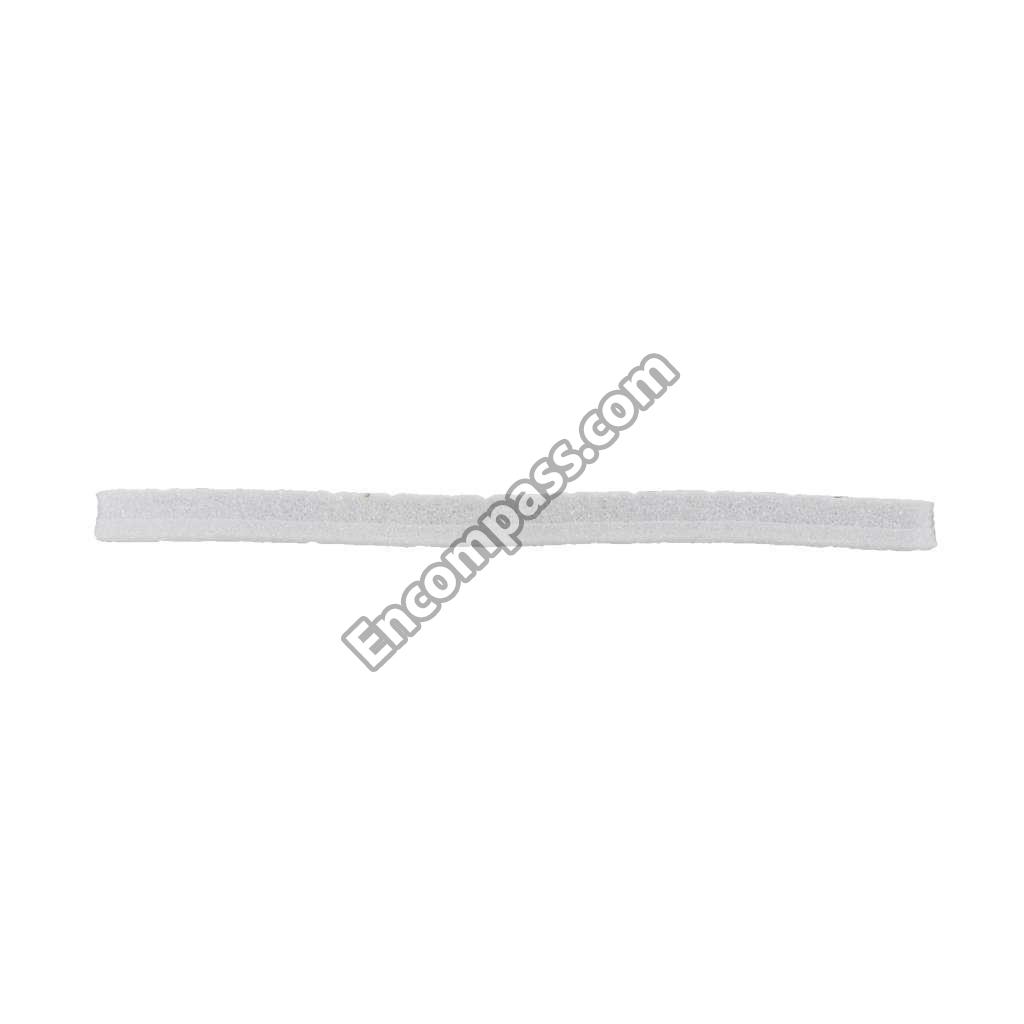

TAPE, FOAM SEAL, EVAPORATOR FAN |
|
|
TAPE, FOAM SEAL, SHROUD |
|
|
TIMER |
|
|
TRIM-CABINET CORNER, BLACK |
|
|
TROUGH-DRAIN |
|
|
TUBE, CONNECTOR, SUCTION |
|
|
TUBE, SENSOR SLEEVE, 31 INCH, PLASTIC, WHITE |
|
|
TUBE-PROCESS |
|
|
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT |
|
|
WASHER, HINGE, NYLON, (2) |
|
|
WASHER-COMPR MTG |
