Model Image
Manufacturer

Electrolux

Model Number

FWS833AS3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131427200 131427200 AGITATOR
134088700 134088700 BACKPANEL
134773500 134773500 BASE ASSEMBLY
3204405 3204405 BEARING
134487900 134487900 BRACKET
131433300 131433300 BUMPER
134075500 134075500 BUMPER
131453000 131453000 BUSHING
5303209428 5303209428 BUSHING
134046600 134046600 CABINET ASSEMBLY
131266800 131266800 CAP
131212301 131212301 CAPACITOR
131306234 131306234 CLAMP
131197000 131197000 CLIP
134745300 134745300 CLIP
3205821 3205821 CLIP
5303309503 5303309503 CLIP
5303283052 5303283052 CLIP-SHIELD
131122611 131122611 COVER
131122601 131122601 COVER
131206100 131206100 CUP
131663500 131663500 CUSHION
5303208778 5303208778 DISPENSER
131122711 131122711 END CAP-LH WHITE
131122701 131122701 END CAP-RH WHITE
134352500 134352500 ENERGY GUIDE
5303208743 5303208743 GROMMET
5303208751 5303208751 HINGE
131374220 131374220 HINGE BAR
131385910 131385910 HINGE BAR
131494800 131494800 HOSE
134418700 134418700 HUB
5303212877 5303212877 INSERT
131592001 131592001 KNOB
131141105 131141105 KNOB
131373610 131373610 LEG/DOME ASSEMBLY.
134156400 134156400 MOTOR
5303318708 5303318708 NUT
131557201 131557201 OUTER TUB
131422100 131422100 PAD
134870400 134870400 PANEL
131104303 131104303 PANEL
131452692 131452692 PANEL
131346400 131346400 PIN
131592105 131592105 POINTER
134501000 134501000 POWER CORD
131498301 131498301 PULLEY
131707800 131707800 RING
3161433 3161433 RING
134203900 134203900 SCR 6-32X.337 PPH D
131477000 131477000 SCREW
131205100 131205100 SCREW
131266330 131266330 SCREW
131243800 131243800 SCREW
134197900 134197900 SCREW
131205300 131205300 SCREW
134160900 134160900 SCREW
131468900 131468900 SCREW
134164400 134164400 SCREW
131205500 131205500 SCREW
131168200 131168200 SCREW
131658900 131658900 SCREW
3204368 3204368 SCREW
5303283293 5303283293 SCREW
3205150 3205150 SCREW
131901400 131901400 SEAL
131715801 131715801 SHIELD
131513300 131513300 SHIELD
3204380 3204380 SHIPPING BLOCK
3204426 3204426 SLEEVE
131339600 131339600 SPACER
131373900 131373900 SPRING
3204425 3204425 SPRING
131390000 131390000 STRIKE-LID
134407700 134407700 SWITCH

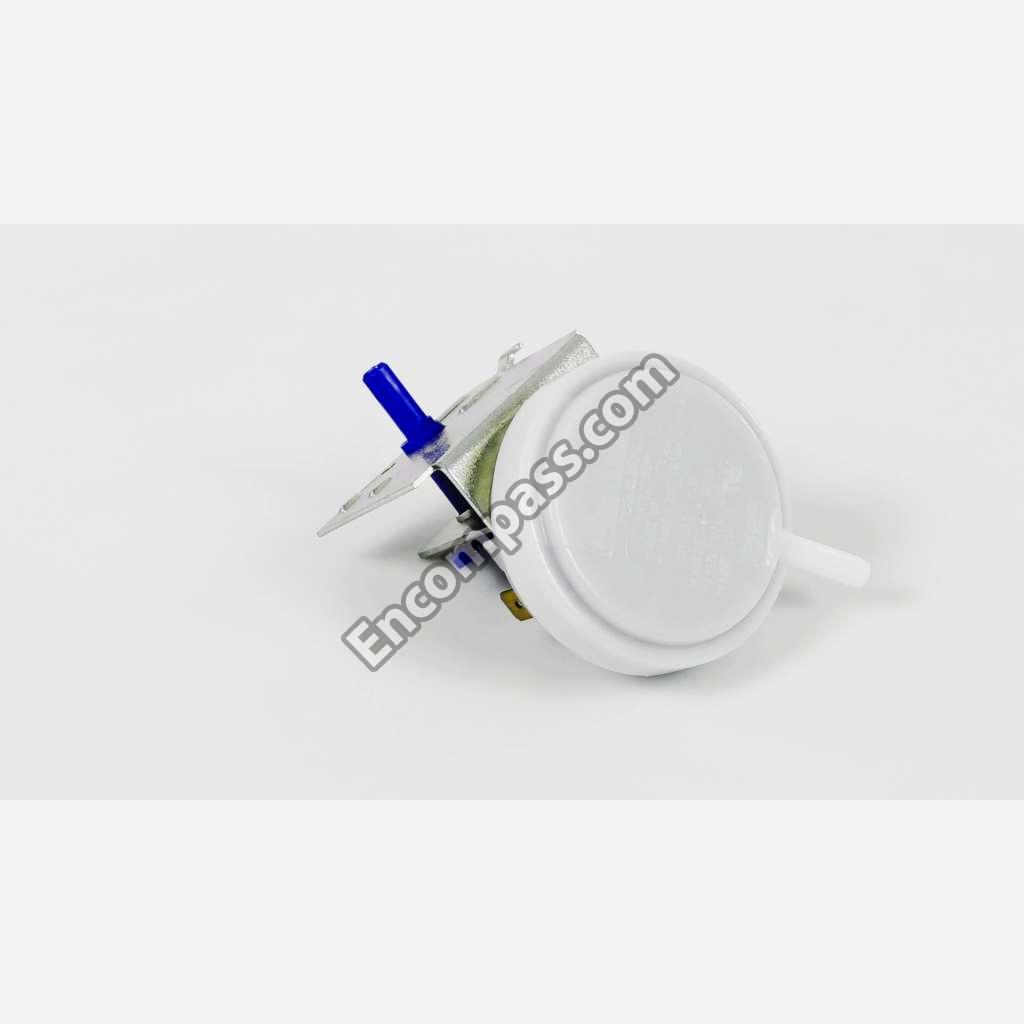

134411600 134411600 SWITCH-PRESSURE
131758600 131758600 TIMER
131545101 131545101 TRUNNION
5303279394 5303279394 TUB SEAL KIT FOR WASHER
5300771996 5300771996 TUBE
134511600 134511600 V-BELT FOR WASHER
134211400 134211400 VALVE
5308002401 5308002401 WASHER
5303261031 5303261031 WASHER
5303161296 5303161296 WASHER
5303161306 5303161306 WASHER
134545100 134545100 WIRING HARNESS
