Manufacturer
Electrolux
Model Number
GCRG302LAFC
Description
Range/oven, Gas, Freestanding, 30 Inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANTI TIP KIT, ASSY, W/TEMPLATE |
|
|
BACK, MAIN |
|
|
BAFFLE, BROILER |
|
|
BAFFLE, OVEN BURNER |
|
|
BOARD, AC DETECT |
|
|
BRACE, OVEN TOP |
|
|
BRACKET, AIR DAM |
|
|
BRACKET, HARNESS |
|
|
BRACKET, MOTOR MTG. |
|
|
BRACKET, REGULATOR |
|
|
BRACKET-BODYSIDE, (2) |
|
|
BRACKET-MAINTOP, LH |
|
|
BRACKET-MAINTOP, RH |
|
|
BRACKET-SUPPORT, CHASSIS, ALUMINUM, 11 |
|
|
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY |
|
|
BUMPER, FRONT, MAIN |
|
|
BURNER, BROILER |
|
|
BURNER, OVEN |
|
|
BURNER, SEALED, 14K |
|
|
BURNER, SEALED, 18.2K |
|
|
BURNER, SEALED, 5K |
|
|
BURNER, SEALED, 9.5K |
|
|
CAP, END, BLACK, LH |
|
|
CAP, END, BLACK, RH |
|
|
CAP-BURNER, 14K, BLACK, MATTE, 3MM |
|
|
CAP-BURNER, 17K, BLACK, MATTE, 3MM |
|
|
CAP-BURNER, 5A, BLACK, MATTE, 3MM |
|
|
CAP-BURNER, 9.5K, BLACK, MATTE, 3MM |
|
|
CLIP, BODYSIDE |
|
|
CLIP, WIRE |
|
|

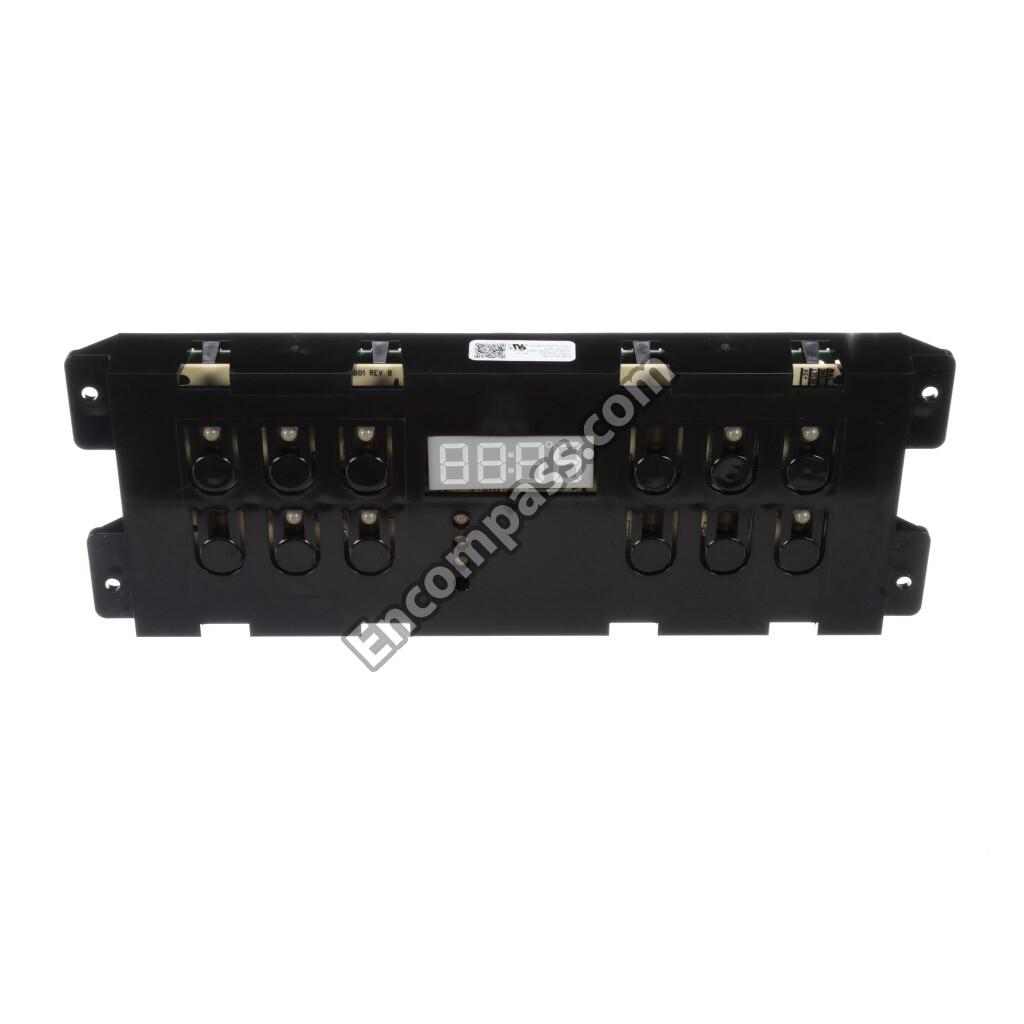

CONTROL-ES334ISB GAS SC, 20 # |
|
|
CORD, POWER, GREY, 39#, 7A |
|
|
COVER, BROIL IGNITOR |
|
|
COVER, FAN |
|
|
COVER, HOLE, CONV. ELEMENT |
|
|
DEFLECTOR, BACKGUARD |
|
|
DOOR CAP, TRIM, EZ CARE STNLESS |
|
|
DRAWER, UTILITY |
|
|
ELBOW, MIXER |
|
|
FAN BLADE |
|
|
FLUE |
|
|
GASKET-FLUE |
|
|
GLASS ASSEMBLY, DOOR, BLACK, OUTER, W/FOIL |
|
|
GLASS, OVEN DOOR, INNER |
|
|
GLIDE, DRAWER, BLACK, LH INNER |
|
|
GLIDE, DRAWER, BLACK, LH OUTER |
|
|
GLIDE, DRAWER, BLACK, RH INNER |
|
|
GLIDE, DRAWER, BLACK, RH OUTER |
|
|
GRATE, BLACK, CENTER |
|
|
GRATE, BLACK, LH |
|
|
GRATE, BLACK, RH |
|
|
HANDLE, DOOR/DRAWER, STAINLESS |
|
|

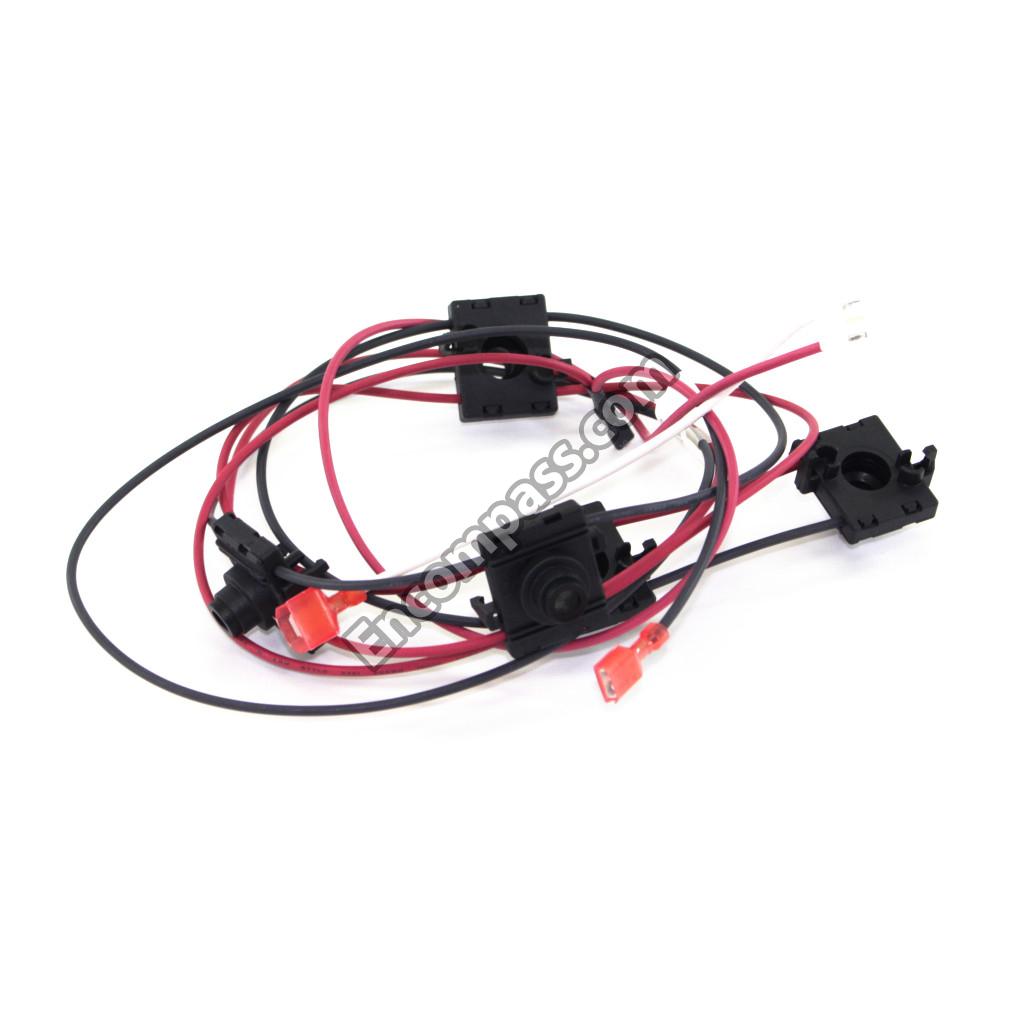

HARNESS, IGNITION |
|
|
HARNESS, IGNITOR MODULE |
|
|
HARNESS, MAIN |
|
|
HINGE, OVEN DOOR, GRAY |
|
|
IGNITOR, BAKE |
|
|
IGNITOR, BROILER |
|
|
IGNITOR/ORIFICE ASSY .,, TOP BURNER, RIGHT FRONT, 17K, W/TUBE & HOLDER |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9.5K, W/HOLDER & TUBE |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT, 9.5K, W/HOLDER, TUBE |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, 14K, W/HOLDER, TUBE |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR, 5K, W/HOLDER, TUBE |
|
|
INSULATION, DOOR, TOP CAP |
|
|
INSULATION, MAIN FRONT |
|
|
INSULATION, OVEN BACK |
|
|
INSULATION, OVEN DOOR |
|
|
INSULATION, OVEN WRAPPER |
|
|
KNOB, STAINLESS |
|
|
LABEL, ANTI-TIP |
|
|
LAMP, OVEN LIGHT |
|
|
LATCH ASSEMBLY, OVEN DOOR |
|
|
LENS, OVEN LIGHT, GLASS |
|
|
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET & LEG |
|
|
LINER, DRAWER |
|
|
LINER-OVEN DOOR |
|
|
LP CONVERSION KIT, W/INSTRUCTIONS, OPTIONAL, ACCESSORY |
|
|
MAIN TOP, BLACK |
|
|
MANIFOLD, PIPE |
|
|
MOTOR, LATCH |
|
|
MOTOR-FAN |
|
|
NUT, FAN RETAINER |
|
|
NUT, HEX HEAD SEMS |
|
|
ORIFICE, BURNER, 14K |
|
|
ORIFICE, BURNER, 17K |
|
|
ORIFICE, BURNER, 5K |
|
|
ORIFICE, BURNER, 9.5K |
|
|
OVERLAY, EOC, BLACK, ES335 |
|
|
PANEL, BACKGUARD, STAINLESS |
|
|
PANEL, BODYSIDE, BLACK, LH |
|
|
PANEL, BODYSIDE, BLACK, RH |
|
|
PANEL, DRAWER, STAINLESS |
|
|
PANEL, OVEN BOTTOM |
|
|
PANEL-MANIFOLD, STAINLESS |
|
|
PROBE, OVEN TEMP |
|
|
RACK, OVEN |
|
|
RECEPTACLE, HINGE |
|
|
RECEPTACLE, OVEN LIGHT, 24 # |
|
|
REGULATOR, PRESSURE |
|
|
RETAINER, LENS |
|
|
ROD, AUTO LATCH |
|
|
SCREW, 10-16 X .486 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, 8-18 X 11/16, BLACK, (3) |
|
|
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE |
|
|
SCREW, BRACKET, STIFFENER, (4) |
|
|
SCREW, BURNER, HEAD MTG, (8) |
|
|
SCREW, CONCRETE, 1.75", ANTI-TIP BRKT |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULATOR BRKT |
|
|
SCREW, LEVELING, PLASTIC, REAR, (2) |
|
|
SCREW, LOCTITE, #10-24X1.94, (2) |
|
|
SCREW, PAN HEAD, 8-18AB X 0.375 |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, TR HD SQD AB, 8-18 X 0.25, (8) |
|
|
SCREW, TRILOBE, 10-32 X 5/16", BLACK |
|
|
SCREW, TRUSS SQDR, 8A X 1", 62* |
|
|
SCREW, VALVE MTG., 1/4 - 20 |
|
|
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* |
|
|
SCREW,HANDLE MTG. |
|
|
SCREW,W/WASHER ,8-18 |
|
|
SEAL, OVEN DOOR |
|
|
SHEILD, IGNITER HEAT |
|
|
SHIELD, BACKGUARD, INNER |
|
|
SHIELD, BACKGUARD, INNER |
|
|
SHIELD, BACKGUARD, REAR WALL |
|
|
SHIELD, BAKE BURNER |
|
|
SHIELD, BURNER, FRONT |
|
|
SHIELD, FLUE |
|
|
SHIELD, HEAT, BODYSIDE, (2) |
|
|
SHIELD, HEAT, LOWER |
|
|
SHIELD, REAR WALL |
|
|
SHIELD, WIRE, SAFETY VALVE |
|
|
SHIELD, WOOL |
|
|
SHIELD, WOOL, LOWER |
|
|
SPACER |
|
|
SPACER, DOOR, LH |
|
|
SPACER, DOOR, RH |
|
|
SPACER, GLASS |
|
|
SPACER, POWER BOARD |
|
|
SPARK MODULE |
|
|
SWITCH, OVEN LIGHT, DOOR FRAME |
|
|
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE |
|
|
TUBE, VALVE-MIXER, 3/8 |
|
|
TUBE, VALVE-REGULATOR, 3/8 |
|
|
TUBE-MANIFOLD SUPPLY |
|
|
VALVE, SAFETY |
|
|
VALVE, TOP BURNER, BLACK STEM, 500BTU |
|
|
VALVE, TOP BURNER, BLUE STEM, 1125BTU |
|
|
VALVE, TOP BURNER, GREEN STEM, 850BTU |
|
|
VALVE, TOP BURNER, RED STEM, 1800BTU |
|
|
WIRE, GROUND, SPARK MODULE, W/CONNECTOR |
