Manufacturer
Electrolux
Model Number
GCWD2767AFE
Description
Wall Oven, Electric, Double, 27 Inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BAFFLE, DOOR |
|
|
BLADE, FAN, CONVECTION |
|
|
BLOWER ASSEMBLY, COOLING, CROSS FLOW, W/BAFFLE-BRACKT |
|
|
BOARD ASSEMBLY, OVC CONTROL, W/BRACKET |
|
|
BOX, BAKE ELEMENT |
|
|
BOX, FAN SERVICE |
|
|
BRACKET, CABLE MTG. |
|
|
BRACKET, CONDUIT |
|
|
BRACKET, CONDUIT MTG. |
|
|
BRACKET, FAN MTG., CROSS FLOW |
|
|
BRACKET, MOUNTING |
|
|
BRACKET, SIDE CAVITY, SHORT, (2) |
|
|
BRACKET, SIDE, BOTTOM, (2) |
|
|
BRACKET, SUPPORT, CHASSIS/FAN |
|
|
BRACKET, SUPPORT, SIDE, (2) |
|
|
BUMPER, FRONT, MAIN |
|
|
CONTROL |
|
|
CONTROL PANEL, ASSEMBLY, STAINLESS |
|
|
COVER, CONTROL ACCESS |
|
|
COVER, CONVECTION FAN, MIDNIGHT BLACK |
|
|
COVER, LATCH MOTOR |
|
|
COVER, LATCH MOTOR, LOWER OVEN |
|
|
COVER, OVEN TOP |
|
|
DOOR ASSEMBLY, OUTER, GLASS/STEEL, STAINLESS |
|
|
DUCT, COOLING FAN, LOWER |
|
|
DUCT, COOLING FAN, UPPER |
|
|
DUCT, COOLING, LOWER OVEN |
|
|
ELEMENT, BROIL, 6 PASS, 4000W |
|
|
ELEMENT, CONVECTION, 2500W |
|
|
ELEMENT, HIDDEN BAKE, 2500W |
|
|
GLASS, DOOR, INNER, (2), EKO |
|
|
HANDLE, DOOR, STAINLESS |
|
|
HARNESS, CONDUIT ASSY, POWER CONNECT |
|
|
HARNESS, WIRING, ADS MDL, TACHOMETER |
|
|
HARNESS, WIRING, LOWER OVEN, ADS MDL |
|
|
HARNESS, WIRING, LOWER, CAVITY |
|
|
HARNESS, WIRING, MAIN |
|
|
HARNESS, WIRING, MDL, POWER JUMPER |
|
|
HARNESS, WIRING, UPPER ADS |
|
|

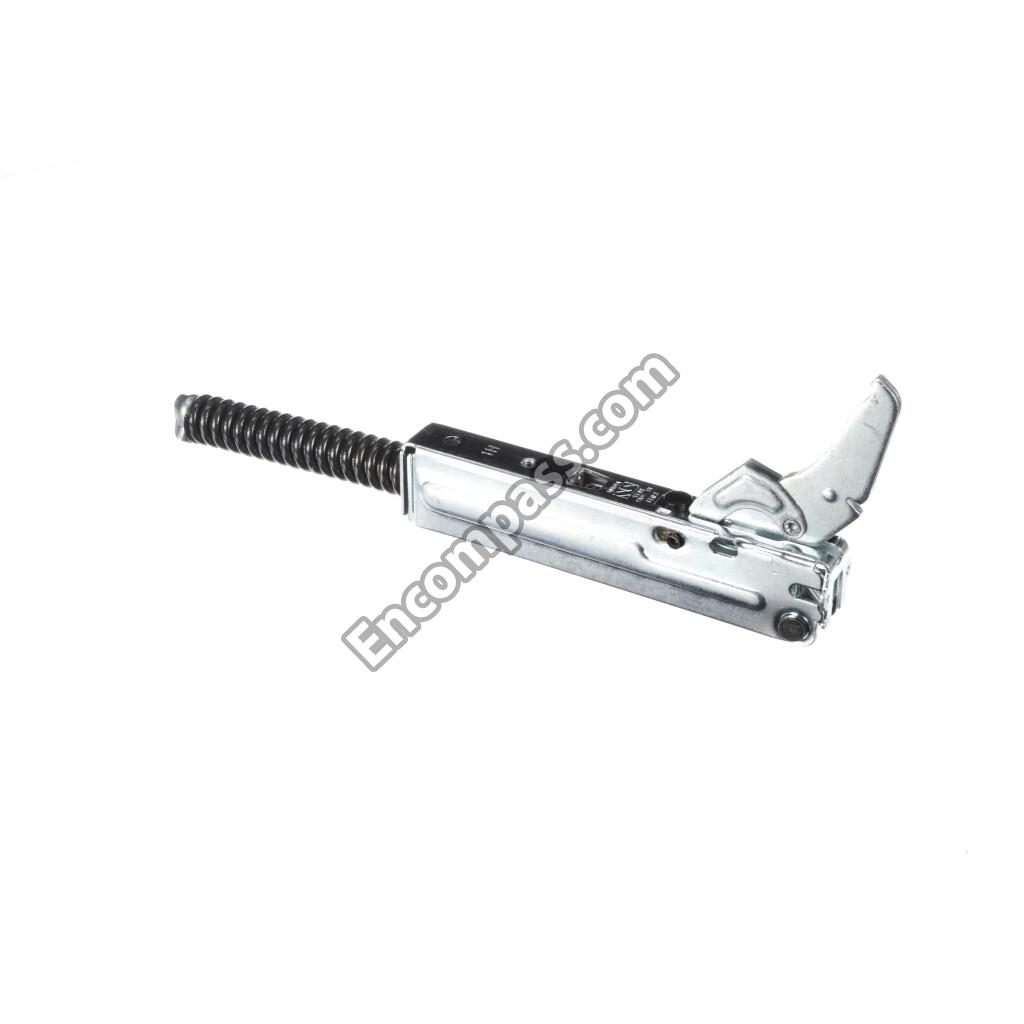

HINGE, DOOR, BLUE, SOFT CLOSE |
|
|
HOUSING, CONTROLLER |
|
|
HOUSING, FAN, AIR DIVERTER |
|
|
INSTALL KIT, WOOD BRACING, W/SCREWS |
|
|
INSULATION, 20.5 X 2.375, 1" THICK, (2) |
|
|
INSULATION, BAKE ELEMENT, FRONT |
|
|
INSULATION, BAKE ELEMENT, LOWER |
|
|
INSULATION, BAKE ELEMENT, SIDE |
|
|
INSULATION, DOOR |
|
|
INSULATION, NOISE DAMPENING |
|
|
INSULATION, OVEN WRAPPER, 27", TOP & SIDES |
|
|
INSULATION, OVEN, BACK |
|
|
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V |
|
|
LINER, OVEN DOOR |
|
|
MOTOR ASSEMBLY, BLOWER |
|
|
MOTOR, CONVECTION FAN, 2 SPEED |
|
|
MOTOR, LATCH ASSEMBLY, 2 TERMINAL |
|
|
NUT, FAN RETAINER |
|
|
NUT, HEX FLANGE, 3/8 10-32 |
|
|
PANEL, MAIN BACK |
|
|
PANEL, SERVICE, MAIN BACK |
|
|
PROBE, MEAT TEMP, RED |
|
|
PROBE, TEMP |
|
|
RACK |
|
|
RACK ASSEMBLY, GLIDING, NICKEL, W/HANDLE |
|
|
RECEPTACLE ASSY, MEAT PROBE |
|
|
RECEPTACLE, HINGE, SOFT CLOSE |
|
|
SCREW, 4.2 X 10 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, 8-18 X 5/16, BLACK |
|
|
SCREW, ANTI-TIP, 8 - 5/8, BLACK, (2) |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HANDLE MTG. |
|
|
SCREW, M4, 2 X 10, BLACK, W/WASHER |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, T-20 ST, 8-24 X 5/8 |
|
|
SCREW, T15, 8-18 1/2, BLACK |
|
|
SCREW, T20, 8-18 X .79 |
|
|
SCREW, TRUSS SQDR, 8A X 1", 62* |
|
|
SEAL, OVEN DOOR, GRAY |
|
|
SHEILD, AIR DEFLECTOR, BACK |
|
|
SHIELD, BAKE ELEMENT, REAR |
|
|
SHIELD, DOOR SWITCH |
|
|
SHIELD, FAN, CROSS FLOW |
|
|
SHIELD, INSULATION, LOWER |
|
|
SHIELD, INSULATION, SIDES, (2) |
|
|
SHIELD, INSULATION, TOP |
|
|
SHIELD, REAR WIRE, MAIN BACK |
|
|
SPACER, GLASS, (2) |
|
|
SPACER, GLASS, FOAM |
|
|
SPACER, OVEN SHIELD, (2) |
|
|
SWITCH,OVEN LIGHT ,DOOR FRAME |
|
|
TERMINAL BLOCK KIT |
|
|
THERMOSTAT |
|
|
TRAY, STEAM, MIDNIGHT BLACK |
|
|
TRIM, BOTTOM, STAINLESS |
|
|
TRIM, DOOR, BLACK, SIDE |
|
|
TRIM, SIDE, BLACK, LH |
|
|
TRIM, SIDE, BLACK, RH |
|
|
TRIM, VENT, BLACK, FRONT |
|
|
TUBE ASSEMBLY, VENT, W/CATALYST |
|
|
TUBE, CONVECTION FAN |
