Manufacturer
Electrolux
Model Number
GCWM2767AFF
Description
Wall Oven, Micro Combo, 27 Inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESSORY KIT, MICROWAVE, W/TRAY-RACK |
|
|
BAFFLE, DOOR |
|
|
BASE, PLATE, BOTTOM |
|
|
BLADE, FAN, CONVECTION |
|
|
BLOWER ASSEMBLY, COOLING, CROSS FLOW, W/BAFFLE-BRACKT |
|
|
BOARD-OVC M MC ARIANE |
|
|
BOX, BAKE ELEMENT |
|
|
BRACKET, CABLE MTG. |
|
|
BRACKET, CONDUIT MTG. |
|
|
BRACKET, CONTROL PANEL |
|
|
BRACKET, HEATING ELEMENT |
|
|
BRACKET, SIDE CAVITY, SHORT, (2) |
|
|
BRACKET, SIDE, BOTTOM, (2) |
|
|
BRACKET, SUPPORT, CHASSIS/FAN |
|
|
BRACKET, SUPPORT, CONTROL PANEL |
|
|
BRACKET-CONTROL PANEL EMC 27 |
|
|
BUMPER, FRONT, MAIN |
|
|
CAPACITOR, 60HZ |
|
|
CLIP KIT, POWER BOARD, (11 CLIP PACK) |
|
|
CLIP, PC BOARD, (4) |
|
|
CLIP, PC BOARD, FLAT TOP |
|
|
CNTRL EOC APX NO CN |
|
|
CONTROL PANEL, ASSEMBLY, STAINLESS |
|
|
COOLING FAN, ASSEMBLY, 22W, 120V |
|
|
COUPLER, TURNTABLE |
|
|
COVER, BACK |
|
|
COVER, CABLE GUARD |
|
|
COVER, COLUMN, LH |
|
|
COVER, COLUMN, RH |
|
|
COVER, CONVECTION FAN, BACK |
|
|
COVER, CONVECTION FAN, MIDNIGHT BLACK |
|
|
COVER, DOOR GLASS, TOP, SEPARATOR |
|
|
COVER, DOOR TOP, PLASTIC |
|
|
COVER, MICA |
|
|
DIODE, HIGH VOLTAGE |
|
|
DOOR ASSEMBLY, OUTER, GLASS/STEEL, STAINLESS |
|
|
DOOR ASSEMBLY, OUTER, STAINLESS, MICROWAVE |
|
|
DOOR FRAME, INNER, MICROWAVE, W/GLASS |
|
|
DOOR GLASS, ASSEMBLY, FRONT, MICROWAVE |
|
|
DUCT, COOLING, LOWER OVEN |
|
|
DUCT, COOLING, XFLOW |
|
|
DUCT, MAGNETRON |
|
|
DUCT, SUCTION BYPASS, 2 CHANNEL |
|
|
ELEMENT, BROIL, 6 PASS, 4000W |
|
|
ELEMENT, CONVECTION, 2500W |
|
|
ELEMENT, HEATING, CONVECTION FAN |
|
|
ELEMENT, HEATING, UPPER, GRILL |
|
|
ELEMENT, HIDDEN BAKE, 2500W |
|
|
FAN BLADE, CONVECTION |
|
|
FILTER, VOLTAGE, RFI |
|
|
FUSE HOLDER, ASSEMBLY, 412 #, 20A, W/FUSE |
|
|
GASKET, DOOR COVER, MICROWAVE |
|
|
GASKET, DOOR, MICROWAVE |
|
|
GLASS, DOOR, INNER |
|
|
GLASS, DOOR, INNER, (2), EKO |
|
|
GLASS, DOOR, INNER, W/GRAPHICS |
|
|
HANDLE, DOOR, STAINLESS |
|
|
HARNESS, CAVITY, LOWER |
|
|
HARNESS, COMMUNICATION, MACS, OVC TO LUX/PUX |
|
|
HARNESS, CONDUIT ASSY, POWER CONNECT |
|
|
HARNESS, WIRING, ADS MDL |
|
|
HARNESS, WIRING, JUMPER, TACHOMETER |
|
|
HARNESS, WIRING, LOW VOLTAGE |
|
|
HARNESS, WIRING, MAIN |
|
|
HINGE, DOOR, BLUE, SOFT CLOSE |
|
|
HINGE, DOOR, MICROWAVE |
|
|
HOLDER, CABLE, ROUND |
|
|
HOUSING, CONTROLLER |
|
|
HOUSING, FAN, AIR DIVERTER |
|
|
HOUSING, TOP, COMPLETE |
|
|
INNER DOOR, ASSEMBLY, MICROWAVE |
|
|
INSTALL KIT, WOOD BRACING, W/SCREWS |
|
|
INSULATION, 20.5 X 2.375, 1" THICK, (2) |
|
|
INSULATION, BAKE ELEMENT, FRONT |
|
|
INSULATION, BAKE ELEMENT, LOWER |
|
|
INSULATION, BAKE ELEMENT, SIDE |
|
|
INSULATION, DOOR |
|
|
INSULATION, NOISE DAMPENING |
|
|
INSULATION, OVEN WRAPPER, 27", TOP & SIDES |
|
|
INSULATION, OVEN, BACK |
|
|
INTERLOCK |
|
|
INTERLOCK |
|
|
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V |
|
|
LINER, OVEN DOOR |
|
|
MAGNETRON |
|
|
MOTOR, CONVECTION FAN |
|
|
MOTOR, CONVECTION FAN, 2 SPEED |
|
|
MOTOR, LATCH ASSEMBLY, 2 TERMINAL |
|
|
MOTOR, TURNTABLE |
|
|
MOUNTING PLATE, BACK |
|
|
NUT, FAN BLADE |
|
|
NUT, FAN RETAINER |
|
|
NUT, HEAT ELEMENT, UPPER |
|
|
NUT, HEX FLANGE, 3/8 10-32 |
|
|
PANEL, MAIN BACK |
|
|
PANEL, OVEN BACK |
|
|
PANEL, SERVICE, MAIN BACK |
|
|
PANEL, SIDE |
|
|

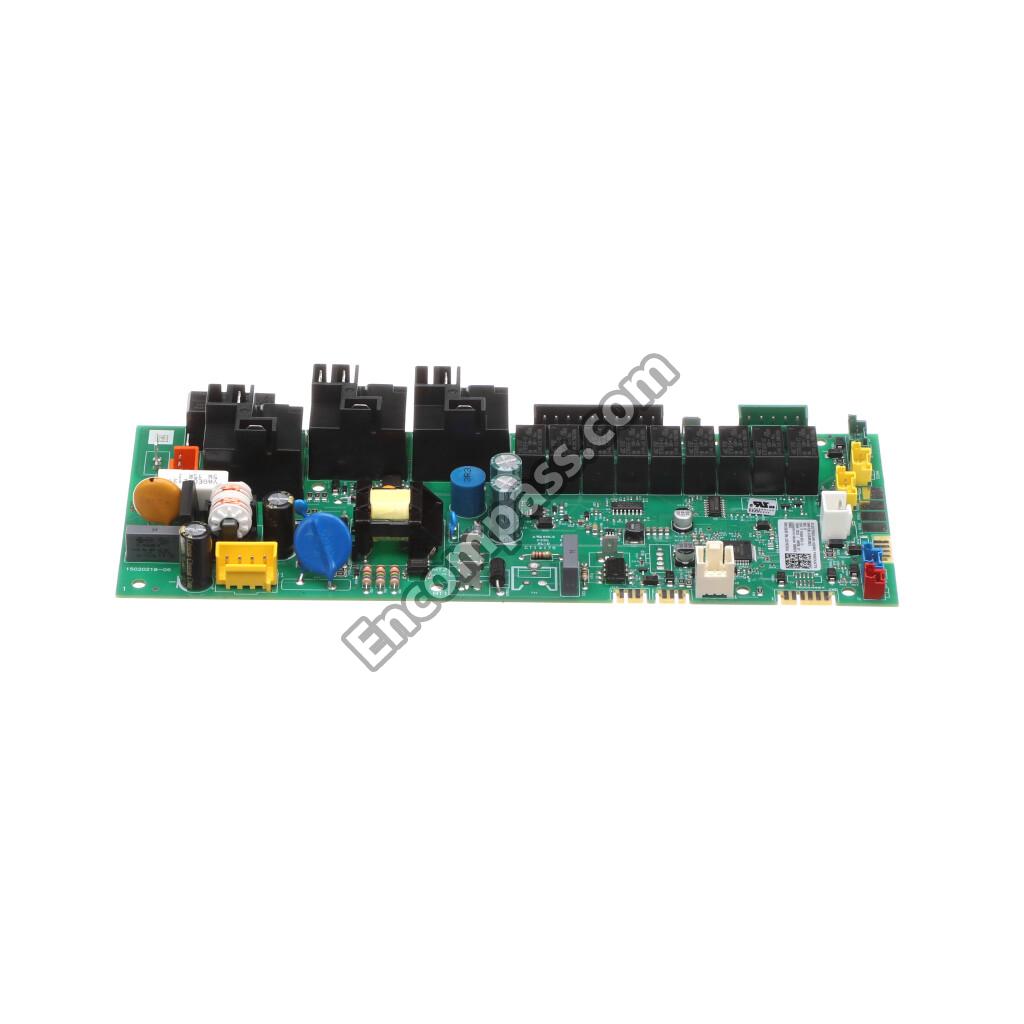

PC BOARD, POWER, OVC-P |
|
|
PIN, SUPPORT, WIRE SHELF |
|
|
PLATE, SUPPORT |
|
|
PROBE, MEAT TEMP, RED |
|
|
PROBE, TEMP |
|
|
RACK |
|
|
RACK ASSEMBLY, GLIDING, NICKEL, W/HANDLE |
|
|
RECEPTACLE ASSY, MEAT PROBE |
|
|
RECEPTACLE, HINGE, SOFT CLOSE |
|
|
ROLLER ASSEMBLY, TURNTABLE, SPIDER |
|
|
SCREW KIT, T20, 4, 2 X 16, (4 PACK) |
|
|
SCREW, 4.2 X 10 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, 8-18 X 5/16, BLACK |
|
|
SCREW, AB PAN T20, N6 X 1/4, (11) |
|
|
SCREW, ANTI-TIP, 8 - 5/8, BLACK, (2) |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HANDLE MTG. |
|
|
SCREW, M4, 2 X 10, BLACK, W/WASHER |
|
|
SCREW, PT T20, 4 X 10, (8) |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, T15, 8-18 1/2, BLACK |
|
|
SCREW, T20, 8-18 X .79 |
|
|
SCREW, TRUSS, 8-32 X 17.65 |
|
|
SEAL, OVEN DOOR, GRAY |
|
|
SENSOR, MAGNETRON, NTC |
|
|
SENSOR, PT500 |
|
|
SHEILD, AIR DEFLECTOR, BACK |
|
|
SHIELD, BAKE ELEMENT, REAR |
|
|
SHIELD, CONVECTION FAN, CHOKE |
|
|
SHIELD, FAN, CROSS FLOW |
|
|
SHIELD, INSULATION, LOWER |
|
|
SHIELD, INSULATION, SIDES, (2) |
|
|
SHIELD, INSULATION, TOP |
|
|
SHIELD, REAR WIRE, MAIN BACK |
|
|
SPACER |
|
|
SPACER, DOOR HANDLE |
|
|
SPACER, GLASS, (2) |
|
|
SPACER, OVEN SHIELD, (2) |
|
|
SPACER, SIDE, LH |
|
|
SPACER, SIDE, RH |
|
|
STOPPER, PLASTIC, LH DOOR |
|
|
STOPPER, PLASTIC, RH DOOR |
|
|
SUPPORT, CONNECTION BOX |
|
|
SUPPORT, LH HINGE |
|
|
SUPPORT, RH HINGE |
|
|
SUPPORT, SIDE |
|
|
SUPPORT, WIRE SHELF |
|
|
SWITCH,OVEN LIGHT ,DOOR FRAME |
|
|
TAPE, DRIP, FRONT, DOOR GLASS |
|
|
TERMINAL BLOCK |
|
|
THERMOSTAT |
|
|
TRANSFORMER, 60HZ, 120V |
|
|
TRAY, STEAM, MIDNIGHT BLACK |
|
|
TRIM, BOTTOM, STAINLESS |
|
|
TRIM, DOOR, BLACK, SIDE |
|
|
TRIM, FILLER, BLACK, LH |
|
|
TRIM, FILLER, BLACK, RH |
|
|
TRIM, VENT, BLACK |
|
|
TUBE ASSEMBLY, VENT, W/CATALYST |
|
|
TUBE, CONVECTION FAN |
|
|
TURNTABLE, GLASS, ROUND |
|
|
WASHER |
