Model Image
Manufacturer

Electrolux

Model Number

GEF354BBWC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3934058 3934058 ANTI-TIP KIT
5303283574 5303283574 BRACKET
5303283575 5303283575 BRACKET
316081201 316081201 BRACKET-CABLE MTG
3131275 3131275 BUKB-FLUORESCENT
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
3131903 3131903 BUMPER
316015400 316015400 CAP-END
316015401 316015401 CAP-END
5303284616 5303284616 CLIP-THERMOSTAT

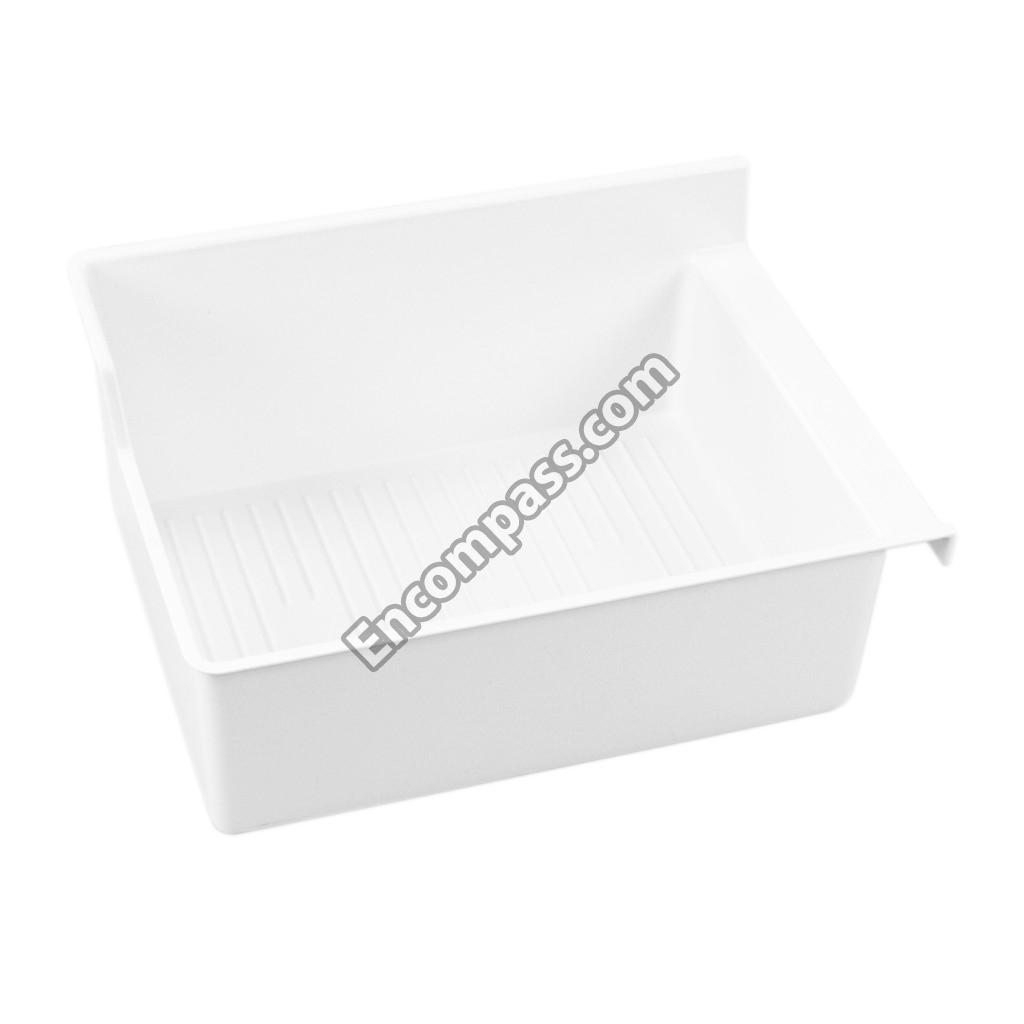

5303212918 5303212918 CONTAINER-ICE,34,FOR 178675-0
5303303674 5303303674 CONTROL, TEMPERATURE
3131570 3131570 COVER
5303051140 5303051140 ELEMENT,BROIL ,2950 W
316442301 316442301 ELEMENT-SURFACE,LARGE-8``
316439801 316439801 ELEMENT-SURFACE,SMALL-6``
3201150 3201150 END CAP-SHELF,PROTECTOR ,FRZR SHELF
3131387 3131387 FASTENER-SPACER
5303276826 5303276826 GASKET-FRZR DOOR,ALMOND ,MAGNETIC
316088600 316088600 GLASS,OVEN DOOR ,INNER
316088700 316088700 GLASS-OVEN DOOR, AIRWASH
3051162 3051162 GLIDE,DRAWER ,FRONT
3051163 3051163 GLIDE-DRWR

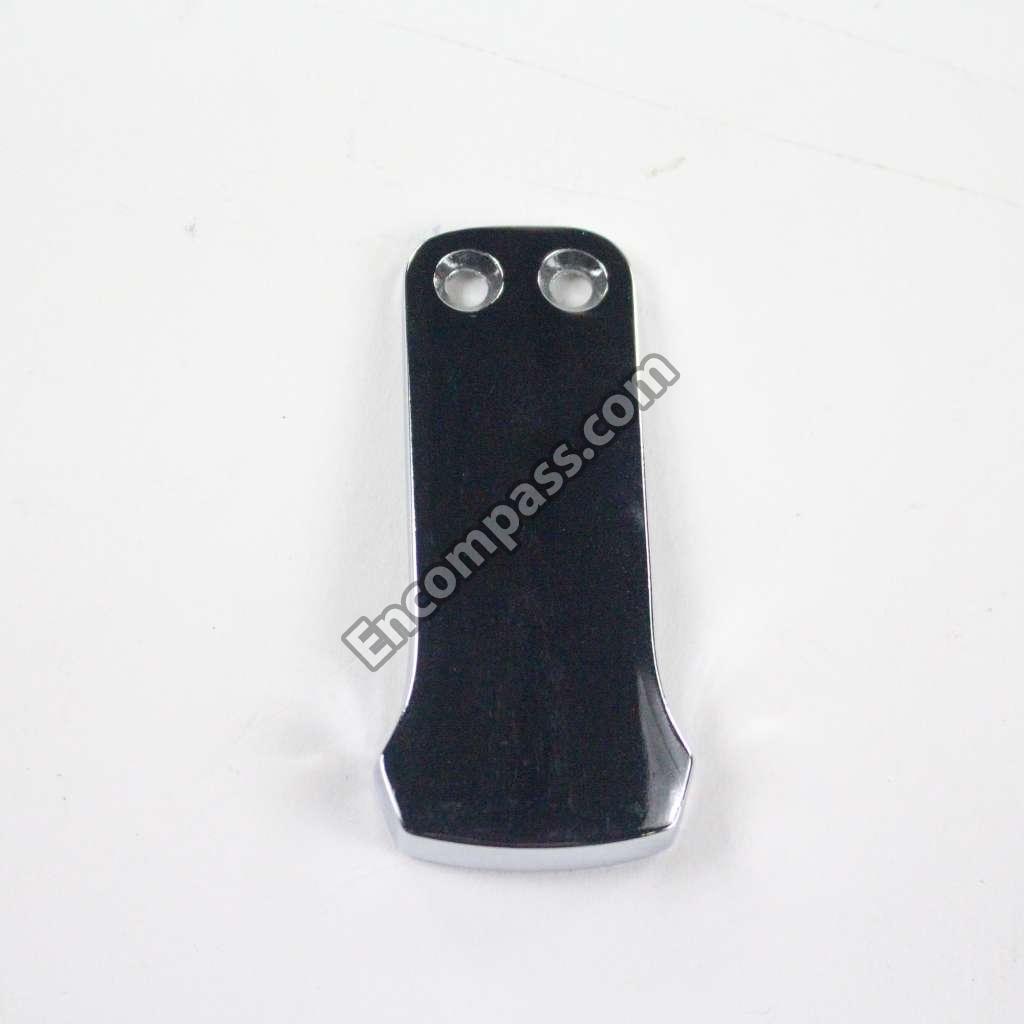

5303001296 5303001296 HANDLE, END (2)
316019506 316019506 HANDLE-DRAWER
5303209272 5303209272 HANGER-MEAT PAN/DELI TRAY, LH, (2) (NON-ILLUSTRATED)
5303209273 5303209273 HANGER-MEAT PAN/DELI TRAY, RH, (2)
5303273063 5303273063 HINGE
318222400 318222400 HOUSING,OVEN LIGHT
5303917276 5303917276 INSULATION-DOOR
316087222 316087222 KNOB-SURFACE
5303275221 5303275221 KNOB-TEMP CONTROL
316087225 316087225 KNOB-THERMOSTAT
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316022503 316022503 LIGHT-INDICATOR ,250 V
316066610 316066610 LINER
316202388 316202388 MAIN TOP
5303017715 5303017715 MEDALLION, 1-1/2`` DIA, BLACK, SURFACE ELEMENT
5303288460 5303288460 NUT
5303935053 5303935053 PAN,SURFACE ELEMENT ,BLACK ,LG/8 INCH ,(2),W/CLIP
5303935055 5303935055 PAN,SURFACE ELEMENT ,BLACK ,SML/6 INCH ,(2),W/CLIP
316065300 316065300 PLATE-WARNING/CAUTI
3203550 3203550 PLUG
5303281388 5303281388 RACK, DOOR
316008200 316008200 RECEPTACLE-LAMP
316008201 316008201 RECEPTACLE-LAMP
5303208655 5303208655 REFLECTOR
5303208656 5303208656 REFLECTOR
316087500 316087500 RETAINER
316026400 316026400 ROD
316026800 316026800 ROD
316057601 316057601 ROD
5308011745 5308011745 SCREW
5303281584 5303281584 SCREW
5303292005 5303292005 SCREW
316021105 316021105 SCREW
316116000 316116000 SCREW
5303285179 5303285179 SCREW
5303212671 5303212671 SCREW
218188000 218188000 SCREW, PAN HD, 10-32X0.625, HINGE/MULL, THRD FORM
215005101 215005101 SCREW,HANGER/RLR MTG ,8-10 X 0.438
5304455650 5304455650 SCREW,HEX WASHER HEAD ,8-15A X 0.625 ,
5303281651 5303281651 SCREW-DRAWER HANDLE
5303280308 5303280308 SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2, (2)
5303203397 5303203397 SCREW-LEVELING
5303131601 5303131601 SEAL-S/C DOOR
316015907 316015907 SHIELD
5304403169 5304403169 SHIELD
3200834 3200834 SHIELD-HEAT
3014099 3014099 SPACER
5300807601 5300807601 SPRING - DOOR
3206218 3206218 STARTER-LAMP
5303007295 5303007295 SUPPORT RH (3)
5303205987 5303205987 SUPPORT, CRISPER COVER, ADJUSTABLE
316203400 316203400 SUPPORT,ELEMENT ,BROIL
5303007297 5303007297 SUPPORT-DOOR RACK, LH
316015500 316015500 SUPPORT-RECEPTACLE
316023200 316023200 SWITCH,SELECTOR
316436000 316436000 SWITCH-INFINITE, 6`` ELEMENT
5303935086 5303935086 SWITCH-INFINITE, 8`` ELEMENT
5309918806 5309918806 SWITCH-LIGHT/ LAMP
215667501 215667501 TRAY,ICE CUBE ,PLASTIC
316067802 316067802 TRIM
316073600 316073600 TUBE
316001725 316001725 WIRING HARNESS
