Model Image
Manufacturer

Electrolux

Model Number

GEF365BHDA

Description

Free Standing Electric Range

Interactive Exploded View

Parts List

Part Number Description
5304465312 5304465312 ACCESS COVER
3131361 3131361 ALUMINUM FOIL
316015905 316015905 BACKING SHIELD
316096900 316096900 BEZEL NAMEPLATE
316100400 316100400 BRACKET CLOCK
316099201 316099201 BRACKET SUPPORT
3131903 3131903 BUMPER
3203550 3203550 BUTTON PLUG
316099101 316099101 CHANNEL SUPPORT
316076591 316076591 CONTROL PANEL
316076590 316076590 CONTROL PANEL

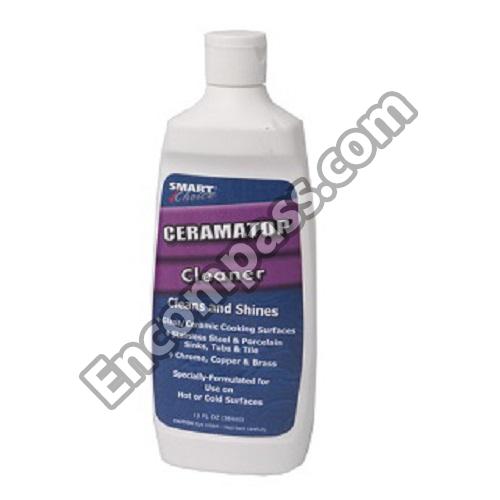

5305514077 5305514077 COOKTOP CLEANER
316036300 316036300 DOOR LATCH
316084406 316084406 DRAWER PANEL
316084405 316084405 DRAWER PANEL
316021113 316021113 DRAWER SCREW
316067804 316067804 DRIVE TRIM
5303208656 5303208656 GLASS
316081403 316081403 GLASS BRACKET
316089005 316089005 GLASS-OVEN D
316089000 316089000 GLASS-OVEN D
316089600 316089600 HANDLE SPACER
5303283575 5303283575 HINGE
5303283574 5303283574 HINGE
5303273063 5303273063 HINGE ASY LH
5303273062 5303273062 HINGE ASY RH
316099300 316099300 INDICATOR LIGHT
316105100 316105100 INDICATOR LIGHT
316076403 316076403 INSULATION
316218304 316218304 INSULATION
316095421 316095421 LABEL
316095403 316095403 LABEL
5304449471 5304449471 LATCH MOTOR
316026400 316026400 LATCH ROD
316026800 316026800 LIGHT SWITCH ROD
316098105 316098105 MAIN
316098104 316098104 MAIN
316098103 316098103 MAIN
316080803 316080803 MAIN
316064009 316064009 MANIFOLD
316064030 316064030 MANIFOLD PANEL
316040100 316040100 MOUNTING BRACKET
316096901 316096901 NAMEPLATE

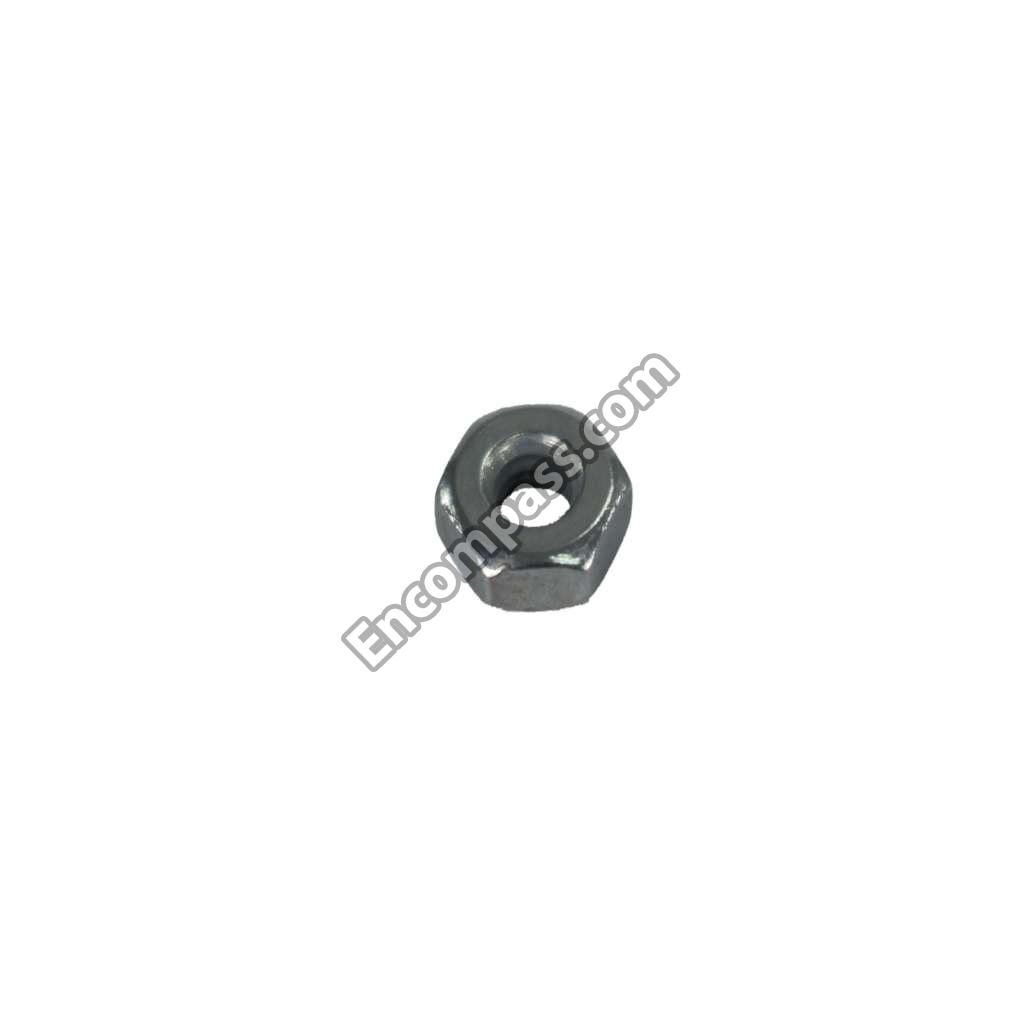

5304401788 5304401788 NUT
3203540 3203540 OVEN
08067758 08067758 OVEN COVER
316066610 316066610 OVEN DOOR INNER LINER
316081303 316081303 OVEN SHIELD
316081301 316081301 OVEN SHIELD
316027701 316027701 OVEN SWITCH
316023600 316023600 OVEN VE TUBE
316073602 316073602 OVEN VE TUBE
316099909 316099909 PANEL
316099907 316099907 PANEL
316099908 316099908 PANEL
316065306 316065306 PLATE
316081600 316081600 PLATE
316112005 316112005 RANGE ANTI-TIP BRACKET KIT
316075103 316075103 RANGE BAKE ELEMENT
5303051140 5303051140 RANGE BROIL ELEMENT
316203400 316203400 RANGE BROIL ELEMENT SUPPORT
5304494997 5304494997 RANGE BROIL PAN AND INSERT
3051163 3051163 RANGE DRAWER GLIDE
3051162 3051162 RANGE DRAWER GLIDE, FRONT
5303208655 5303208655 RANGE DRIP PAN
316022503 316022503 RANGE INDICATOR LIGHT
318228310 318228310 RANGE INDICATOR LIGHT LENS
316003025 316003025 RANGE INSTALLATION
316129200 316129200 RANGE LEVEL LEG
316116400 316116400 RANGE LIGHT SOCKET
316099500 316099500 RANGE MAIN TOP GUIDE PIN
316101001 316101001 RANGE OVEN CONTROL BOARD

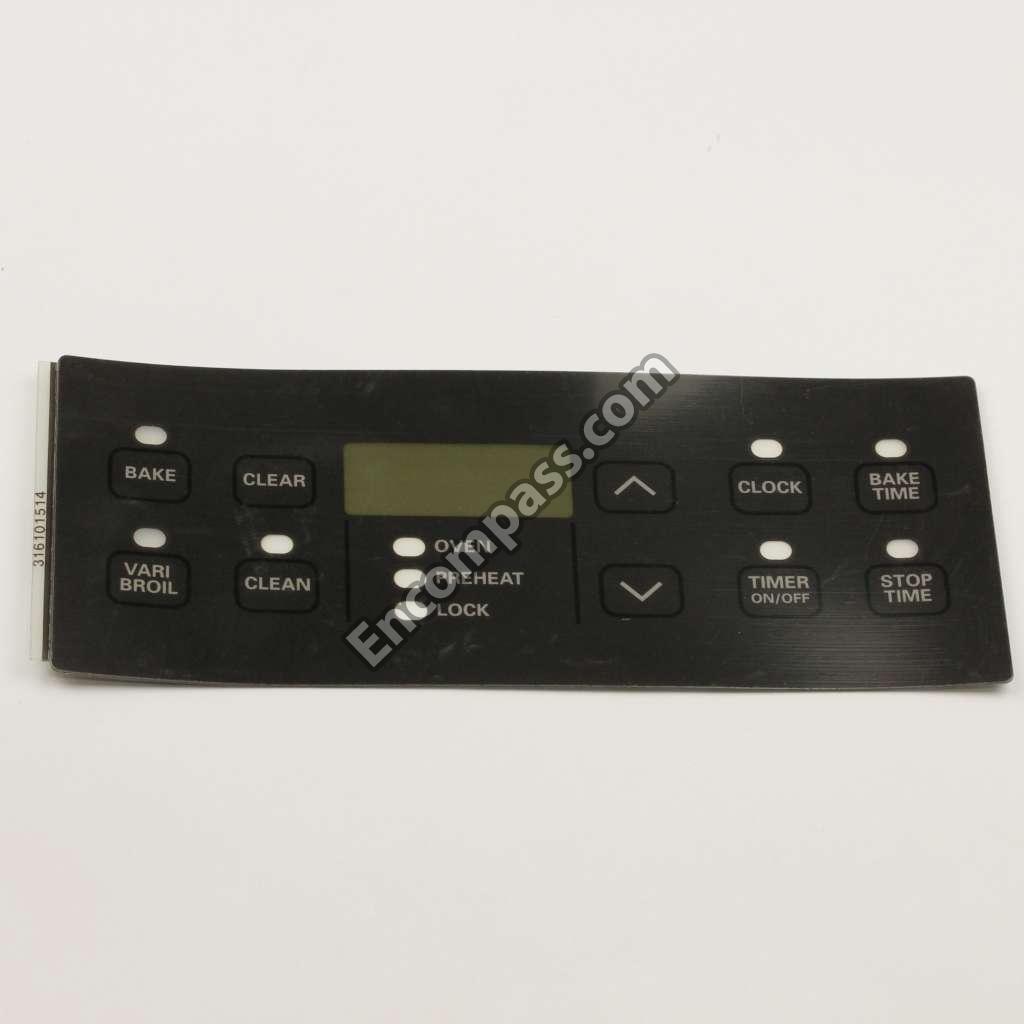

316101514 316101514 RANGE OVEN CONTROL OVERLAY
5304529996 5304529996 RANGE OVEN DOOR HANDLE
316456901 316456901 RANGE OVEN DOOR HANDLE (WHITE)
5303280308 5303280308 RANGE OVEN DOOR HANDLE SCREW
316007002 316007002 RANGE OVEN DOOR HINGE
3131570 3131570 RANGE OVEN DOOR HINGE CUT-OUT COVER
316088600 316088600 RANGE OVEN DOOR INNER GLASS
316088700 316088700 RANGE OVEN DOOR INNER GLASS
316085701 316085701 RANGE OVEN DOOR MIDDLE GLASS
5303131601 5303131601 RANGE OVEN DOOR SEAL
316047708 316047708 RANGE OVEN INSULATION
316403803 316403803 RANGE OVEN INSULATION
316538904 316538904 RANGE OVEN LIGHT BULB
318406100 318406100 RANGE OVEN LIGHT LENS
316087500 316087500 RANGE OVEN LIGHT LENS RETAINER
5304515133 5304515133 RANGE OVEN LIGHT ROCKER SWITCH (WHITE)
316067902 316067902 RANGE OVEN RACK
316081200 316081200 RANGE POWER CORD MOUNTING BRACKET
318178110 318178110 RANGE RADIANT SURFACE ELEMENT, 6-IN
318198834 318198834 RANGE RADIANT SURFACE ELEMENT, 8-IN
316116000 316116000 RANGE SCREW
5303280311 5303280311 RANGE SCREW
316021109 316021109 RANGE SCREW
316519700 316519700 RANGE SCREW
316021110 316021110 RANGE SCREW
3014099 3014099 RANGE SCREW ANCHOR
5303271648 5303271648 RANGE SCREW, #8-18 X 1/2-IN
316436000 316436000 RANGE SMALL SURFACE ELEMENT CONTROL SWITCH
316025108 316025108 RANGE SURFACE BURNER KNOB
316025106 316025106 RANGE SURFACE BURNER KNOB
316436001 316436001 RANGE SURFACE ELEMENT CONTROL SWITCH
316099400 316099400 RANGE SURFACE ELEMENT MOUNTING SPRING
316100200 316100200 RANGE SURFACE ELEMENT WIRE HARNESS SHIELD
5304409888 5304409888 RANGE TERMINAL BLOCK
316085600 316085600 RANGE TERMINAL BLOCK INSULATOR
316008401 316008401 RANGE WASHER
316099906 316099906 RH WH PANEL
316209000 316209000 RIVET
08067785 08067785 SCREW
5303292005 5303292005 SCREW
316088401 316088401 SHIELD
5304403169 5304403169 SHIELD
5303289913 5303289913 SHIELD INSERT
3131975 3131975 SHIELD PANEL
5301145190 5301145190 STRAP
316023109 316023109 SUPPORT
316023108 316023108 SUPPORT
5304527841 5304527841 SWITCH ROCKE
316067802 316067802 TRIM
316011503 316011503 UTIL DRAWER

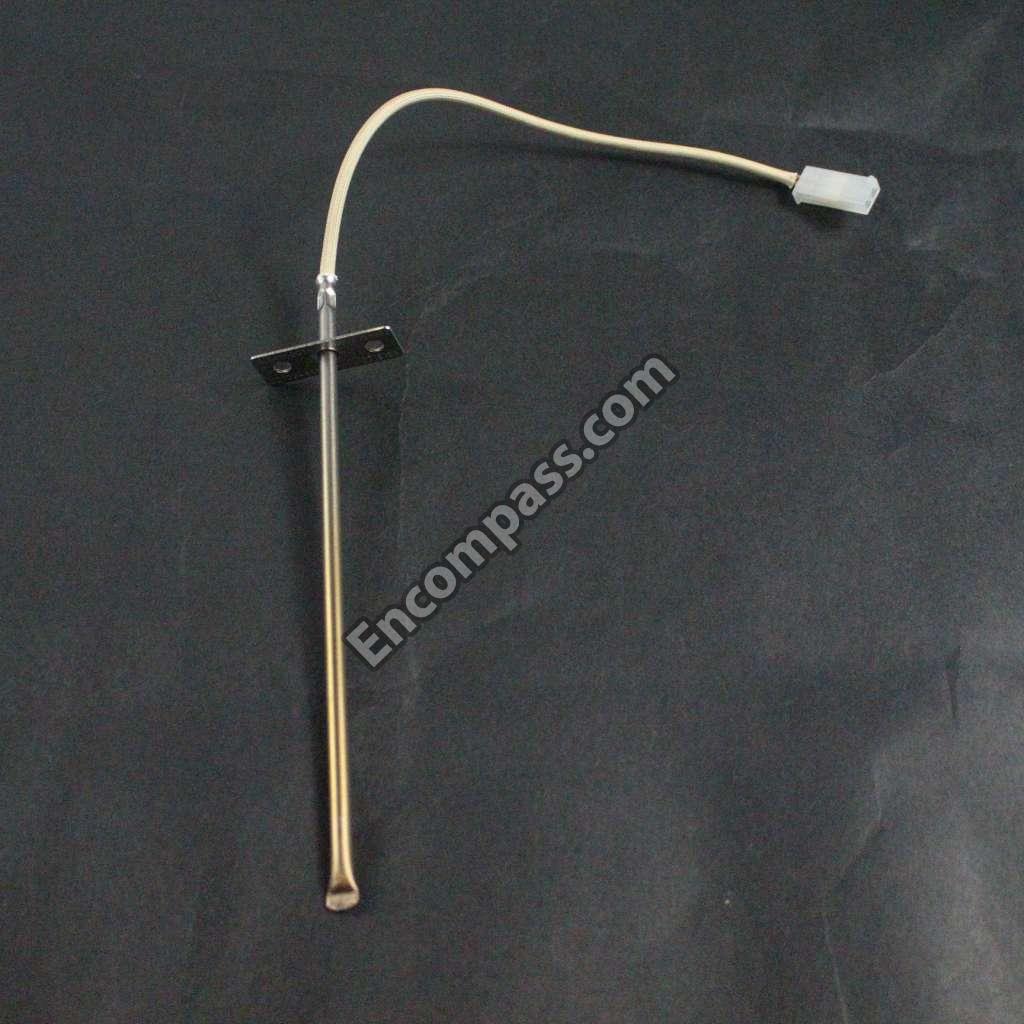

5304497424 5304497424 WALL OVEN TEMPERATURE SENSOR
316045000 316045000 WIRE CLIP
316015804 316015804 WIRE SHIELD
316066100 316066100 WIRE SHIELD
316001388 316001388 WIRING HARNESS
316061852 316061852 WRAPPER TRIM
316061851 316061851 WRAPPER TRIM
