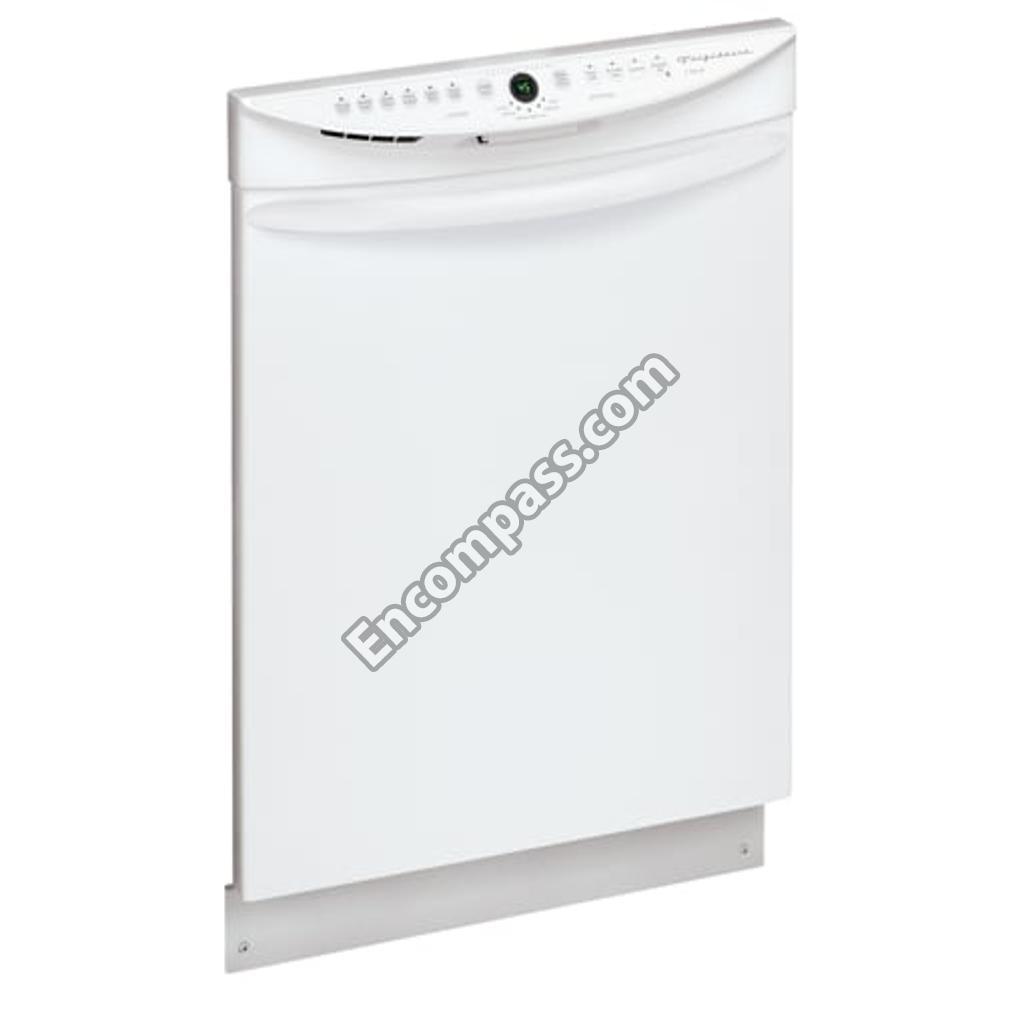

Model Image
Manufacturer

Electrolux

Model Number

GLD2875FPW1

Description

Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154474401 154474401 ADAPTER
154596103 154596103 ARM ASSEMBLY
154246402 154246402 BALL
154466902 154466902 BASKET
154424102 154424102 BASKET
154520901 154520901 BOARD
154474801 154474801 BOARD
154595801 154595801 BRACE
154242002 154242002 BRACKET
154246502 154246502 BRACKET
154595901 154595901 BRACKET
154465101 154465101 BRACKET
154242102 154242102 BUSHING
5304440996 5304440996 CAP
154380601 154380601 CLAMP
154320301 154320301 CLAMP
154436809 154436809 DOOR ASSEMBLY
154540025 154540025 ENERGY GUIDE LABEL
154283005 154283005 F-FILTER ASSEMBLY
154740403 154740403 FENCE
154740302 154740302 FENCE
154767802 154767802 FLOAT
154246801 154246801 GASKET
154406401 154406401 GASKET
154478901 154478901 GASKET
154463402 154463402 GROMMET
154530902 154530902 HANDLE
154530802 154530802 HANDLE
154234401 154234401 HOSE
154461902 154461902 HOUSING
154253201 154253201 INSULATION
154589501 154589501 KICKPLATE ASSEMBLY
154529401 154529401 LATCH ASSEMBLY
154571101 154571101 LEG
154494603 154494603 LINER
154325201 154325201 LINKAGE
154106202 154106202 NUT
154425001 154425001 NUT
154376001 154376001 O-RING
154247001 154247001 ORING
154246901 154246901 ORING
154529101 154529101 PIN
154241101 154241101 RETAINER
154409401 154409401 SCREW
154371301 154371301 SCREW
154200701 154200701 SCREW
154491101 154491101 SCREW
154041001 154041001 SCREW
154200602 154200602 SCREW
154297701 154297701 SCREW
154093301 154093301 SCREW
154294701 154294701 SCREW
154103702 154103702 SCREW
154200401 154200401 SCREW
154283901 154283901 SCREW
154779601 154779601 SCREW
5304428306 5304428306 SCREW
5300807270 5300807270 SCREW
5303943103 5303943103 SCREW
5303316032 5303316032 SCREW
154200601 154200601 SCREW-#10-16 X 3/8
154473901 154473901 SENSOR
154289801 154289801 SHIELD
154486201 154486201 SHIELD
154597801 154597801 SLIDE
154430601 154430601 SPRING
154294102 154294102 SUPPORT
154211401 154211401 SUPPORT
154290204 154290204 THERMOSTAT
154252702 154252702 TRAP
154594101 154594101 TUB ASSEMBLY
154446002 154446002 TUBING
154488802 154488802 UTILITY TRAY
154423601 154423601 VENT ASSEMBLY
154494502 154494502 WHEEL
154174503 154174503 WHEEL & BRACKET ASS
