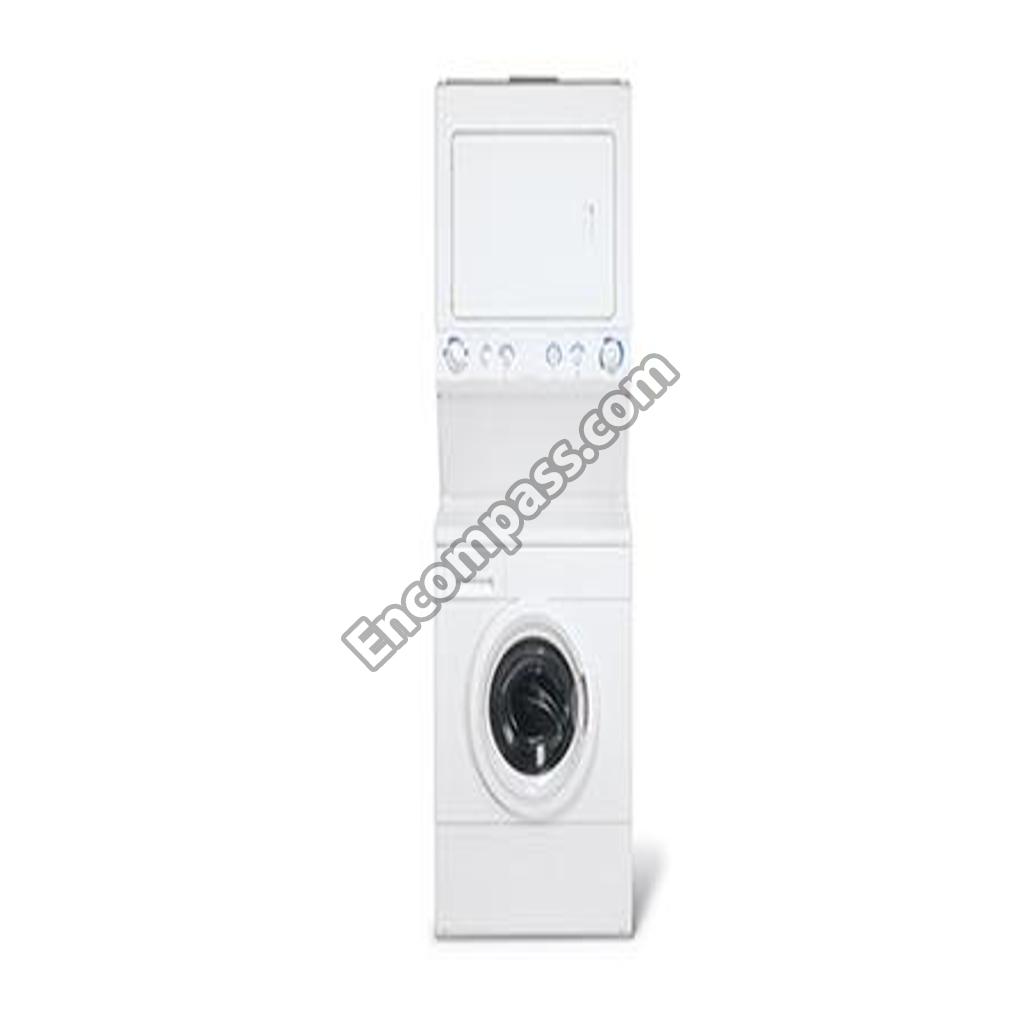

Model Image
Manufacturer

Electrolux

Model Number

GLEH1642FS2

Description

Laundry Center

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131974700 131974700 ASMY-DISP VALVE/SEA
3204254 3204254 BAFFLE
5303281019 5303281019 BALL
134773000 134773000 BASE PLATE
131825900 131825900 BEARING
131476300 131476300 BLOWER WHEEL
131793302 131793302 BOLT
134301400 134301400 BRACE
5304439185 5304439185 BRACKET
131724300 131724300 BRACKET
134263400 134263400 BRACKET
134426400 134426400 BRACKET
134897001 134897001 BRACKET
131460900 131460900 BRACKET
134193300 134193300 BRACKET
131268100 131268100 BRACKET
131724500 131724500 BUZZER
5303286537 5303286537 BUZZER-DRYER
131277500 131277500 CHAMBER
134242400 134242400 CLAMP
137087504 137087504 CLAMP
134266500 134266500 CLAMP
131306234 131306234 CLAMP
134737300 134737300 CLAMP
131306202 131306202 CLAMP
131307900 131307900 CLAMP-SIPHON TO BEL
3204357 3204357 CLIP
5303281020 5303281020 CLIP
134149220 134149220 CONTROLLER ASSEMBLY
131975300 131975300 COUNTERWEIGHT
134125900 134125900 COUNTERWEIGHT
3204329 3204329 COVER
3204250 3204250 COVER
131272100 131272100 COVER-BLEACH
131272000 131272000 COVER-SOFTENER
131413600 131413600 CRADLE & STUD
131931201 131931201 DAMPENER
131744202 131744202 DAMPER
131803710 131803710 DISPENSER ASSEMBLY
131658800 131658800 DOOR CATCH
131271910 131271910 DRAWER
134122552 134122552 DRUM
3204320 3204320 ELBOW
131288101 131288101 END CAP
131288211 131288211 END CAP
134815100 134815100 ENERGY GUIDE
134224600 134224600 FRAME
134195900 134195900 FRAME
131129900 131129900 GASKET
131749200 131749200 GASKET
134608400 134608400 GROUND STRAP
131789400 131789400 HANDLE
131729500 131729500 HANDLE
134222900 134222900 HINGE
134202200 134202200 HINGE
131271600 131271600 HOSE
131786000 131786000 HOSE
131786100 131786100 HOSE
131784700 131784700 HOSE
134611700 134611700 HOUSING
131863100 131863100 IDLER ARM ASSEMBLY
131167701 131167701 INDICATOR
131800420 131800420 INSULATION
134535300 134535300 INSULATOR
131167601 131167601 KNOB
131873401 131873401 KNOB
131873301 131873301 KNOB
131843500 131843500 LAMP ASSEMBLY
131714900 131714900 LATCH
131724800 131724800 LENS
134548800 134548800 LEVELING LEG
134196600 134196600 MOTOR
134869400 134869400 MOTOR
134146100 134146100 ORING
131636280 131636280 PANEL
131883301 131883301 PANEL
131084402 131084402 PANEL
131084710 131084710 PANEL
131084810 131084810 PANEL
131789303 131789303 PANEL
134406203 134406203 PANEL
134613501 134613501 PANEL
137455500 137455500 PANEL
134321500 134321500 PANEL
134191412 134191412 PANEL
131870600 131870600 PANEL
134896900 134896900 PANEL
134390701 134390701 PANEL
131278800 131278800 PANEL
131279300 131279300 PANEL
131752040 131752040 PANEL
134086862 134086862 PANEL
131346400 131346400 PIN
131268300 131268300 PIN
131793500 131793500 PLATE
131883400 131883400 PULLEY
131724700 131724700 REPLACEMENT LAMP
131279500 131279500 RETAINER
131707800 131707800 RING
131304200 131304200 ROLLER-ASSEMBLY
3161259 3161259 SCREW
5303283289 5303283289 SCREW
3205245 3205245 SCREW
131382300 131382300 SCREW
134156200 134156200 SCREW
131892100 131892100 SCREW
131205400 131205400 SCREW
131243800 131243800 SCREW
131202300 131202300 SCREW
134305100 134305100 SCREW
131823400 131823400 SCREW
131311700 131311700 SCREW
134227100 134227100 SCREW
134178901 134178901 SCREW
131358400 131358400 SCREW
131205300 131205300 SCREW
131303500 131303500 SCREW
131303700 131303700 SCREW
131303900 131303900 SCREW
131302800 131302800 SCREW
134532200 134532200 SCREW
131696300 131696300 SCREW 10-16X.312 QU
3204490 3204490 SEAL
131295200 131295200 SEAL
131618600 131618600 SHELL
131731400 131731400 SHIELD
131859600 131859600 SHIELD
134048600 134048600 SHIELD
131863300 131863300 SIPHON
131560000 131560000 SLEEVE
131592200 131592200 SLEEVE-UPPER SPRING
5308015493 5308015493 SPACER
3205241 3205241 SPRING
131427500 131427500 SPRING
131277300 131277300 SPRING
134144700 134144700 SPRING ASSEMBLY
5303161300 5303161300 STRAP
131763310 131763310 STRIKER
134437700 134437700 SWITCH
134040800 134040800 SWITCH
134399900 134399900 SWITCH
134400000 134400000 SWITCH
134818201 134818201 SWITCH
134399700 134399700 SWITCH
134120900 134120900 THERMAL LIMITER
3204267 3204267 THERMOSTAT
134803600 134803600 TIMER
131960800 131960800 TIMER
134381900 134381900 TRIM
134381910 134381910 TRIM
131789900 131789900 TUBE
134211400 134211400 VALVE
131274600 131274600 VANE
5303161296 5303161296 WASHER
131276900 131276900 WASHER
131304400 131304400 WASHER
131304500 131304500 WASHER
131618500 131618500 WASHER INNER TUB
134403200 134403200 WIRING HARNESS
134605400 134605400 WIRING HARNESS
134993300 134993300 WIRING HARNESS
134136700 134136700 WIRING HARNESS
134392000 134392000 WIRING HARNESS
