Model Image
Manufacturer

Electrolux

Model Number

GLES388DSA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

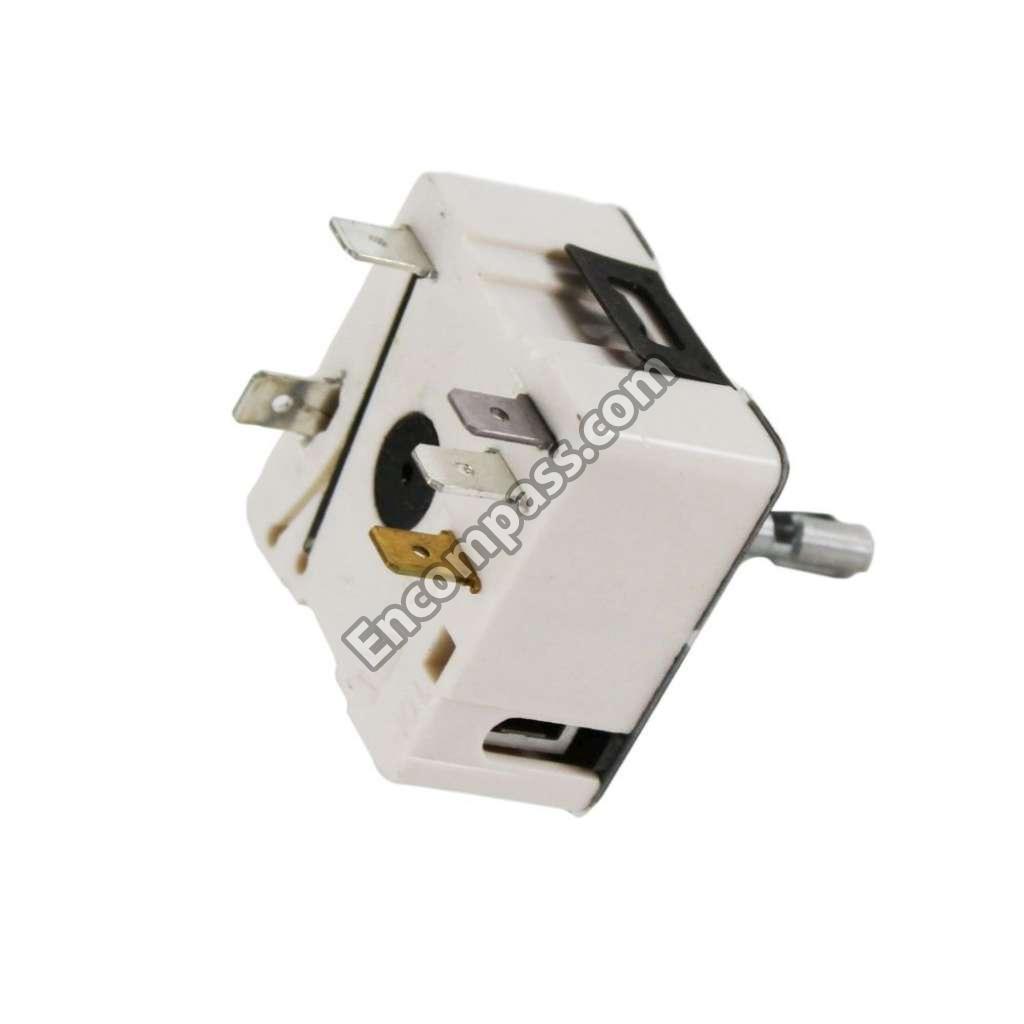

318120711 318120711 + SWITCH
5304405244 5304405244 ANTI-TIP & ACCESSOR
5303304030 5303304030 BRACKET
5303311143 5303311143 BRACKET
318180310 318180310 BRACKET
318180312 318180312 BRACKET
318043100 318043100 BRACKET
5303311145 5303311145 BRACKET & WHEEL ASS
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
5303325174 5303325174 CAP
5303311129 5303311129 CHANNEL
5303311130 5303311130 CHANNEL
5304400195 5304400195 CLIP
316272202 316272202 CLOCK/TIMER,ELECTRONIC ,ES500/ES550
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
318123901 318123901 DEFLECTOR
318398302 318398302 FAN BLADE
318225302 318225302 FRONT
318053103 318053103 GASKET
318041603 318041603 GLASS-OVEN DOOR, HEAT BARRIER
316270201 316270201 HANDLE,DOOR ,WHITE
318222400 318222400 HOUSING,OVEN LIGHT
807080401 807080401 INSULATION
5316651102 5316651102 INSULATOR PLASTIC
316221001 316221001 LABEL
5303310536 5303310536 LATCH
318044831 318044831 LIGHT
318044827 318044827 LIGHT,INDICATOR ,RED
318089616 318089616 LINER
318157011 318157011 LINER
318223620 318223620 MAIN TOP
316136300 316136300 MOTOR,FAN
318095957 318095957 MOTOR,LATCH ASSY ,W/BRKT & SWITCH
5303323144 5303323144 NUT
316136600 316136600 NUT-FAN RETAINER
318224403 318224403 PANEL
318225200 318225200 PANEL
5303310515 5303310515 PANEL
318187715 318187715 PANEL
318111803 318111803 PLATE
5303320846 5303320846 PLATE
316208500 316208500 PLATE
318227500 318227500 PLATE
316217002 316217002 PROBE,OVEN TEMP
318365800 318365800 RACK,BROILER PAN
318328010 318328010 RECEPTACLE,HINGE
318112701 318112701 RELAY
318183106 318183106 RETAINER
318118904 318118904 ROD
5303323134 5303323134 SCREW
5303311528 5303311528 SCREW
5303211311 5303211311 SCREW
5303307980 5303307980 SCREW
318175503 318175503 SCREW
5304400427 5304400427 SCREW
5304415832 5304415832 SCREW
3051050 3051050 SCREW
5303311174 5303311174 SCREW,10-24 X 3/8
5303300265 5303300265 SCREW,8-18 X 0.500 ,CHROME ,(3)
318227601 318227601 SHIELD
318236200 318236200 SHIELD
318192400 318192400 SPRING
5303311164 5303311164 SPRING
318122006 318122006 SPRING
318122007 318122007 SPRING
318122010 318122010 SPRING
318122004 318122004 SPRING
5304403015 5304403015 SUPPORT
5303311142 5303311142 SUPPORT
318120521 318120521 SWITCH
318005201 318005201 SWITCH
318224301 318224301 TRIM
318225901 318225901 TRIM
318176646 318176646 TRIM
318187810 318187810 TRIM WHITE
318187811 318187811 TRIM WHITE
5303311207 5303311207 TUBE
318255501 318255501 USE 318255501
3051063 3051063 WASHER
316136500 316136500 WASHER,FAN MOTOR
