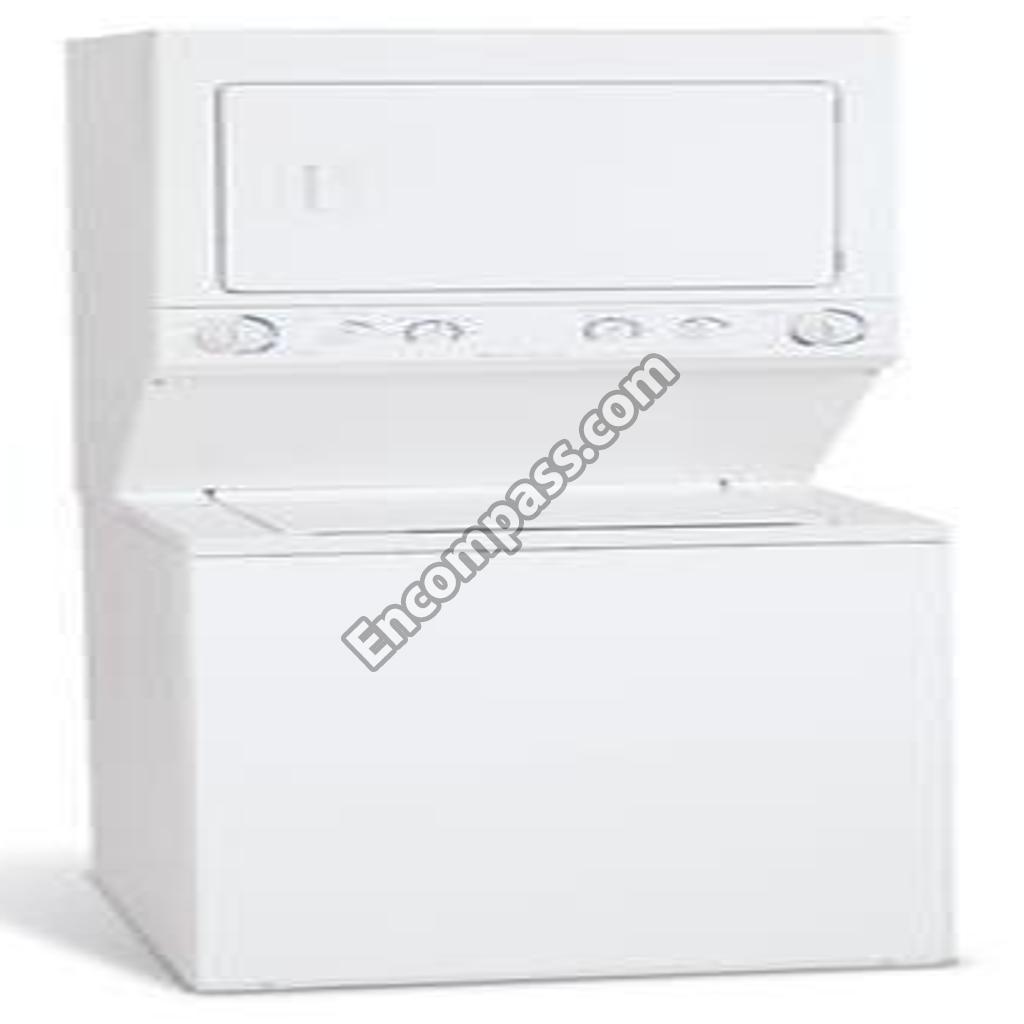

Model Image
Manufacturer

Electrolux

Model Number

GLET1031FS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131427200 131427200 Electrolux AGITATOR
131551103 131551103 Electrolux ASMY-TUB COVER/SEAL
3204254 3204254 Electrolux BAFFLE
5303281019 5303281019 Electrolux BALL
5303311213 5303311213 Electrolux BASE ASSEMBLY
131825900 131825900 Electrolux BEARING
3204405 3204405 Electrolux BEARING
5303212870 5303212870 Electrolux BLOCK
131476300 131476300 Electrolux BLOWER WHEEL
131106701 131106701 Electrolux BRACKET
131091001 131091001 Electrolux BRACKET
134263400 134263400 Electrolux BRACKET
131724300 131724300 Electrolux BRACKET
5304439185 5304439185 Electrolux BRACKET
3204326 3204326 Electrolux BRACKET
134075500 134075500 Electrolux BUMPER
131453000 131453000 Electrolux BUSHING
5303286537 5303286537 Electrolux BUZZER-DRYER
134046600 134046600 Electrolux CABINET ASSEMBLY
131266800 131266800 Electrolux CAP
131212301 131212301 Electrolux CAPACITOR
131306234 131306234 Electrolux CLAMP
134242400 134242400 Electrolux CLAMP
134745300 134745300 Electrolux CLIP
134261300 134261300 Electrolux CLIP
5303281020 5303281020 Electrolux CLIP
3204357 3204357 Electrolux CLIP
5303309503 5303309503 Electrolux CLIP
134810610 134810610 Electrolux CONTROL BOARD
3204250 3204250 Electrolux COVER
3204329 3204329 Electrolux COVER
131413600 131413600 Electrolux CRADLE & STUD
131206100 131206100 Electrolux CUP
131663500 131663500 Electrolux CUSHION
131744202 131744202 Electrolux DAMPER
3204394 3204394 Electrolux DISPENSER
131658800 131658800 Electrolux DOOR CATCH
134122572 134122572 Electrolux DRUM
3204320 3204320 Electrolux ELBOW
131288211 131288211 Electrolux END CAP
131288101 131288101 Electrolux END CAP
131731500 131731500 Electrolux FASTENER
131362400 131362400 Electrolux FASTENER
131129900 131129900 Electrolux GASKET
5303208743 5303208743 Electrolux GROMMET
134608400 134608400 Electrolux GROUND STRAP
134736400 134736400 Electrolux H+ TRANSMISSION
131789400 131789400 Electrolux HANDLE
134222900 134222900 Electrolux HINGE
131494800 131494800 Electrolux HOSE
134611700 134611700 Electrolux HOUSING
131894600 131894600 Electrolux HOUSING
134418700 134418700 Electrolux HUB
131863100 131863100 Electrolux IDLER ARM ASSEMBLY
131976804 131976804 Electrolux INDICATOR
134768500 134768500 Electrolux INSERT
5303212877 5303212877 Electrolux INSERT
134535300 134535300 Electrolux INSULATOR
134043200 134043200 Electrolux KNOB
134043000 134043000 Electrolux KNOB
131373610 131373610 Electrolux LEG/DOME ASSEMBLY.
5303212872 5303212872 Electrolux LID
134196600 134196600 Electrolux MOTOR
5303318708 5303318708 Electrolux NUT
131557201 131557201 Electrolux OUTER TUB
131422200 131422200 Electrolux PAD
131422100 131422100 Electrolux PAD
131104303 131104303 Electrolux PANEL
134284200 134284200 Electrolux PANEL
134613501 134613501 Electrolux PANEL
137455500 137455500 Electrolux PANEL
131789303 131789303 Electrolux PANEL
131084810 131084810 Electrolux PANEL
131084710 131084710 Electrolux PANEL
131084402 131084402 Electrolux PANEL
131883301 131883301 Electrolux PANEL
137348210 137348210 Electrolux PANEL
131346401 131346401 Electrolux PIN
131346400 131346400 Electrolux PIN
3204374 3204374 Electrolux PIN
131498301 131498301 Electrolux PULLEY
134446800 134446800 Electrolux RESISTOR
131707800 131707800 Electrolux RING
3161433 3161433 Electrolux RING
134203900 134203900 Electrolux SCR 6-32X.337 PPH D
134197900 134197900 Electrolux SCREW
131468900 131468900 Electrolux SCREW
134164400 134164400 Electrolux SCREW
134160900 134160900 Electrolux SCREW
131205500 131205500 Electrolux SCREW
131658900 131658900 Electrolux SCREW
131205100 131205100 Electrolux SCREW
131751500 131751500 Electrolux SCREW
134156200 134156200 Electrolux SCREW
131205400 131205400 Electrolux SCREW
131382300 131382300 Electrolux SCREW
131892100 131892100 Electrolux SCREW
131202300 131202300 Electrolux SCREW
131243800 131243800 Electrolux SCREW
3205245 3205245 Electrolux SCREW
5303283289 5303283289 Electrolux SCREW
3161259 3161259 Electrolux SCREW
3204368 3204368 Electrolux SCREW
5303283293 5303283293 Electrolux SCREW
3205150 3205150 Electrolux SCREW
131901400 131901400 Electrolux SEAL
131295200 131295200 Electrolux SEAL
3204490 3204490 Electrolux SEAL
5303281153 5303281153 Electrolux SHAFT
131513300 131513300 Electrolux SHIELD
131731400 131731400 Electrolux SHIELD
3204380 3204380 Electrolux SHIPPING BLOCK
3204426 3204426 Electrolux SLEEVE
131339600 131339600 Electrolux SPACER
134886600 134886600 Electrolux SPRING
134885900 134885900 Electrolux SPRING
131373900 131373900 Electrolux SPRING
134890500 134890500 Electrolux SPRING
3205241 3205241 Electrolux SPRING
3204425 3204425 Electrolux SPRING
131390000 131390000 Electrolux STRIKE-LID
134422700 134422700 Electrolux SWITCH
134410100 134410100 Electrolux SWITCH
134399800 134399800 Electrolux SWITCH
134399700 134399700 Electrolux SWITCH
134101400 134101400 Electrolux TERMINAL BLOCK KIT
134120900 134120900 Electrolux THERMAL LIMITER
3204267 3204267 Electrolux THERMOSTAT
134049600 134049600 Electrolux TIMER
131719100 131719100 Electrolux TIMER
131545101 131545101 Electrolux TRUNNION
5303279394 5303279394 Electrolux TUB SEAL KIT FOR WASHER
5304401845 5304401845 Electrolux TUBE
134769600 134769600 Electrolux USE 134769600
134511600 134511600 Electrolux V-BELT FOR WASHER
5308002401 5308002401 Electrolux WASHER
5303261031 5303261031 Electrolux WASHER
5303161296 5303161296 Electrolux WASHER
5303161306 5303161306 Electrolux WASHER
134605500 134605500 Electrolux WIRING HARNESS
134542500 134542500 Electrolux WIRING HARNESS
131662700 131662700 Electrolux WIRING HARNESS
134846300 134846300 Electrolux WIRING HARNESS
134805600 134805600 Electrolux WIRING HARNESS
