Model Image
Manufacturer

Electrolux

Model Number

GLGC36S9ESA

Description

Cook-top

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316212300 316212300 BURNER
316223400 316223400 BURNER
318146301 318146301 BUSHING
316206601 316206601 CAP
316219901 316219901 CAP
316213601 316213601 CAP
316213501 316213501 CAP
318054509 318054509 CONNECTOR
318144006 318144006 CORD
318054002 318054002 ELBOW
318280102 318280102 GASKET
318280101 318280101 GASKET
318221742 318221742 GRATE
318221667 318221667 GRATE

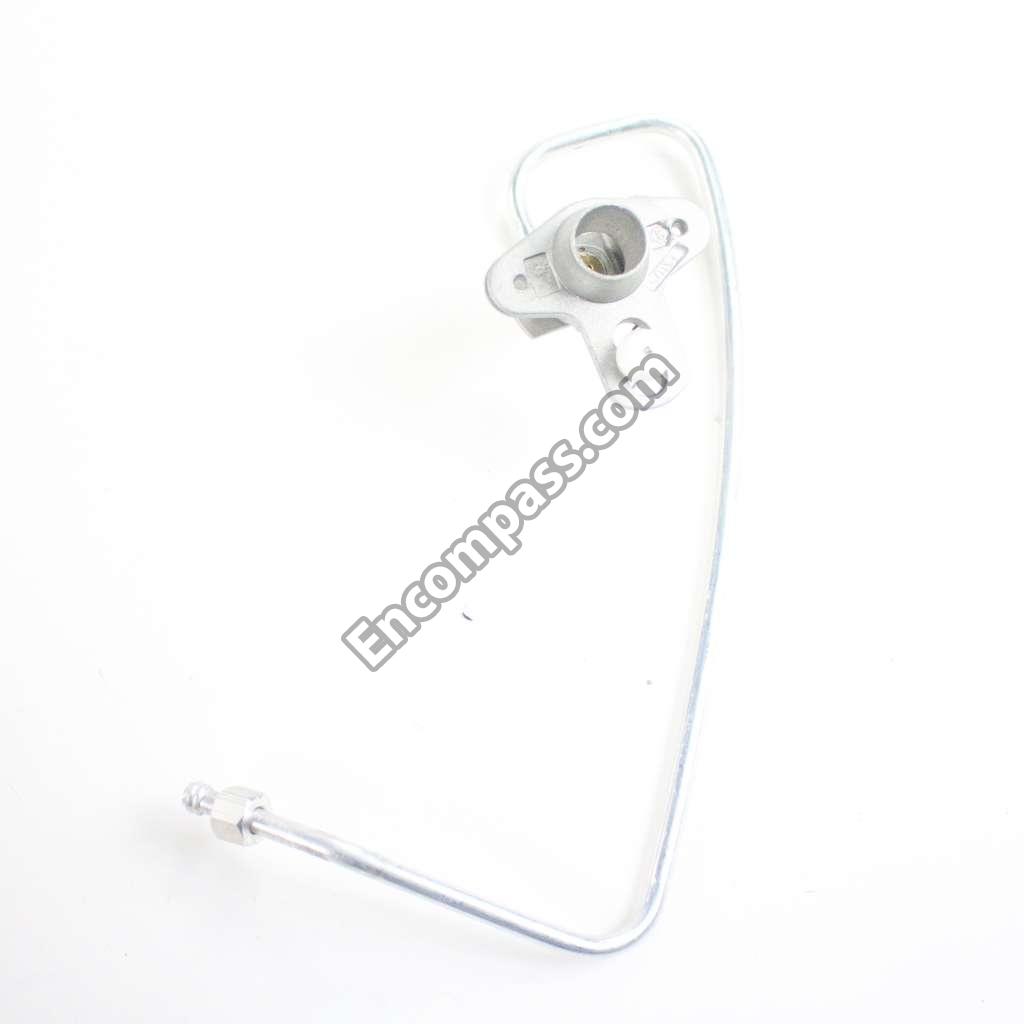

318221341 318221341 IGNITOR/ORIFICE ASS
318221339 318221339 IGNITOR/ORIFICE ASS

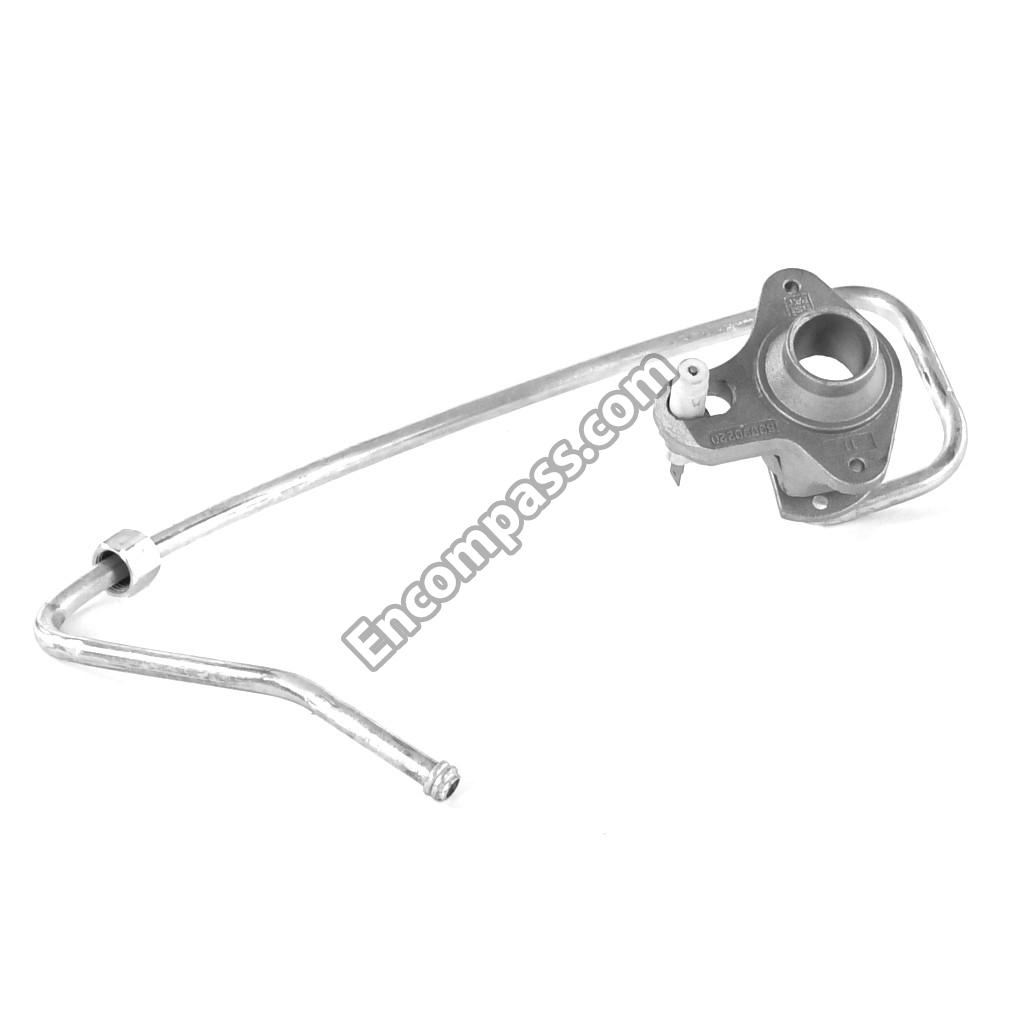

318221344 318221344 IGNITOR/ORIFICE ASS

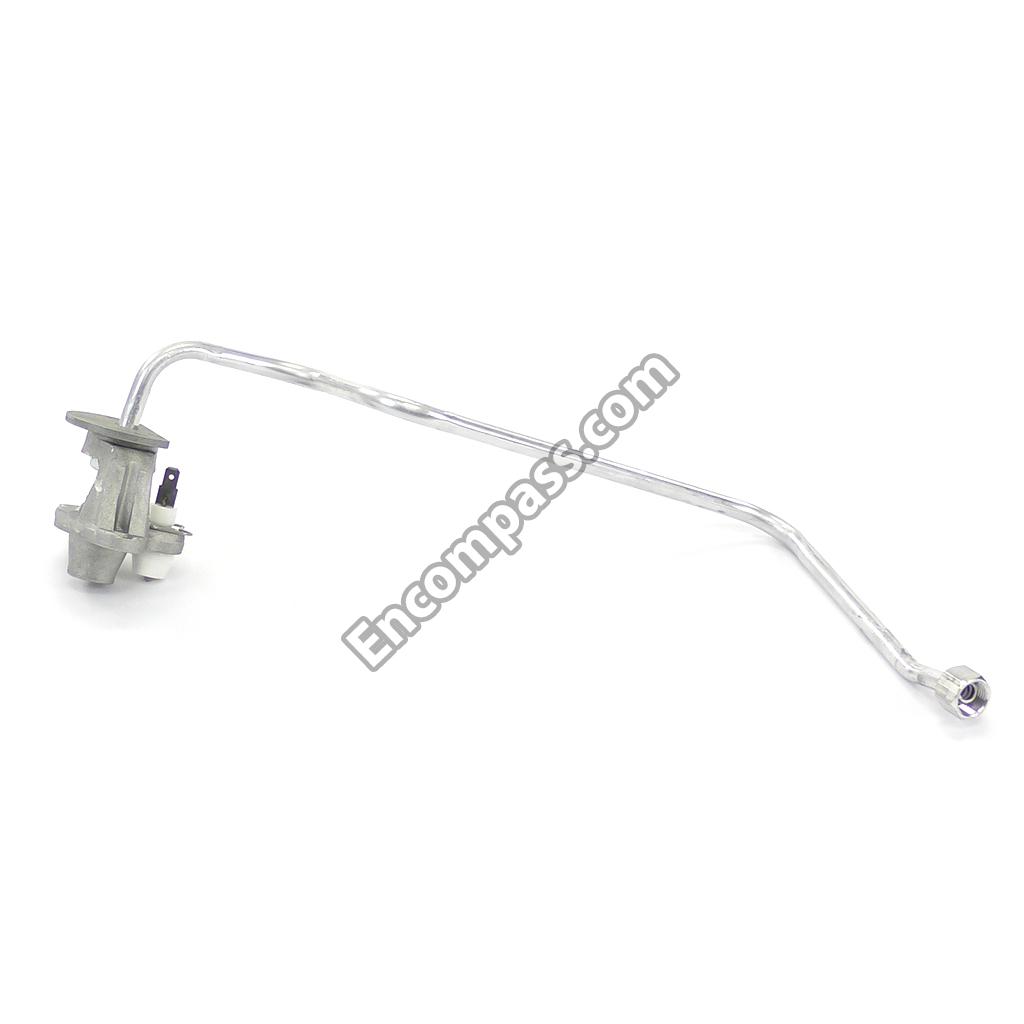

318221343 318221343 IGNITOR/ORIFICE ASS
318221342 318221342 IGNITOR/ORIFICE ASS
318196161 318196161 KNOB
318127426 318127426 LP CONVERSION KIT
318177206 318177206 MANIFOLD PIPE
318079001 318079001 MODULE
316237901 316237901 ORIFICE
316237900 316237900 ORIFICE
316237903 316237903 ORIFICE
316237902 316237902 ORIFICE
5308007974 5308007974 REGULATOR
316240600 316240600 SCREW
316134300 316134300 SCREW
5304403558 5304403558 SCREW
5303311532 5303311532 SCREW
5303307980 5303307980 SCREW
5303285443 5303285443 SCREW
3201437 3201437 STRAIN RELIEF
318280500 318280500 SUPPORT
318264301 318264301 SUPPORT
318087314 318087314 VALVE
318087313 318087313 VALVE
318087315 318087315 VALVE
318232612 318232612 WIRING HARNESS
