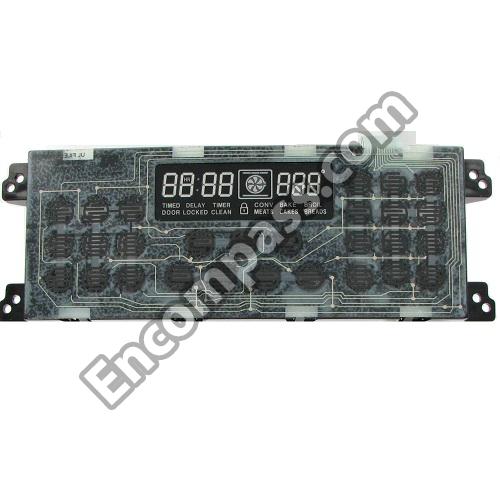

Model Image
Manufacturer

Electrolux

Model Number

GLGF388DQC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316401600 316401600 BACK
316401401 316401401 BAFFLE
316401301 316401301 BAFFLE
5304414035 5304414035 BISQUE TOUCH UP PAI
316437100 316437100 BRACE
316401200 316401200 BRACKET
316404100 316404100 BRACKET
316217701 316217701 BRACKET
316217700 316217700 BRACKET
316404700 316404700 BRACKET
316091600 316091600 BRACKET
5303013071 5303013071 BULB/LAMP
316404400 316404400 BURNER
316404300 316404300 BURNER
316223300 316223300 BURNER
316212300 316212300 BURNER
316201403 316201403 BURNER BOX
316206602 316206602 CAP
316271902 316271902 CAP
316213603 316213603 CAP
316213503 316213503 CAP
316234200 316234200 CLIP
316408000 316408000 CLIP
316432800 316432800 CLIP
316418701 316418701 CLOCK/TIMER
316026701 316026701 COVER
316401500 316401500 COVER
316409700 316409700 ELBOW
316211603 316211603 ELEMENT
316208901 316208901 FLUE
316117500 316117500 GLASS
316402602 316402602 GLASS
316407400 316407400 GLIDE
316407301 316407301 GLIDE
316424804 316424804 GRATE
316424604 316424604 GRATE
316270202 316270202 HANDLE
316437702 316437702 HINGE
316430401 316430401 IGNITOR/ORIFICE ASS
316430801 316430801 IGNITOR/ORIFICE ASS
316430700 316430700 IGNITOR/ORIFICE ASS
316082000 316082000 INSERT
316248105 316248105 INSTRUCTIONS
316403900 316403900 INSULATION
316403700 316403700 INSULATION
316403600 316403600 INSULATION
316220003 316220003 KNOB
316433603 316433603 LABEL
316405800 316405800 LATCH ASSEMBLY
316423801 316423801 LINER
316403200 316403200 LINER
316411218 316411218 MAINTOP
318079001 318079001 MODULE
316136600 316136600 NUT
5303013272 5303013272 NUT
316237903 316237903 ORIFICE
316237902 316237902 ORIFICE
316237901 316237901 ORIFICE
316419702 316419702 OVERLAY
316081900 316081900 PAN
316403403 316403403 PANEL
316400603 316400603 PANEL
316424124 316424124 PANEL
316099500 316099500 PIN
316219501 316219501 PIPE
316496207 316496207 RACK
316116400 316116400 RECEPTACLE
316441300 316441300 RECEPTACLE
316091706 316091706 REGULATOR
316087500 316087500 RETAINER
316232700 316232700 ROD
316433300 316433300 SCREW
316418900 316418900 SCREW
316089500 316089500 SCREW
5303285179 5303285179 SCREW
3131732 3131732 SCREW
316116000 316116000 SCREW
316272900 316272900 SCREW
316418901 316418901 SCREW
316021132 316021132 SCREW
316215600 316215600 SCREW
316240600 316240600 SCREW
5303271648 5303271648 SCREW
316001003 316001003 SCREW
316021104 316021104 SCREW
316021110 316021110 SCREW
316021109 316021109 SCREW
316021108 316021108 SCREW
316021105 316021105 SCREW
316403101 316403101 SEAL
316402500 316402500 SHIELD
316404800 316404800 SHIELD
316404600 316404600 SHIELD
316406200 316406200 SHIELD
316401000 316401000 SHIELD
316402201 316402201 SHIELD
316404200 316404200 SHIELD
316400801 316400801 SHIELD
316400703 316400703 SHIELD
316230701 316230701 SHIELD
316497600 316497600 SHIELD-BACKGUARD
316402403 316402403 SPACER
316246501 316246501 SPACER
316411407 316411407 SUPPORT
316411406 316411406 SUPPORT
316112500 316112500 TEMPLATE
316402003 316402003 TRIM
316416202 316416202 TRIM
5304455971 5304455971 TUBE
5303935234 5303935234 VALVE
5303935233 5303935233 VALVE
5303935232 5303935232 VALVE
316404900 316404900 VALVE
5303935235 5303935235 VALVE
316008401 316008401 WASHER
316136500 316136500 WASHER
316064103 316064103 WIRE
316219006 316219006 WIRING HARNESS
316253702 316253702 WIRING HARNESS
