Model Image
Manufacturer

Electrolux

Model Number

GLMV169DBA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304468161 5304468161 BASE
5303318762 5303318762 BOLT-TOGGLE
5304440304 5304440304 BRACKET
5304468135 5304468135 BRACKET,UNIT MTG PLATE ,REAR
5303319605 5303319605 BUSHING
5304440288 5304440288 BUSHING
5304440238 5304440238 CABINET
5303319549 5303319549 CAPACITOR,HIGH VOLTAGE
5304440337 5304440337 CLIP
5304440315 5304440315 CLIP
5304468192 5304468192 CONTROL BOARD,PRINTED CIRCUIT
5304468178 5304468178 COVER
5304459558 5304459558 COVER A
5304440302 5304440302 COVER B
5304440303 5304440303 COVER C
5304468175 5304468175 COVER,STIRRER FAN
5304441368 5304441368 CUSHION
5304441369 5304441369 CUSHION
5304440237 5304440237 CUSHION
5304440294 5304440294 CUSHION
5304464343 5304464343 DAMPER ASSY,EXHAUST
5304441374 5304441374 DOOR ASSY,COMPLETE ,BLACK ,WITH HANDLE
5304440293 5304440293 DUCT
5304468183 5304468183 DUCT
5304440291 5304440291 FAN BLADE
5304440335 5304440335 FILTER,INSIDE EXHAUST ,CHARCOAL
5304440317 5304440317 FRAME
5304440323 5304440323 HANDLE,DOOR ,BLACK
5303319625 5303319625 HARDWARE,INSTALLATION ,KIT
5304440333 5304440333 LABEL
5304440334 5304440334 LABEL
5304440031 5304440031 LAMP,INCANDESCENT ,20 W ,(3)
5304440314 5304440314 LATCH
5304440289 5304440289 LATCH HOOK
5304440295 5304440295 LENS
5303319575 5303319575 LENS,COOKTOP LAMP ,GLASS
5304463439 5304463439 MAGNETRON
5304440021 5304440021 MOTOR
5304440029 5304440029 MOTOR,HOOD FAN
5304440022 5304440022 MOTOR,STIRRER FAN
5303318765 5303318765 NLASCREW-WOOD
5304440281 5304440281 PANEL
5304440305 5304440305 PANEL
5304440311 5304440311 PANEL
5304440028 5304440028 POWER CORD
5304440338 5304440338 RACK
5303319561 5303319561 RECEPTACLE
5304468869 5304468869 RECTIFIER,HIGH VOLTAGE
5304440026 5304440026 RELAY/SWITCH ASSY,SEC. INTERLOCK ,DOOR SENSE SW.
5303319587 5303319587 RETAINER-CAPACITOR
5303319633 5303319633 SCREW
5303319636 5303319636 SCREW
5303319639 5303319639 SCREW
5303319641 5303319641 SCREW
5304441378 5304441378 SCREW
5304456930 5304456930 SCREW
5303319584 5303319584 SCREW
5304440341 5304440341 SCREW,UNIT MOUNTING
5304440033 5304440033 SENSOR
5303318761 5303318761 SLEEVE
5304440316 5304440316 SPRING
5304468176 5304468176 STIRRER ASSEMBLY
5304467763 5304467763 SUPPORT
5304440296 5304440296 SUPPORT
5304440297 5304440297 SUPPORT
5304467717 5304467717 SUPPORT ASSY,TURNTABLE
5304468224 5304468224 SWITCH KIT,MONITOR ,WITH CT FUSE
5304440329 5304440329 TEMPLATE
5304440330 5304440330 TEMPLATE

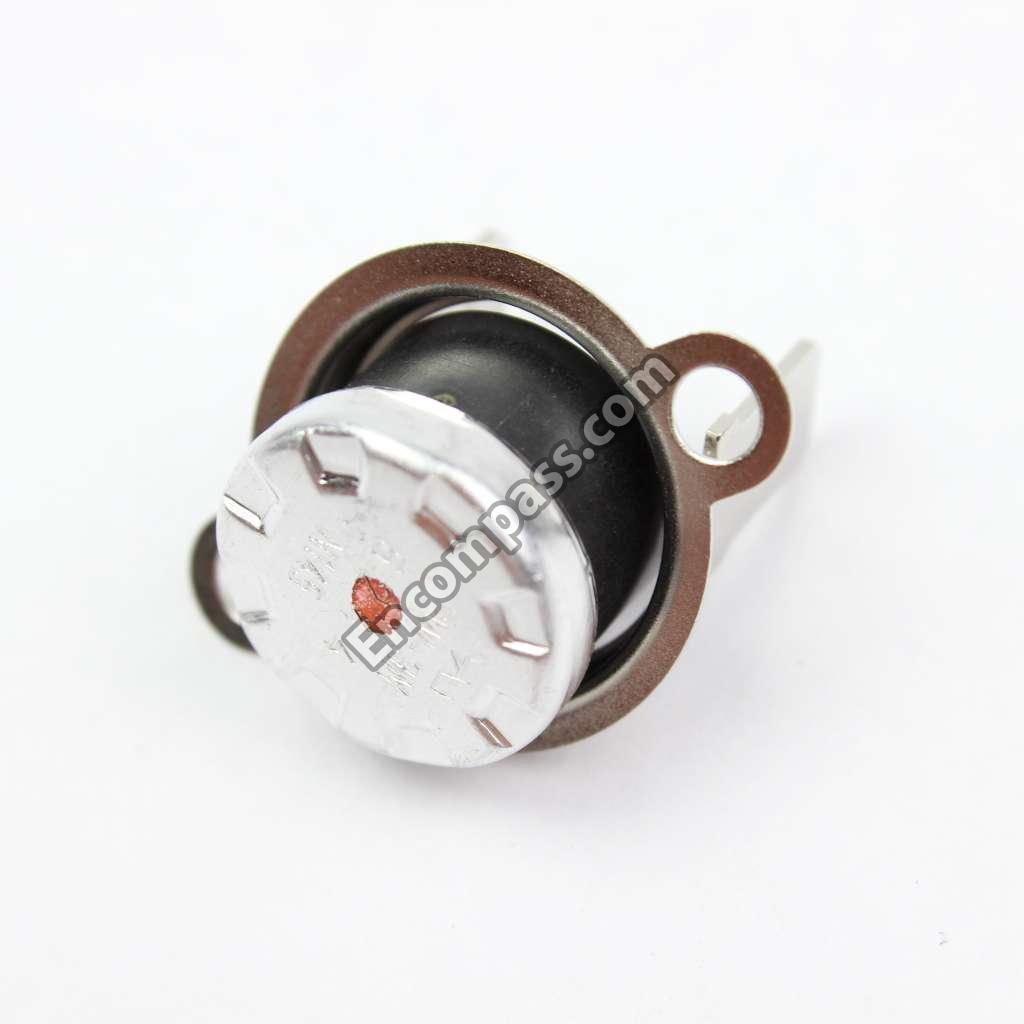

5304440023 5304440023 THERMAL CUTOUT,HOOD ,N.O.60 DEG C
5304440032 5304440032 THERMAL CUTOUT,OVEN CAVITY ,N.C. 145 DEG C
5304440285 5304440285 TRAY,TURNTABLE ,GLASS
5303318766 5303318766 WASHER
5304440339 5304440339 WIRE
5304440331 5304440331 WIRE
5304440241 5304440241 WIRING DIAGRAM
5304440332 5304440332 WIRING HARNESS
