Manufacturer
Electrolux
Model Number
GRBN2012AF
Description
Refrigerator, Top Mount
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AIR FILTER |
|
|
BASE ASSEMBLY,COMPRESSOR ,W/ROLLERS |
|
|
BASKET,FREEZER DRAWER |
|
|
BEARING, DOOR, RH LOWER, AUTO CLOSER |
|
|
BEARING, HINGE, STAINLESS, DOOR |
|
|
BEARING, PAD, GEAR |
|
|
BIN,GALLON ,DOOR |
|
|
BRACKET,FILTER MANIFOLD |
|
|
BRACKET,INDEXING ,AIR TOWER |
|
|
BRACKET,REINFORCEMENT |
|
|
CAP, TUBING |
|
|
CLAMP, COMPRESSOR, 2 HOLE |
|
|
CLAMP, COMPRESSOR, SINGLE HOLE |
|
|
CLAMP, FLEX DRIVE, CABLE |
|
|
CLAMP,WATER TUBING |
|
|
CLIP,EVAPORATOR |
|
|
COMPRESSOR,VTX1113Y |
|
|
CORD, POWER, ELECTRIC SERVICE |
|
|
COVER ASSEMBLY,EVAPORATOR ,FREEZER ,W/MOTOR |
|
|
COVER, AIR FILTER |
|
|
COVER, FLEX DRIVE, SIDE, COMPRESSOR |
|
|
COVER, REED SWITCH |
|
|
COVER,ABSORBER ,ETHYLENE |
|
|
COVER,FOOT BRACKET ,LOWER |
|
|
COVER,HINGE ,TOP |
|
|
COVER,HOSE HOUSING ,REAR |
|
|
COVER,MAIN CONTROL ,REAR |
|
|
COVER,SERVICE ,LOWER |
|
|
COVER,SERVICE DOOR |
|
|
COVER,TEMP SENSOR |
|
|
COVER,WATER VALVE ,AND TUBING |
|
|
CRISPER COVER,ASSEMBLY ,W/MEMBRANE ASSY |
|
|
CRISPER DRAWER,ASSEMBLY ,COMPLETE , W/ABSORBER LID |
|
|
CRISPER DRAWER,W/ROLLERS |
|
|
CUSHION, RUBBER, FREEZER DRW |
|
|
DELI COVER,ASSEMBLY ,W/ROLLERS |
|
|
DISPENSER ASSEMBLY,WATER ,INTERIOR ,W/MICROSWITCH |
|
|
DOOR ASSEMBY,FREEZER DRAWER ,STAINLESS |
|
|
DOOR-COMPLETE,FRESH FOOD |
|
|
DRAIN PAN,ASSEMBLY ,W/HEATER TUBE |
|
|
DRAWER ASSEMBLY,DELI ,W/ROLLERS |
|
|
DRAWER ASSEMBLY,FREEZER ,UPPER , W/ICE CONTAINER |
|
|
DUCT ASSEMBLY,RETURN ,FRESH FOOD |
|
|
EVAPORATOR,ASSEMBLY |
|
|
FAN ASSEMBLY,EVAPORATOR |
|
|
FILTER, DRIER, SERVICE |
|
|
FILTER, WATER, WF-1, FRIG PUREPOUR |
|
|
FOOT ASSEMBLY,COMPLETE ,W/LEVEL-ROLLER |
|
|
FRIGIDAIRE PA PK-2 REFILL |
|
|
GASKET,DOOR ,FRESH FOOD |
|
|
GASKET,FREEZER DOOR |
|
|
GEAR, PINION |
|
|
GROMMET, COMPRESSOR |
|
|
HEATER,DEFROST ,2 PASS ,EVAPORATOR |
|
|
HINGE, DOOR, ZINC PLATED, CENTER |
|
|
HINGE,DOOR ,TOP |
|
|
ICE CONTAINER,FREEZER DRAWER |
|
|
ICE MAKER,ASSEMBLY ,ARCHER |
|
|
INSULATOR,DISPENSER TUBE |
|
|
INSULATOR,HOSE HOUSING |
|
|
LED LIGHT,ASSEMBLY ,FRESH FOOD ,TRIPLE LED |
|
|
LED LIGHT,ASSEMBLY ,SINGLE ,W/LENS |
|
|
LOCK RING, DRIER, 3N ST 01 |
|
|

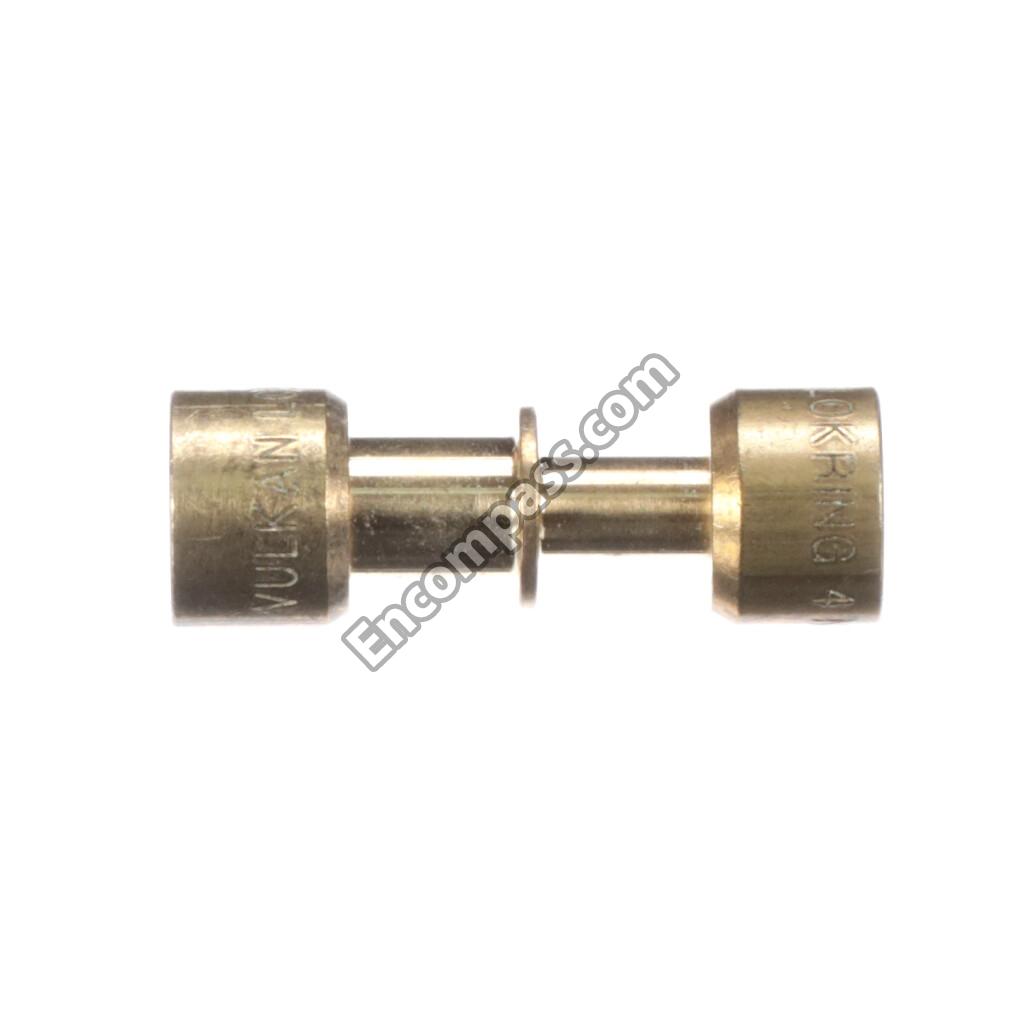

LOKRING,4N ST 82 |
|
|
MAGNET, REED SWITCH |
|
|
MANIFOLD |
|
|
MEMBRANE ASSEMBLY,HUMIDITY ,CRISPER COVER |
|
|
NAMEPLATE, CHROME, FRIG GALLERY |
|
|
NUT, CLICK CONNEX, MALE |
|
|
PADDLE,WATER DISPENSER |
|
|
PC BOARD,INVERTER |
|
|
PIN, DOOR HINGE, CENTER |
|
|
ROLLER, CRISPER GLIDE |
|
|
SCREW, 10-16AB X 0.50 |
|
|
SCREW, FLANGE PNHD PHL, 8G X 1/2" |
|
|
SCREW, FLEX DRIVE, 4*10 HI LO |
|
|
SCREW, M3.5 X 6 |
|
|
SCREW, PF AB PFZ PF, 3.5X1.27X19 |
|
|
SCREW, PHIL PN HD, M4 X 8 |
|
|
SCREW, SELF-TAPPING, 6 X 20 |
|
|
SCREW, TRILOB, M4 X 7.5 |
|
|
SCREW, TRILOB, M5 X 16 |
|
|
SCREW, TRUSS, 4.2 X 13 |
|
|
SCREW,HILO ,M4.2 X 16 |
|
|
SCREW,THREAD ,M5 X 17MM |
|
|
SENSOR KIT,TEMPERATURE ,W/COVER |
|
|
SHAFT,TELESCOPIC RAIL |
|
|
SHELF ASSEMBLY,FRESH FOOD ,GLASS ,W/TRIM |
|
|
SLIDER ASSEMBLY,FREEZER DRAWER ,LH ,W/GEAR-BEARING |
|
|
SLIDER ASSEMBLY,FREEZER DRAWER ,RH ,W/GEAR-MAGNET |
|
|
SPRING, PADDLE ASSEMBLY |
|
|
SUPPORT ASSEMBLY,COMPLETE ,LH ,W/MANNIFOLD |
|
|
SUPPORT ASSEMBLY,DELI DRAWER ,RH ,W/ROLLER |
|
|
SUPPORT, MAGNET, WHITE |
|
|
SUPPORT, WATER FILTER |
|
|
SUPPORT,EVAPORATOR ,LH |
|
|
SUPPORT,EVAPORATOR ,RH |
|
|
SWITCH, REED, DOOR |
|
|
THERMOSTAT KIT, DEFROST, W/CONNECTORS |
|
|
TOWER |
|
|
TROUGH,HEAT SHIELD ,EVAPORATOR |
|
|
TUBE,DRAIN |
|
|
TUBE,SUCTION ,JUMPER |
|
|
TUBING ASSEMBLY,ICE MAKER FILL ,GREEN ,W/FEMALE CONNEX |
|
|
TUBING ASSEMBLY,WATER INLET ,GREY ,TO VALVE,W/CAP |
|
|
TUBING,WATER ,BROWN ,VALVE ,TO FILTER |
|
|
TUBING,WATER ,NATURAL ,VALVE ,TO FILTER |
|
|
TUBING,WATER ,YELLOW ,DISPENSER |
|
|
USER INTERFACE,ASSEMBLY ,W/BOARD-OVERLAY |
|
|
VALVE ASSEMBLY,WATER |
