Manufacturer
Electrolux
Model Number
GRMS2773AF01
Description
26.3 Cu. Ft. Standard-depth 4-door French Door Ref
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ALIGNMENT KIT, DOOR ADJUSTMENT |
|
|
BAFFLE ASSEMBLY, AIR DAMPER, MIDDLE DRAWER |
|
|
BAR-DRIVE |
|
|
BASE, COMPRESSOR ASSEMBLY |
|
|
BASKET ASSEMBLY, FREEZER DRAWER, W/DIVIDER |
|
|
BASKET ASSEMBLY, MIDDLE DRAWER, W/DIVIDER |
|
|
BEARING, PAD, GEAR |
|
|
BIN ASSEMBLY, FLEX, DOOR, DAIRY |
|
|
BIN ASSEMBLY, FLEX, DOOR, SLIDE ADJUST |
|
|
BIN, BOTTLE, LH DOOR |
|
|
BIN, FIXED, DOOR BOTTOM |
|
|
BIN, FIXED, LH DOOR |
|
|
BIN, FIXED, SMALL, DOOR, ICE CHUTE |
|
|
BIN, FLEX, FULL WIDTH, DOOR |
|
|
BRACKET, CANTILEVER SHLF, CENTER |
|
|
BRACKET, CANTILEVER SHLF, LH |
|
|
BRACKET, CANTILEVER SHLF, RH |
|
|
BRACKET, LEVELING FOOT, LH |
|
|
BRACKET, LEVELING FOOT, RH |
|
|
BRACKET, REINFORCEMENT |
|
|
BRACKET, WATER VALVE |
|
|
BUCKET ASSEMBLY, ICE CONTAINER, W/MOVING PARTS |
|
|
BUMPER, DOOR, BOTTOM |
|
|
CABLE TIE, 2.5 X 120 |
|
|
CLAMP, COMPRESSOR, 2 HOLE |
|
|
CLAMP, COMPRESSOR, SINGLE HOLE |
|
|
CLAMP, FLEX DRIVE, CABLE |
|
|
CLAMP, NTC, EVAPORATOR |
|
|
CLAMP, TUBE/WIRING, 5/16-INCH |
|
|
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL |
|
|
CLAMP, WATER TUBE |
|
|
CLIP, HARNESS |
|
|
CLIP, HEATER/TUBING |
|
|
CLIP, TUBE, REAR |
|
|
CLOSER ASSEMBLY, DOOR, LH |
|
|
CLOSER ASSEMBLY, DOOR, RH |
|
|
COMPRESSOR, ASSEMBLY, VND1113Y |
|
|
CONDENSER ASSEMBLY, DYNAMIC |
|
|
CONNECTOR, HARNESS, EVAP COVER |
|
|
CONNECTOR, TUBING, QUICK CONNECT |
|
|
CONTROL ASSEMBLY, FLEX DRIVE |
|
|
COVER ASSEMBLY, AIR DUCT, FRESH FOOD, COMPLETE |
|
|
COVER ASSEMBLY, AIR FLOW, MIDDLE DRAWER, W/FAN-HEATER |
|
|
COVER ASSEMBLY, CRISPER, W/GLASS |
|
|
COVER ASSEMBLY, EVAPORATOR, FREEZER, W/FAN ASSEMBLY |
|
|
COVER, AIR DUCT, MIDDLE DRAWER |
|
|
COVER, AIR FILTER, FRESH FOOD |
|
|
COVER, ASSEMBLY, PCB BOX |
|
|
COVER, EYEBROW, GREY |
|
|
COVER, EYEBROW, SOFT CLOSE |
|
|
COVER, FILTER FACIA |
|
|
COVER, FLEX DRIVE, SIDE, COMPRESSOR |
|
|
COVER, FRESHNESS BOOST |
|
|
COVER, HARNESS, FF ICE MAKER |
|
|
COVER, INLET TUBE, REAR |
|
|
COVER, MACHINE COMPT., REAR |
|
|
COVER, MANIFOLD, FRONT |
|
|
COVER, MANIFOLD, REAR |
|
|
COVER, MULLION STORAGE, GLASS, LH |
|
|
COVER, MULLION STORAGE, RH |
|
|
COVER, REED SWITCH |
|
|
COVER, SCREW, SMALL |
|
|
COVER, WATER TANK |
|
|
COVER, WINDOW, FREEZER |
|
|
COVER, WINDOW, FRESH FOOD |
|
|
COVER, WINDOW, MIDDLE DRAWER |
|
|
CUSHION, RUBBER, FREEZER DRW |
|
|

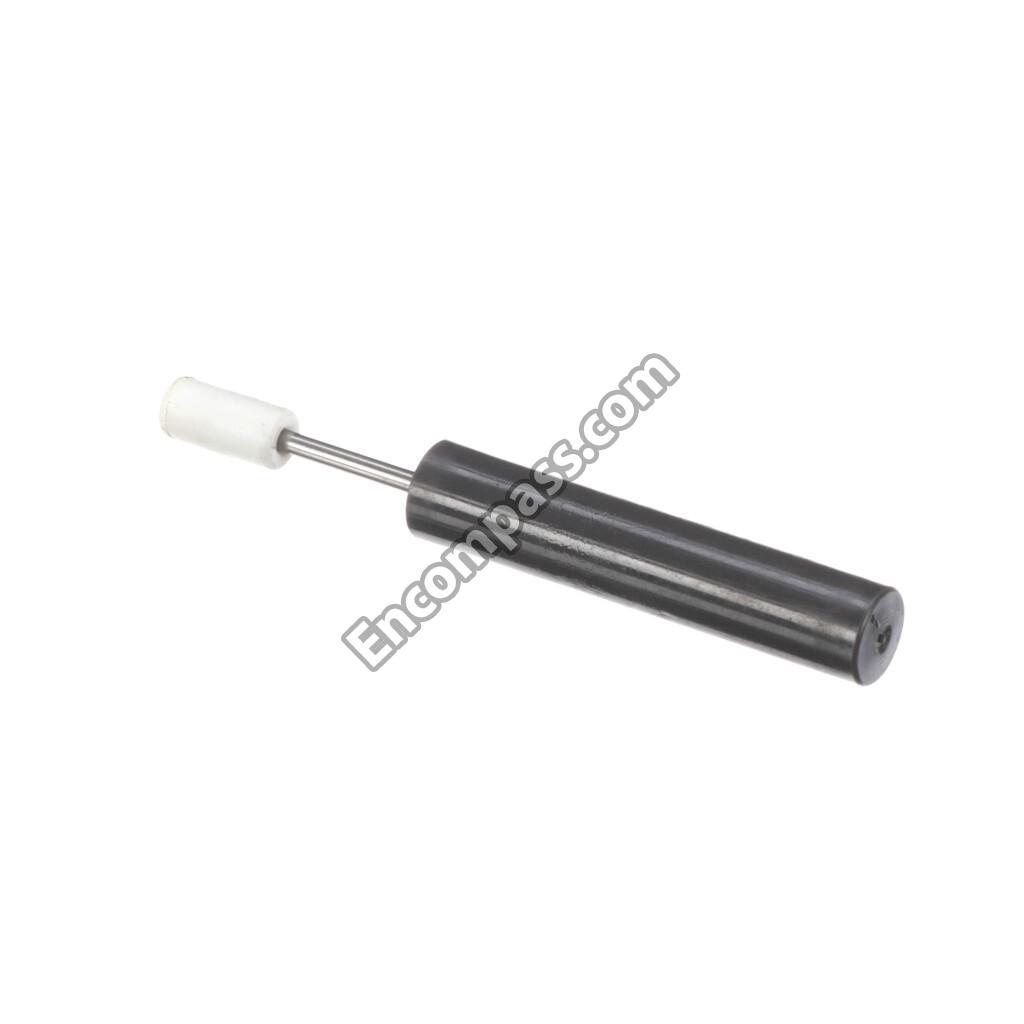

DAMPER, SOFT CLOSE |
|
|
DISPLAY ASSEMBLY, MIDDLE DRAWER, W/PCB |
|
|
DIVIDER, CRISPER COVER |
|
|
DOOR ASSEMBLY, OUTER, STAINLESS, FREEZER |
|
|
DOOR ASSEMBLY, OUTER, STAINLESS, LH FRESH FOOD, DISP SIDE |
|
|
DOOR ASSEMBLY, OUTER, STAINLESS, MIDDLE DRAWER |
|
|
DOOR ASSEMBLY, OUTER, STAINLESS, RH FRESH FOOD |
|
|
DRAIN PAN, CONDENSER |
|
|
DRAIN TROUGH, EVAPORATOR, FREEZER |
|
|
DRAIN TROUGH, EVAPORATOR, FRESH FOOD |
|
|
DRAIN TUBE, CORRUGATED |
|
|
DRAWER ASSEMBLY, CRISPER, LH, W/ROLLERS |
|
|
DRAWER ASSEMBLY, CRISPER, RH, W/ROLLERS |
|
|
DRAWER ASSEMBLY, FREEZER |
|
|
DUCT, AIR RETURN |
|
|
DUCT, ICE MAKER FAN |
|
|
EVAPORATOR ASSEMBLY, COMPLETE, ICE MAKER |
|
|
EVAPORATOR, ASSEMBLY, FREEZER |
|
|
EVAPORATOR, ASSEMBLY, FRESH FOOD |
|
|
FAN ASSEMBLY, CONDENSER |
|
|
FAN ASSEMBLY, EVAPORATOR |
|
|
FAN ASSEMBLY, MIDDLE DRAWER, W/SLEEVE |
|
|
FILTER, WATER, WF-1, FRIG PUREPOUR |
|
|
FOOT, LEVELING, STABILIZER |
|
|
FRAME, ICE CHUTE |
|
|
FRIG PUREAIR AF2 AIR FILTER C6 |
|
|
FRIGIDAIRE PA PK-2 REFILL |
|
|
GASKET, AIR HANDLER, FRONT |
|
|
GASKET, COVER, CRISPER |
|
|
GASKET, DOOR, 103MM, SECONDARY |
|
|
GASKET, DOOR, FREEZER |
|
|
GASKET, DOOR, LH FRESH FOOD |
|
|
GASKET, DOOR, MIDDLE |
|
|
GASKET, DOOR, RH FRESH FOOD |
|
|
GASKET-EVAP HOUSING, .250X.250X5.250 |
|
|
GEAR, PINION |
|
|
GROMMET, COMPRESSOR |
|
|
GROMMET, DYCO TUBE |
|
|
GROMMET, FAN |
|
|
GUIDE ASSEMBLY, FLIP MULLION, BASE |
|
|
GUIDE, WATER TUBE |
|
|
HANDLE KIT, FRESH FOOD, (2 HANDLES) |
|
|
HARNESS, WIRING, AIR HANDLER |
|
|
HARNESS, WIRING, EYEBROW |
|
|
HARNESS, WIRING, POWER SUPPLY |
|
|
HEATER ASSEMBLY, MIDDLE DRAWER |
|
|
HEATER, DEFROST, EVAPORATOR |
|
|
HEATER, FLIP MULLION |
|
|
HINGE, CENTER, LH |
|
|
HINGE, FLIP MULLION |
|
|
HINGE, MIDDLE, RH |
|
|
HINGE, TOP, LH |
|
|
HINGE, TOP, RH |
|
|
HOUSING ASSEMBLY, AUTO MEMBRANE, W/MEMBRANE |
|
|
HOUSING ASSEMBLY, ICE MAKER, W/GASKETS |
|
|
HOUSING KIT, 2 CONNECTOR |
|
|
HOUSING, AIR HANDLER |
|
|
HOUSING, FAN, FRESH FOOD |
|
|
ICE MAKER, ASSEMBLY, FRESH FOOD, 115 V, TWIST TRAY |
|
|
INSULATION, WINDOW, EPS, FRESH FOOD |
|
|
LENS, LED LIGHT, LH ENDCAP |
|
|
LIGHT ASSEMBLY, LED, 2GR, W/LENS, PCB, HARN |
|
|
LIGHT ASSEMBLY, LED, 2X UPPER, W/LENS, PCB, HARN |
|
|
LIGHT ASSEMBLY, LED, SINGLE, W/LENS |
|
|
LIGHT BOARD, 3 LED CLUSTER, 6500K |
|
|
MAGNET, REED SWITCH |
|
|
MANIFOLD, WATER FILTER |
|
|
MOTOR, AUGER |
|
|
MOTOR, FAN, ICE MAKER |
|
|
MULLION ASSEMBLY, FLIP, W/HEATER |
|
|
NAMEPLATE, CHROME, FRIG GALLERY |
|
|
PC BOARD, AC LINE FILTER, EMC |
|
|
PC BOARD, CONTROL, MAIN |
|
|
PC BOARD, POWER SUPPLY |
|
|
PIN, INTERLOCK, FLIP UP SHELF |
|
|
PLATE, FAN MOUNTING, FRESH FOOD |
|
|
POWER CORD, ELECTRIC |
|
|
RAIL, CRISPER, LH SIDE |
|
|
RAIL, CRISPER, RH SIDE |
|
|
ROLLER, CABINET |
|
|
ROLLER, CRISPER GLIDE |
|
|
SCREW, 4, 8X16 PH |
|
|
SCREW, FLANGE PNHD PHL, 8G X 1/2-INCH |
|
|
SCREW, FLEX DRIVE, 4*10 HI LO |
|
|
SCREW, HANDLE MOUNTING |
|
|
SCREW, HILO PHIL PN, .5-INCH , WHITE |
|
|
SCREW, M3.5 X 6 |
|
|
SCREW, PAN HEAD, 8-32 X 0.250 |
|
|
SCREW, PHIL PAN HILO, .63 IN |
|
|
SCREW, PHIL PN HD, M4 X 8 |
|
|
SCREW, QUAD HILO STS, #8-18 |
|
|
SCREW, QUAD HILO, #8-18 X 0.380 |
|
|
SCREW, SELF TAPPING, 6 X 20 |
|
|
SCREW, SELF TAPPING, M5 X 0.8 |
|
|
SCREW, TRI LOBE, M4 X 6 |
|
|
SCREW, TRILOB, M4 X 12 |
|
|
SCREW, TRILOB, M4 X 7.5 |
|
|
SCREW, TRILOB, M5 X 16 |
|
|
SCREW, TRUSS, 4.2 X 13 |
|
|
SCREW, VT AF/2P, 5 X 16 |
|
|
SCREW-#8-32 X 3/8 |
|
|
SCREW-SET, 10-32 X 0.375 |
|
|
SEAL, 6X8, FOAM TAPE, 154-INCH ROLL |
|
|
SEAL, BAFFLE ASSEMBLY |
|
|
SEAL, FOAM, 37 X 70MM |
|
|
SELECTOR, ICE CRUSH/CUBE |
|
|
SHAFT, CABINET ROLLER |
|
|
SHAFT, SLIDER, TELESCOPIC |
|
|
SHELF ASSEMBLY, CANTILEVER, GLASS, LH |
|
|
SHELF ASSEMBLY, CANTILEVER, GLASS, RH |
|
|
SHELF ASSEMBLY, CANTILEVER, UPPER, SLIDE UNDER |
|
|
SHELF ASSEMBLY, FLIP UP, LH, GLASS |
|
|
SHROUD, CONDENSER FAN |
|
|
SLIDER, ASSEMBLY, LH FREEZER |
|
|
SLIDER, ASSEMBLY, LH MIDDLE DRW |
|
|
SLIDER, ASSEMBLY, RH FREEZER |
|
|
SLIDER, ASSEMBLY, RH MIDDLE DRW |
|
|
SPRING, TUBE PROTECTION |
|
|
STEP VALVE, ASSEMBLY, W/FILTER DRIER |
|
|
STOP, ASSEMBLY, LH DOOR |
|
|
STOP, ASSEMBLY, RH DOOR |
|
|
SUPPORT, DRAWER SLIDE, LH |
|
|
SUPPORT, DRAWER SLIDE, RH |
|
|
SUPPORT, MAGNET |
|
|
SUPPORT, WATER VALVE, & TANK |
|
|
SWITCH, DOOR REED |
|
|
TANK, WATER, DISP RESERVOIR |
|
|
TAPE, 3-INCH X 1-INCH , FOIL |
|
|
THERMISTOR KIT, TEMPERATURE, NTC, W/CONNECTORS |
|
|
THERMISTOR KIT, TEMPERATURE, W/HOUSING |
|
|
THERMOSTAT KIT, DEFROST, W/CONNECTORS |
|
|
TUBE ASSEMBLY, INLET WATER, W/CONNECTOR |
|
|
TUBE, SUCTION |
|
|
TUBE, WATER |
|
|
TUBING, VALVE, TO DOOR HINGE |
|
|
TUBING, VALVE, TO FF ICE MAKER |
|
|
VALVE, WATER, SINGLE |
|
|
WASHER, FLAT |
|
|
WATER VALVE, ASSEMBLY, DOUBLE |
|
|
WRENCH, ALLEN, SET SCREW |
