Manufacturer
Electrolux
Model Number
GRSS2652AF1
Description
Refrigerator, Side-by-side
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BASE, COMPRESSOR, 22 |
|
|
BASE, SUPPORT, WATER FILTER |
|
|
BASKET |
|
|
BEARING, HINGE, TOP |
|
|
BEARING, HINGE, TOP |
|
|
BEARING-HINGE(FRZ), CLOSER |
|
|
BEARING-HINGE, GRAY |
|
|
BIN ASSEMBLY |
|
|
BIN ASSEMBLY |
|
|
BIN ASSEMBLY |
|
|
BIN ASSEMBLY |
|
|
BLADE, CONDENSER FAN, FAN |
|
|
BLADE-CONDENSER FAN |
|
|
BLOCK-EVAP COIL, STYROFOAM, (2) |
|
|
BRACKET-EVAP/CVR MTG |
|
|
BRACKET-LOWER HINGE, W/HINGE PIN, LH, AND SCREW |
|
|
BRACKET-LOWER HINGE,W/HINGE PIN ,RH ,AND SCREW |
|
|
BRACKET-UPPER HINGE, LH |
|
|
BRACKET-UPPER HINGE, RH |
|
|
BUSHING-MOTOR MTG |
|
|
BUSHING-MOTOR MTG |
|
|
CLAMP, TUBE/WIRING, 1/2", NYLON, BLACK/NATURAL |
|
|
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL |
|
|
CLAMP, WIRING HARNESS, GALV STEEL, STRN RELIEF |
|
|
CLAMP,.31 ID ,STEEL ,WATER TUBE |
|
|
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR |
|
|
CLIP, GRILLE/TUBE, & HINGE |
|
|
CLIP, SENSOR |
|
|
CLIP, TUBING, 90 DEG ELBOW |
|
|
CLIP-SPRING |
|
|
CLIP-TUBE, DRAIN |
|
|
COMPRESSOR-JIXAPERA-VTH |
|
|
CONDENSER |
|
|
CONNECTOR, WIRE, TO TUBE |
|
|
CONNECTOR-WATER,STRAIGHT |
|
|
CORD, SERVICE |
|
|
COVER ASSEMBLY, ACCESS, METAL |
|
|
COVER, COMPARTMENT, DAIRY |
|
|
COVER, DAMPER |
|
|
COVER, THERMISTOR |
|
|
COVER, TUBING, EPS BLOCK |
|
|
COVER, WATER FILTER |
|
|
COVER-AIR DUCT |
|
|
COVER-EVAP COIL, LOWER |
|
|
COVER-UPPER HINGE, GRAY, LH |
|
|
COVER-UPPER HINGE, GRAY, RH |
|
|
CRISPER COVER, ASSEMBLY, GLASS, LOWER, W/TRIM-GASKET |
|
|
CRISPER COVER, ASSEMBLY, GLASS, UPPER, W/TRIM-GASKET |
|
|
CRISPER PAN, LOWER ASSY, W/ROLLERS, TRIM |
|
|
CRISPER PAN, UPPER ASSY, W/ROLLERS, TRIM |
|
|
DAMPER W/ SEALS |
|
|
DELI COVER, ASSEMBLY, GLASS, W/TRIM-GASKET |
|
|
DELI PAN, ASSEMBLY, W/ROLLERS, TRIM |
|
|
DOOR ASSEMBLY, FREEZER, STAINLESS, COMPLETE |
|
|
DOOR ASSEMBLY, FRESH FOOD, STAINLESS, COMPLETE |
|
|
DOOR STOP, BLACK, FRZR |
|
|
DOOR STOP, BLACK, REF |
|
|
DRIER-FILTER,R12 & R134A |
|
|
DRIVE BAR' |
|
|
DUCT AIR, SLIM ICEMAKER, ASSEMBLY |
|
|
EVAPORATOR KIT |
|
|
FILL CUP, W/HEATER |
|
|
FILTER, WATER, WF-1, FRIG PUREPOUR |
|
|
FRIG FRESHNESS BOOSTER REFILL |
|
|
GASKET, UI HOUSING |
|
|
GASKET-DOOR, MAGNETIC |
|
|
GASKET-DOOR, MAGNETIC |
|
|
GRILLE/KICKPLATE, GRAY |
|
|
GROMMET, COMPRESSOR |
|
|
GROMMET, RUBBER, BLACK, 23 # |
|
|
GROMMET-SHELF MTG, .96" LONG |
|
|
GROMMET-SHELF MTG, 1.40" LONG |
|
|
GUIDE, WATER TUBE, DISPENSER |
|
|
HANDLE, DOOR, STAINLESS, W/SET SCREWS |
|
|
HANGER-BASKET, LH |
|
|
HANGER-BASKET, LH |
|
|
HANGER-BASKET, RH |
|
|
HANGER-BASKET, RH |
|
|
HARNESS ASSEMBLY, LOW SIDE, DC, EVAP FAN |
|
|
HARNESS, JUMPER, LIGHT SWITCH |
|
|
HARNESS, SLIM TWIST, ICE MAKER |
|
|
HARNESS, WIRING, MACHINE COMPT. |
|
|
HEATER, DEFROST |
|
|
HOUSING ASSEMBLY, WATER FILTER, W/DRIP PAD |
|
|
HOUSING, AIR FILTER |
|
|
HOUSING, COVER MOTOR, SOLENOID |
|
|
HOUSING, OUTER COVER, SLIM ICEMAKER |
|
|
HOUSING, SLIM ICE MAKER |
|
|
ICE CONTAINER ASSEMBLY, W/MOVING PARTS |
|
|
ICE MAKER, COMPLETE, 115 V, TWIST |
|
|
INSULATION, DAMPER COVER |
|
|
INVERTER, COMPRESSOR |
|
|
LIGHT ASSEMBLY, LED, SINGLE, W/LENS |
|
|
LIGHT ASSEMBLY, LED, WIDE DOUBLE, W/LENS |
|
|
MANIFOLD |
|
|
MODULE ASSEMBLY, ICE & WATER, GRAY, COMPLETE |
|
|
MOTOR, AUGER |
|
|
MOTOR, CONDENSER FAN |
|
|
MOTOR, COVER |
|
|
MOTOR, EVAPORATOR FAN, W/HARNESS |
|
|
NAMEPLATE, CHROME, FRIG GALLERY |
|
|
PADDLE ASSEMBLY |
|
|
PAINT, TOUCH-UP, GRAPHITE |
|
|
PAN-DEFROST, 26 |
|
|
PIN-ANTI TWIST BKT GEN II IM |
|
|
PLATE-DOOR CLOSER |
|
|
PLUG-HOLE, FACTORY TEST |
|
|
POWER BOARD, ASSEMBLY, MAIN, W/HOUSING |
|
|
PURE AIR ULTRA 2 AIR FILTER, 8 |
|
|
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN |
|
|
ROLLER ASSEMBLY, STATIC, LH, W/LEVELING LEG |
|
|
ROLLER ASSEMBLY, STATIC, RH, W/LEVELING LEG |
|
|
ROLLER, COMPRESSOR BASE, REAR |
|
|
SCREW, #10-16 X 1/2 |
|
|
SCREW, #8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW, 10-32 X 3/8 |
|
|
SCREW, 8-18 X .500 |
|
|
SCREW, DRILLING, 10-24 X 3/4 |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD, 1/4-20 X 5/8 |
|
|
SCREW, HEX HEAD, 10-32 X 0.500 |
|
|
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE |
|
|
SCREW, HEX WASHER HEAD, 8-15A X 1.000 |
|
|
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 |
|
|
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 |
|
|
SCREW, HEX WASHER HEAD, 8-32 X 3/8 |
|
|
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE |
|
|
SCREW, PAN HEAD, 8-18 X 0.625 |
|
|
SCREW, QUAD HILO, #8-18 |
|
|
SCREW, QUAD HILO, #8-18 X 0.380 |
|
|
SCREW, SHOULDER, #10-16 TYPE AB, LOWER SLIDES, W/WASHER |
|
|
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING |
|
|
SCREW,CONTROL MTG. |
|
|
SCREW,HEX WSHR HD ,8-15A X 0.500 |
|
|
SCREW,PAN HEAD ,8-32 X 0.250 |
|
|
SCREW-#8-32 X 3/8 |
|
|
SCREW-FAN SHROUD, (2) |
|
|
SCREW-NO.10-32 X 3/4,WHITE |
|
|
SCREW-SET,10-32 X 0.650 |
|
|
SCREW-SHOULDER |
|
|
SEAL COIL, COVER |
|
|
SEAL-DAMPER, FOAM |
|
|
SENSOR, TEMPERATURE, 10K, NTC |
|
|
SHELF ASSEMBLY, GLASS, METAL TRIM |
|
|
SHELF, PIZZA |
|
|
SHELF-FREEZER, GLASS, LOWER |
|
|
SHELF-FREEZER, GLASS, UPPER |
|
|
SHROUD-COND FAN |
|
|
SHROUD-EVAP FAN MTG, W/SEAL |
|
|
SOLENOID, ASSEMBLY |
|
|
SPRING, PADDLE ASSEMBLY |
|
|
SPRING, WATER HOSE, FRZ DOOR |
|
|
STRAP-EVAP/HEATER, ALUMINUM, (2) |
|
|
SUPPORT, CRISPER COVER |
|
|
SUPPORT, HOUSING, MAIN BOARD |
|
|
SWITCH, DISP PADDLE |
|
|
SWITCH, LIGHT, GRAY, PLUNGER STYLE |
|
|
SWITCH-LIGHT/LAMP |
|
|
TAPE, FOAM SEAL, SHROUD |
|
|
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR |
|
|
THERMISTOR KIT, TEMPERATURE, NTC, W/CONNECTORS |
|
|
TRAY, DRIP, STAINLESS |
|
|
TRIM, FREEZER SHELF, REAR |
|
|
TRIM, GLASS SHELF, METALIC, FREEZER, FRONT |
|
|
TRIM, WIRE SHELF, METALIC, FREEZER, FRONT |
|
|
TRIM-CABINET CORNER, GRAY |
|
|
TROUGH, EVAP DRAIN |
|
|
TUBE ASSEMBLY, WATER FILL EXTN, VALVE TO IM INL |
|
|
TUBE, CONNECTOR, SUCTION |
|
|
TUBE, WATER, 32", YELLOW, VALVE, TO DOOR |
|
|
TUBE, WATER, 62", NATURAL, DOOR, TO DISPENSER |
|
|
TUBE, WATER, 68", GREEN, VALVE, TO ICE MAKER |
|
|
TUBE, WATER, 93.5", BROWN/TAN, VALVE TO FILTER |
|
|
TUBE, WATER, 97.5", NATURAL, ILTER, SECONDARY VALVE |
|
|
TUBE-DRAIN, LOWER |
|
|
TUBE-PROCESS |
|
|

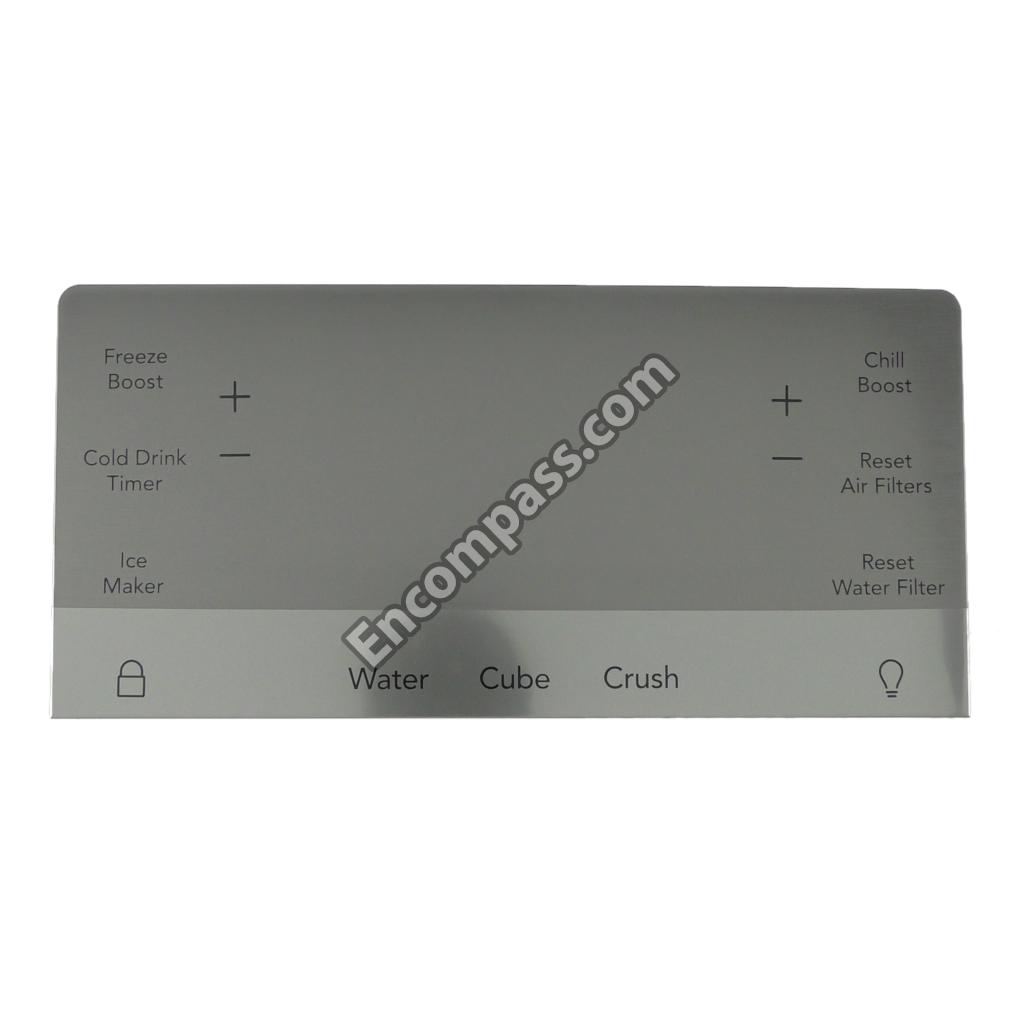

USER INTERFACE, ASSEMBLY, GRAY, DISPENSER, W/HOUSING-OVRLY |
|
|
VALVE-SOLENOID TRIPLE |
|
|
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT |
|
|
WASHER-COMPR MTG |
|
|
WRENCH |
