Model Image
Manufacturer

Electrolux

Model Number

GWS833CS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
131901400 131901400 + SEAL,SPLSH TUB COVER
131427200 131427200 AGITATOR
134088700 134088700 BACKPANEL
5303311213 5303311213 BASE ASSEMBLY
3204405 3204405 BEARING,OUTER TUB

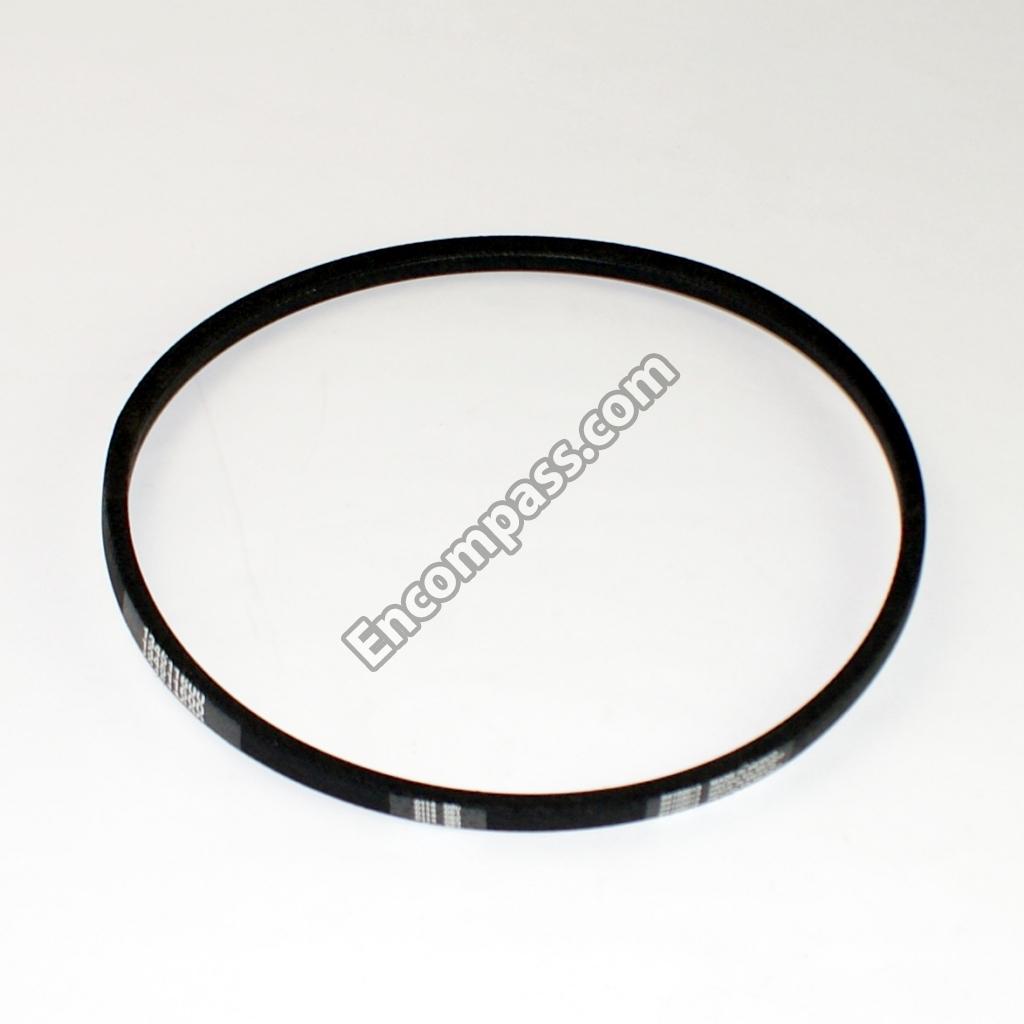

134511600 134511600 BELT
131580006 131580006 BRACKET-CONTROL
131433300 131433300 BUMPER
134075500 134075500 BUMPER
131453000 131453000 BUSHING
5303209428 5303209428 BUSHING
134046600 134046600 CABINET ASSEMBLY
131266800 131266800 CAP,DISPENSER

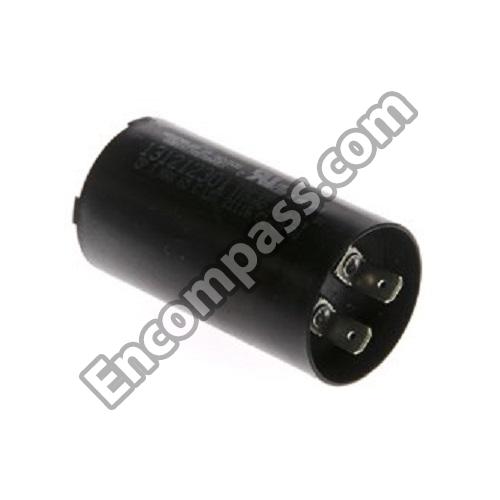

131212301 131212301 CAPACITOR,MOTOR
5304488479 5304488479 CLAMP,BLOWER WHEEL
131306234 131306234 CLAMP,PUMP TO TRAP
131462500 131462500 CLIP
131506500 131506500 CLIP
5303309503 5303309503 CLIP
131197000 131197000 CLIP,CONSOLE MTG
3205821 3205821 CLIP,TOP-TO-FRONT
5303283052 5303283052 CLIP-SHIELD
131122611 131122611 COVER,END CAP ,WHITE ,LH
131122601 131122601 COVER,END CAP ,WHITE ,RH
131206100 131206100 CUP,DISPENSER
131663500 131663500 CUSHION
5303208778 5303208778 DISPENSER
131122711 131122711 END CAP - L.H.
131122701 131122701 END CAP-R.H.- WHITE
5303208743 5303208743 GROMMET
131374220 131374220 HINGE BAR
131385910 131385910 HINGE BAR
5303208751 5303208751 HINGE,TOP PANEL ,CABINET REAR

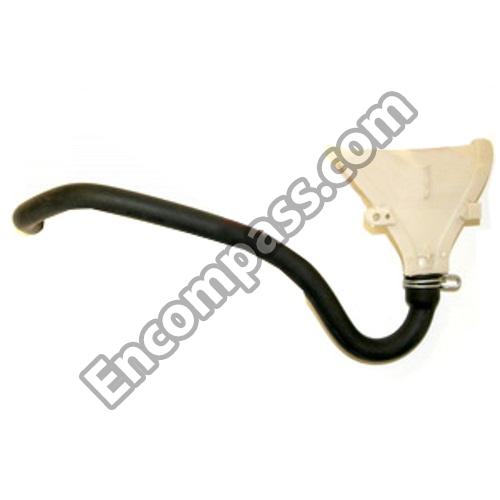

134211701 134211701 HOSE ASSY,W/NOZZLE,CLAMP
131494800 131494800 HOSE,PUMP TO TUB

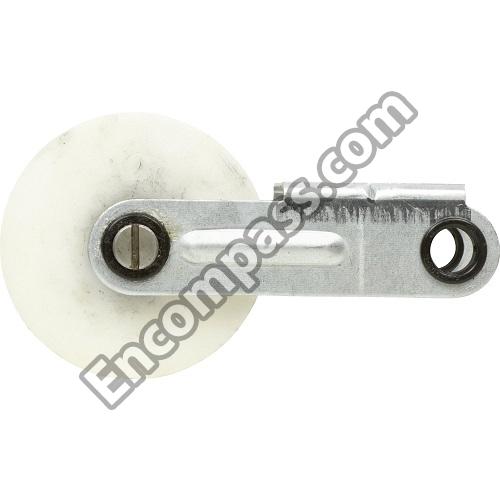

131862900 131862900 IDLER ARM ASSY,VAW ,WITH PULLEY
5303212877 5303212877 INSERT,SPRING ADJUSTER ,VERTICAL

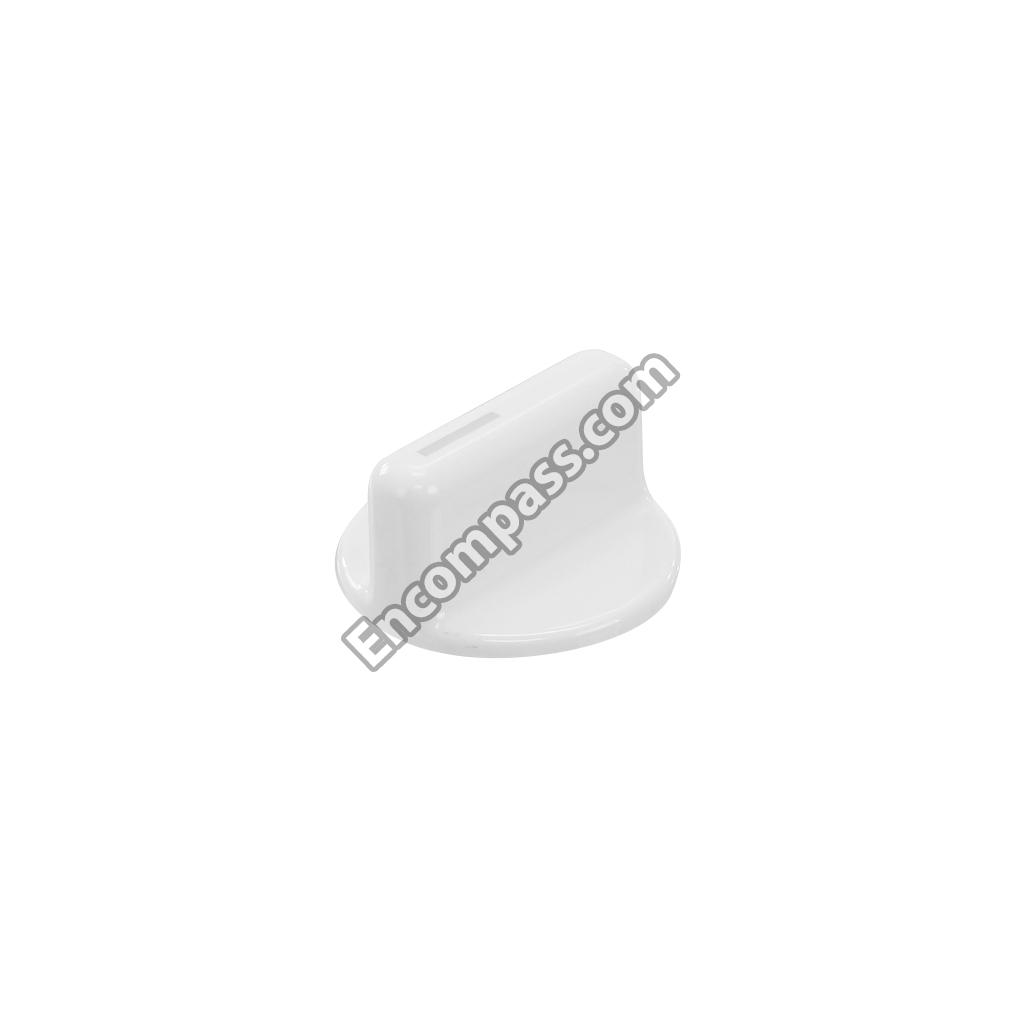

131978301 131978301 KNOB
131786603 131786603 KNOB,ROTARY ,WHITE/GRAY

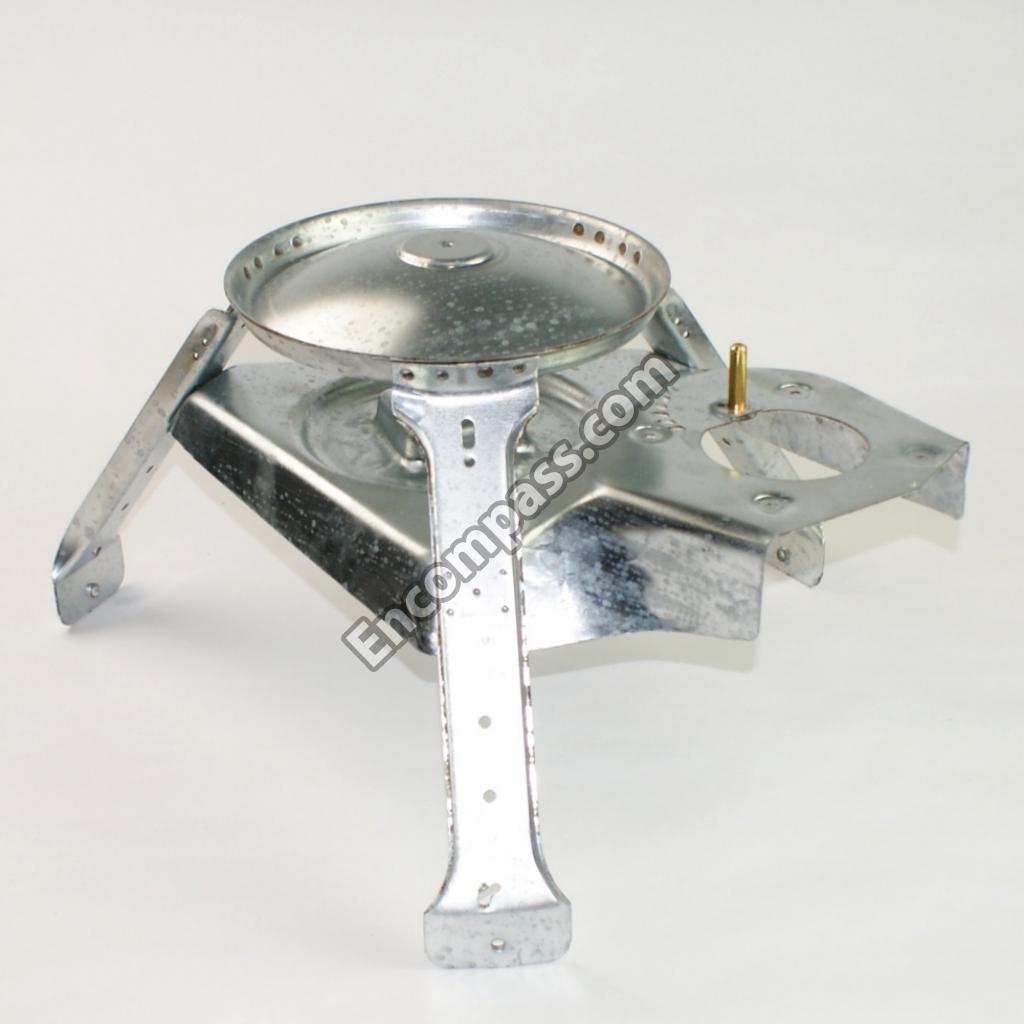

131373610 131373610 LEG AND DOME ASSEMBLY
131390000 131390000 LID STRIKE

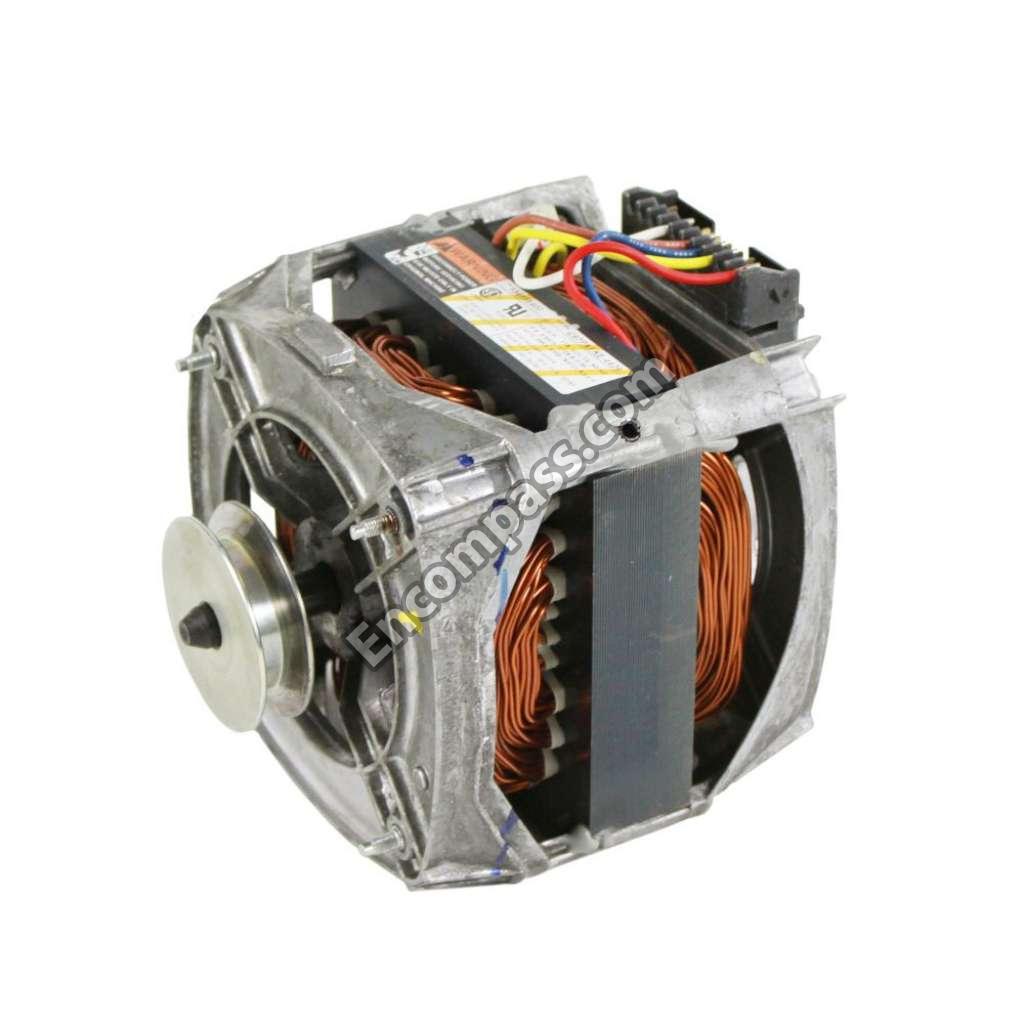

134156400 134156400 MOTOR,3/4 HP,1 SPEED ,WITH PULLEY
5303318708 5303318708 NUT
131422100 131422100 PAD,LEVELING LEG ,FRONT
131422200 131422200 PAD,SELF LVLG LEG ,REAR
131104303 131104303 PANEL,FRONT ,WHITE
131452692 131452692 PANEL,WHITE ,TOP
131346400 131346400 PIN,PANEL LOCATOR ,SIDE

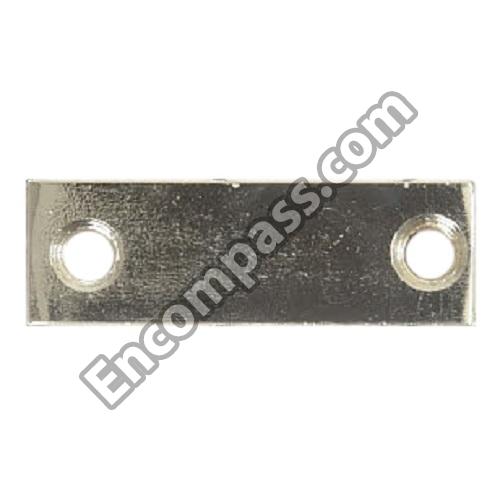

137107000 137107000 PLATE,LOCK
131978203 131978203 POINTER
134501000 134501000 POWER CORD,ELECTRIC SVCE

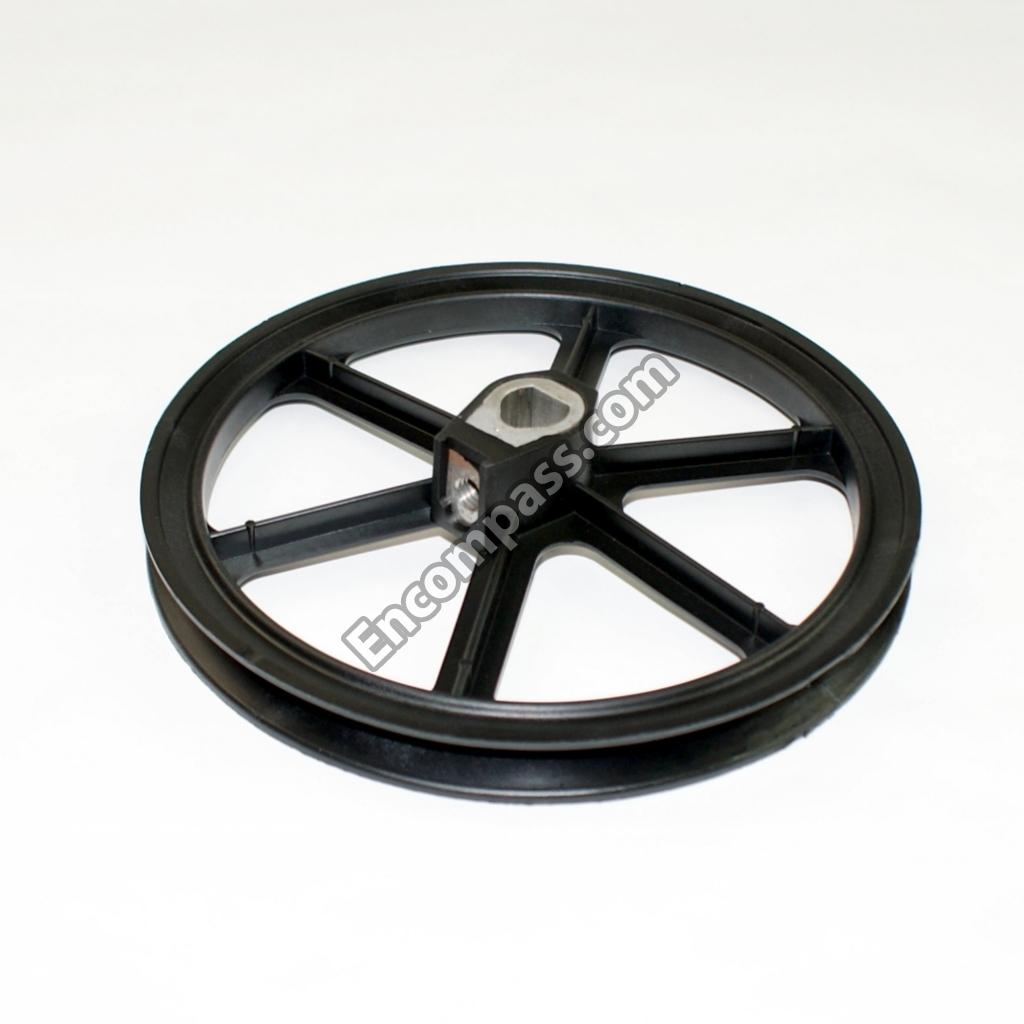

131498301 131498301 PULLEY,XMSN DRIVE
137221600 137221600 PUMP,DRAIN
131707800 131707800 RING,DRAIN HOSE
3161433 3161433 RING,RETAINING
134203900 134203900 SCR 6-32X.337 PPH D
131477000 131477000 SCREW
131205100 131205100 SCREW
134197900 134197900 SCREW
134160900 134160900 SCREW
134164400 134164400 SCREW
131658900 131658900 SCREW
131205500 131205500 SCREW
3204368 3204368 SCREW
131205300 131205300 SCREW,10-16 X 0.750
131302800 131302800 SCREW,10-16AB X 0.500
131266330 131266330 SCREW,8-18 X 1.250

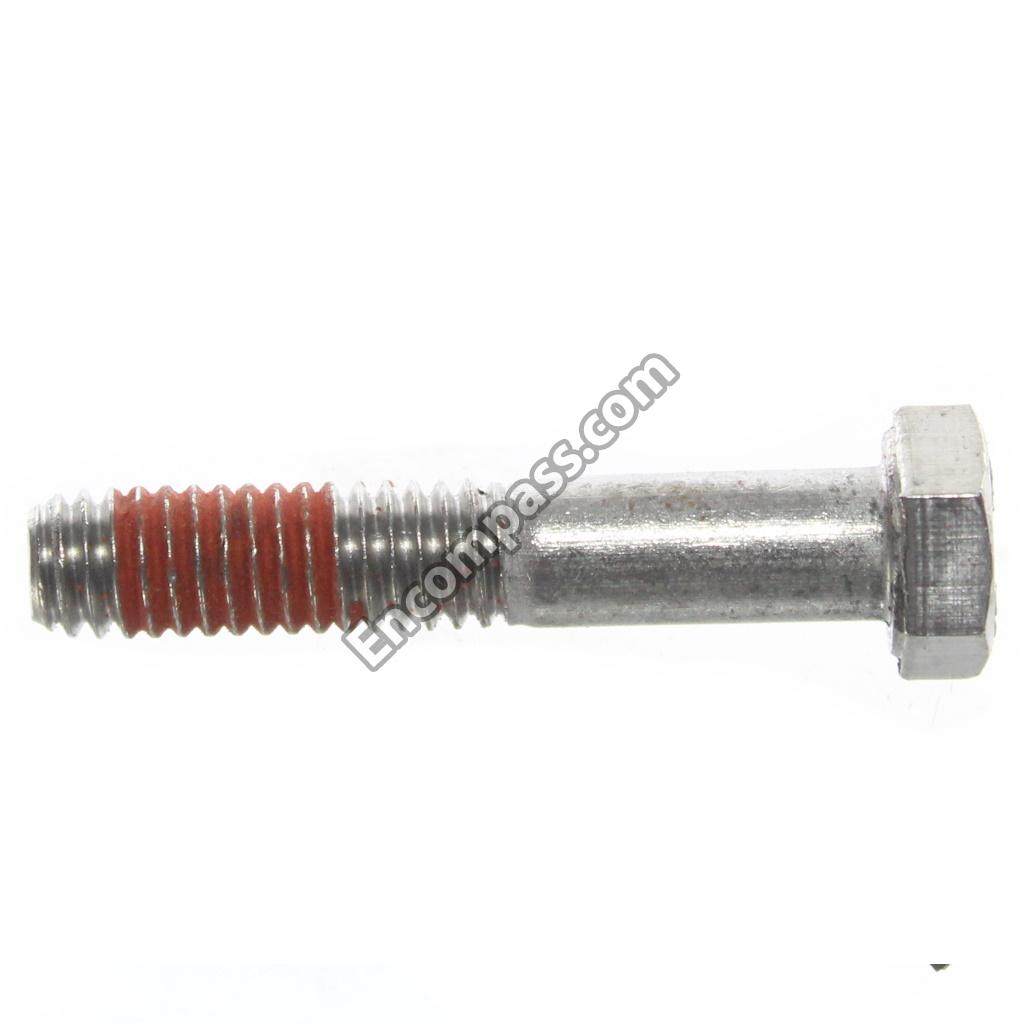

131468900 131468900 SCREW,AGITATOR MTG ,5/16-18 X 1.250
5303309673 5303309673 SCREW,LEVELING LEG ,WITH PAD
131168200 131168200 SCREW,PAN HEAD ,8-18B X 0.31
3205150 3205150 SCREW,TUB BEARING ,8-12B X 0.750
131243800 131243800 SCREW-BRKT TOP,PAN HD LOCKING ,
137539500 137539500 SCREW-TRUNNION, UNC2A X .625, .312-18
5303283293 5303283293 SCREW-TRUNNION,UNC2AX.625 `.312-18
5303279394 5303279394 SEAL ASSY,TUB ,TRANSMISSION
131513300 131513300 SHIELD
131715801 131715801 SHIELD
3204380 3204380 SHIPPING BLOCK
3204426 3204426 SLEEVE,IDLER PIVOT
5308002385 5308002385 SNUBBER RING ASSY
131339600 131339600 SPACER,AGITATOR MTG ,RUBBER

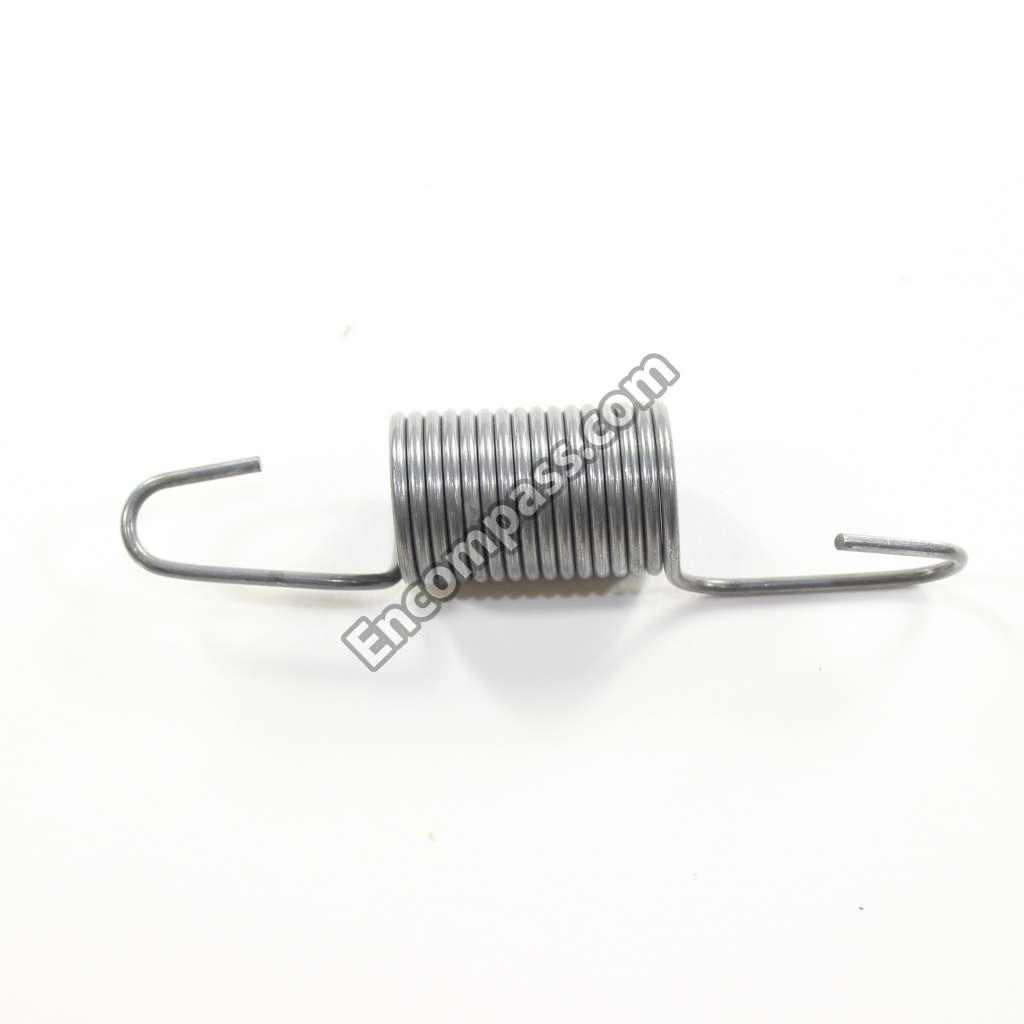

131373900 131373900 SPRING,HORIZONTAL

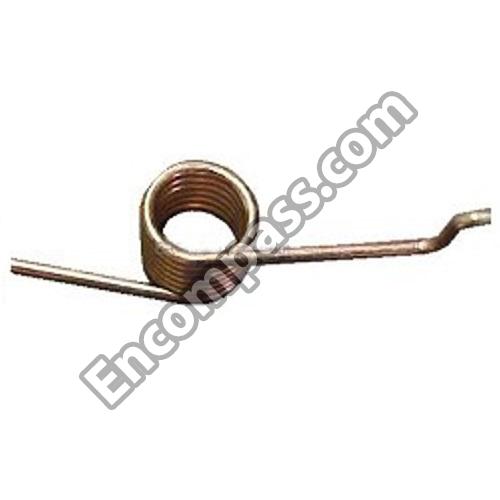

3204425 3204425 SPRING,TORSIONAL
134885900 134885900 SPRING,VERTICAL
134886600 134886600 SPRING,VERTICAL ,SHORT

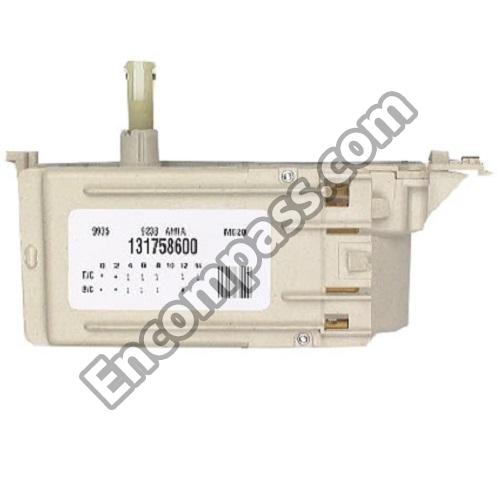

131758600 131758600 TIMER,WASHER

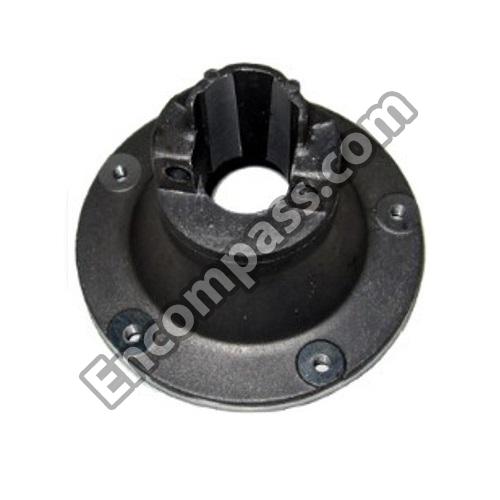

131545101 131545101 TRUNNION

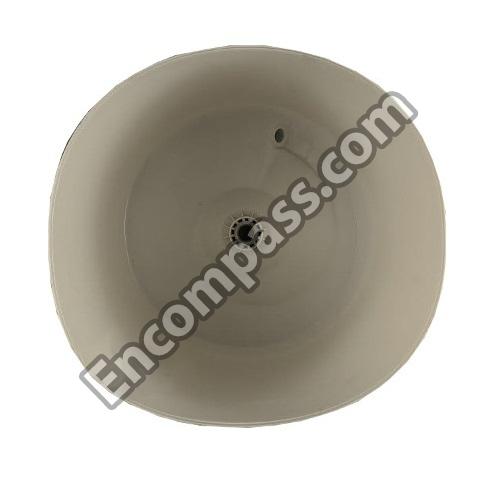

131221310 131221310 TUB,SPIN
131557201 131557201 TUB,SPLASH ,W/AIR DOME,BRG
5300771996 5300771996 TUBE,PRESSURE ,VINYL

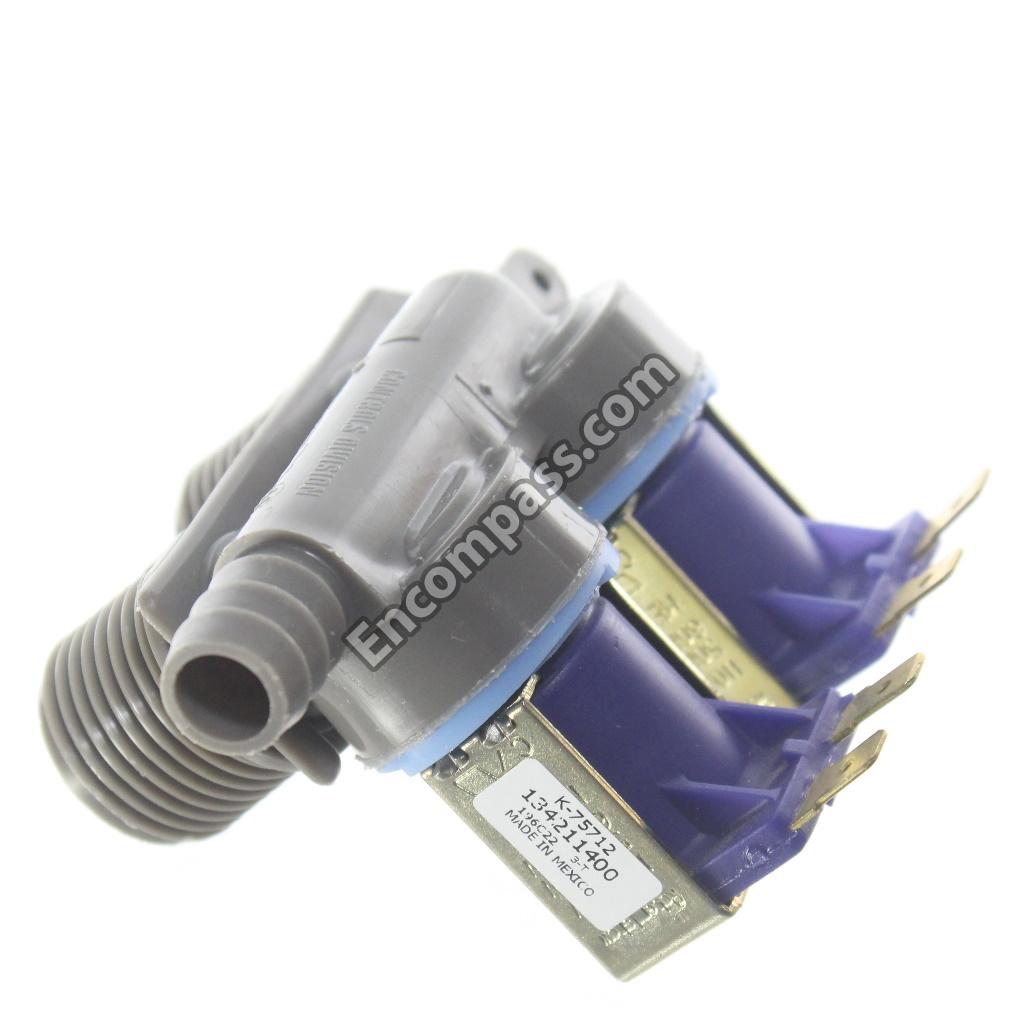

134211400 134211400 VALVE,WATER ,115 V
5303161296 5303161296 WASHER,INLET HOSE

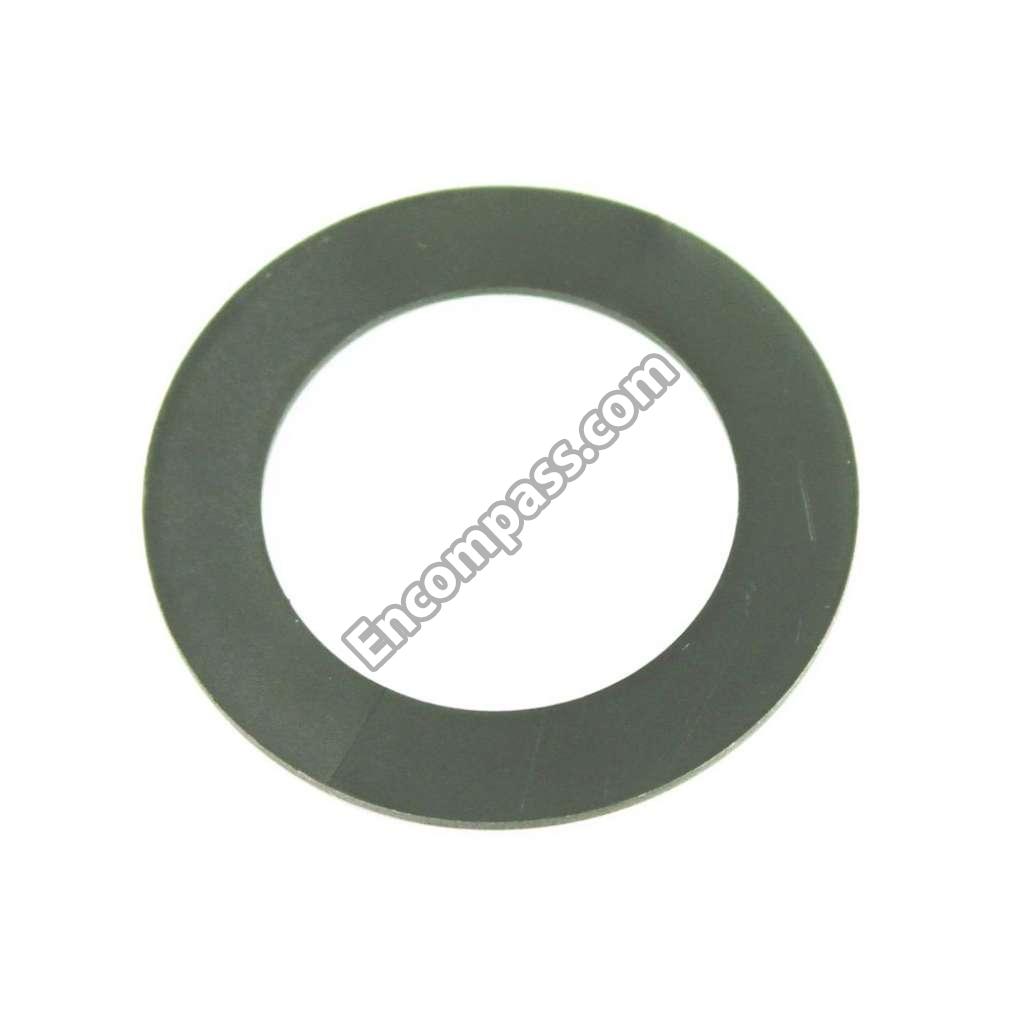

5303261031 5303261031 WASHER,PIVOT SHAFT
5308002401 5308002401 WASHER,SPIN BEARING ,UPPER
5303161306 5303161306 WASHER,SPRING TYPE
