Model Image
Manufacturer

Electrolux

Model Number

KFS221LGW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216381300 216381300 **NLA** COVER-DRAIN
216987800 216987800 ADAPTERHARNESS
297090300 297090300 BARRIER-FAN
216970300 216970300 BASECOMPRESSOR
216335400 216335400 BEARING-HINGE
216468700 216468700 BEZELLOCK
216933700 216933700 BRACKET
240524001 240524001 BRACKET
216968501 216968501 BRACKETTIMER
216603300 216603300 BREAKER KIT W/CORNE
216604100 216604100 BREAKER KIT W/CORNE
216578800 216578800 BREATHER VALVES
5303313652 5303313652 CAP
297086602 297086602 CASTOR HARDWARE KIT
297116700 297116700 CASTOR-TAPPING PLAT
216823500 216823500 CLAMP
5303311565 5303311565 CLIP-CABLE
216970100 216970100 CONDENSER
297014300 297014300 COVER-BLOWER
297070800 297070800 COVER-DRAIN HOSE
297070700 297070700 COVER-WIRING
216659103 216659103 COVEREVAPORATOR
297070201 297070201 DIAL
216377000 216377000 DRAIN TROUGH
216361100 216361100 GASKETCOVER EVAP
216383700 216383700 GASKETEVAP COVER
216383800 216383800 GASKETEVAP COVER
216383600 216383600 GRATEAIR INTAKE
240405201 240405201 GROMMET
218513300 218513300 GROMMET-COMPR MTG
216225700 216225700 GROMMETSPACER
297141900 297141900 HANDLE
297082300 297082300 HARNESS-JUMPER
297069200 297069200 HARNESS-MAIN

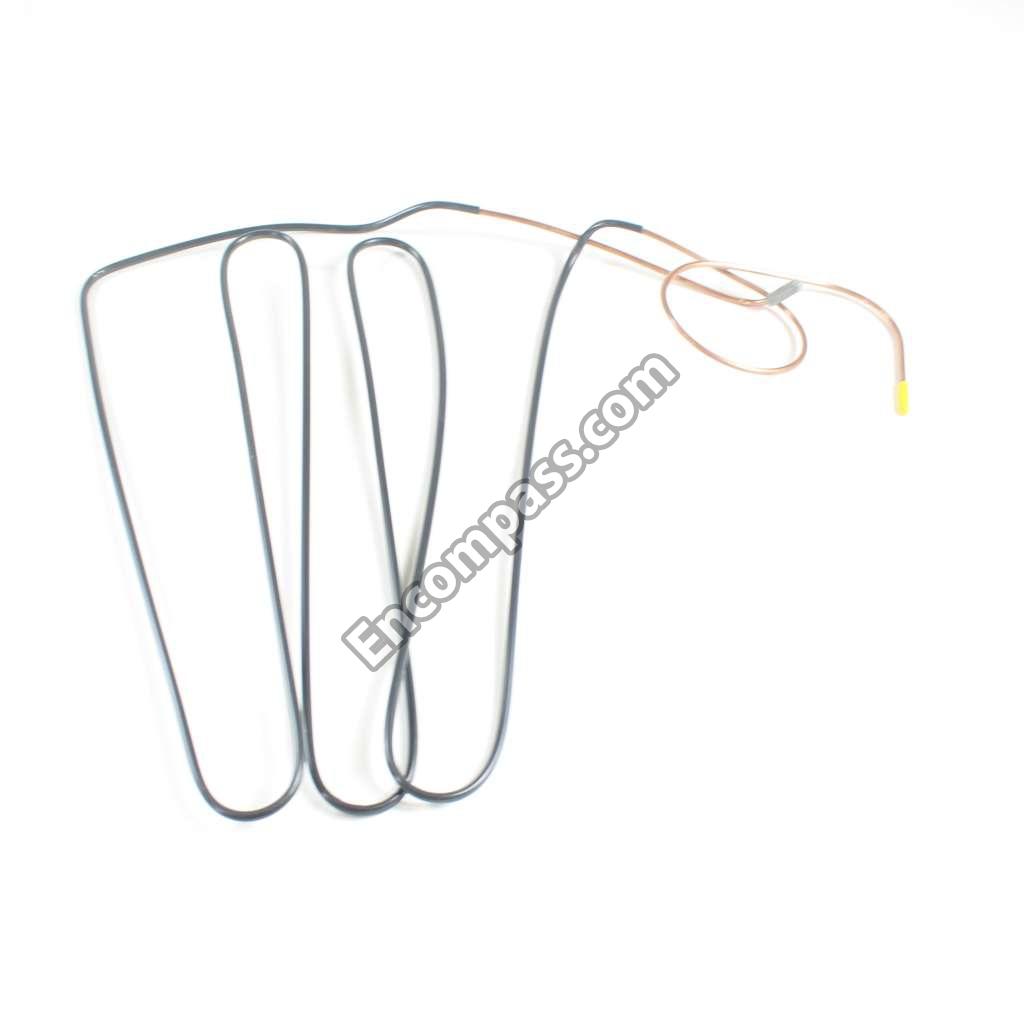

297363100 297363100 HEAT EXCHANGER
216730700 216730700 HEATER-DEFROST
216335600 216335600 HINGEBOTTOM
216361901 216361901 HOSEDRAIN
297078800 297078800 INSULATOR-EVAP
297078700 297078700 INSULATOR-EVAP
216362800 216362800 KEY
297090800 297090800 LABEL
216362700 216362700 LOCK ASSEMBLY
216324200 216324200 LOCKCATCH
216100126 216100126 OVERLOAD PROTECTOR

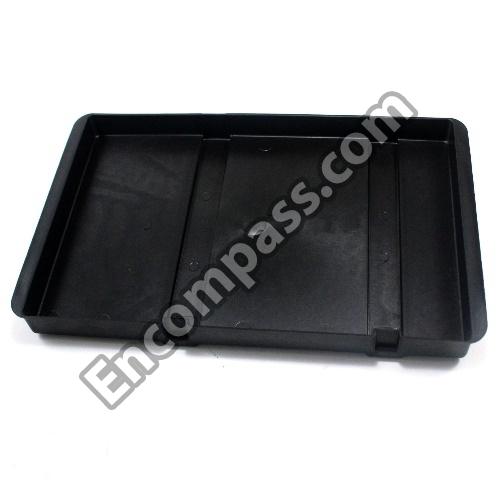

216732400 216732400 PAN-DRAIN

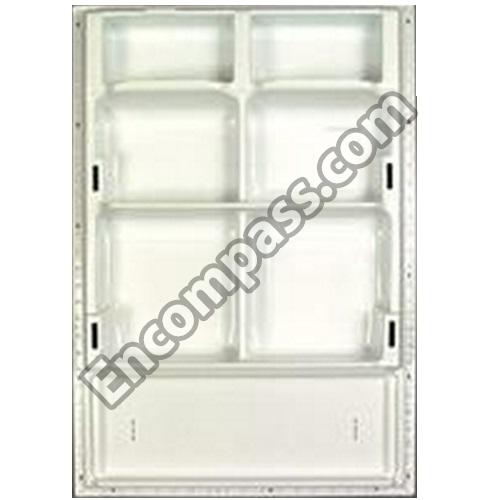

297071000 297071000 PANEL-INNER DOOR
297255302 297255302 PANELOUTER DOOR
297078600 297078600 PLATE-SPACER
216335700 216335700 PLATEHINGE
297083500 297083500 PLUG-HANDLE
216403701 216403701 PLUGBUTTON
216423000 216423000 RETAINERLOCK
216495300 216495300 ROLLERFRONT
297096100 297096100 SCREW
216605500 216605500 SCREW
218897004 218897004 SCREW
216036601 216036601 SCREW
216337701 216337701 SCREW
5300052943 5300052943 SCREW-CLAMP
240491503 240491503 SCREW-COMPRESSOR MT
216396900 216396900 SCREW-LEG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
216423501 216423501 SCREWRETAINER
297122000 297122000 SHELFSTANDARD
216970200 216970200 SHROUD-FAN ORFICE
297102800 297102800 SPACER-TUBE
297001707 297001707 SPACER-TUBE
216335500 216335500 SPACERHINGE
216336300 216336300 STANDOFFBASE PANEL
216894200 216894200 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER

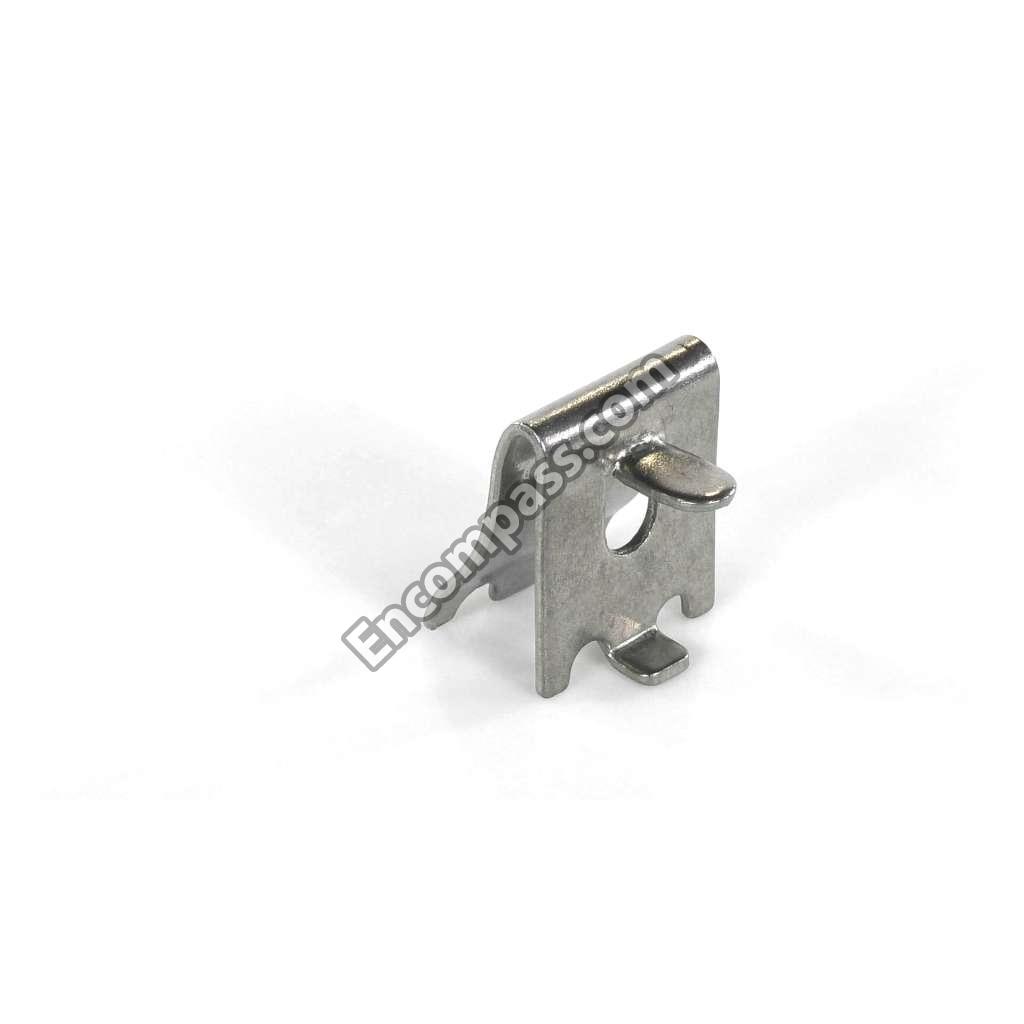

297121900 297121900 SUPPORT SHELF
216658101 216658101 SUPPORTCASTERS
5303916855 5303916855 TUBE
216999400 216999400 TUBING- HEATER
216395801 216395801 USE 216395801
216680901 216680901 USE 216680901
216912401 216912401 USE 216912401
5309950074 5309950074 VALVE
297014200 297014200 VENTURI
5303321319 5303321319 WHITE TOUCHUP PAINT
