Model Image
Manufacturer

Electrolux

Model Number

KFS221LHY0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216381300 216381300 **NLA** COVER-DRAIN
216987800 216987800 ADAPTERHARNESS
216335400 216335400 BEARING-HINGE
216468700 216468700 BEZELLOCK
241639501 241639501 BLADE
216658401 216658401 BOLT
297141400 297141400 BRACKETEVAP COVER
216968501 216968501 BRACKETTIMER
297200900 297200900 BREAKER KIT W/CORNE
297200100 297200100 BREAKER KIT W/CORNE
216578800 216578800 BREATHER VALVES
297286810 297286810 CAPACITORRUN
297206600 297206600 CASTERFRONT
297206500 297206500 CASTERREAR
216823500 216823500 CLAMP
297048400 297048400 CLIP
216273000 216273000 CLIP
5303311565 5303311565 CLIP-CABLE
297152201 297152201 CONDENSER
297169900 297169900 CORDPOWER
297014300 297014300 COVER-BLOWER
297070800 297070800 COVER-DRAIN HOSE
297070700 297070700 COVER-WIRING
216659103 216659103 COVEREVAPORATOR
297070201 297070201 DIAL
216377000 216377000 DRAIN TROUGH
216680901 216680901 DUCTAIR
216361100 216361100 GASKETCOVER EVAP

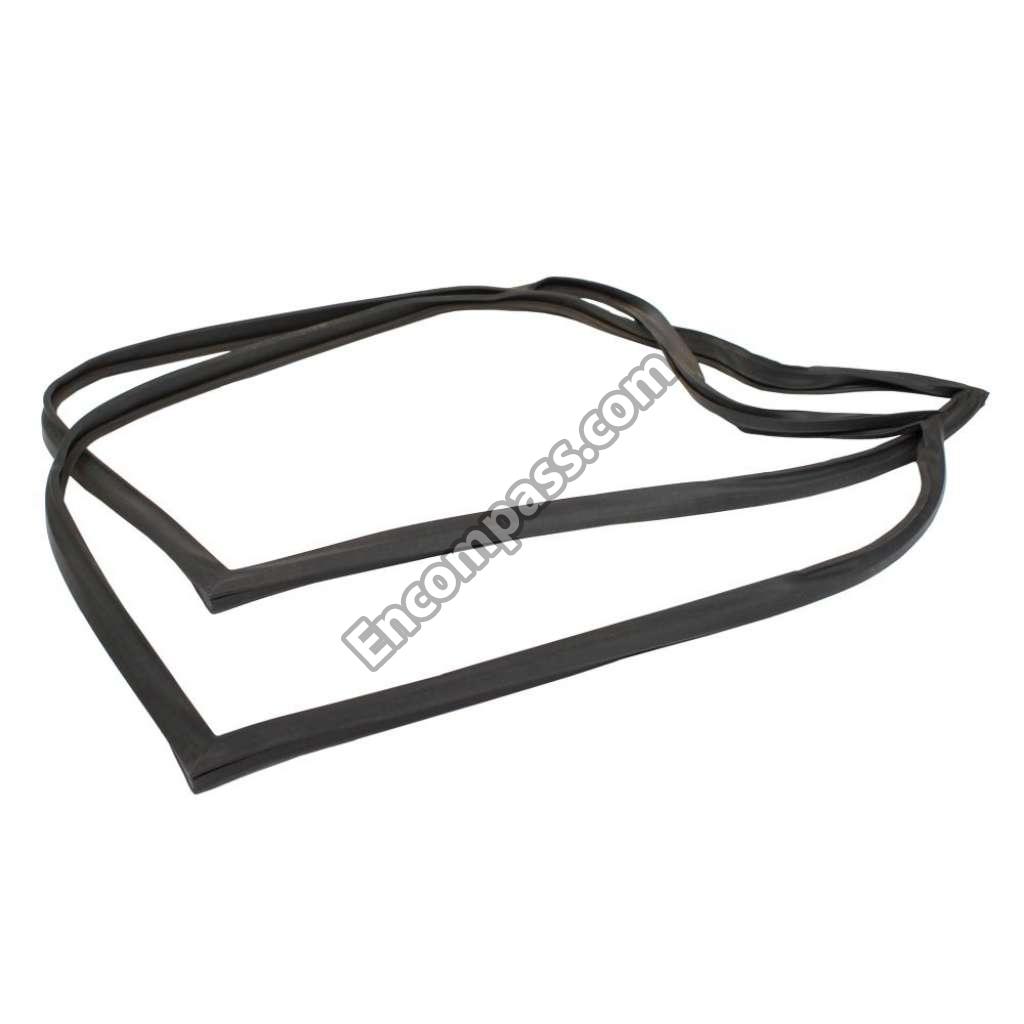

216522318 216522318 GASKETDOOR
216383700 216383700 GASKETEVAP COVER
216383800 216383800 GASKETEVAP COVER
216383602 216383602 GRATEAIR INTAKE
240405201 240405201 GROMMET
216225700 216225700 GROMMETSPACER
297207900 297207900 GUARD
297141900 297141900 HANDLE
297069300 297069300 HARNESS-ELECTRICAL
297082300 297082300 HARNESS-JUMPER
216730700 216730700 HEATER-DEFROST
297240200 297240200 HINGE
216335600 216335600 HINGEBOTTOM
216361901 216361901 HOSEDRAIN
297211400 297211400 INSTALLATION INSTRU
297001708 297001708 INSULATION
297078800 297078800 INSULATOR-EVAP
297078700 297078700 INSULATOR-EVAP
216362800 216362800 KEY
297090800 297090800 LABEL

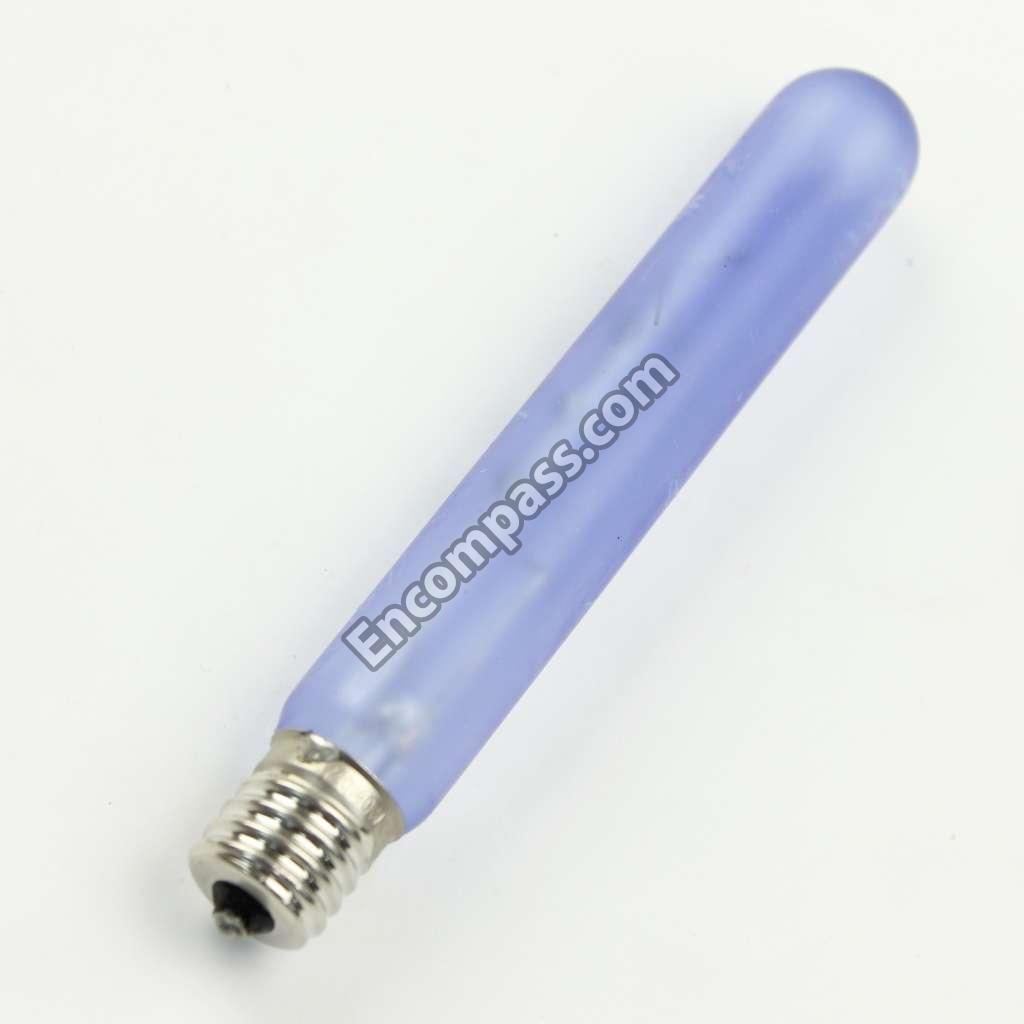

216518101 216518101 LIGHT BULB/LAMP
216362700 216362700 LOCK ASSEMBLY
297222500 297222500 LOCKCATCH
216658601 216658601 NUT
240537301 240537301 NUT-ANCHOR
216100126 216100126 OVERLOAD PROTECTOR
297165801 297165801 PANDRAIN
297071000 297071000 PANEL-INNER DOOR
297255302 297255302 PANELOUTER DOOR
216335700 216335700 PLATEHINGE
215774920 215774920 PLUG BUTTON
216403701 216403701 PLUGBUTTON
216423000 216423000 RETAINERLOCK

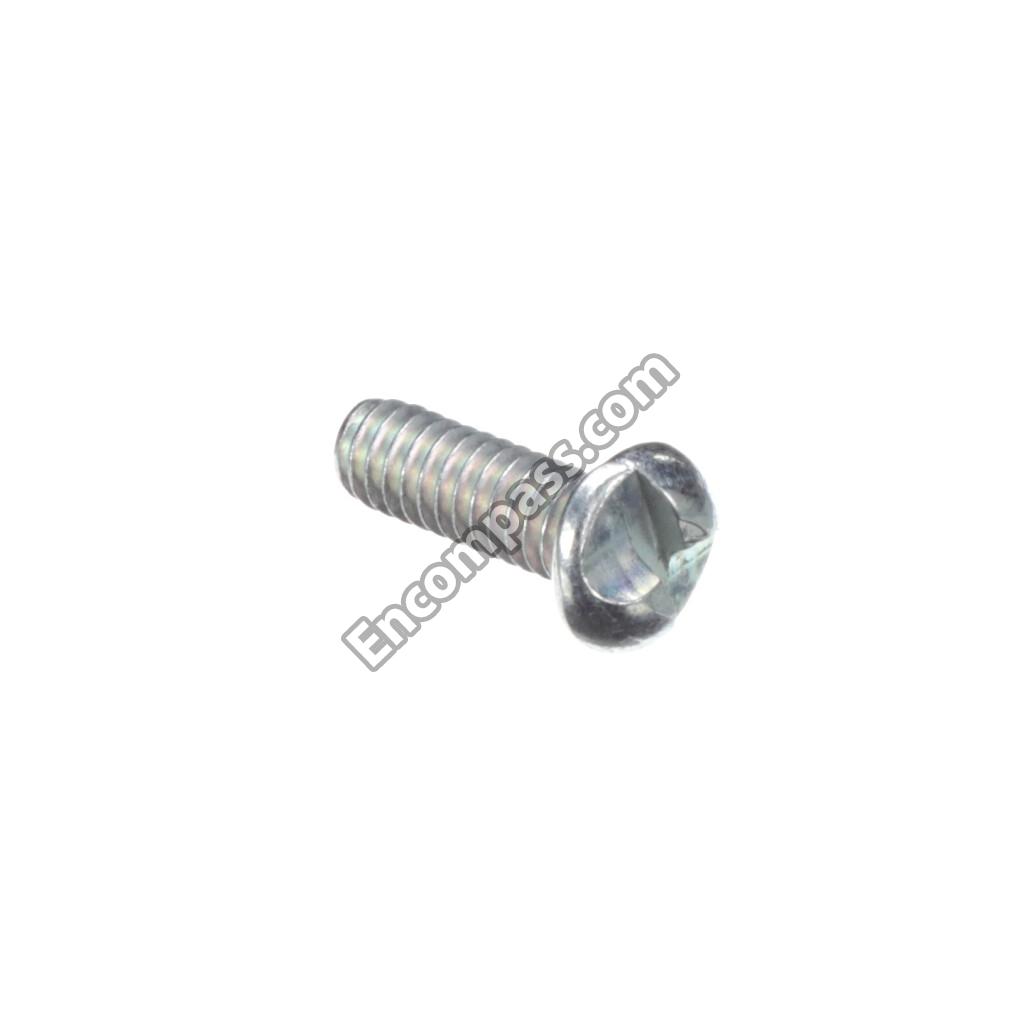

297174300 297174300 SCREW
08016582 08016582 SCREW
297096100 297096100 SCREW
5304460604 5304460604 SCREW
216395801 216395801 SCREW
216605500 216605500 SCREW
216912401 216912401 SCREW
216337701 216337701 SCREW
216036601 216036601 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
216393301 216393301 SCREWLOCK CATCH
216423501 216423501 SCREWRETAINER
216384002 216384002 SHELFFULL FRAME
216386202 216386202 SHELFPARTIAL
297122000 297122000 SHELFSTANDARD
297164000 297164000 SHROUDFAN ORFICE
297111000 297111000 STANDOFF
216894200 216894200 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
297121900 297121900 SUPPORT SHELF
297216600 297216600 THERMOSTAT
241611305 241611305 TRIMCABINET CORNER
216331802 216331802 TRIVET
5303916855 5303916855 TUBE
5309950074 5309950074 VALVE
297014200 297014200 VENTURI
216212600 216212600 WASHER
