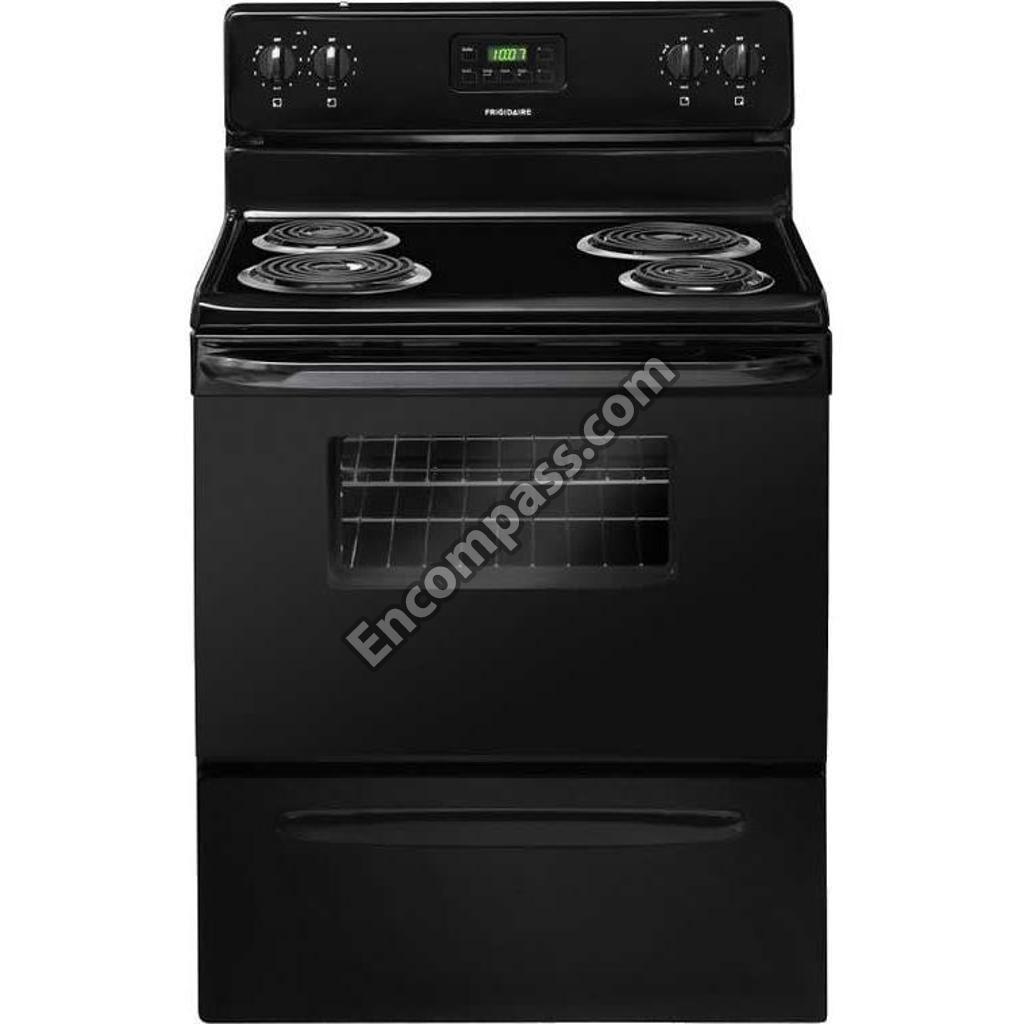

Model Image
Manufacturer

Electrolux

Model Number

LFEF3011LBD

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316201300 316201300 Electrolux BACK
316081200 316081200 Electrolux BRACKET
316441600 316441600 Electrolux BRACKET-CLOCK MTG
316286300 316286300 Electrolux BRACKETBODYSIDE
316408000 316408000 Electrolux CLIP
316283600 316283600 Electrolux COVER
316233500 316233500 Electrolux COVER
316233400 316233400 Electrolux COVER
316408703 316408703 Electrolux DRAWER
316075104 316075104 Electrolux ELEMENT
316458300 316458300 Electrolux GLASS
316088600 316088600 Electrolux GLASS
316407400 316407400 Electrolux GLIDE
316407301 316407301 Electrolux GLIDE
316580400 316580400 Electrolux HARNESS
316580000 316580000 Electrolux HARNESS
316566202 316566202 Electrolux HINGE
316436600 316436600 Electrolux HINGE BRACKET
316566203 316566203 Electrolux HINGEOVN DOOR LH G
316082000 316082000 Electrolux INSERT
316236802 316236802 Electrolux INSULATION
316047707 316047707 Electrolux INSULATION
316054202 316054202 Electrolux INSULATION
316543801 316543801 Electrolux KNOB
316433600 316433600 Electrolux LABEL
316498900 316498900 Electrolux LEVELLING LEG ASSEMBLY
316022500 316022500 Electrolux LIGHT/LAMP
316230628 316230628 Electrolux LINER
316284800 316284800 Electrolux LINER
316202387 316202387 Electrolux MAIN TOP
5303017715 5303017715 Electrolux MEDALLION
316205500 316205500 Electrolux NUT
316455400 316455400 Electrolux OVEN CONTROL BOARD
316220725 316220725 Electrolux OVERLAY
316081900 316081900 Electrolux PAN
316202706 316202706 Electrolux PANEL
316231306 316231306 Electrolux PANEL
316495903 316495903 Electrolux PANEL
316541622 316541622 Electrolux PANELBKGD
318067075 318067075 Electrolux PANSURFACE ELEMENT
316542600 316542600 Electrolux PLATE
316444100 316444100 Electrolux PLATEWEIGHT
316210800 316210800 Electrolux PLUG
316256200 316256200 Electrolux PLUG
316067902 316067902 Electrolux RACK
316116400 316116400 Electrolux RECEPTACLE
5303272476 5303272476 Electrolux RETAINER
316057601 316057601 Electrolux ROD
316433302 316433302 Electrolux SCREW
5303271648 5303271648 Electrolux SCREW
316116000 316116000 Electrolux SCREW
316272900 316272900 Electrolux SCREW
316418901 316418901 Electrolux SCREW
316021108 316021108 Electrolux SCREW
316021110 316021110 Electrolux SCREW
316021105 316021105 Electrolux SCREW
316089500 316089500 Electrolux SCREW
5308014215 5308014215 Electrolux SCREW
316245600 316245600 Electrolux SEAL
316239700 316239700 Electrolux SEAL
316222709 316222709 Electrolux SHIELD
316283200 316283200 Electrolux SHIELD
316547400 316547400 Electrolux SHIELD
316281800 316281800 Electrolux SHIELD
316234013 316234013 Electrolux SHIELD
316284101 316284101 Electrolux SPACER
316203400 316203400 Electrolux SUPPORT
316206300 316206300 Electrolux SUPPORT
316411405 316411405 Electrolux SUPPORT
316411404 316411404 Electrolux SUPPORT
316436000 316436000 Electrolux SWITCH
316448700 316448700 Electrolux SWITCH
316436001 316436001 Electrolux SWITCH FOR RANGE/STOVE
5303935271 5303935271 Electrolux TERMINAL BLOCK KIT
316073605 316073605 Electrolux TUBE
3131737 3131737 Electrolux WASHER-HINGE
