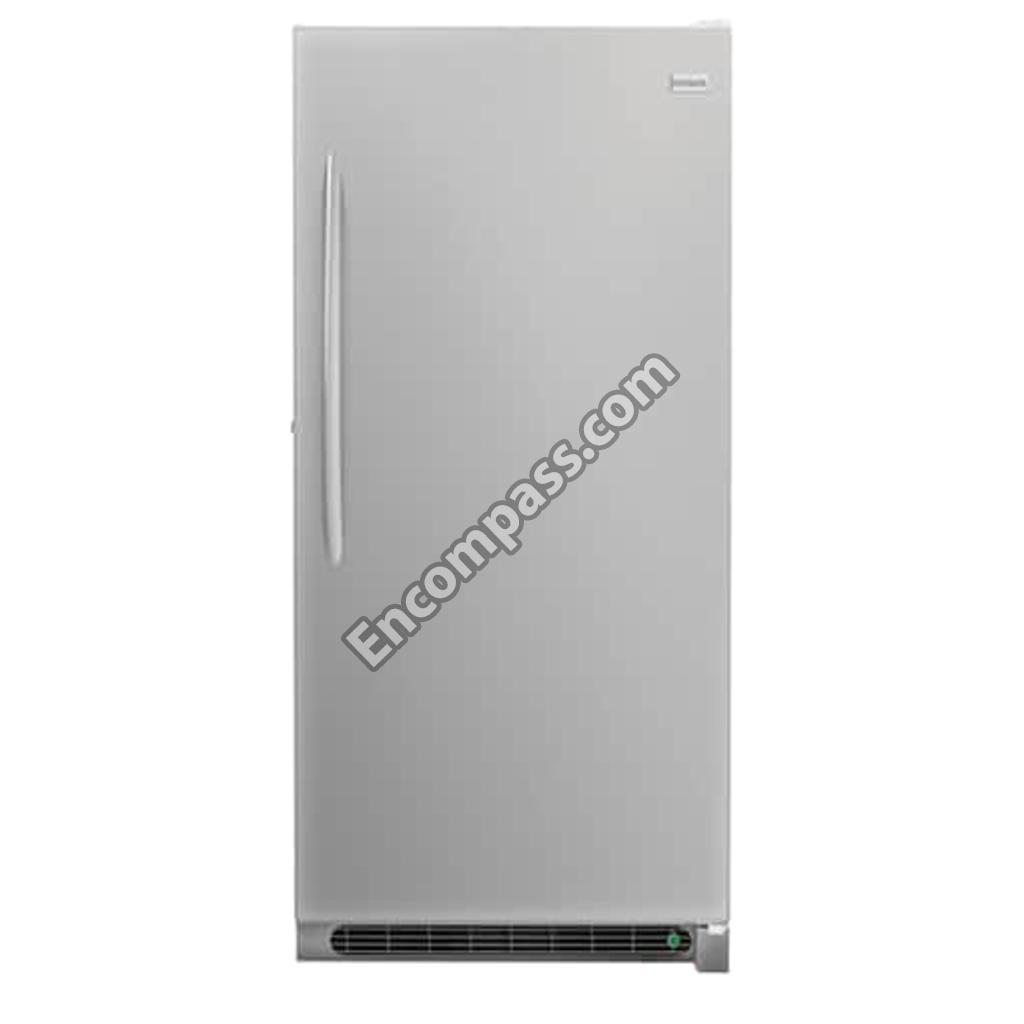

Model Image
Manufacturer

Electrolux

Model Number

LFFH20F3QM0

Description

Freezer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304493991 5304493991 BASKET
5304494076 5304494076 BASKET,LOWER
216970802 216970802 BEARING,HINGE,BLACK,TOP
216394050 216394050 BRACKET
297164651 297164651 BRACKET
297164650 297164650 BRACKET
297435605 297435605 BREAKER
297403902 297403902 BREAKER,BOTTOM
297403901 297403901 BREAKER,TOP
297435604 297435604 BREAKER,U21,W/LOCK
297286803 297286803 CAPACITORRUN
216823500 216823500 CLAMP
216954300 216954300 CLIP
297213300 297213300 CLIP
5304406520 5304406520 CLIP
5303313703 5303313703 CLIP
297315800 297315800 CLIP
5304472186 5304472186 CLIP
5304494016 5304494016 CLIP,BASKET HANDLE,GREEN
5304494017 5304494017 CLIP,BASKET HANDLE,YELLOW
297416000 297416000 CLOSER,BEARING HINGE
297368500 297368500 COMP BOLT UPRIGHTS
297414054 297414054 COMPRESSOR
5300083897 5300083897 CONDENSER
297259502 297259502 CONTROLLER
297366804 297366804 CORD
216967201 216967201 COVER
297099250 297099250 COVER-EVAPORATOR
297164406 297164406 COVER-HINGE

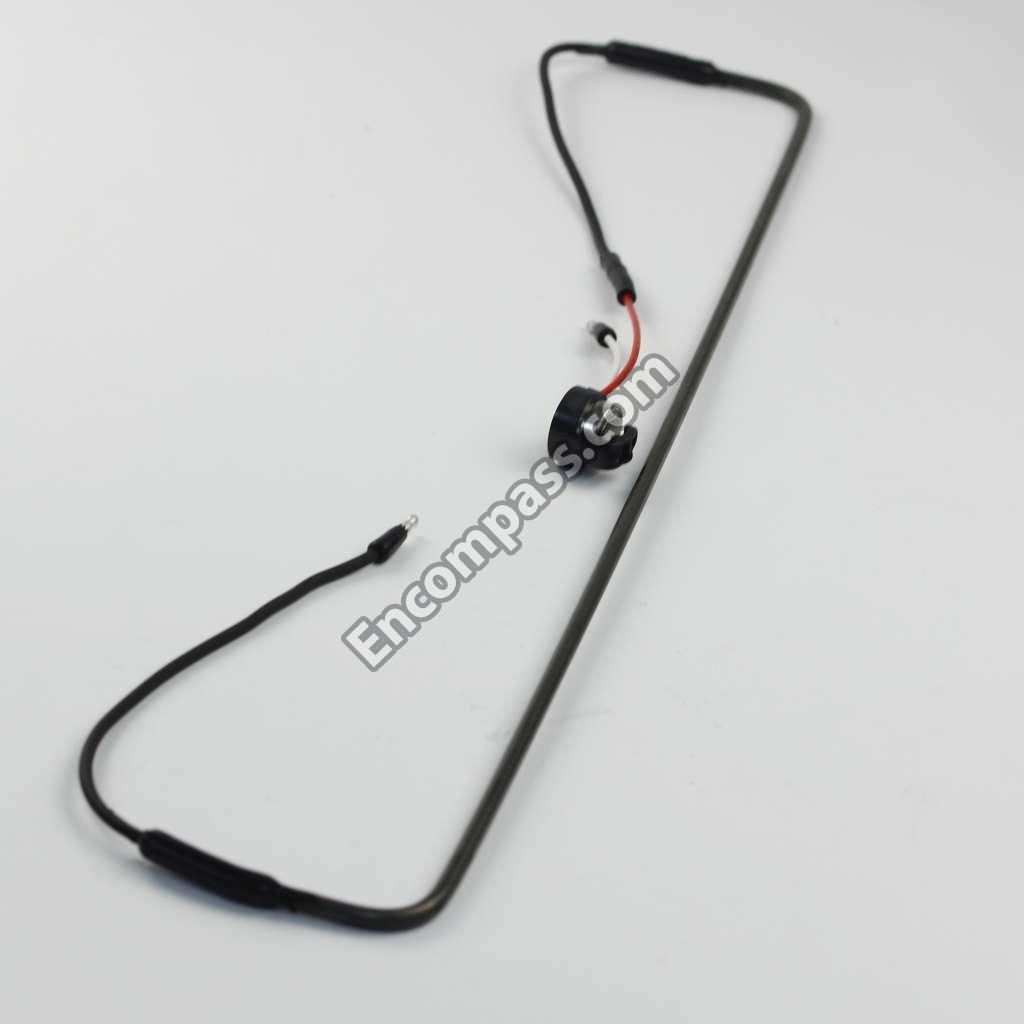

5304496284 5304496284 DEFROST HEATER
297318010 297318010 DEFROST TIMER
297416200 297416200 DOOR STOP
297382000 297382000 DRAIN
297414900 297414900 EVAPORATOR
297437300 297437300 FAN BLADE
216522380 216522380 GASKET,GRAY
297387100 297387100 GASKET,SECONDARY
216204902 216204902 GASKETEVAP COVER
5304496283 5304496283 GROMMET,SHELF MTG
216502400 216502400 GROMMET-SHELF MTG
297422031 297422031 HANDLE ASMY,SILVER MIST
297407700 297407700 HANDLE INSTALLATION
808408301 808408301 HANDLE-BASKET, FREEZER BLUE
5304498579 5304498579 HARNESS,MAIN
297217900 297217900 HEAT EXCHANGER
297283800 297283800 HINGE-UPPER
297001704 297001704 INSULATION
297078801 297078801 INSULATOREVAP
297078701 297078701 INSULATOREVAP
297147700 297147700 KEY
216707200 216707200 KNOB
5304495394 5304495394 LIGHT SIGNAL,ROUND,GREEN
5304495326 5304495326 LIGHT,LED
297318600 297318600 LOCK ASSEMBLY
297250000 297250000 MOTOR
297434600 297434600 NAMEPLATE,FRIGIDAIRE
240537301 240537301 NUT-ANCHOR
297382900 297382900 PANEL-OUTER
297438300 297438300 PIN
297014702 297014702 PLUGSUCTION LINE
5304494023 5304494023 RACK,DOOR
297415900 297415900 RAMP,DOOR CLOSER
216503100 216503100 SCREENDRAIN
216337701 216337701 SCREW
216036601 216036601 SCREW
216912401 216912401 SCREW
297197500 297197500 SCREW
297236250 297236250 SCREW
297410600 297410600 SCREW
5304460604 5304460604 SCREW
297146820 297146820 SCREW
5304460601 5304460601 SCREW
297174300 297174300 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
297295900 297295900 SCREWSET
297441905 297441905 SHELF,16.69 X 23.88,WIRE
297441902 297441902 SHELF,16.69 X 23.88,WIRE
297184400 297184400 SHIELDLIGHT
297139501 297139501 SOCKET
297102800 297102800 SPACER-TUBE
216486500 216486500 STOP-BASKET
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
216822901 216822901 SWITCH
297273903 297273903 TRIMCABINET CORNER
5303916855 5303916855 TUBE
297280403 297280403 VALVE
