Manufacturer
Electrolux
Model Number
LFGH3054UFE
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANTI TIP KIT, ASSY, W/TEMPLATE |
|
|
BACK, MAIN |
|
|
BAFFLE, BROILER |
|
|
BAFFLE, OVEN BURNER |
|
|
BRACE, OVEN TOP |
|
|
BRACKET, GLASS SUPPORT, (4) |
|
|
BRACKET, MOUNTING, LH, COOKTOP |
|
|
BRACKET, MOUNTING, RH, COOKTOP |
|
|
BRACKET, REGULATOR |
|
|
BRACKET, SUPPORT, BODY SIDE, (2) |
|
|
BRACKET, SUPPORT, REAR, CHASSIS |
|
|
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY |
|
|
BUMPER, FRONT, MAIN |
|
|
BURNER, BROILER |
|
|

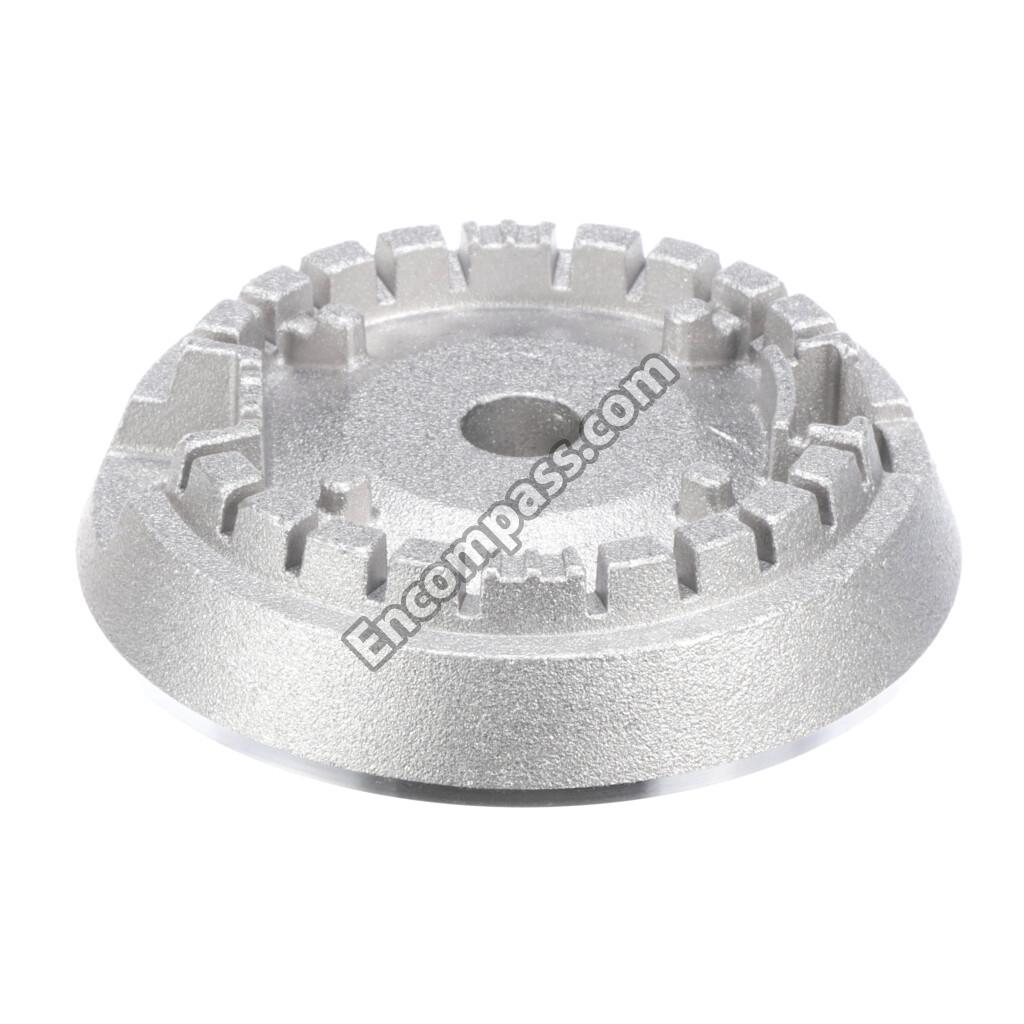

BURNER, CROWN, LARGE, AFT |
|
|
BURNER, CROWN, MEDIUM, AFT |
|
|
BURNER, CROWN, SMALL, AFT |
|
|
BURNER, OVEN |
|
|
BUSHING, INSULATING |
|
|
CAP, BURNER, LARGE, BLACK |
|
|
CAP, BURNER, MEDIUM, BLACK |
|
|
CAP, BURNER, SMALL, BLACK |
|
|
CLIP, BODYSIDE |
|
|
CLIP, WIRE |
|
|
CONTROL PANEL, STAINLESS |
|
|
CONTROLLER, ELECTRONIC, OVEN, ES330 |
|
|
CORD, POWER, BLACK, 13A |
|
|
COVER, BROIL IGNITOR |
|
|
DEFLECTOR, MOISTURE, (2) |
|
|
DRAWER, UTILITY |
|
|
DUCT ASSEMBLY, COOLING, TOGGLE LOCK |
|
|
DUCT, EXTERIOR |
|
|
DUCT, INLET AIR, FRONT |
|
|
DUCT, INLET AIR, REAR |
|
|
ELBOW, MIXER |
|
|
FAN ASSEMBLY, COOLING |
|
|
FLUEBOX, ASSEMBLY |
|
|
GASKET-FLUE |
|
|
GLASS, OVEN DOOR, BLACK, W/FOIL |
|
|
GLASS, OVEN DOOR, INNER |
|
|
GLIDE, DRAWER, BLACK, LH INNER |
|
|
GLIDE, DRAWER, BLACK, LH OUTER |
|
|
GLIDE, DRAWER, BLACK, RH INNER |
|
|
GLIDE, DRAWER, BLACK, RH OUTER |
|
|
GRATE, BURNER, BLACK, CENTER |
|
|
GRATE, BURNER, BLACK, SIDE, (2) |
|
|
HANDLE, DOOR, STAINLESS, 39 |
|
|
HARNESS, IGNITION |
|
|
HARNESS, WIRING, MAIN |
|
|
HINGE, OVEN DOOR, RED |
|
|
IGNITOR, BAKE |
|
|
IGNITOR, BROILER |
|
|
IGNITOR/ORIFICE ASSEMBLY, 12K, LEFT FRONT, ASSEMBLY |
|
|
IGNITOR/ORIFICE ASSEMBLY, 9.5K, LEFT REAR, ASSEMBLY |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9.5K, W/HOLDER, TUBE |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, RH FRONT, 17K, W/HOLDER, TUBE |
|
|
IGNITOR/ORIFICE ASSY., TOP BURNER, RH REAR, 5K, W/HOLDER, TUBE |
|
|
INSULATION, MAIN FRONT |
|
|
INSULATION, OVEN BACK |
|
|
INSULATION, OVEN DOOR |
|
|
INSULATION, OVEN WRAPPER |
|
|

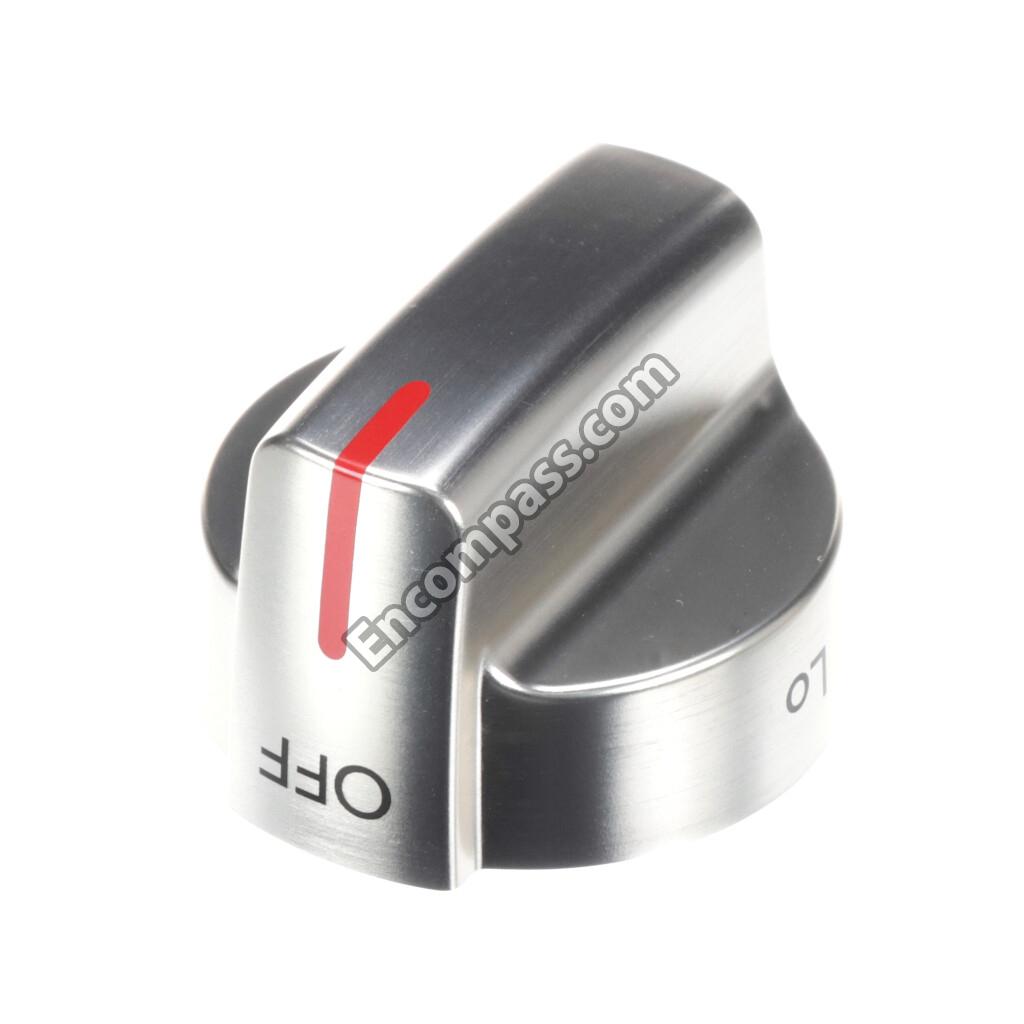

KNOB, TOP VALVE, STAINLESS |
|
|
LABEL, ANTI-TIP |
|
|
LAMP, OVEN LIGHT |
|
|
LATCH ASSEMBLY, OVEN DOOR |
|
|
LENS, OVEN LIGHT, GLASS |
|
|
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET & LEG |
|
|
LINER, DRAWER |
|
|
LINER-OVEN DOOR |
|
|
LP CONVERSION KIT, W/INSTRUCTIONS, OPTIONAL, ACCESSORY |
|
|
MAINTOP, ASSEMBLY, BLACK |
|
|
MANIFOLD, PIPE |
|
|
MOTOR, LATCH |
|
|
NUT, HEX HEAD SEMS |
|
|
NUT, LOCK, M4 X .70, THERMOSTAT |
|
|
OVERLAY, EOC, BLACK, ES330 |
|
|
PANEL |
|
|
PANEL, BODYSIDE, BLACK, LH |
|
|
PANEL, BODYSIDE, BLACK, RH |
|
|
PANEL, OVEN BOTTOM |
|
|
PANEL, STAINLESS |
|
|
PLATE, POWER CORD, MOUNT |
|
|
PLATE, TCO MOUNTING |
|
|
PROBE, OVEN TEMP |
|
|
RACK, OVEN |
|
|
REAR FILLER KIT, FCFS RANGE, BLACK |
|
|
RECEPTACLE, HINGE |
|
|
RECEPTACLE, OVEN LIGHT, 24 # |
|
|
REGULATOR, PRESSURE |
|
|
RETAINER, LENS |
|
|
ROD, AUTO LATCH |
|
|
SCREW, 10-16 X .486 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, 8-18 X 11/16, BLACK, (3) |
|
|
SCREW, BRACKET, STIFFENER, (4) |
|
|
SCREW, BURNER, HEAD MTG, (8) |
|
|
SCREW, CONCRETE, 1.75", ANTI-TIP BRKT |
|
|
SCREW, GROUNDING, 10-24 X 1.835, GREEN |
|
|
SCREW, HEX HD, #8-18 X 5/8 |
|
|
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK |
|
|
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULATOR BRKT |
|
|
SCREW, LEVELING, PLASTIC, REAR, (2) |
|
|
SCREW, LOCTITE, #10-24X1.94, (2) |
|
|
SCREW, PAN HEAD, 8-18AB X 0.375 |
|
|
SCREW, SIMS LP, #8-32 X 5/16", BLACK |
|
|
SCREW, TRILOBE, 10-32 X 5/16", BLACK |
|
|
SCREW, VALVE MTG., 1/4 - 20 |
|
|
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* |
|
|
SCREW,W/WASHER ,8-18 |
|
|
SCREW-SHOULDER, W/SHOULDER, #8-18 X 1/2" |
|
|
SEAL, MAINTOP, SILICONE, REAR |
|
|
SEAL, OVEN DOOR |
|
|
SHIELD, BAKE BURNER |
|
|
SHIELD, BURNER, FRONT |
|
|
SHIELD, FLUEBOX |
|
|
SHIELD, HEAT, BODYSIDE, (2) |
|
|
SHIELD, HEAT, LOWER |
|
|
SHIELD, REAR WALL, UPPER |
|
|
SHIELD, WIRE, REAR |
|
|
SHIELD, WIRE, SAFETY VALVE |
|
|
SHIELD, WOOL |
|
|
SHIELD, WOOL, LOWER |
|
|
SHIELD-FILLER DOOR SS, 53 |
|
|
SPACER, DOOR HANDLE, (2) |
|
|
SPACER, GLASS |
|
|
SPACER, WIRE SHIELD, (2) |
|
|
SPARK MODULE |
|
|
SWITCH, OVEN LIGHT, DOOR FRAME |
|
|
THERMOSTAT, SAFETY, 105C |
|
|
THERMOSTAT, THERMAL CUT-OFF, 110, AUTO RESET |
|
|
TRIM, VENT, BLACK, REAR |
|
|
TUBE, MANIFOLD SUPPLY |
|
|
TUBE, SAFETY VALVE |
|
|
TUBE, SAFETY VALVE, TO MIXER |
|
|
VALVE, SAFETY |
|
|
VALVE, TOP BURNER, BLACK STEM, 500BTU |
|
|
VALVE, TOP BURNER, BLUE STEM, 1125BTU |
|
|
VALVE, TOP BURNER, GREEN STEM, 850BTU |
|
|
VALVE, TOP BURNER, RED STEM, 1800BTU |
